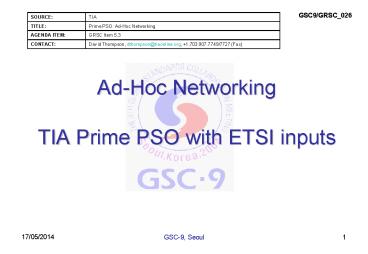

Ad-Hoc Networking TIA Prime PSO with ETSI inputs

1
Ad-Hoc NetworkingTIA Prime PSO with ETSI inputs
GSC9/GRSC_026
SOURCE TIA
TITLE Prime PSO Ad-Hoc Networking
AGENDA ITEM GRSC Item 5.3
CONTACT David Thompson, dthompson_at_tiaonline.org, 1.703.907.7749/7727 (Fax)
1
GSC-9, Seoul
2
Overview of Ad Hoc Networks
3
Initial Architectures
- Low power sensors networks surveillance
web - small, relatively static, embedded ad hoc
networks bluetooth-type networks -
Small-to-medium sized, mobile ad hoc
networks 802.11-style
4
Terminlology
Mobile Ad Hoc Networking Mobile, Multi-hop,
Wireless Networking Mobile Mesh Networking
Mobile Packet Networking
5
Hybrid Communication Networks
Satellite overlay
High-speed backbone network
MANET
No fixed infrastructure
Fixed/static infrastructure
6
Properties of Ad Hoc Networks

• Allows devices to establish communication,
  anytime and anywhere without the aid of a central
  infrastructure.
• Autonomous, self-organizing terminals
• Unknown number of terminals, may vary
• Topology unknown in advance, may vary
• Distributed routing
• Every terminal is a router
• Information needed for routing is learned
  adaptively
• Distributed network control
• Admission, security
• Flow control
• Quality of service

Mobile Ad Hoc Networks (MANETs)
Fixed Ad Hoc Networks (e.g., Mesh)
MOBILITY
7
Mesh Networks

• Fixed or low-mobility wireless ad hoc networks
• Emphasis on self-configuration in a variety of
  situations, including failure of components
• Emphasis on adaptive, distributed network
  management

IEEE 802.11 ESS Mesh
Example Proposed extension to IEEE 802.11 to
specify means for a wireless ad hoc formation of
a backbone network of access points (APs) to form
an ESS
802.11 ESS (Extended service set)
802.11 BSS (Basic service set)
8
Mobile Ad Hoc Networks

• High mobility
• Communication over
• wireless radio links
• Emphasis on rapid deployment of autonomous mobile
  users
• Decentralized structure
• Dynamic topology
• Stand-alone or connected to larger network via
  gateway
• Nodes in network can serve as routers and hosts
• Can forward packets on behalf of other nodes and
  run user apps.
• Contends with effects of radio communication
  interference or congestion
• Applicable to PPDR, military, commercial
  enterprise, etc.
• i.e., MANETs

9
Smart Sensor Ad Hoc Networks

• Sensors spread across a geographical area
• Large number of (mostly stationary) sensors
• Low energy use
• Network self-organization
• Collaborative signal processing
• Querying ability
• Each sensor has wireless communication capability
  and sufficient intelligence for signal processing
  and networking of the data
• Node classifications Individually addressable,
  and whether the data in the network is aggregated

• Military, environmental, traffic, surveillance
• Can assist in the national efforts to increase
  alertness to potential terrorist threats.

10
Network Architecture of Wireless Ad Hoc Networks

• Peer-to-peer flat architecture, though may
  organize into clusters for network management
  purposes
• Adaptable to varying topology and traffic
  conditions
• Robust Degrades gracefully in face of node /
  link failures and local congestion
• Efficient (bandwidth, power consumption, user
  capacity) through multihop communications
  spatial reuse
• Possibility of QoS provision
• Scalable

11
Mobile Ad Hoc Networking (MANET)

• Dynamic topologies
• Bandwidth-constrained
• Asymmetric links with variable capacity
• Energy constrained
• Multiple technologies can be used simultaneously


12
MANET Routing Algorithm Criteria

• Dynamic routing algorithms Must adapt to
• Entering/departing nodes
• Changes in link quality and terrain
• Traffic patterns and interference
• Rate of topological change
• Fast run time compared to rate of topology change
• Low overhead and storage requirements
• High throughput and low packet delay time
• Preserve network requirements (e.g., security)
• Efficient use of power

13
MANET Routing Protocols(Present or past IETF
drafts, some inactive)

• Dynamic Source Routing (DSR)
• Ad Hoc On-Demand Distance Vector (AODV)
• Optimized Link State Routing (OLSR)
• Topology Broadcast based on Reverse-Path
  Forwarding (TBRPF)
• Zone Routing Protocol (ZRP)
• Temporally-Ordered Routing Algorithm (TORA)
• Landmark Routing Protocol (LANMAR) for Large
  Scale Ad Hoc Networks
• Fisheye State Routing Protocol (FSR) for Ad Hoc
  Networks

14
IETF MANET standardization

• MANET - established in 1997 chartered working
  group within Internet Engineering Task Force
  (IETF)
• Focussed on studying routing specification with
  the goal of supporting network scaling up to
  hundreds of routers
• Unicast routing protocol
• Multicast routing protocol
• Work on routing for large and small scale
  networks
• Work relies on the existing IETF standards such
  as mobile-IP and IP addressing
• For large-scale MANET the lack of interest has
  put this work in question
• Flooding work on requirements had started

15
Comment on IETF MANET work

• Early approval constraints due to the
  accumulation of variant ad hoc routing protocols
  and the need to identify a killer application.
• Research now assigned to IRTF (research component
  of IETF), and the IETF group is working toward
  implementable unicast and multicast protocols in
  the near term.

16
Ad Hoc Routing Protocol Example 1 the DSR
Protocol

• Data packets have source routes stored in their
  headers. Each node on the path transmits the
  packet to the next hop identified in the source
  route.
• Each node maintains a Route Cache to store the
  source routes it has learned. When a node needs
  to send a data packet, it first checks its route
  cache for a route to the destination. If no
  route is found, it attempts to find one using the
  route discovery mechanism.
• A monitoring mechanism, called route maintenance,
  is used in each operation along a route. This
  mechanism checks the validity of each route used.

17
Ad Hoc Routing Protocol Example 2 the AODV
Routing Protocol

• Each node maintains a table of hop distances and
  next-nodes for different destinations.
• Routes are built on demand using a route request
  (RREQ)/ route reply (RREP) query cycle.
• Once the source stops sending data packets, the
  links will time out and eventually be deleted
  from the intermediate node routing tables.
• If a link breaks while the route is active, the
  node upstream of the break propagates a route
  error (RERR) message to the source node to inform
  it of the now unreachable destination(s).

18
Example NIST/WCTG MANET Work

• Analysis
• Development of network performance measures,
  standard evaluation scenarios, analysis of
  multihop network properties and performance
• Simulation
• OPNET simulation/evaluation of multihop routing
  protocols, cost-adaptive mechanisms for
  choosing paths
• Embedded Implementation
• Development of Linux kernel implementation of
  AODV
• Development and testing of communication and
  localization system prototype based on ad hoc
  networking
• URL http//w3.antd.nist.gov/wctg/manet/

19
NIST Distributed Testbed for First Responders

• Hardware
• Compaq iPAQs running Linux, dual PCMCIA card
  backpack with battery, 802.11b cards, full-duplex
  audio.
• Capabilities
• Multihop packetized voice broadcast, multicast,
  unicast group IDs, etc. Packets include
  terminal sensor data.
• Indoor localization 1 to 3 m using signal
  strengths display of terminal locations.
• External communication Interface to external
  networks using Session Initiation Protocol.

20
Emerging Applications of Ad Hoc Networking

• Mesh applications may be becoming popular
  alternatives to building new wired infrastructure
• Commercial/personal ad hoc networking
  capabilities
• Including Peer-to-peer
• Emerging sensor networks
• Ad hoc principles are proposed to enable multihop
  extensions of WLAN/RLAN structures
• Complete solutions are needed before the special
  features of ad hoc networking may be considered
  advantageous
• i.e., network management, distributed database,
  VoIP, capacity for multimedia, etc.these
  solutions are emerging as different types of
  wireless systems converge
• IEEE, ITU-R and other standards bodies have
  existing and initiated evolutions to existing
  standards that may be beneficial to ad hoc
  networking applications (including security,
  RLAN, etc.)
• Other standards activity
• Project MESA (part of proposed PPDR capabilities)

21
Ad Hoc Network Applicability

Scale

Small scale Large
scale Network type (few nodes)
(many nodes) Commercial
home/office personal
mobile cellular like
industrial local
networks Government specific
Public Safety
Large-scale military

network Community/urban covert
networks local
communications networks
22
Ad Hoc Networking

• Lack of specific network layer standards for Ad
  Hoc networking.
• Note the term "ad hoc" can also be used in a more
  general sense, applying to networking modes
  involving Bluetooth-like abilities and other
  WPANs as well as use of 802.11 as the radio
  protocol.
• Need for GSC/GRSC Resolution?
• Clarify and focus subject

23
Open issues

• A optimisation network layer and radio layers for
  different systems (incl. 802.11, HiperLAN)
• B QoS support
• C secuirity
• D mobility
• B, C, D issues could be orthogonal, joint
  optimization is very difficult (system design
  choice)
• tradeoff between centralized and distributed
  algorithms for B,C,D

24
Relevant ETSI activities

• MESA Project - ad hoc network on future Public
  Safety communications
• BRAN - HiperLAN-2, other
• 3GPP - UTRA TDD
• Standardization challenges gt
• There is need for standard-based approach at
  the network layer.

25
Ad Hoc Networking

• Thank You!
