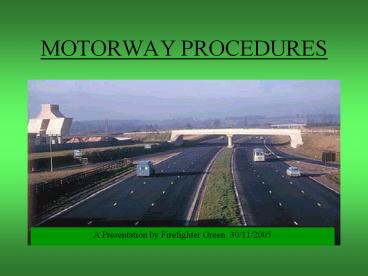

MOTORWAY PROCEDURES

1
MOTORWAY PROCEDURES
A Presentation by Firefighter Green 30/11/2005
2
AIMS

• CURRENT HISTORY/ BACKGROUND.
• GENERAL LOCATION/ OVERVIEW.
• OPERATIONAL CONSIDERATIONS.

3
BACKGROUND

• Motorway n Brit, Austral, NZ a dual
  carriageway for fast moving traffic, with no
  stopping permitted and no cross roads.

4
BACKGROUND

• Motorways generally consist of a multi-lane
  carriageway in each direction being separated by
  a central reservation.
• On the nearside of each carriageway runs a hard
  shoulder, which is used for vehicles that
  require to stop for emergency/ breakdown reasons.

5
BACKGROUND

• Emergency crossings
• U turns are strictly prohibited on motorways.
  Emergency crossings will only be used at a major
  incident where the traffic is stopped in both
  directions and the Police are present to control
  the crossing.

6
BACKGROUND

• Communications
• Emergency telephones _at_ 1.5 kilometre intervals.
• Sited in pairs, opposite each other on each side
  of carriage way.
• they should all have identity numbers, these can
  be used to report location of the incident.

7
BACKGROUND

• The Home Counties of Bedfordshire,
  Buckinghamshire, Essex and Hertfordshire could be
  described broadly as traditionally prosperous.
  They combine a wide range of industrial and
  commercial activity with their function as homes
  for commuting to the magnet of London.
  Nevertheless, they have a predominantly rural
  appearance, with 38 per cent of the area in Green
  Belt.

8
(No Transcript)
9
ATTENDANCE OF APPLIANCE

• Initial attendance to an incident on a motorway
  will be TWO pumping appliances.
• ONE pump deployed to each carriage way. (one of
  which will be a rescue pump, when called to an
  R.T.A

10
ATTENDANCE OF APPLIANCE

• R.T.A ( one pump must be a rescue pump)
• ONE pump to the affected carriage way.
• ONE pump to the cover lane.
• ONE officer (STN O/ ADO).
• Inform divisional officer.

11
OPERATIONAL CONSIDERATIONS
12
INCIDENTS ON MOTORWAYS

• The following information should be ascertained
  if possible to determine location of incident.
• Carriageway or number of road involved.
• Number of nearest marker post and/ or emergency
  telephone, on motorway.
• Nearest access point.

13
APPROACHING THE INCIDENT

• The approach by appliances arriving at the
  incident should be slow and controlled for the
  following reasons
• Weather conditions and visibility.
• Road conditions.
• Obstacles and debris.
• Casualties wandering around in a dazed state.
• Build up of traffic due to the accident.
• If appropriate, to drop off a crew member to
  place signage.

14
SIGNAGE

• The police are normally in attendance. They
  should have placed the accident signs and cones
  in the appropriate positions.
• However if the fire brigade arrives first, the
  continued safety of crews and protection of the
  incident is vital.

15
SIGNAGE

• By arrangement with chief constables, many
  brigades carry POLICE ACCIDENT signs.
• It should ideally be placed 900 METRES before the
  incident. Usually this is not feasible due to
  lack of manpower so the recommended minimum
  distance is 400 METRES.

16
SAFETY CONSIDERATIONS

• appropriate protective clothing is worn, e.g.
  Hi- viz clothing, surgical gloves, etc.
• the crew to dismount on the safe side- away
  from traffic.
• Crew members to adopt the correct coning
  procedure.
• Everyone stays within the cones and avoids other
  lanes.

17
POSITIONING OF APPLIANCES

• The normal position would be 25 METRES before the
  incident at a shallow angle to fend off
  approaching traffic.
• The appliance should remain within the confines
  of the lane affected. This position should give a
  certain degree of protection from other road
  users to personnel and casualties.

18
POSITIONING OF APPLIANCES

• The exact location of the protecting appliances
  should be dictated by the location of the working
  crews to release casualties.
• The hard shoulder should be kept free of vehicles
  where possible both in front and adjacent to the
  accident scene, thus providing a running lane for
  all emergency vehicles.
• If emergency vehicles need to park on the hard
  shoulder they should park well forward of the
  incident.

19
SCENE SAFETY AND CONING OFF PROCEDURES
20
CONING OFF PROCEDURE

• Crew members must adopt the correct coning off
  procedure
• must face oncoming traffic
• Walk back approximately 8 PACES then 1.5 PACES to
  the side to set down the cone.

21
POSITIONING OF APPLIANCES
22
LANE (1) INCIDENT
25 METRES




125 METRES
CENTRAL RESERVATION
HARD SHOULDER
LANE (2)
LANE (3)
LANE (1)
23
LANE(2) INCIDENT
50 METRES
225 METRES
LANE (1)
CENTRAL RESERVATION
HARD SHOULDER
LANE (2)
LANE (3)
24
LANE (2) INCIDENT AND 2- LANE INCIDENT
50 METRES




225 METRES
CENTRAL RESERVATION
HARD SHOULDER
LANE (2)
LANE (3)
LANE (1)
25
LANE(3) INCIDENT
25 METRES
125 METRES
POLICE ACCIDENT
LANE (1)
CENTRAL RESERVATION
HARD SHOULDER
LANE (2)
LANE (3)
26
3- LANE INCIDENT
50 METRES




325 METRES
CENTRAL RESERVATION
HARD SHOULDER
LANE (2)
LANE (3)
LANE (1)
27
3- LANE INCIDENT
25 METRES
50 METRES




325 METRES
CENTRAL RESERVATION
HARD SHOULDER
LANE (2)
LANE (3)
LANE (1)
28
WATER SUPPLIES
29
OPERATIONAL COMMAND FOLDER. (IN THE FRONT CAB.)
30
H
H
H
H
H
H
31
INFORMATION

• OC 31/1 MOTORWAY PROCEDURES
• OPS COMMAND FILE
• PHASE ONE FIREFIGHTER DEVELOPMENT (R.T.A
  HANDBOOK)
• VARIOUS WEBSITES.

32
THE END
33
QUESTIONS
