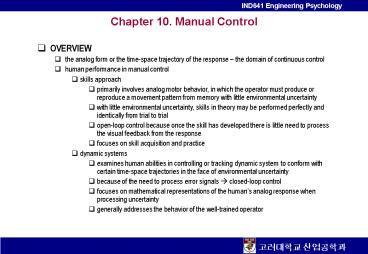

Chapter 10. Manual Control

1
Chapter 10. Manual Control

• OVERVIEW
• the analog form or the time-space trajectory of
  the response the domain of continuous control
• human performance in manual control
• skills approach
• primarily involves analog motor behavior, in
  which the operator must produce or reproduce a
  movement pattern from memory with little
  environmental uncertainty
• with little environmental uncertainty, skills in
  theory may be performed perfectly and identically
  from trial to trial
• open-loop control because once the skill has
  developed there is little need to process the
  visual feedback from the response
• focuses on skill acquisition and practice
• dynamic systems
• examines human abilities in controlling or
  tracking dynamic system to conform with certain
  time-space trajectories in the face of
  environmental uncertainty
• because of the need to process error signals ?
  closed-loop control
• focuses on mathematical representations of the
  humans analog response when processing
  uncertainty
• generally addresses the behavior of the
  well-trained operator

2

• OPEN-LOOP MOTOR SKILLS
• Discrete Movement Time
• Fitts Law
• when movement amplitude (A) and target width (W)
  were varied, their joint effects were summarized
  by a simple equation (Fig 10.1 Fig 10.2)
• speed-accuracy trade-off in movement movement
  time and accuracy reciprocally related
• index of difficulty (ID) of the movement
• higher b indicates less efficient movements, a
  reflects the start-up time for a movement
• Models of Discrete Movement
• typical trajectory or time history as the stylus
  approaches the target (speed-accuracy tradeoff)
• an exponential approach to the target with an
  initial high-velocity approach(initial ballistic)
  followed by a smooth, final, homing phase
  (current control)
• velocity profile ? control is not continuous but
  discrete corrections, acceleration and
  deceleration
• feedback processing assumption (Fig 10.3)
  sample-and-correct process until the target
  boundary is crossed closed loop behavior --
  generally exponential approach
• Motor Schema
• with highly learned skills under minimal
  environmental uncertainty, visual feedback is not
  necessary ? open-loop fashion ? visual feedback
  may be harmful

3

• general characteristics of well-learned motor
  skills
• they may well depend on feedback, but the
  feedback is proprioceptive
• the patterns of desired muscular innervation may
  be stored centrally in LTM and executed as an
  open-loop motor program without visual feedback
  correction or guidance
• motor program and motor schema
• highly overlearned skills that do not depend on
  guidance from visual feedback
• low attention demand, single-response selection,
  and consistency of outcome
• Low Attention Demand
• the motor program tends to be automated
• Single-Response Selection
• single-response selection required to activate or
  load a single motor program even with a number
  of separate, discrete responses ? resources are
  demanded only once, at the point of initiation,
  when the program is selected
• Consistency of Outcome Programs Versus Schemata
• a motor program is assumed to generate very
  consistent space-time trajectories from one
  replication to another ? what is consistent is
  not the process of muscular innervation but the
  product of response ? signature of ones name
  meets the criteria of motor program
• certain characteristics of the time-space
  trajectories remained invariant ? whatever is
  learned and stored in LTM cannot be a specific
  set of muscle commands but must represent a more
  generic or general set of specifications of how
  to reach the desired goal motor schema
• once a schema is selected, the process of loading
  requires the specific instance parameters to be
  specified to meet the immediate goals at hand

4

• TRACKING OF DYNAMIC SYSTEMS
• when describing human operator control of
  physical systems, research moves from the domain
  of perceptual motor skills and motor behavior to
  the more engineering domain of tracking
• this shift in domain from three nonhuman elements
  on the performance
• the dynamics of the system itself
• the input to the operator
• the display
• The Tracking Loop Basic Elements (Fig 10.4)
• control dynamic the relationship between the
  force, f(t), applied and the steering wheel
  movement, u(t)
• system dynamic the relationship between control
  position, u(t) and system response, o(t)
• error sources
• command inputs, ic(t) changes in the target to
  be tracked
• disturbance inputs, id(t) applied directly to
  the system
• input (Fig 10.5) may be transient or continuous
  (predictable, periodic, random)
• display the source of all information necessary
  to implement the corrective response
• pursuit display independent movement of both
  the target and the cursor
• compensatory display only movement of the error
  relative to a fixed 0-error reference
• tracking performance in terms of error

5

• Transfer Functions
• the mathematical relationship between the input
  and the output of a system (Fig 10.6)
• Pure Gain -- (the output)/(the input) -- low-gain
  system sluggish
• Pure Time Delay transmission lag
• delays the input but reproduce it in identical
  form T seconds later
• no effect on gain, nor does gain have any effect
  on time delay
• Experimental Lag
• gradually home in or stabilize on the target
  input
• defined by time constant Ti the time the output
  reach 63 of its final value
• Velocity-Control, Integrator, or First-Order
  System
• constant velocity, time integral of the output
• closely related to exponential lag
• Acceleration-Control, Double-Integrator, or
  Second-Order System
• combines two integrators in series constant
  acceleration
• unstable, or difficult to control inertia
• Differentiator
• minus-first-order produce an output position of
  a value equal to the rate of change of the input
• theoretically step response is a spike
• Frequency-Domain Response

6

• Human Operator Limits in Tracking
• Processing Time
• effective time delay perceived error translated
  by operator after a lag
• zero and first-order system 150 to 300 msec
  second-order 400 to 500 msec
• time delays due to human processing or system lag
  are harmful to tracking (Fig 10.7)
• any lag will cause output to no longer line up
  with input
• with periodic or random inputs, delay produce
  instability, oscillatory behavior
• Bandwidth
• tracking involves the transmission of information
  common or disturbance-induces error
• the limit of information transmission in tracking
  is between 4 to 10 bits/sec (preview)
• frequency limit determines the maximum bandwidth
  of random inputs -- 0.5 to 1.0 Hz
• max. frequency with which corrections are exerted
  in tracking 2times/sec
• Prediction and Anticipation
• must anticipate future errors on the basis of
  present values to make control correction after a
  considerable lag
• Processing resources
• difficulty in anticipation related to the
  resource demands of spatial working memory
• mental model of the systems dynamics ? working
  memory ? disrupted by concurrent tasks
• Compatibility
• tracking is primarily a spatial task -- spatial
  compatibility affects tracking performance

7

• Effect of System Dynamics on Tracking Performance
• Gain
• U-shaped function of system gain (system output /
  control input)
• intermediate gain the lowest error and easiest
  to track
• high gain
• minimal control effort to produce large
  corrections
• overcorrections and oscillations
• instability resulted in lags in system
• optimal gain the crossover point of the
  instability at high gain and effort at low gain
• Time Delay
• pure time delay harmful in tracking
• worse tacking performance with greater delays
• System Order
• zero-order and first order roughly equivalent
  successful tracking requires position and
  velocity to be matched (Fig 10.8) economy of
  movement and space
• the orders above first error and subjective
  workload increase dramatically
• second order control unequivocally worse
• generating lead higher order derivatives be
  perceived as a basis for correction
• ? longer effective time delay ? increased lag ?
  respond smoothly
• bang-bang double impulse or time-optimal
  control optimal control (Fig 10.9)

8

• Instability
• oscillatory and unstable behavior
• positive feedback systems
• once an error is in existence, feedback works to
  add the error in the same direction
• negative feedback systems
• more typical
• humans and systems function to reduce rather than
  increase detected error
• high gain and long phase lag instability
• Tracking Displays
• Preview
• command input and system output determine the
  future error
• the future input will be most accurately
  available when there is preview it enables the
  operator to compensate for processing lags in the
  tracking loop
• no preview predict the future course of the
  input (Fig 10.10)
• precognition mode the input is nonrandom or
  contains periodicities easier prediction
• Output Prediction and Quickening
• output prediction a combination of its present
  position and its higher derivatives ? displays in
  which a computer estimates error derivatives and
  future position ? predictive display
• (Fig 10.11 Fig 10.12)
• accuracy of any prediction sluggishness
  (inertia) of the system and the frequency of
  control or disturbance inputs

9

• quickening where the system error likely to be
  in the future if is not controlled --no
  indication of current error because current error
  provides no information that is useful for
  correction
• Pursuit Versus Compensatory Displays
• the goal of tracking to match the output to the
  input, or minimize error
• pursuit display views the command input and the
  system output moving separately
• generally superior performance to compensatory
  one for two major reasons -- ambiguity of
  compensatory information and the compatibility of
  pursuit displays
• cannot distinguish among the three potential
  causes of error command input, disturbance
  input, and the operators own incorrect control
  actions -- error is ambiguous and control is more
  difficult
• a changing command input advantage with greater
  S-R compatibility compensatory display
• CONTROL DEVICES
• the light pen, touch screen, trackball, mouse,
  cursor keys, or joysticks
• implication of different control devices for
  simple positioning tasks, characterized by
  Fittss law
• Manual Control
• manual control devices anthropometric and
  biomechanical factors
• The Speed-Accuracy Trade-off
• direct point devices (light pen or touch screen)
  -- very rapid but less accurate than indirect
  devices (mouse)
• the slope of the Fittss law the overall
  effectiveness of a control device, (lower,
  better)
• the slope by the mouse lower than other control
  devices

10

• Control Order Compatibility
• most control devices displacement produce a
  constant displacement (zero-order) or constant
  rate of movement (first-order) of the cursors
  across the screen
• only the light pen and touch screen must be
  zero-order controllers
• natural affinities or compatibilities mice
  for zero-order control dynamics, and joysticks
  for first-order control dynamics
• mouse
• best captures the natural eye-hand coordination
• the optimal gain is between one and three the
  cursor should travel between one and three times
  the distance traveled by the hand
• if first-order control abandons the natural
  eye-hand coordination and the zero-velocity
  resting place
• spring-loaded joysticks
• spring loading maximize proprioceptive and
  kinesthetic feedback
• natural resting state by snap back
  automatically recovered
• problems as a zero-order device the lack of
  precision with which any position off of the
  center can be maintained, lack of available
  movement range

11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
