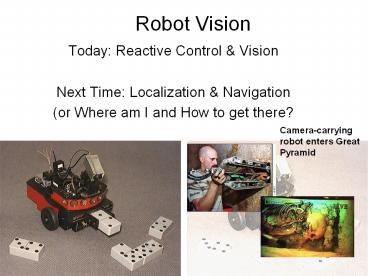

Robot Vision

1
Robot Vision

• Today Reactive Control Vision
• Next Time Localization Navigation
• (or Where am I and How to get there?

Camera-carrying robot enters Great Pyramid
2
Spectrum of Control
Teleoperation Human Control
Autonomous (AI) Control
Shared Human Robot Control
Remote-Controlled Rats
3
Reactive/Behavior-Based Control

• Ignores world models
• The world is its own best model
• Tightly couples perceptions to actions
• No intervening abstract representations
• Primitive Behaviors are used as building blocks
• Individual behaviors can be made up of primitive
  behaviors
• Reactive no memory
• Behavior-Based Short Term Memory (STM)

4
Reactive/Behavior-Based Control Design

• Design Considerations
• What are the primitive behaviors?
• What are the individual behaviors?
• Individual behaviors can be made up of primitive
  and other individual behaviors
• How are behaviors grounded to sensors and
  actuators?
• How are these behaviors effectively coordinated?
• If more than one behavior is appropriate for the
  situation, how does the robot choose which to
  take?

5
Design for robot soccer

• What primitive behaviors would you program?
• What individual behaviors?
• What situations does the robot need to recognize
• If the pass behavior is active and the shoot
  behavior is active, how does it choose?

6
Situated Activity Design

• Robot actions are based on the situations in
  which it finds itself
• Robot perception is characterized by recognizing
  what situations it is in and choosing an
  appropriate action

7
Implementing Behaviors

• Schema knowledge process
• Perceptual Schema interpretation of sensory data
• Releasers instantiates motor schema
• Motor Schema actions to take.

8
Schema for Toad Feeding Behavior
9
Design of Behaviors represented by a State
Transition Table
q ? K Set of states (behaviors)
s ? S Set of releasers
d Transition function
s State Robot starts in
q ? F Set of terminating states
Trash Pick-up Example
10
Visual Representation in a Finite State Automata
11
Cooperative Coordination

• Behavioral Fusion
• Requires the ability to concurrently use the
  output of more than one behavior at a time
• Consider what happens when a toad sees two flies

Behavior Fusion via vector summation
12
Competitive Coordination

• Action Selection Method
• Behaviors compete using an activation level
• The response associated with the behavior with
  the highest activation level wins
• Activation level is determined by attention
  (sensors) and intention (goals)

13
Competitive Coordination

• Suppression Network Method
• Response is determined by a fixed prioritization
  in which a strict behavioral dominance hierarchy
  exists.
• Higher priority behaviors can inhibit or suppress
  lower priority behaviors.

14
Subsumption Architecture

• A suppression network architecture built in
  layers
• Each layer gives the system a set of pre-wired
  behaviors
• Layers reflect a hierarchy of intelligence.
• Lower layers are basic survival functions
  (obstacle avoidance)
• Higher layers are more goal directed (navigation)
• The layers operate asynchronously (Multi-tasking)
• Lower layers can override the output from
  behaviors in the next higher level
• Rank ordering

15
Foraging Example
16
More Complex ExampleRobot Follow a Corridor
17
Using Multiple Behaviors can require the Robot to
Multi-task

• Multi-tasking is having more than one computing
  processing run in parallel.
• True parallel processing requires multiple CPUs.

• IC functions can be run as processes operating in
  parallel The computer processor is actually
  shared among the active processes
• main is always an active process
• Each process, in turn, gets a slice of processing
  time (5ms)
• Each process gets its own default program stack
  of 256bytes
• A process, once started, continues until it has
  received enough processing time to finish (or
  until it is killed by another process)
• Global variables are used for inter-process
  communications

18
IC Functions vs. Processes

• Functions are called sequentially
• Processes can be run simultaneously
• start_process(function-call)
• returns a process-id
• processes halt when function exits or parent
  process exits
• processes can be halted by using
• kill_process(process_id)
• hog_processor() allows a process to take over
  the CPU for an additional 250 milliseconds,
  cancelled only if the process finishes or defers
• defer() causes process to give up the rest of
  its time slice until next time
• More info http//www.newtonlabs.com/ic/ic_11.html
  SEC77

19
Example.ic

• The robot looks left and right
• If it sees RED to one side it turns to face it
• If it sees RED ahead it beeps
• If the stop button is pressed it plays a song and
  quits

20
Reactive Good Bad

• Works with the Open World Assumption
• Provides a timely response in a dynamic
  environment where the environment is difficult to
  characterize and contains a lot of uncertainty.
• Unpredictable
• Low level intelligence
• Cannot manage tasks that require LTM or planning
• Tasks requiring localization and order dependent
  steps

21
Computer Vision

• Uses the electromagnetic spectrum to produce an
  image.
• Visible light, x-rays, thermal, infrared

22
Representation

• Image picture like format where there is a
  direct physical correspondence to the scene being
  viewed.
• Implies there are multiple readings in a grid
• Pixels picture element
• Measure depends on the type of spectra being used
• Image function converts a signal to a pixel value

23
CCD Cameras

• Charged-Couple device detects visible light
• Light fall on an array of metal-oxide
  semiconductor capacitor (MOS)
• Line transfer or frame transfer
• A/D conversion
• Slow frame rate
• Frame buffers
• Framegrabber

24
Representations

• Grayscale
• 8-bit
• 256 discrete gray values
• 0 black, 255 white

25
Representations

• Different method for representing color
• RGB space red, green, blue
• HSI space hue, saturation, and intensity
• Hue is the dominant wavelength
• Saturation is the lack of whiteness
• Intensity is the quantity of light
• Linear transformation between RGB and HSI

26
Comparison of Region Segmentation
27
RGB

• Color Space
• 24 bit color (8 bits per color)

28
RGB Representations

• Interleaved
• RGB values stored together
• Red imagerowcol0
• Green imagerowcol1
• Blue imagerowcol2
• Separate
• RGB values stored as separate 2D arrays
• Red image_redrowcol
• Green image_greenrowcol
• Blue image_Bluerowcol

29
Region Segmentation

• Identifying a region in an image with a
  particular color
• Thresholding
• Binary image

30
Region Segmentation
31
cmucamlib Routines

• To use CMU camera routines put
• use "cmucamlib.ic" at the top of your file
• Call init_camera() to initialize camera before
  any other camera calls -- will beep and complain
  if HB cannot talk to camera (check the dongle
  switch)
• Use clamp_camera_yuv() to automatically set
  camera for the current lighting conditions.
  Camera should be pointed at a white surface when
  this call is being made (it waits for start
  button to be pressed). It takes 15 seconds for
  this function to complete!

32
cmucamlib Routines (cont.)

• Call track_blue() track_orange() to check
  for color blobs that CMUcam can see. These
  functions return 0 if they find no color blob, or
  the confidence of the blob detected. A good
  confidence is 80 and up. A confidence of 4 or 5
  is poor.

33
cmucamlib Routines (cont.)

• The track_color information is stored in globals
• track_size stores the approximate number of
  pixels matching in the blob
• track_x stores the pixel x coordinate of the
  centroid of the color blob
• track_y stores the pixel y coordinate of the
  color blob (note 0,0 is the center 40,80 is
  upper right and
• -40,-80 is lower left)
• track_area stores the size of the bounding
  rectangle of the color blob
• track_confidence stores the confidence for seeing
  the blob

34
cmucamlib Routines (cont.)

• For experts use trackRaw() to specify a
  particular color for tracking. Returns 0 if no
  such blob is found, -1 is there is a
  communication error, or the confidence. Also
  check out setWin()
• More details and low level functions are given in
  the comments at the beginning of cmucamlib.ic and
  cmucam3.ic

35
Example cmucamlib-demo.ic
/ demonstrate color blob sensing for poof balls
and blue paper / use "cmucamlib.ic" void
main() init_camera() // initialize the
camera in YUV mode clamp_camera_yuv() //
clamp camera white balance in YUV mode
while(!stop_button()) // hold down Stop for a
long time if (track_blue() gt 4) // you
could make this 0 bigger
// number, like 80 for example
printf("blue foundd\n", track_confidence)
else if (track_orange() gt 4)
printf("orange foundd\n",
track_confidence) else
beep() printf("nothing...\n")
// end while() // end
main()
36
CMUcamGUI
