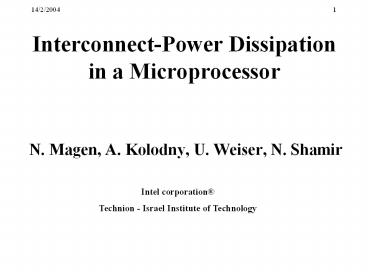

Interconnect-Power Dissipation in a Microprocessor

1
Interconnect-Power Dissipation in a Microprocessor

• N. Magen, A. Kolodny, U. Weiser, N. Shamir

Intel corporation Technion - Israel Institute of
Technology
2
Interconnect-Power Definition

• Interconnect-Power is dynamic power consumption
  due to interconnect capacitance switching
• How much power is consumed by Interconnections ?
• Future generations trends ?
• How to reduce the interconnect power ?

0.13 µm cross-section, source - Intel
3
Background

• Power is becoming a major design issue
• Scope Dynamic power, the majority of power
• P SAFiCi V2 f
• This work focuses on the capacitance term

4
Outline

• Research methodology
• Interconnect Power Analysis
• Power-Aware Router Experiment
• Interconnect Power Prediction
• Summary

5
Case study

• Low-power, state-of-the-art µ-processor
• Dynamic switching power analysis
• Interconnect attributes
• Length
• Capacitance
• Fan Out (FO)
• Hierarchy data
• Net type
• Activity factors (AF)
• Miscellaneous.

6
Interconnect Length Model

• Total wire length
• Stitched across hierarchies
• Summed over repeaters
• Net model

7
Activity Factors Generation
Power test vectors generation (worst case for
high power, unit stressing)
RTL full-chip simulation (results in blocks
primary inputs Activity,Probability)
Monte-Carlo based block inputs generation (based
on the RTL statistics)
Transistor level simulation - per block (Unit
delay, tuning for glitches)
Per node activity factor
Source -Intel Pentium M Processor Power
Estimation, Budgeting, Optimization, and
Validation, ITJ 2003
8
Outline

• Research methodology
• Interconnect Power Analysis
• Power-Aware Router Experiment
• Interconnect Power Prediction
• Summary

9
Interconnect Length Distribution
Source Shekhar Y. Borkar, CRL - Intel
10
Interconnect Length Distribution
Nets vs. Net Length

• Log Log scale
• Exponential decrease with length
• Global clock not included

11
Total Dynamic Power
Total Power vs. Net Length

• Total Dynamic Power
• Global clock not included
• Local nets 66
• Global nets 34

12
Total Dynamic Power Breakdown
Global clock included
13
Power Breakdown by Net Types
Global clock included
Interconnect power (Interconnect only)
Total power (Gate, Diffusion and Interconnect)
14
Interconnect Power Breakdown

• Interconnect consumes 50 of dynamic power
• Clock power 40 (of Interconnect and total)
• 90 of power consumed by 10 of nets
• Interconnect design is NOT power-aware !
• Predictive model can project the interconnect
  power.

Total power
Interconnect power
Local signals
Local clock
15
Outline

• Research methodology
• Interconnect Power Analysis
• Power-Aware Router Experiment
• Interconnect Power Prediction
• Summary

16
Experiment - Power-Aware Router

• Routing Experiment optimizing processors blocks
• Local nodes (clock and signals) consume 66 of
  dynamic power
• 10 of nets consume 90 of power
• Min. spanning trees can save over 20
  Interconnect power
• Routing with spacing can save up to 40
  Interconnect power

Small blocks local clock network
17
Power-Aware Router Flow
Clock tree high FO, long lines, very active
Avoiding congestion
Rip-up not high power nets
Followed by downsizing
18
Results - Power Saving
Downsize saving
Average
Router saving
Average saving results 14.3 for ASIC blocks 1
1 - Estimated based on clock interconnect power
19
Outline

• Research methodology
• Interconnect Power Analysis
• Power-Aware Router Experiment
• Interconnect Power Prediction
• Summary

20
Future of Interconnect Power
Dynamic Power breakdown
Gate
Diffusion
Interconnect
Source - ITRS 2001 Edition adapted data
Technology generation µm
Interconnect power grows to 65-80 within 5
years !

• (using optimistic interconnect scaling)

21
Interconnect Power Prediction
Number of Nets (normalized)
Interconnect length projection
100

• The number of nets vs. unit length Modified
  Davis model
• The dynamic power average breakdown

10
1
0.1
Upper local bound
0.01
Lower global bound
Power
0
0.001
Dynamic power breakdown
Interconnect
Power
Diffusion
Gate
Local
Intermediate
Global
22
Interconnect Power Model

• Multiplication of the number of interconnects
  with power breakdowns gives

Projected dynamic power vs. net length
Power (normalized)
Length µm
The power model matches processor power
distribution !
23
Outline

• Research methodology
• Interconnect Power Analysis
• Power-Aware Router Experiment
• Interconnect Power Prediction
• Summary

24
Summary

• Interconnect is 50 of the dynamic power of
  processors, and getting worse.
• Interconnect power-aware design is recommended
• Clock consumes 40 of interconnect power.
• Clock interconnect spacing is suggested
• Interconnect power is sum of nearly all net
  lengths and types.
• Router level Interconnect power reduction
  addresses all
• Interconnect power has strong dependency on the
  hierarchy
• Per Hierarchy analysis and optimization algorithms

25
Future Research

• Interconnect Power characterization and
  prediction
• Investigate Interconnect power reduction
  techniques
• Interconnect-Spacing for power
• Interconnect Power-Aware physical design
• Aspect Ratio optimization for power
• Architectural communication reduction

26
Questions ?
27
BACKUP-Slides
28
Processor Case Study

• Analysis subject Processor, 0.13 µm
• 77 million transistors, die size of 88 mm2
• Data sources (AF, Capacitance, Length)
• Excluded L2 cache, global clock, analog units

29
Global Communication
Global Power vs. Test Power

• Global power is important
• Global power is mostly IC
• For higher power benchmarks Global power is
  higher
• G-clock excluded

30
Benchmark Selection

• High power test benchmarks
• Worst case design
• Suitable for thermal design, power grid design
• Average power is a fraction of peak power
• Unit stressing benchmarks
• Averaging of all high power benchmarks
• High node coverage

ITC logo
31
Interconnect Power Implications

• Interconnect power can be reduced by minimizing
  switched capacitance
• Fabrication process (wire parameters)
• Power-driven physical design
• Logic optimization for power
• Architectural interconnect optimization

32
Interconnect Capacitance
Global Capacitance breakdown

• Side-cap is increasing 70 to 80

self-cap.
Side-cap.
Technology generation µm
Source - ITRS 2001 Edition adapted data
The majority of interconnect capacitance is
side-capacitance !
33
Fabrication Process Aspect Ratio (AR)

• Interconnect AR
• Low AR Low Interconnect power
• Low AR High resistance
• Frequency Modeling
• Local average gate, average IC
• Global optimally buffered global IC

34
Aspect Ratio Trade offs
Freq. And Power vs. Relative AR

• Power depends on cap.
• Frequency
• Local gates and IC cap.
• Global mostly IC RC
• Per layer AR optimization !
• Scaling ? more power save, less frequency loss

Local path speed
Power
Global path speed
Relative AR
Aspect Ratio optimization can save over 10 of
dynamic power !
35
Physical Design - Spacing
0.13 µm global IC cap. vs. spacing

• Spacing can save up to 40
• About 30 is with double space
• Spacing advantages scaling, frequency,
  reliability, noise,easy to modify

Capacitance
2X
3X
4X
min. space
Spacing
Wire spacing can save up to 20 of the dynamic
power !
36
Spacing calculation

• Back of an envelope estimation
• 10 of Interconnect ? 90 power
• X2 spacing extra 20 wiring
• Global clock not spaced (inductance)
• Global clock is 20 of interconnect power
• Save 30 of (90-20) 20
• Interconnect is 50 ? 10 power saveExpected 20
  with downsizing
• Minor losses - congestion

37
µ-Architecture - CMP
Gen. 1
Gen. 2

• Comparing two scaling methods, by IC power.

• IC - predicted by Rent
• L2 - identical, minor
• Clock - Identical !

• Same average AF.
• Result 5 less dynamic power for CMP

38
Power criticalvs.Timing critical
39
Outline

• Research methodology
• Interconnect Power Analysis
• Future Trends Analysis
• Interconnect Power Implications
• Summary

40
Interconnect Length Prediction

• Technology projections - ITRS
• Interconnect length predictions
• ITRS model 1/3 of the routing space- most
  optimistic
• Davis model
• Rents rule based
• Predicts number of nets as function ofthe
  number of gates and complexity factors
• Models calibrated based on the case study

41
Rents parameters
Rents rule T k N r T of I/O
terminals (pins) N of gates K avg.
I/Os per gate r Rents exponent can be 0 lt
r lt 1 , but common - (simple) 0.5 lt r lt 0.75
(complex)
T terminals
42
Donaths length estimation model
For the i-th level
There are
For each block there are
Assuming two terminal nets
The nets of the i-1 level must be substracted.
Nets for level i ni
43
Average interconnection length
The wires can be of two types A and D.
LA
LD
The average ri
Overall
equals
44
Davis Model

• From Rents rule
• IDF
• Where ,
• Interconnect total number and lengthNets
  Length
• Multipoint Length

45
Davis Model - extension

• Constant factor favors shorter nets.
• Short P2P net has higher chance to be a part of
  a multipoint net.
• Correction factor
• Length

46
RMST - Example
47
Total Dynamic Power
Total Power vs. Net Length

• Total Dynamic Power
• Global clock not included
• Local nets 66Global nets 34

Power (normalized)
0
Length µm
48
Local and Global IC
Local Power breakdown vs. Net Length

• Local and Global IC are different
• Number by Length breakdown
• IC breakdown cap and power
• Fan out
• Metal usage
• AF is similar

Global Power breakdown vs. Net Length
49
Benchmarks Comparison
Global Dynamic power vs. Length
High power tests show similar behavior to average
SPEC !
50
Interconnect Peaks
Total wire length vs. Length
4
3
2
1
0
10
Length µm
Length µm
51
ITRS Power Trends

• The ITRS power projection interconnect power
  reduction that happens in 2006-2007 is based on
• Aggressive voltage reduction
• Low-k dielectric improvements
• The devices capacitance increase by 30 (trend
  -15)
• The combined effect
• Interconnect power reduction (relative to
  voltage)
• Device power remains constant

52
Dynamic power - ITRS trend
Dynamic power projection
Power (normalized)
Technology generation µm
The Black curve is the ITRS maximum heat removal
capabilities
53
Power-Aware Flow

• The reduced IC cap allows for driver downsizing
• On average it reduced the dynamic power by 1.4 of
  the IC power saving
• Downsizing is timing verified
• Cells downsizing reduced the total area and
  leakage by 0.4
• No signal spacing was appliedover 30 unused
  metal
• Post-layout optimization are possible

54
FUBS description

• A medium, randomly picked
• B small, highest clock power
• C small, good potential
• D medium, good potential
• E worse than average

55
Miller Factor - Power

• Opposite direction switching-
• The current
• Energy
• That is 4 times a single switching
  energy.Decoupling by Miller factor of 2.
• Same direction switching gt no current.Decoupling
  by Miller factor of 0.
• Average case Miller factor of 1 suitable for
  power- average case sum metric.

56
Routing Model

• Via blockage
• Router efficiency 0.6
• Power grid 20 of routing
• Clock grid 10 of top tier
• More accurate than ITRS 2001.
