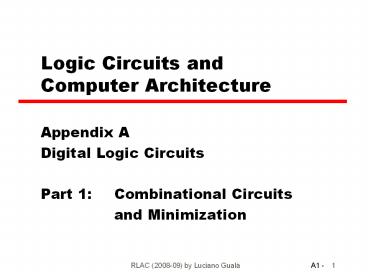

1Logic Circuits and Computer Architecture
- Appendix A
- Digital Logic Circuits
- Part 1 Combinational Circuits
- and Minimization
2Digital System
- Takes a set of discrete information inputs and
discrete internal information (system state) and
generates a set of discrete information outputs
3Basic circuits
- Combinational
- without memory, stateless
- Output Function(Input)
- Sequential
- with memory, state dependent behaviour
- State Function (State, Input)
- Output Function (State) or Function (State,
Input) - It can be
- Synchronous state updated at discrete times
- Asynchronous State updated at any times
4Digital System Example
A
B
Combinational Circuit
Inputs
Representation of A and B
A B
Outputs
Representation of A B
5Digital System Example
A Digital Counter (e. g., odometer)
Count Up
1
3
0
0
5
6
4
Reset
Inputs
Count Up, Reset
Outputs
Visual Display
State
"Value" of stored digits
6Information Representation - Signals
- Information variables represented by physical
quantities (signals)Â - For digital systems, the variables take on
discrete values - Two level, or binary values are the most
prevalent values in digital systems - Binary values are represented abstractly by
- digits 0 and 1
- words (symbols) False (F) and True (T)
- words (symbols) Low (L) and High (H)
- and words On and Off
- Binary values are represented by values or ranges
of values of physical quantities
7Signal Example Physical Quantity Voltage
Threshold Region
8Signal Examples Over Time
Time
Continuous in value time
Analog
Digital
Discrete in value continuous in time
Asynchronous
Discrete in value time
Synchronous
9Binary Values Other Physical Quantities
- What are other physical quantities represent 0
and 1? - CPU
- Disk
- CD
- Dynamic RAM
voltage
Magnetic Field Direction
Surface Pits/Light
Electrical Charge
10Information processing
- by means of boolean gates
- a boolean gate implements simple boolean
operations (see later) - basic gates
- AND, OR, NOT
- gates are used to build circuits
11Number Systems Representation Positive radix,
positional number systems
- A number with radix r is rapresented by a string
of digits - Aan-1an-2a1a0 .a-1,a-2,,a-m
- 0 ? ai lt r
- . is the radix point
- Its (decimal) value is
12Number Systems Examples
General Decimal Binary
Radix (Base) r 10 2
Digits 0 gt r - 1 0 gt 9 0 gt 1
0 1 2 3 4 5 -1 -2 -3 -4 -5 r0 r1 r2 r3 r4 r5 r -1 r -2 r -3 r -4 r -5 1 10 100 1000 10,000 100,000 0.1 0.01 0.001 0.0001 0.00001 1 2 4 8 16 32 0.5 0.25 0.125 0.0625 0.03125
powers of radix
13Case r 2
- Let Aan-1an-2a1a0 .a-1,a-2,,a-m be a string of
bits (binary digit) - Its (decimal) value is
Example 1001.1011 23 20 2-1 2-3 2-4
9.6875
2-1 2-2 2-3 2-4 2-5
0.5 0.250 0.125 0.0625 0.03125
14Decimal r 10
Binary r 2
Octal r 8
Hexadecimal r 16
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
00 01 02 03 04 05 06 07 10 11 12 13 14 15 16 17
0 1 2 3 4 5 6 7 8 9 A B C D E F
0000 0001 0010 0011 0100 0101 0110 0111 1000 1001
1010 1011 1100 1101 1110 1111
15Decimal to binary conversion
- Represent (111.6875)10 in pure binary
- Idea
- Convert the integer part into ?
- Convert the fractional part into ?
- Result ?.?
16Conversion of integer part
- Represent (111)10 in pure binary
- Repeat division by 2
- 1112 55 remainder 1
- 552 27 remainder 1
- 272 13 remainder 1
- 132 6 remainder 1
- 62 3 remainder 0
- 32 1 remainder 1
- 12 0 remainder 1
- RESULT 1101111
- N.B. Result bits are produced in reverse order
Least Significant Bit (LSB)
Most Significant Bit (MSB)
17Conversion of fractional part
- Iterate multiplication taking the integer parts
- Binary representation for 0.6875 ?
- 0.6875 x 2 1.375 take 1
- 0.375 x 2 0.75 take 0
- 0.750 x 2 1.5 take 1
- 0.5 x 2 1.0 take 1
- Result 0.1011
- N.B. Result bits here are produced MSB to LSB
- the procedure sometimes does not converge
- stop when the desired precision is reached
MSB
LSB
(111.6875)10 (1101111.1011)2
18Boolean Algebra
- A useful mathematical system for specifying and
transforming logic functions - We study Boolean algebra as a foundation for
designing and analyzing digital systems! - Named from George Boole
19George Boole (1815-1864)
An Investigation of the Laws of Thought, on
Which are founded the Mathematical Theories of
Logic and Probabilities (1854)
20Claude Shannon (1916-2001)
A Symbolic Analysis of Relay and Switching
Circuits (1938)
ENIAC (Electronic Numerical Integrator And
Calculator) (1946)
21Boolean Algebra
- Boolean Algebra deals with
- Binary variables take on one of two values.
- Logical operators operate on binary values and
binary variables - the two binary values have different names
- True/False
- On/Off
- Yes/No
- 1/0
- Basic logical operators are the logic functions
AND, OR and NOT
22Logical Operations
- The three basic logical operations are
- AND , OR, NOT
- AND is denoted by a dot ().
- OR is denoted by a plus ().
- NOT is denoted by an overbar ( ), a single
quote mark (') after, or () before the variable - Intended meaning (for humans - Laws of Thought)
- AND both inputs are true
- OR at least one input is true
- NOT negate the input
23Notation Examples
- Examples
- Y A?B is read Y is equal to A AND B.
- z xy is read z is equal to x OR y.
- XA is read X is equal to NOT A.
- Note The statement
- 1 1 2 (read one plus one equals two)
- is not the same as
- 1 1 1 (read 1 or 1 equals 1).
24Operator Definitions
- Operations are defined on the values "0" and "1"
for each operator
25Boolean functions
- Basic logical operators are the boolean functions
f(x1,,xn) 0,1n 0,1
arguments
domain
codomain
26Formal definition of functions (1)
- By means of truth tables
- Explicit representation of the output for all
possible combinations of values on its arguments
A B OR
0 0 0
0 1 1
1 0 1
1 1 1
A B AND
0 0 0
0 1 0
1 0 0
1 1 1
A NOT
0 1
1 0
27truth table for a 3-variable function
- f(A,B,C) 1 if and only if at least 2 variables
are equal to 1
A B C f(A,B,C)
0 0 0 0
0 0 1 0
0 1 0 0
0 1 1 1
1 0 0 0
1 0 1 1
1 1 0 1
1 1 1 1
28number of rows of a truth table
- 1-variable function
- 2
- 2-variable function
- 4
- 3-variable function
- 8
-
- n-variable function
- 2n
29Formal definition of functions (2)
- By means of boolean equation the function is
specified as boolean expression of its arguments - boolean equation consists of
- variables
- constants 0 and 1
- boolean operations (AND, OR, NOT)
- parentheses
- M(A,B) (((A)(B)) (AB))
- M (((A)(B)) (AB))
30Boolean Operator Precedence
- The order of evaluation in boolean expression is
- Parentheses
- NOT
- AND
- OR
- Consequence parantheses appear around OR
expressions - Example FA(BC)(CD)
M (((A)(B)) (AB)) M AB AB
31From the boolean formula to truth table
- Explicit case-by-case evaluation
- Example F X YZ
X Y Z F
0 0 0 0
0 0 1 1
0 1 0 0
0 1 1 0
1 0 0 1
1 0 1 1
1 1 0 1
1 1 1 1
32Logic gates
- A logic gate implements simple boolean operation
- basic gates
- AND, OR, NOT
- gates are used to build circuits
33NOT gate - the simplest one
- NOT gate - inverts the signal
- If A is 0, X is 1
- If A is 1, X is 0
- A NOT gate is also called an inverter
34AND gate
- Output is 1 if all inputs are 1
- In general, if the AND gate has N inputs, input 1
AND input 2 AND AND input N must be 1 for the
output to be 1 - 2-input AND gate
35OR gate
- Output is 1 if at least one input is 1
- In general, if the OR gate has N inputs, input 1
OR input 2 OR OR input N must be 1 for the
output to be 1 - 2-input OR gate
36A more complex example
- 2-input equivalence circuit
- The output is 1 if the inputs are the same
- (i.e., both 0 or both 1)
- Truth table
- Boolean function
- M AB AB
A B M
0 0 1
0 1 0
1 0 0
1 1 1
37Formal definition of functions (3)
- By means of logic circuits
- Combination of logic gates joined by wires
38Conventions for logic circuits
39From boolean formula to logic circuit
- Idea top-down or bottom-up construction
- Example write the logic circuit for F X YZ
-
40A more complex example
- Exercise bluid the logic circuit of the
following function
F (ABC)D E
41From logic circuit to
- truth table
- explicit case-by-case computation
- boolean formula
- left-to-right inspection
-
42Example
- Write the boolean function and its truth table
for the following logic circuit
F YXYZXY
XYZ
XY
43Function and Truth Table
X Y Z F
0 0 0 1
0 0 1 1
0 1 0 1
0 1 1 0
1 0 0 1
1 0 1 1
1 1 0 1
1 1 1 1
44One more example
- Write the boolean function and its truth table
for the following logic circuit
X
XYZ
XYZ
Z
XYZXYZXZ
XZ
45Function and Truth Table
46Conversion between representations
- Circuit -gt
- -gt Boolean formula (left-to-right inspection)
- -gt Truth table (explicit case-by-case
computation) - Boolean formula -gt
- -gt Circuit (top-down/bottom-up construction)
- -gt Truth table (explicit case-by-case evaluation)
- Truth table -gt
- -gt Circuit (through boolean formula)
- -gt Boolean formula (through canonical form see
later)
47Boolean Identities
duality principle any algebraic equality remains
true when the operators OR and AND, and the
elements 0 and 1 are interchanged
- 1A A 0A A Identity
- 0A 0 1A 1 Null
- AA A AA A Idempotent
- AA 0 AA 1 Inverse
- AB BA AB BA Commutative
- (AB)C A(BC) (AB)C A(BC) Associative
- ABC (AB)(AC) A(BC) ABAC Distributive
- A(AB) A AAB A Absorption
- (AB) AB (AB) AB De Morgan
48Truth tables to verify De Morgans theorem
49Remark Each equality remains true if you
sobstitute any variable with any expression
Examples
(AB)(ACD) A BCD
(distributive)
((ABC)(DA)) (ABC) (DA)
(De Morgan) A
(BC) DA (De Morgan)
A(BC) DA
50Generalized De Morgans theorems
X1X2Xn X1 X2 Xn
X1 X2 Xn X1X2Xn
51 algebraic manipulation
F XYZ XYZ XZ (distributive)
XY(Z Z) XZ (inverse) XY 1
XZ (identity) XY XZ
52Boolean Algebra Vs Switching Algebra (1)
A Boolean Algebra is a structure A ltA, , ,
, 0, 1gt where
- A is a set
- and are binary operations
- is a unary operation
- 0, 1 ? A
satisfying the following axioms
(i) and are commutative
(ii) 0 and 1 satisfy a1a and a0a, ? a
?A
(iii) and distribute over each other
(iv) for each element a ?A, there exists an
element a ?A such that a
a 1 and aa0
53Boolean Algebra Vs Switching algebra (2)
Switching Algebra is the following boolean algebra
A lt0,1, , , , 0, 1gt
54one more example of boolean algebra
Let U be a finite set
A lt2U, ?, ? , ?, ?, Ugt
55Observation Axioms (i)-(iv) can be used to prove
all the other identities
An example Idempotent X X X
X X (X X)1 (ii)
(X X)(X X) (iv)
X (XX) (iii)
X 0
(iv) X
(ii)
56NAND gate - the negation of AND
- The opposite of the AND gate is the NAND gate
(output is 0 if all inputs are 1) - Truth table
- Logic diagram
A B NAND
0 0 1
0 1 1
1 0 1
1 1 0
57Alternative NAND representations
58NOR gate - the negation of OR
- The opposite of the OR gate is the NOR gate
(output is 0 if any input is 1) - Truth table
- Logic diagram
A B NOR
0 0 1
0 1 0
1 0 0
1 1 0
59Alternative NOR representations
60Exercise
- Write the truth table for
- a 3 input NAND gate
- a 3 input NOR gate
61XOR gate - the exclusive OR
- For a 2-input gate
- Output is 1 if exactly one of the inputs is 1
- Truth table
- Logic diagram
- A ? B AB AB
A B XOR
0 0 0
0 1 1
1 0 1
1 1 0
62Properties of XOR operator
X ? Y Y ? X
(X ? Y) ? Z X ? (Y ? Z)
X ? 1 X
X ? 0 X
X ? X 0
X ? X 1
X ? Y (X ? Y)
63some interesting algebraic manipulations
(X ? Y) (XY XY) (XY)
(XY) (XY) (XY)
XX XY XY YY
XY XY
X ? Y ? Z (X ? Y)Z (X ? Y)Z
(XY XY)Z (XY XY)Z
XYZXYZXYZXYZ
Notice X ? Y ? Z 1 if an odd number of
arguments is 1
X1 ? ? Xn 1 if an odd number of arguments is
1
64Universal Gates
- Universal gate a gate type that can implement
any Boolean function - How many logical functions with n input?
- With n inputs there are 2(2n ) possible logical
functions
A B 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
0 1 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1
1 0 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1
1 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
65Universal Gates (2)
- AND, OR, NOT can generate all possible boolean
functions (see later) - Is it possible to use fewer basic operations?
- AND, NOT are enough !
- OR, NOT are enough !
- Even NAND alone or NOR alone are enough !
66How NAND simulates AND, OR
67How NOR simulates AND, OR
68Gate equivalence
- Any AND, OR, NOT gate can be obtained using just
NAND gates or just NOR gates - Consequence any circuit can be constructed using
just NAND gates or just NOR gates (easier to
build)
69Exercise
Transform the following circuit into a circuit
using only NAND gates by replacing each gate
with its equivalent NAND only circuit
70Equivalence modifications
on any wire, one can introduce a bubble at the
beginning and at the end
71Exercise
- Write a NAND only logic circuit for the exclusive
OR function (XOR) -
- A ? B AB AB
72Solution (1)
- Truth table initial circuit
A B XOR
0 0 0
0 1 1
1 0 1
1 1 0
73Solution (2) equivalence transform.
A B A B
A B A B
74Transforming OR, AND to NAND
- Transform the following circuit
75Solution
76Exercise
- Write a NOR only logic circuit equivalent to the
following circuit
77SOP and POS representations
- It is useful to specify boolean function in a
particular form - A literal is a variable in the positive form or
in the negative - sum of products (SOP) rapresentation
- it is an OR of AND combinations of literals
- F1AB BC it is a SOP rapresentation
- F2 AB (BC) it is not a SOP rapresentation
- product of sums (POS) rapresentation
- it is an AND of OR combiations of its literals
- F1A(B C)(BA) it is a POS rapresentation
- F2AB BC it is not a POS rapresentation
78Canonical Form for boolean functions
- It is a standard way of expressing SOP or POS
- It is
- a sum of minterms, for canonical SOP
- a product of maxterms for canonical POS
- A minterm is a product containing all variables,
either in the positive form or in the negative
form - A maxterm is a sum containing all variables,
either in the positive or in the negative form. - Examples
- F (ABC) (BC) is not in a POS canonical
form - M AB ABC is not in a SOP canonical form
79Minterms
- Given that each variable may appear normal (e.g.
X) or complemented (e.g. X), there are 2n
minterms for n variables - Example Two variables (X and Y) produce 4
combinations - XY
- XY
- XY
- XY
- Thus there are 4 minterms of 2 variables
80Maxterms
- Given that each variable may appear normal (e.g.
X) or complemented (e.g. X), there are 2n
maxterms for n variables - Example Two variables (X and Y) produce 4
combinations - XY
- XY
- XY
- XY
- Thus there are 4 maxterms of 2 variables
81Maxterms and Minterms
- Examples 2 variable minterms and maxterms
- The index above is important for describing which
variables in the terms are true and which are
complemented
Index Minterm Maxterm
0 XY XY
1 XY XY
2 XY XY
3 XY XY
82Standard Order
- Minterms and Maxterms are designated with
subscript - The subscript is a numer, corresponding to a
binary pattern - The bits in the pattern represent the
complemented or normal state of each variable
listed in a standard order - All the variables will be present in a minterm or
maxterm and will be listed in the same order
(usually alphabetically) - Example For variables A, B, C
- Maxterms (A B C), (A B C)
- Terms (B A C), ACB, and (C B A) are
NOT in standard order - Minterms ABC, ABC, ABC
- Terms (AC), BC, and (AB) do not contain
all variables
83Purpose of the Index
- The index for the minterm or maxterm, expressed
as a binary number, is used to determine whether
the variable is shown in the true form or
complemented form. - For Minterms
- 1 means the variable is Not Complemented and
- 0 means the variable is Complemented
- For Maxterms
- 0 means the variable is Not Complemented and
- 1 means the variable is Complemented
84X Y Z Minterm Symbol m0 m1 m2 m3 m4 m5 m6 m7
0 0 0 XYZ m0 1 0 0 0 0 0 0 0
0 0 1 XYZ m1 0 1 0 0 0 0 0 0
0 1 0 XYZ m2 0 0 1 0 0 0 0 0
0 1 1 XYZ m3 0 0 0 1 0 0 0 0
1 0 0 XYZ m4 0 0 0 0 1 0 0 0
1 0 1 XYZ m5 0 0 0 0 0 1 0 0
1 1 0 XYZ m6 0 0 0 0 0 0 1 0
1 1 1 XYZ m7 0 0 0 0 0 0 0 1
85X Y Z Maxterm Symbol M0 M1 M2 M3 M4 M5 M6 M7
0 0 0 XYZ M0 0 1 1 1 1 1 1 1
0 0 1 XYZ M1 1 0 1 1 1 1 1 1
0 1 0 XYZ M2 1 1 0 1 1 1 1 1
0 1 1 XYZ M3 1 1 1 0 1 1 1 1
1 0 0 XYZ M4 1 1 1 1 0 1 1 1
1 0 1 XYZ M5 1 1 1 1 1 0 1 1
1 1 0 XYZ M6 1 1 1 1 1 1 0 1
1 1 1 XYZ M7 1 1 1 1 1 1 1 0
86Minterm and Maxterm Relationship
y
x
y
x
y
x
y
x
- DeMorgan's Theorem
- Two-variable example
- Thus M2 is the complement of m2 and vice-versa.
- Since DeMorgan's Theorem holds for n variables,
the above holds for terms of n variables - giving
-
- Thus Mi is the complement of mi.
y
x
m
y
x
M
2
2
87Boolean function implementation
- Any function can be implemented as the OR of the
AND combinations of its inputs - canonical SOP
- Start from the truth table
- For each 1 in the output
- Write its corresponding minterm
- Write these in OR
88Example canonical SOP
X Y Z F
0 0 0 0
0 0 1 1
0 1 0 0
0 1 1 1
1 0 0 0
1 0 1 0
1 1 0 1
1 1 1 1
m1 m3 m6 m7
0 0 0 0
1 0 0 0
0 0 0 0
0 1 0 0
0 0 0 0
0 0 0 0
0 0 1 0
0 0 0 1
canonical SOP
F m1 m3 m6 m7 XYZ XYZ XYZ
XYZ
89Boolean function implem. (2)
- Any function can be implemented as the AND of the
OR combinations of its inputs - canonical POS
- Start from the truth table
- For each 0 in the output
- Write its corresponding maxterm
- Write these in AND
90Example canonical POS
X Y Z F
0 0 0 0
0 0 1 1
0 1 0 0
0 1 1 1
1 0 0 0
1 0 1 0
1 1 0 1
1 1 1 1
M0 M2 M4 M5
0 1 1 1
1 1 1 1
1 0 1 1
1 1 1 1
1 1 0 1
1 1 1 0
1 1 1 1
1 1 1 1
canonical POS
F M0 M2 M4 M5 (XYZ) (XYZ)
(XYZ) (XYZ)
91Boolean function implem. (4)
- Alternative procedure for POS form
- Complement the table by substituting everywhere a
0 with a 1 and a 1 with a 0 - Write a SOP form for the complemented table
- Complement the formula by substituting everywhere
and AND with an OR and an OR with an AND - Why does it work ?
92 algebraic manipulation
F XYZ XYZ XZ XY(Z Z) XZ
XY 1 XZ XY XZ
a simpler SOP representation leads to a
simpler circuit
93Circuit Optimization
- Goal To obtain the best implementation for a
given function - what means best?
speed vs cost
measured by number of levels
measured by some cost criterion
94Circuit Optimization
- Optimization is a more formal approach to
simplification that is performed using a specific
procedure or algorithm - Optimization requires a cost criterion to measure
the quality of a circuit - Distinct cost criteria we will use
- Literal cost (L)
- Gate input cost (G)
- Gate input cost with NOTs (GN)
95Literal cost
- Literal cost the number of literal occurrences
in a Boolean expression corresponding to the
logic circuit diagram - it is equal to the number of inputs of the
circuit - Examples
- F BD ABC ACD
- F BD ABC ABD ABC
- F (A B)(A D)(B C D)(BCD)
- Which solution is the best?
L8
L11
L10
96Gate input cost
- Gate input cost the number of inputs to the
gates in the circuit corresponding exactly to the
furmula - G - inverters not counted, GN - inverters counted
- For SOP and POS equations, it can be found from
the equation(s) by finding the sum of - all literal occurrences
- the number of terms excluding single literal
terms (G) - optionally, the number of distinct complemented
single literals (GN)
97Cost Criteria Example
98 Cost Criteria
- F A B C
- L 6 G 8 GN 11
- F (A )( C)( B)
- L 6 G 9 GN 12
- Same function and sameliteral cost
- But first circuit has bettergate input count and
bettergate input count with NOTs - Select it!
99Minimal SOP and POS
- Optimization for two-level (SOP and POS)
circuits - minimal SOP
- minimum number of pruduct terms
- minimum number of literals for each product term
- minimal POS
- minimum number of sum terms
- minimum number of literals for each sum term
100Minimization procedures
- Karnaughs maps (by hand)
- Used to minimize boolean functions of up to 4
input variables - Quine-McKluskey (programmable)
- For more variables
- Practical Optimization Espresso
- sub-optimal heuristic method
101Karnaughs Maps (KM)
- Grid-like representation for boolean functions
- Each cell represents a minterm
- The K-map can be viewed as a reorganized version
of the truth table - Minterms with just one variable different
occupies adjacent cells - Alternative algebraic expressions for the same
function are derived by recognizing patterns of
squares - Consider only 1s in the representation (focusing
on a SOP representation) - IDEA if 2 adjacent cells have a 1 the function
can be simplified
102A KM for 2-variable functions
- The generic KM
- Function F XY Function F X Y
103A KM for 3-variable functions
labels indicate the area of the map where the
corresponding variables are true
104example
X Y Z FZ
0 0 0 0
0 0 1 1
0 1 0 0
0 1 1 1
1 0 0 0
1 0 1 1
1 1 0 0
1 1 1 1
1
1
1
1
105X Y Z FZ
0 0 0 1
0 0 1 0
0 1 0 1
0 1 1 0
1 0 0 1
1 0 1 0
1 1 0 1
1 1 1 0
1
1
1
1
106X Y Z FYZ
0 0 0 0
0 0 1 0
0 1 0 0
0 1 1 1
1 0 0 0
1 0 1 0
1 1 0 0
1 1 1 1
1
1
107An example
XY(ZZ) XY(ZZ) XY XY
X Y Z F
0 0 0 0
0 0 1 0
0 1 0 1
0 1 1 1
1 0 0 1
1 0 1 1
1 1 0 0
1 1 1 0
- Idea
- we want to cover all 1s by using rectangles of
adjacent cells - each rectangle of 2k adjacent cells (for some k)
represents a literal - product term
- bigger rectangles correspond to simpler product
terms
108Combining Squares
- By combining squares, we reduce number of
literals in a product term - On a 3-variable K-Map
- One square represents a minterm with three
variables - Two adjacent squares represent a product term
with two variables - Four adjacent terms represent a product term
with one variable - Eight adjacent terms is the function of all
ones (no variables) 1.
109Circular adjacencies for 3 variables
labels are useful to get the expression correspond
ing to a given rectangle
110Three-Variable Maps
- Example Shapes of 2-cell Rectangles
y
XY
XZ
YZ
111Three-Variable Maps
- Example Shapes of 4-cell Rectangles
y
112Four 1 adjacents
F XYZ XYZ XYZ XYZ YZ(XX)
YZ (XX) YZ YZ Z(YY) Z
113An example
XY(ZZ) XY(ZZ) XY XY
X Y Z F
0 0 0 0
0 0 1 0
0 1 0 1
0 1 1 1
1 0 0 1
1 0 1 1
1 1 0 0
1 1 1 0
- Idea
- we want to cover all 1s by using rectangles of
adjacent cells - each rectangle of 2k adjacent cells (for some k)
represents a literal - product term
- bigger rectangles correspond to simpler product
terms
114Exercise (1)
- Which is the minimal SOP expression for function
F1m3m4m6m7?
115Solution
116Exercise (2)
- Which is the minimal SOP expression for function
F2m0m2m4m5m6?
117Solution
118k-cube of 1s
- Is a set of 2k adjacent cells
- 0-cube, 1 cell, a minterm
- 1-cube, 2 adjacent cells
- 2-cube, 4 adjacent cells
- 3-cube, 8 adjacent cells
- .
119Prime implicants
- a product term P is said to be an implicant for a
function F if P implies F, i.e. if P is true then
F is true - The product term corresponding to a k-cube is an
implicant - An implicant is said to be a prime implicant for
F if it does not imply any other implicant of F - A prime implicant can be chosen by selecting a
maximal k-cube, i.e. a k-cube in the KM which is
not contained in any larger h-cube (hgtk)
120Minimal representation
- F P1 P2 P3 ...
- has a minimal SOP representation if
- 1. Each Pi is a prime implicant
- 2. There is a minimum number of them
121Minimality procedure
- Find maximal k-cubes (prime implicants)
- If a 1 is covered by only one maximal k-cube this
has to be chosen (essential prime implicants) - Select a minimum number of the remaining k-cubes
so to cover all 1s not covered by essential prime
implicants
122Exercise (3)
- Find the minimal SOP expression for
- Fm1m3m4m5m6
1
1
1
1
1
FXZXZXY
123Exercise (3)
- Find the minimal SOP expression for
- Fm1m2m3m5m7
1
1
1
1
1
FZXY
124A KM for 4-variable functions
125Circular adjacenciesfor 4 variables
126Four Variable Terms
- Four variable maps can have rectangles
corresponding to - A single 1 4 variables, (i.e. Minterm)
- Two 1s 3 variables,
- Four 1s 2 variables
- Eight 1s 1 variable,
- Sixteen 1s zero variables (i.e. Constant "1")
127Four-Variable Maps
- Example Shapes of Rectangles
XZ
YW
XZ
128Four-Variable Maps
- Example Shapes of Rectangles
Y
X
W
Z
129Example
- Simplify F(A, B, C, D) given on the K-map.
minimal SOP ABACDACDBCD
130One more example
minimal SOP BDBDCDAB
ESSENTIAL Prime Implicants
C
131Five Variable or More K-Maps
- For five variable problems, we use two adjacent
K-maps. It becomes harder to visualize adjacent
minterms for selecting k-cubes. - You can extend the problem to six variables by
using four K-Maps.
132The KM method for POS
- Which is the POS expression of function F
represented by this KM? - Use the same method used for build POS canonical
form from truth tables - Find the minimal SOP for F
- apply DeMorgan
133Example
1
0
1
1
1
0
0
0
0
0
0
0
1
1
0
1
- F (CDBDAB) (CD) . (BD) . (AB)
- (CD) . (BD) . (A B)
- (CD) . (BD) . (A B)
134Don't Cares in K-Maps
- Sometimes a function table or map contains
entries for which it is known - the input values for the minterm will never
occur, or - the output value for the minterm is not used
- In these cases, the output value does not need to
be defined - Instead, the output value is defined as a don't
care - By placing don't cares ( an x entry) in the
function table or map, the cost of the logic
circuit may be lowered.
135Example 1
A B C D f(A,B,C,D)
0 0 0 0 f(0,0,0,0)
0 0 0 1 f(0,0,0,1)
0 0 1 0 f(0,0,1,0)
0 0 1 1 f(0,0,1,1)
0 1 0 0 f(0,1,0,0)
0 1 0 1 f(0,1,0,1)
0 1 1 0 f(0,1,1,0)
0 1 1 1 f(0,1,1,1)
1 0 0 0 f(1,0,0,0)
1 0 0 1 f(1,0,0,1)
1 0 1 0 x
1 0 1 1 x
1 1 0 0 x
1 1 0 1 x
1 1 1 0 x
1 1 1 1 x
- A logic function having the binary codes for the
binary-coded decimal (BCD) digits as its inputs. - Only the codes for 0 through 9 are used.
- The six codes, 1010 through 1111 never occur, so
the output values for these codes are x to
represent dont cares.
136Example 2
- Consider the following function f(A,B)
- f(A,B)1 if AB0
- f(A,B)0 if A ? B
Truth table on the left may be substitued by
anyone on the right
A B f
0 0 1
0 1 0
1 0 0
1 1 x
A B f
0 0 1
0 1 0
1 0 0
1 1 0
A B f
0 0 1
0 1 0
1 0 0
1 1 1
137Example 3
- Consider the following function f(A,B)
- f(A,B)1 if AB0
- f(A,B)0 otherwise
- f(A,B) is used only as input for another function
g(f,A,B)(AB) f(A,B)
A B f
0 0 1
0 1 0
1 0 x
1 1 0
Notice that for A1 and B0 g(f,A,B) (10)
f(A,B) 0
138Example
f(W,X,Y,Z) YZ XW
X
X
1
1
Simplify the choice, since each X can be
considered a 0 or a 1
X
1
1
1
139Example
f(W,X,Y,Z) YZ ZW
X
X
1
1
a different choise is possible
X
1
1
1
140Multiple-Level Optimization
- Multiple-level circuits - circuits that are not
two-level - Multiple-level circuits can have reduced gate
input cost compared to two-level (SOP and POS)
circuits - Multiple-level optimization is performed by
applying transformations to circuits represented
by equations while evaluating cost
141An Example
- GABC ABD E ACF ADF
- gate input cost 17
- GAB(CD) E AF(CD)
- gate input cost 13
- G(AB AF)(CD) E
- gate input cost 11
- GA(BF)(CD)E
- gate input cost 9
142(No Transcript)
