Objectives

1

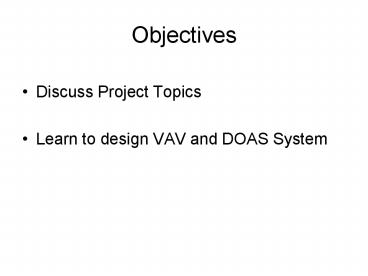

Objectives

• Discuss Project Topics
• Learn to design VAV and DOAS System

2
3D model Biomedical Engineering (BME) Building
3
3D model Biomedical Engineering (BME) Building
4
3D model Biomedical Engineering (BME) Building
5
3D model Biomedical Engineering (BME) Building
6
VAV Example

• One system
• Multiple Spaces/Zones
• - VAV box for each space/zone

http//www.trane.com/commercial/library/vol242/v24
b6.asp
7
VAV System Terms Equations(you can find them
in ASHRAE Standard 62)

• Fraction of minimum outdoor air in space/zone
  supply air
• Xi VOAi / VSAi
• Critical space
• Space with maximum Xi , Zmax(Xi)
• Fraction of outdoor air in system supply air
• X sum(VOA ) / sum(VSA)
• Required Fraction of outdoor air
• YX/(1X-Z)

8
Example Solution
Space1 Space 2 Space 3 Space 4
VSA
VOA
Xi
X
Z
Y
9
Other Issues Related to VAV

• Fan control
• Minimum supply air
• Occupancy sensors

10
DOAS System

• http//doas.psu.edu/

11
Enthalpy wheel
12
Desiccant wheel
13
HVAC Control

• Example 1
• Economizer (fresh air volume flow rate control)

Controlled device is damper - Damper for the
air - Valve for the liquids
fresh air
damper
mixing
recirc. air
T RH sensors
14
Economizer
fresh air

• Fresh air volume flow rate control

100
enthalpy
Fresh (outdoor) air
TOA (hOA)
Minimum for ventilation
damper
mixing
Recirc. air
T RH sensors
15
Economizer cooling regime

• How to control the fresh air volume flow rate?

If TOA lt Tset-point ? Supply more fresh air
than the minimum required The question is how
much? Open the damper for the fresh air and
compare the Troom with the Tset-point . Open
till you get the Troom Tset-point If you have
100 fresh air and your still need cooling use
cooling coil. What are the priorities -
Control the dampers and then the cooling coils or
- Control the valves of cooling coil and then
the dampers ? Defend by SEQUENCE OF OERATION
the set of operation which HVAC designer
provides to the automatic control engineer
fresh air
100
Minimum for ventilation
16
Economizer cooling regime
Example of SEQUENCE OF OERATIONS If TOA lt
Tset-point open the fresh air damper the maximum
position Then, if Tindoor air lt Tset-point
start closing the cooling coil valve If cooling
coil valve is closed and T indoor air lt
Tset-point start closing the damper till you
get T indoor air T set-point Other
variations are possible
17
HVAC Control

• Example 2
• Dew point control (Relative Humidity control)

fresh air
filter
cooling coil
heating coil
filter
damper
fan
mixing
T RH sensors
Heat gains
Humidity generation
We should supply air with lower humidity ratio
(w) and lower temperature
We either measure Dew Point directly or T RH
sensors substitute dew point sensor
18
Relative humidity control by cooling coil
Cooling Coil
Mixture
Room
Supply
TDP
Heating coil
19
Relative humidity control by cooling coil (CC)

• Cooling coil is controlled by TDP set-point
• if TDP measured gt TDP set-point ? send the
  signal to open more the CC valve
• if TDP measured lt TDP set-point ? send the
  signal to close more the CC valve

• Heating coil is controlled by Tair set-point
• if Tair lt Tair set-point ? send the signal
  to open more the heating coil valve
• if Tair gt Tair set-point ? send the signal
  to close more the heating coil valve

Control valves
Fresh air
mixing
cooling coil
heating coil
Tair TDP sensors
20
Sequence of operation(ECJ research facility)
Control logic Mixture in zone 1 IF ((
TMltTSP) (DPTMltDPTSP) ) heating and
humidifying Heater control IF (TSPgtTSA)
increase heating or IF (TSPltTSA) decrease
heating Humidifier IF (DPTSPgtDPTSA) increase
humidifying or IF (DPTSPltDPTSA) decrease humid.
Mixture in zone 2 IF ((TMgtTSP)
(DPTMltDPTSP) ) cooling and humidifying Cool.
coil cont. IF (TSPltTSA) increase cooling or IF
(TSPgtTSA) decrease cooling Humidifier IF
(DPTSPgtDPTSA) increase humidifying or IF
(DPTSPltDPTSA) decrease hum. Mixture in zone 3
IF ((DPTMgtDPTSP) ) cooling/dehumidifying and
reheatin Cool. coil cont. IF (DPTSPgtDPTSA)
increase cooling or IF (DPTSPltDPTSA) decrease
cooling Heater control IF (TSPgtTSA) increase
heating or IF (TSPltTSA) decrease heating
