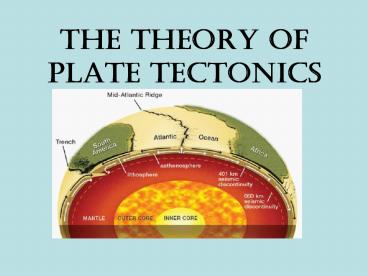

The Theory of Plate Tectonics

1
The Theory of Plate Tectonics
2

• Canadian scientist, J. Tuzo Wilson noticed the
  continental crusts had cracks similar to oceanic
  crust

3
Lithosphere is broken into sections called plates

• Plate tectonics- geologic theory stating that
  pieces of Earths lithosphere are in constant,
  slow motion, driven by convection currents in the
  mantle

4
The theory of plate tectonics explains the
formation, movement, subduction of Earths
plates
5

• Plates meet at plate boundaries extending deep in
  the lithosphere
• Faults- breaks in Earths crust where rocks slip
  past each other form along boundaries

6
3 Types of Plate Boundaries

• Divergent
• Convergent
• Transform

7
Transform Boundary

• Crust is neither created nor destroyed
• 2 plates slip past each other moving in opposite
  directions
• Earthquakes occur frequently here

8
(No Transcript)
9
Divergent Boundary

• Place where 2 plates move apart
• Most found along mid-ocean ridge where oceanic
  crust diverges

10
Divergent boundaries also occur on land

• Rift valleys form when continental crust diverges
• Rift may eventually split a continent

11
Convergent Boundary

• Place where 2 plates come together, converge
• Collisions may occur between 2 oceanic plates, 2
  continental plates, or an oceanic continental
  plate

12
Oceanic-Oceanic Convergence

• Oceanic crust becomes cooler denser as it
  spreads away from the mid-ocean ridge
• 2 oceanic crusts meet at a trench the more
  dense plate subducts under the other plate
  returns to the mantle
• Oceanic convergence creates island arcs

13
Oceanic-Continental Convergence

• Oceanic crust, made of basalt, is denser than
  continental crust, made mostly of granite
• Oceanic plate sinks beneath the continental crust

14
Continental-Continental Convergence

• Subudction does NOT occur when 2 pieces of
  continental crust collide
• Neither plate is dense enough to sink
• Crust is squeezed into mountain ranges

15
(No Transcript)
16
Continents Slow Dance

• Plates move at an extremely slow rate, 1-10
  cm/year
• North American European plate are moving apart
  at about the same rate as your finger nails grow

17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
Tracking Tectonic Plate Motion

• Scientists use data from a system of satellites
  called Global Positioning System (GPS) to measure
  the rate of motion of tectonic plates.

22
Review what you know

• 1. Define plate tectonics.
• 2. Describe the three boundaries of plate
  movement.
• 3. How do scientists measure the rate of tectonic
  plate movement?
