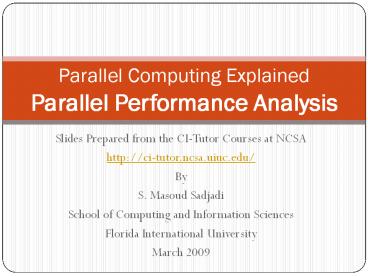

Parallel Computing ExplainedParallel Performance
Analysis

• Slides Prepared from the CI-Tutor Courses at NCSA
• http//ci-tutor.ncsa.uiuc.edu/
• By
• S. Masoud Sadjadi
• School of Computing and Information Sciences
• Florida International University
• March 2009

2
Agenda

• 1 Parallel Computing Overview
• 2 How to Parallelize a Code
• 3 Porting Issues
• 4 Scalar Tuning
• 5 Parallel Code Tuning
• 6 Timing and Profiling
• 7 Cache Tuning
• 8 Parallel Performance Analysis
• 8.1 Speedup
• 8.2 Speedup Extremes
• 8.3 Efficiency
• 8.4 Amdahl's Law
• 8.5 Speedup Limitations
• 8.6 Benchmarks
• 8.7 Summary
• 9 About the IBM Regatta P690

3
Parallel Performance Analysis

• Now that you have parallelized your code, and
  have run it on a parallel computer using multiple
  processors you may want to know the performance
  gain that parallelization has achieved.
• This chapter describes how to compute parallel
  code performance.
• Often the performance gain is not perfect, and
  this chapter also explains some of the reasons
  for limitations on parallel performance.
• Finally, this chapter covers the kinds of
  information you should provide in a benchmark,
  and some sample benchmarks are given.

4
Speedup

• The speedup of your code tells you how much
  performance gain is achieved by running your
  program in parallel on multiple processors.
• A simple definition is that it is the length of
  time it takes a program to run on a single
  processor, divided by the time it takes to run on
  a multiple processors.
• Speedup generally ranges between 0 and p, where p
  is the number of processors.
• Scalability
• When you compute with multiple processors in a
  parallel environment, you will also want to know
  how your code scales.
• The scalability of a parallel code is defined as
  its ability to achieve performance proportional
  to the number of processors used.
• As you run your code with more and more
  processors, you want to see the performance of
  the code continue to improve.
• Computing speedup is a good way to measure how a
  program scales as more processors are used.

5
Speedup

• Linear Speedup
• If it takes one processor an amount of time t to
  do a task and if p processors can do the task in
  time t / p, then you have perfect or linear
  speedup (Sp p).
• That is, running with 4 processors improves the
  time by a factor of 4, running with 8 processors
  improves the time by a factor of 8, and so on.
• This is shown in the following illustration.

6
Speedup Extremes

• The extremes of speedup happen when speedup is
• greater than p, called super-linear speedup,
• less than 1.
• Super-Linear Speedup
• You might wonder how super-linear speedup can
  occur. How can speedup be greater than the number
  of processors used?
• The answer usually lies with the program's memory
  use. When using multiple processors, each
  processor only gets part of the problem compared
  to the single processor case. It is possible that
  the smaller problem can make better use of the
  memory hierarchy, that is, the cache and the
  registers. For example, the smaller problem may
  fit in cache when the entire problem would not.
• When super-linear speedup is achieved, it is
  often an indication that the sequential code, run
  on one processor, had serious cache miss
  problems.
• The most common programs that achieve
  super-linear speedup are those that solve dense
  linear algebra problems.

7
Speedup Extremes

• Parallel Code Slower than Sequential Code
• When speedup is less than one, it means that the
  parallel code runs slower than the sequential
  code.
• This happens when there isn't enough computation
  to be done by each processor.
• The overhead of creating and controlling the
  parallel threads outweighs the benefits of
  parallel computation, and it causes the code to
  run slower.
• To eliminate this problem you can try to increase
  the problem size or run with fewer processors.

8
Efficiency

• Efficiency is a measure of parallel performance
  that is closely related to speedup and is often
  also presented in a description of the
  performance of a parallel program.
• Efficiency with p processors is defined as the
  ratio of speedup with p processors to p.
• Efficiency is a fraction that usually ranges
  between 0 and 1.
• Ep1 corresponds to perfect speedup of Sp p.
• You can think of efficiency as describing the
  average speedup per processor.

9
Amdahl's Law

• An alternative formula for speedup is named
  Amdahl's Law attributed to Gene Amdahl, one of
  America's great computer scientists.
• This formula, introduced in the 1980s, states
  that no matter how many processors are used in a
  parallel run, a program's speedup will be limited
  by its fraction of sequential code.
• That is, almost every program has a fraction of
  the code that doesn't lend itself to parallelism.

• This is the fraction of code that will have to be
  run with just one processor, even in a parallel
  run.
• Amdahl's Law defines speedup with p processors as
  follows
• Where the term f stands for the fraction of
  operations done sequentially with just one
  processor, and the term (1 - f) stands for the
  fraction of operations done in perfect
  parallelism with p processors.

10
Amdahl's Law

• The sequential fraction of code, f, is a unitless
  measure ranging between 0 and 1.
• When f is 0, meaning there is no sequential code,
  then speedup is p, or perfect parallelism. This
  can be seen by substituting f 0 in the formula
  above, which results in Sp p.
• When f is 1, meaning there is no parallel code,
  then speedup is 1, or there is no benefit from
  parallelism. This can be seen by substituting f
  1 in the formula above, which results in Sp 1.
• This shows that Amdahl's speedup ranges between 1
  and p, where p is the number of processors used
  in a parallel processing run.

11
Amdahl's Law

• The interpretation of Amdahl's Law is that
  speedup is limited by the fact that not all parts
  of a code can be run in parallel.
• Substituting in the formula, when the number of
  processors goes to infinity, your code's speedup
  is still limited by 1 / f.
• Amdahl's Law shows that the sequential fraction
  of code has a strong effect on speedup.
• This helps to explain the need for large problem
  sizes when using parallel computers.
• It is well known in the parallel computing
  community, that you cannot take a small
  application and expect it to show good
  performance on a parallel computer.
• To get good performance, you need to run large
  applications, with large data array sizes, and
  lots of computation.
• The reason for this is that as the problem size
  increases the opportunity for parallelism grows,
  and the sequential fraction shrinks, and it
  shrinks in its importance for speedup.

12
Agenda

• 8 Parallel Performance Analysis
• 8.1 Speedup
• 8.2 Speedup Extremes
• 8.3 Efficiency
• 8.4 Amdahl's Law
• 8.5Speedup Limitations
• 8.5.1 Memory Contention Limitation
• 8.5.2 Problem Size Limitation
• 8.6 Benchmarks
• 8.7 Summary

13
Speedup Limitations

• This section covers some of the reasons why a
  program doesn't get perfect Speedup. Some of the
  reasons for limitations on speedup are
• Too much I/O
• Speedup is limited when the code is I/O bound.
• That is, when there is too much input or output
  compared to the amount of computation.
• Wrong algorithm
• Speedup is limited when the numerical algorithm
  is not suitable for a parallel computer.
• You need to replace it with a parallel algorithm.

• Too much memory contention
• Speedup is limited when there is too much memory
  contention.
• You need to redesign the code with attention to
  data locality.
• Cache reutilization techniques will help here.

14
Speedup Limitations

• Wrong problem size
• Speedup is limited when the problem size is too
  small to take best advantage of a parallel
  computer.
• In addition, speedup is limited when the problem
  size is fixed.
• That is, when the problem size doesn't grow as
  you compute with more processors.
• Too much sequential code
• Speedup is limited when there's too much
  sequential code.
• This is shown by Amdahl's Law.
• Too much parallel overhead
• Speedup is limited when there is too much
  parallel overhead compared to the amount of
  computation.
• These are the additional CPU cycles accumulated
  in creating parallel regions, creating threads,
  synchronizing threads, spin/blocking threads, and
  ending parallel regions.
• Load imbalance
• Speedup is limited when the processors have
  different workloads.
• The processors that finish early will be idle
  while they are waiting for the other processors
  to catch up.

15
Memory Contention Limitation

• Gene Golub, a professor of Computer Science at
  Stanford University, writes in his book on
  parallel computing that the best way to define
  memory contention is with the word delay.
• When different processors all want to read or
  write into the main memory, there is a delay
  until the memory is free.
• On the SGI Origin2000 computer, you can determine
  whether your code has memory contention problems
  by using SGI's perfex utility.
• The perfex utility is covered in the Cache Tuning
  lecture in this course.
• You can also refer to SGI's manual page, man
  perfex, for more details.
• On the Linux clusters, you can use the hardware
  performance counter tools to get information on
  memory performance.
• On the IA32 platform, use perfex, vprof,
  hmpcount, psrun/perfsuite.
• On the IA64 platform, use vprof, pfmon,
  psrun/perfsuite.

16
Memory Contention Limitation

• Many of these tools can be used with the PAPI
  performance counter interface.
• Be sure to refer to the man pages and webpages on
  the NCSA website for more information.
• If the output of the utility shows that memory
  contention is a problem, you will want to use
  some programming techniques for reducing memory
  contention.
• A good way to reduce memory contention is to
  access elements from the processor's cache memory
  instead of the main memory.
• Some programming techniques for doing this are
• Access arrays with unit .
• Order nested do loops (in Fortran) so that the
  innermost loop index is the leftmost index of the
  arrays in the loop. For the C language, the order
  is the opposite of Fortran.
• Avoid specific array sizes that are the same as
  the size of the data cache or that are exact
  fractions or exact multiples of the size of the
  data cache.
• Pad common blocks.
• These techniques are called cache tuning
  optimizations. The details for performing these
  code modifications are covered in the section on
  Cache Optimization of this lecture.

17
Problem Size Limitation

• Small Problem Size
• Speedup is almost always an increasing function
  of problem size.
• If there's not enough work to be done by the
  available processors, the code will show limited
  speedup.
• The effect of small problem size on speedup is
  shown in the following illustration.

18
Problem Size Limitation

• Fixed Problem Size
• When the problem size is fixed, you can reach a
  point of negative returns when using additional
  processors.
• As you compute with more and more processors,
  each processor has less and less amount of
  computation to perform.
• The additional parallel overhead, compared to the
  amount of computation, causes the speedup curve
  to start turning downward as shown in the
  following figure.

19
Benchmarks

• It will finally be time to report the parallel
  performance of your application code.
• You will want to show a speedup graph with the
  number of processors on the x axis, and speedup
  on the y axis.
• Some other things you should report and record
  are
• the date you obtained the results
• the problem size
• the computer model
• the compiler and the version number of the
  compiler
• any special compiler options you used

20
Benchmarks

• When doing computational science, it is often
  helpful to find out what kind of performance your
  colleagues are obtaining.
• In this regard, NCSA has a compilation of
  parallel performance benchmarks online at
  http//www.ncsa.uiuc.edu/UserInfo/Perf/NCSAbench/.

• You might be interested in looking at these
  benchmarks to see how other people report their
  parallel performance.
• In particular, the NAMD benchmark is a report
  about the performance of the NAMD program that
  does molecular dynamics simulations.

21
Summary

• There are many good texts on parallel computing
  which treat the subject of parallel performance
  analysis. Here are two useful references
• Scientific Computing An Introduction with
  Parallel Computing, Gene Golub and James Ortega,
  Academic Press, Inc.
• Parallel Computing Theory and Practice, Michael
  J. Quinn, McGraw-Hill, Inc.
