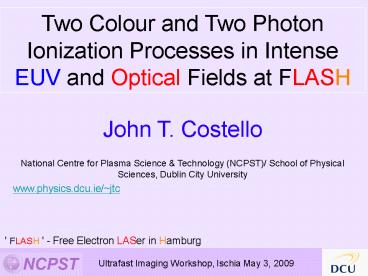

Two Colour and Two Photon Ionization Processes in
Intense EUV and Optical Fields at FLASH
John T. Costello National Centre for Plasma
Science Technology (NCPST)/ School of Physical
Sciences, Dublin City University www.physics.dcu.i
e/jtc
' FLASH ' - Free Electron LASer in Hamburg
Ultrafast Imaging Workshop, Ischia May 3, 2009
2
Acknowledgements

• LIXAM (Orsay) D. Cubaynes, M. Meyer
• Universite Paris 06 (PMC) R. Taieb, A. Maquet
• DESY (Hamburg) A. Azima, S. Düsterer, P.
  Radcliffe, H. Redlin, W-B Li,
• J. Feldhaus
• PTB (Berlin) A. A. Sorokin, M. Richter
• Moscow State University A. N. Grum-Grzhimailo,
  E. V. Gryzlova,
• S. I. Strakhova
• Queens University Belfast Hugo van der Hart
• Dublin City University J. Dardis, P. Hayden, P.
  Hough, T. Kelly,
• V. Richardson, E. T. Kennedy, J. T. Costello
• Thanks to AG Photon (R Treusch et al.) AG
  Machine (M Yurkov et al.)

Ultrafast Imaging Workshop, Ischia May 3, 2009
3
Collaboration - Origin
Collaboration grew out of EU RTD
Project HRPI-CT-1999-50009 Title X-Ray FEL
Pump Probe Facility Partners Orsay, DCU,
Lund, MBI, BESSY DESY
Ultrafast Imaging Workshop, Ischia May 3, 2009
4
Outline of the Talk

• FLASH (Brief) Overview
• Atoms Molecules in Intense EUV NIR Fields
• Coherent Photoionization Processes in Superposed
  Fields
• Optically probing fragments in EUV dissociated
  H2
• Two Photon Ionization in Intense EUV Fields
• Next steps

Ultrafast Imaging Workshop, Ischia May 3, 2009
5
Part 1 - FLASH Overview
Ultrafast Imaging Workshop, Ischia May 3, 2009
6
Ultrafast Imaging Workshop, Ischia May 3, 2009
7
FLASH Key Performance Indicators
Wavelength range (fundamental) 6 - 60 nm FEL
harmonics (_at_13.7 nm) 3 rd 4.6 nm (270 eV)
5 rd 2.7 nm (450 eV) Spectral width (FWHM)
0.5-1 Pulse energy up to 70 µJ (average),
170 µJ (peak) Pulse duration (FWHM) 10-50
fs Peak power (fundamental) Few GW Average
power (fundamental) 0.1 W (up to 3000 pulses
/ sec) Photons per pulse 1013
Ackermann et al., Nature Photonics 1 336 (2007)
8
O/P Profile and Spectral Distribution
FEL output builds up from spontaneous emission
(photon noise) gt SASE Self Amplified
Spontaneous Emission
Spectral Fluctuations
Temporal Fluctuations
Ultrafast Imaging Workshop, Ischia May 3, 2009
9
O/P Profile and Spectral Distribution
FEL output builds up from spontaneous emission
(photon noise) gt SASE Self Amplified
Spontaneous Emission
Corrected EUV Spectrum
Raw EUV Spectrum
Ultrafast Imaging Workshop, Ischia May 3, 2009
10
Part 2 - Experiments on dilute targets with
FLASH Motivations 1. FLASH
Characterisation 2. Demonstration Experiments 3.
Future (Pathfinding)
Ultrafast Imaging Workshop, Ischia May 3, 2009
11
Atoms Molecules in Intense EUV Optical
(800/400 nm) fields

• Photoionization of rare gas atoms dressed by
  intense optical fields
• 2. Optical probing EUV dissociated H2

Summary of AMOP_at_FLASH http//hasylab.desy.de/scien
ce/user_collaborations/amopflash Photoionization
Experiments with the Ultrafast EUV Laser FLASH -
Free Electron Laser in Hamburg J T Costello, J
Phys Conf Ser 88 Art No 012057 (2007) C. Bostedt
et al., Experiments at FLASH, Nucl. Inst. Meth.
in Res. A 601 108-122 (2009)
Ultrafast Imaging Workshop, Ischia May 3, 2009
12
FLASH NIR/Vis and EUV Beam Layout
Ultrafast Imaging Workshop, Ischia May 3, 2009
13
Two colour ATI/ Laser Assisted PES
Superposition of visible and VUV pulses in a
noble gas jet
Schins et al. PRL 73, 2180 (1994)
Electron Spectrometer
VUV
Visible fs laser pulse
15.76 eV
Ar(IP)
gas jet
E.S. Toma et al. PRA 62 061801 (2000)
14
Two colour ATI/ Laser Assisted PES
Experimental Layout at FLASH - (EU-RTD)
P. Radcliffe, et al., Nucl. Instr. and Meth. A
83, 516-525 (2007)
15
Two colour ATI/ Laser Assisted PES
Sideband number/intensity depend strongly on
EUV/NIR overlap ? by comparison with theory we
are able to determine relative time delay to
better than 100 fs
550 fs

• 1. New ultrafast EUV-modulated optical-reflectivit
  y methods 2. TEO
• C. Gahl et al., Nature Photonics 2 165-169
  (2008) A. Azima et al., APL.
• T. Maltezopoulos et al., New J Phys 10 Art. No.
  033026 (2008) (In Press 2009)

P. Radcliffe, et al., Nucl. Instr. and Meth. A
83, 516-525 (2007) P Radcliffe, et al., APL 90
131108 (2007)
16
Two colour ATI - Soft Photon
One photon cross-section
n photon ATI cross-section
- Classical excursion vector of an electron in a
laser field of amplitude
- Momentum transfer
After a little work.sideband strength is
given by an expression like
Jn - Bessel function (first kind order n)
kn - Shifted wavenumber of the ejected electron
?? - Usual asymmetry parameter
A Maquet and R Taieb, J. Mod. Opt. 54 1847 (2007)
17
Two colour ATI - Z Scaling
800 nm Ti-Sa 1.55 eV/ 120 fs
FLASH h? 93 eV 20 ?J/pulse
18
Two colour ATI - Z Scaling
Intesnity ratio of n 12 sidebands - Model vs
Experiment
Fitted 800 nm intensity 5 x 1011 W.cm-2
Experiment
Soft Photon
Ultrafast Imaging Workshop, Ischia May 3, 2009
19
2 colour ATI - FEL Wavelength Scaling
?FEL 800 nm. SB Ratio - Comparison of SPA with
Experiment
Ultrafast Imaging Workshop, Ischia May 3, 2009
20
2 colour ATI - Optical Intensity Scaling
Ne Asymmetry in sideband distribution
Ultrafast Imaging Workshop, Ischia May 3, 2009
21
2 colour ATI - Optical Intensity Scaling
Ne Toy SFA Code / Asymmetry in sideband
distribution
Ne Simulation
h?FEL 46 eV
Ultrafast Imaging Workshop, Ischia May 3, 2009
Ultrafast Imaging Workshop, Ischia May 3, 2009
22
Atomic Dichroism in Two colour ATI
Strong Polarisation Dependence of Sidebands (Low
Field)
He 1s2 h?XUV ----gt He 1s ?p He 1s2 h?XUV
h?OL ---gt He 1s ?s, ?d
FLASH 13.7 nm, 10-20 fs, 20µJ OL 800nm, 4ps,
400µJ, 6 x 1011 W/cm2
?
Meyer et al., PRL 101 Art. no. 193002 (2008)
23
Atomic Dichroism in Two colour ATI - He
Low Optical Laser Field
High Optical Laser Field
?(?) 3Sd (5Ss Sd) cos2? Ss/Sd 1.25 0.3
P. Theory A Grum-Grzhimailo et al.
SPA A Maquet/ R Taieb
Meyer et al., PRL 101 Art. no. 193002 (2008)
24
Atomic Dichroism in Two colour ATI - Kr
AD in TC-ATI Ne, Kr, Xe work in progress
FLASH 13.7 nm, 10-20 fs, 20µJ OL 800nm, 4ps, 6
x 1011 W/cm2
Ultrafast Imaging Workshop, Ischia May 3, 2009
25
Atomic Dichroism in 2 colour ATI - Ne
Sequential Ionization
Work in progress - but we can begin to think
about studying isonuclear trends.
Ultrafast Imaging Workshop, Ischia May 3, 2009
26
Summary - Two Colour ATI

• Demonstrated interference free SBs to high order,
  polarisation control, laser and FEL parameter
  dependencies SBs in atomic and ionic targets
• At low optical intensities 2nd OPT SPA agree
• 3. Beyond He we really need to measure angular
  distributions to try to unravel the l channels
• 4. SPA works well at high intensities but the
  number of open high angular momentum channels is
  a challenge for other approaches such as R-Matrix
  Floquet (HvdH)
• 5. Is there really value in going beyond SPA here
  ? Does the residual ion core atomic structure
  really matter.?

Ultrafast Imaging Workshop, Ischia May 3, 2009
27
Optical Probing of H2 Dissociation
Demonstration Experiment
Ultrafast Imaging Workshop, Ischia May 3, 2009
28
Optical Probing of H2 Dissociation
1) H2 h?(FEL) --gt H H
lt 100 fs
FEL 13.7 nm, 90.5 eV
2) H h?(las) --gt H e-
h?VUV
Opt.Las. 400 nm, 3.1 eV
H H
H H(nl)
H H(1s)
H(1s) H(1s)
Ultrafast Imaging Workshop, Ischia May 3, 2009
29
Optical Probing of H2 Dissociation
13.7 nm (pump) 400 nm (probe)
High Intensity (1.5 mJ/120 fs)
Low Intensity (0.5 mJ/120 fs)
Ultrafast Imaging Workshop, Ischia May 3, 2009
30
Optical Probing of H2 Dissociation
Dynamics - more to do - jitter limited.
expt.
fit
risetime 500 fs
Ultrafast Imaging Workshop, Ischia May 3, 2009
31
Xe ionization in intense EUV fields
Ultrafast Imaging Workshop, Ischia May 3, 2009
32
? 4d two photon direct ionization
FEL only. h? 93 eV
Xe 2h? ? Xe e-
Replace PIS by MBES - First evidence of
inner-shell TPI
Ultrafast Imaging Workshop, Ischia May 3, 2009
33
Part 3. Current and Future Interests
Two Colour Resonant Photoionization Processes

• To date we have looked only at one and two colour
  non-resonant processes
• 2. Next phase - FEL tunable and so we can explore
  resonant two colour processes where inner shell
  electrons dominate

Ultrafast Imaging Workshop, Ischia May 3, 2009
34
Kr (3d94d) 2 Photon Resonance Auger
Expt. June 2009 (Hopefully) MLM - 3 degree
incidence
Kr 3d9 2D5/2
92.0eV
4d
Auger
?
Kr 4p4 4d, 5d
VUV 46.1 eV
Kr 3d10 4s2 4p6
Ultrafast Imaging Workshop, Ischia May 3, 2009
35
Kr (3d94d) DOR-Auger
Kr 3d9 2D5/2
92.0eV
4d
Auger
1.55 eV
5p
?
Kr 4p4 4d, 5d
XUV 13.9 nm
Kr 3d10 4s2 4p6
Next Expt h?FEL (89 eV) h?OL(3.1 eV)
Ultrafast Imaging Workshop, Ischia May 3, 2009
36
Experiments post-upgrade
Upgrade - Optical Parametric Amplifier - (fs OPA)
Laser coupling/spectroscopy of autoionization
states - 'Autler-Townes' meets Codling-Madden
Ultrafast Imaging Workshop, Ischia May 3, 2009
37
Tunable Optical Laser - Laser Coupling of
autoionization states - 'Autler Townes'
Autoionizing Resonances - He

• New Knobs
• Laser Frequency
• Laser Intensity

Bachau Lambropoulos, PRA (1986) Themelis,
Lambropoulos, Meyer, JPB (2005)
Ultrafast Imaging Workshop, Ischia May 3, 2009
38
FLASH - Technical Developments
OPA Upgrade - 0.01 - 1 mJ/ 0.1 - 20
ps Synchronisation - New FIR Undulator
(THz) Seeding with HHs - Full
coherence Stabilisation Synchroniosati
on
Ultrafast Imaging Workshop, Ischia May 3, 2009
39
In Conclusion

• 1. To date we have looked only at one and two
  colour non-resonant photoionization processes
• Now - FEL easily tunable - we can explore
  resonant two colour processes where inner shell
  electrons dominate
• 3. Study fragmentation and ionization from
  vibrationally excited/selected wavepackets in
  simple molecules
• Beyond 2009 Seeding, fs jitter, angle resolved
  PES,
• LCLS/XFEL/SPRING-8/NLS..

Ultrafast Imaging Workshop, Ischia May 3, 2009
