Title: Normal faults


1

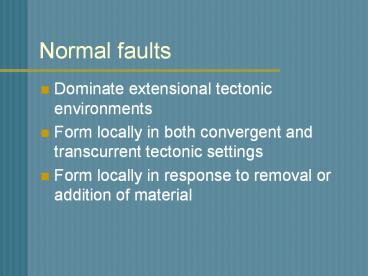

Normal faults
  • Dominate extensional tectonic environments
  • Form locally in both convergent and transcurrent
    tectonic settings
  • Form locally in response to removal or addition
    of material

2
Starting point rift to drift
  • Note thinning of crust and lithosphere
  • Asthenosphere interacts with crust
  • Volcanism, normal faults, high geothermal gradient

3
Transform faults
  • Transfer motion between mid-ocean ridge segments
  • Movement sense dictated by variations in rate of
    extension can change along strike
  • Parallel movement direction

4
Intracontinental extension
  • Master faults are normal faults
  • Strike roughly perpendicular to extension
    direction (exception reactivation of older
    faults)

5
Magnitude of extension in BR
  • Imagine state lines were strain markers
  • Approximate extension associated with part of the
    BR is shown
  • Hamilton (1978)

6
Elements of an extensional system in cross section
  • Note topography, producing sedimentary
    depocenters
  • Detachment faults allow rotation of blocks
    bounded by high-angle normal faults

7
Symmetry
  • Two conceptual models for extension
  • Both have ductile thinning at depth
  • One has dominant dip direction (synthetic with
    respect to detachment)

8
Metamorphic core complexes
9
Metamorphic core complexes
  • Exposed in belt extending from Canada into Mexico
  • Record greater extension than high-angle normal
    faults

10
Domino-style faulting
  • Fault blocks rotate with progressive extension
  • Syntectonic sediments record tilting with
    progressively changing dip
  • Note this requires detachment at depth

11
Drift structures
  • Patterns recording continental rifting preserved
    on both continental margins
  • Note that low-density salt can also participate
    in extension

12
Continental extension in 3D
13
Transfer faults
  • Form hard links between normal fault segments
    with different magnitudes of displacement
  • Fault-related folds terminate at transfer faults
  • Gibbs (1990)

14
(No Transcript)
15
Folds related to dip-slip faults
16
Soft-linked normal faults
  • Fault displacement decreases toward tip
  • Overlapping (en échelon) fault tips produce relay
    ramp
  • Walsh and Watterson (1991)

17
Relay ramps effect sed transport
After Yielding and Roberts (1992)
18
Duplexes may form in any (curviplanar) fault
system
  • Note the association between fault-plane
    topography and duplexes
  • Horses believed to form by lopping off
    irregularities on fault surface
