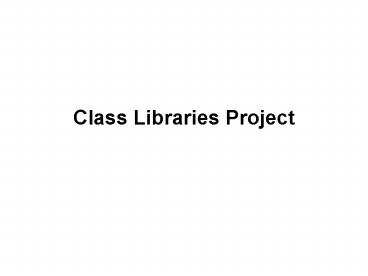

Title: Class Libraries Project
1Class Libraries Project
2Objectives
- Convert a Windows Forms application into a class
library - Build a class library, and create a solution with
multiple projects - Incorporate a component into a class library
project, and use the component to exchange
parameter data with a client program - Plan for the completion of the LogonManagerFinal
application, including the MDI form, child forms,
and calls to two class library projects
3Converting a Windows Forms Application into a
Class Library
- To convert FigWelcome from Tut01 into a reusable
splash screen - In Windows Explorer, copy the FigWelcome folder
from the Tut01 folder and paste it into the Tut04
folder. Then, in Visual Studio .NET, open the
FigWelcome solution from the Tut04 folder, and
open frmWelcome in the Form Designer - Drop a Timer control from the Toolbox onto
frmWelcome (it will appear in a tray beneath the
form), set its Enabled property to True, set its
Interval property to 3000 (that is, three
seconds), and insert the following statement into
the Timers Tick event procedure Me.Dispose().
Run the FigWelcome program to see that it
terminates after three seconds - Delete btnClose and the btnClose_Click event
procedures. Run the FigWelcome program again. In
Windows Explorer, in the Tut04\FigWelcome\bin
folder, delete FigWelcome.exe - Right-click the project name, FigWelcome, and
click Properties. If necessary, navigate through
the FigWelcome Property Pages, to the General tab
of Common Properties, and change the setting in
the Output type combo box to Class Library. Click
OK
4frmWelcome in the IDE
5Incorporating FigWelcome into Other Programs
- To incorporate FigWelcome into other programs
- Add a reference to the FigWelcome Class Library
- Insert the Imports FigWelcome statement before
the class declaration of the startup form or
module in the client application - Insert the Dim declaration and ShowDialog()
method shown in Step 5 of the previous exercise
into the Sub Main() procedure, the Sub New()
procedure (after the InitializeComponent() call),
or the Form_Load event procedure of the client
6Building The Logon Class Library
- How do you pass parameters between the calling
(client) program and the called (class library)
program? - Case of the LogonManager application
- The calling program (LogonManager) should call
the Logon program - Calling program should receive an indication that
the user successfully logged on (or did not) - Parameter may be passed to a procedure ByRef or
ByVal - When passed ByRef
- Address where the variable is stored in the
calling routine is passed to the called routine
(function or method) - When passed ByVal
- Value (of the literal, variable, constant, or
expression) is passed, rather than an address
where that value is stored
7Adding a ToolBar Control
- To add a ToolBar control to a new application
- Start a new Visual Basic .NET Windows application
called SampleToolBar in the Tut04 folder. Put a
MainMenu control on Form1 with three entries
Exit, Change Message, and Hide Message. Name
these menu items mnuExit, mnuChange, and mnuHide
respectively. Drag a large Label control onto the
form, set its BackColor property to yellow, its
Text property to nothing, its TextAlign property
to MiddleCenter, and its Dock property to Top - Drag a ToolBar control onto the form. If you
dont see the ToolBar in the Toolbox, click the
down arrow next to the General button to scroll
down the list - Click the ToolBars Buttons property, then click
the Collections setting - In the ToolBarButton Collection Editor, click
Add. ToolBarButton1 is added. In the properties
listing for ToolBarButton1, change the buttons
Name property to tbrBtnExit, and change the Text
property to Exit. Type the following message in
the ToolTipText property This terminates the
program
8Adding a ToolBar Control (Continued)
- In the ToolBarButton Collection Editor, click Add
again. ToolBarButton1 is added. In the properties
listing for ToolBarButton1, change the buttons
Name property to tbrBtnChangeLabel, and change
the Text property to Change Message. Type the
following message in the ToolTipText property
Click here to change and show the message - In the ToolBarButton Collection Editor, click
Add. ToolBarButton1 is added. Change its Name
property to tbrBtnHideLabel, and change the Text
property to Hide Message. Type the following
message in the ToolTipText property Click here
to hide the message. Click OK - Double-click the ToolBar control, which opens the
ToolBar1_ButtonClick event procedure in the Code
Editor. Insert the code in Figure 4-20 - Run the SampleToolBar program, and click the
Change Message button
9Adding an ImageList Component
- To add an ImageList to SampleToolBar
- Copy and paste three images (icons, bitmaps,
tifs, or gifs) into the SampleToolBar solutions
folder (VB.NET\Student\Tut04\SampleToolBar) - Drag an ImageList component from the Toolbox onto
Form1 - Click ImageList1s Images property, and then
click Collections in the settings box - In the Image Collection Editor, click Add. In the
Open dialog box, navigate to the SampleToolBar
folder, and add one of the image files you have
copied there - Click ToolBar1. Set its ImageList property to
ImageList1. Now click ToolBar1s Buttons
Collection property. In the ToolBarButton
Collection Editor, click tbrBtnExit. Under
tbrBtnExit properties, click ImageIndex. Select
one of the three images (0, 1, or 2) - Run the SampleToolBar program to ensure that the
images appear properly on the toolbar buttons at
runtime
10Adding an OpenFileDialog Control
- OpenFileDialog control
- Purpose is to designate a file to be opened for
input - Used by the mnuFileRestore_Click() procedure
- Has almost all the same properties, appearance,
and behavior as the SaveFileDialog control
11Setting up and Planning the LogonManagerFinal
Application
- To set up the LogonManagerFinal application
- Create a new folder called VB.NET\Student\Tut04\Lo
gonManagerFinal - Into this new folder, copy the contents of either
the VB.NET\Student\Tut03\LogonManagerDraft folder
or the completed LogonManagerDraft application
folder you obtain from your instructor - Click File Open Solution, and open the
LogonManagerDraft.sln (solution) file. In
Solution Explorer, click Solution
LogonManagerDraft (1 project). In the Solution
Properties window, click the solution name, and
change it to LogonManager. In Solution Explorer,
click the project name, LogonManagerDraft. Then
in Project Properties, change the name of the
project to LogonManager - Run the LogonManager project from the IDE to make
sure that it still works correctly - In Windows Explorer, navigate to the
LogonManagerFinal folder. Verify that the name of
the solution file has been changed to
LogonManager.sln, and the name of the project is
now LogonManager.vbproj
12Identifying Tasks to Complete LogonManager
- Complete the mdiMain GUI
- Add ToolBar and ImageList controls
- Enhance applications GUI
- Write new menu click event procedures for menu
items that were under construction at end of
Tutorial 3 - Incorporate calls to the Logon application in
- mnuViewExistingUser_Click()
- mnuViewSupervisorLogon_Click()
- Display the splash screen (FigWelcome) at startup
13Completing the mdiMain GUI
- To add an image list and toolbar to mdiMain
- Add an ImageList control to mdiMain. Add any
three icons (.ico files) to its Images Collection - Add a ToolBar control to mdiMain. Set its
ImageList property to ImageList1. In the Buttons
property, click Collection. In the ToolBarButton
Collection Editor, add three ToolBarButtons, and
set the appropriate Text and ImageIndex property
for each button, as suggested by Figure 4-26. Set
the ToolTipText property to Fill out the
application form to become a user, Update/verify
your user information and change your password,
and Logon as the system supervisor, respectively - To open the ToolBar1_ButtonClick event procedure,
in mdiMains Code window, select ToolBar1 from
the Class Name combo box at the top left. Then
select ButtonClick from the Method Name combo box
at the top right - Recall that you can use a Select Case control
structure to differentiate among ToolBarButton
controls. Add the code shown in Figure 4-27 - Run the LogonManagerFinal application to see that
it still works as it did at the end of Tutorial 3
and to verify that the new toolbar buttons work
as advertised
14 Implementing a RadioCheck
- To implement the RadioCheck in front of the
Accept New Users menu item - Insert the mnuViewSupervisor_Select() procedure
shown in Figure 4-28 - Code uses a local Boolean variable,
blnNewUserPending, initialized to False, to
indicate the presence of at least one new user
record - When an N record is encountered
- Boolean variable is set to True
15ToolBar1_ButtonClick() Event Procedure
16Programming Procedures on the File Menu
- To create and test the backup and restore
procedures - Begin by dragging a SaveFileDialog control and an
OpenFileDialog control onto mdiMain - Insert the code shown in Figure 4-29 into
mnuFileBackup_Click() - Program the mnuFileRestore_Click() procedure, as
shown in Figure 4-30 - Run the LogonManagerFinal application. Log on as
the system supervisor (recall that the
supervisors e-mail address is 1 and the password
is SUPERVISOR). Then click File Backup, and
save the Users file in the Temp folder as
Users.bak. Then click File Restore, and restore
the Users file you have just backed up. Exit the
program and return to the IDE
17Code for mnuFileBackup_Click()
18Code for mnuFileRestore()_Click
19Programming Procedures on the View Menu
- To (partially) program the remaining stubs in the
View menu - Open the mnuViewExistingUser_Click() procedure.
Insert the code shown in Figure 4-31 - Open mnuViewSupervisorEditUserInfo_Click(). Type
the code shown in Figure 4-32 - Run the LogonManagerFinal program to verify that
the procedures you have just created work
correctly. Exit the program and return to the IDE - Add a new form named frmViewAll to the
LogonManager project. Set its WindowState
property to Maximized. Add a ListBox control, and
set its Dock property to Fill - Insert the code shown in Figure 4-33 into the
frmViewAll_Load() procedure
20Programming Procedures on the View Menu
(Continued)
- In mdiMain, in mnuViewSupervisorViewAllUsers_Click
(), insert code shown in Figure 4-35 to maximize
mdiMain and show the child form - Run the LogonManagerFinal program, logon as the
supervisor, and view the child form. Exit the
program and return to the IDE - Type the code into the mnuViewSupervisorResetExpir
ationDates_Click() event procedure shown in
Figure 4-36 - Run the LogonManagerFinal application again. Log
on as the supervisor, and click View Supervisor
View All Users. Note the password expiration
dates for each active user. Now click View
Supervisor Reset Expiration Dates. Then click
View Supervisor View All Users again, and
note the revised password expiration dates for
all active users except the supervisor. Exit the
application and return to the IDE
21Disabling Controls for Multiple Users and Purposes
- To disable user-editable controls in frmUser when
the Accept New Users menu item has been selected - In frmUser, insert a new procedure called
DisableControls(). In this procedure, disable all
of the user-editable controls on frmUser
(TextBoxes, ComboBox, CheckBox, and RadioButtons) - In mdiMain, in the mnuViewSupervisorAcceptNewUsers
_Click() procedure, insert the following
statement before showing the child form
frmUserTemp.DisableControls() - Run the LogonManagerFinal program. Create a new
user named Dublin Ireland, with an e-mail address
of Dublin_at_fgdt.org, and the password dublinfgdt.
His secret question asks for his mothers maiden
name, and the answer is Casey. Submit the New
User - Click View Supervisor. A RadioCheck appears in
front of Accept New Users. Log on as the
supervisor. Click Accept New Users. Dublin
Irelands record appears. Verify that all the
user-editable controls have been disabled. Click
Accept. Click View Supervisor. The RadioCheck
no longer appears in front of Accept New Users - Exit the application and return to the IDE
22Adding a Call to the Logon Application
- To insert the Logon application into LogonManager
- In Solution Explorer, add a reference to the
Logon.dll in the LogonManagers References by
right-clicking References in Solution Explorer,
then clicking Add Reference. In the Add Reference
dialog box, click the Projects tab. Browse to
find the Logon.dll (in VB.NET\Student\Tut04\Logon\
bin), and click OK - In the Code window for mdiMain, insert the
following statement before the Public Class
mdiMain statement Imports Logon - Replace the stub code with a call to the Logon
application in the mnuViewSupervisorLogon_Click()
procedure as shown in Figure 4-37 - Navigate to mnuViewExistingUser_Click(), and add
the code shown in Figure 4-38 at the beginning of
the procedure, replacing the InputBox function
call. In this case, the user need not be a
supervisor - Run the program, checking that the two calls to
the Logon application work as advertised. Exit
the program and return to the IDE
23Code for mnuViewSupervisorLogon_Click()
24Calling Logon from mnuViewExistingUser_Click()
25Adding the Call to the FigWelcome Splash Screen
- To insert the FigWelcome splash screen into
LogonManager - In Solution Explorer, add a reference to the
FigWelcome.dll in the LogonManagers References - In the Code window for mdiMain, insert the
following statement before the Public Class
mdiMain declaration Imports FigWelcome - Navigate to the Windows Form Designer generated
code section, in Sub New(), and insert the
following after the InitializeComponent() method
call - Dim MyWelcome As New frmWelcome()
- MyWelcome.ShowDialog()
- Run the LogonManager program
26Understanding the Power of a Class Library
- To implement a change to Logon
- Open the Logon solution, open frmLogon in the
Form Designer, and set the BackgroundImage
property to the bitmap file Gone Fishing.bmp.
Then run the TryLogon project, which calls Logon
and causes it to compile, updating its DLL - Run LogonManager.exe from the Start menu or from
Windows Explorer. Click View Existing User to
invoke Logon - Open LogonManager in the IDE, if necessary, and
run it from within the IDE. This calls the new
DLL for the class library. When Logon is invoked,
it appears with the new background. Exit the
application, and exit Visual Studio .NET - Now run LogonManager once more from the Start
menu or from Windows Explorer
27Summary
- ToolBar control
- Often incorporated into a form
- ImageList control
- Contains a collection of images
- OpenFileDialog control
- Allows the user to specify a file to be opened
for input
28Summary
- Class library application
- Compiles to a DLL (dynamic link library) file
- To call a class from another application
- Add a reference to the classs DLL in the calling
application - To make the members of a class available without
qualification - Use the Imports statement
- Component
- Can be defined in a class library
- Can contain procedures with parameters passed
from a calling routine - Efficiency of OOP
- Becomes obvious during program maintenance
