Offshore Wind Farm Survey Requirements

1

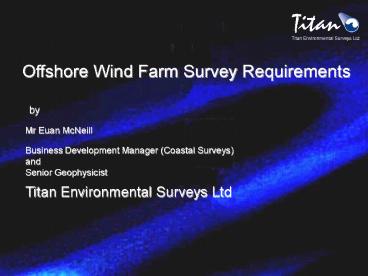

Offshore Wind Farm Survey Requirements
by Mr Euan McNeill Business Development
Manager (Coastal Surveys) and Senior
Geophysicist Titan Environmental Surveys Ltd
2
Introduction Site Survey Data Needs
Data Geophysics Geotechnics Oceanography (waves
/ currents) Benthic Ornithology Meteorology (Met
Mast Deployment)
Titans Experience 7 Licences 2 Licences 6
Licences
Approx. Cost (K) 40 - 60 gt200 - 350 30 - 60 30
- 50 15 - 25
3
Data Relationships
Min and max wave height, current data
Key PSA Particle Size Analysis ES
Echosounder SSS Side scan sonar SBP
Sub-bottom profiler MAG Magnetometer CPT Cone
Penetrometer test VC Vibrocorer
Time
4
Data Examples
Sub-bottom Profiler Data
Side Scan Sonar Data
Echosounder Data
5
Data Coverage for a Generic Site
6
Data Products
Isopachyte Chart
Cable Route Strip Chart
Seabed Features Chart
Sub-bottom Profiles
7
Conclusions

• Site data required at an early stage
• Geophysical survey should incorporate

• Bathymetry Echosounder
• Seabed Features Sidescan Sonar
• Shallow Geology Sub-bottom Profiler
• Debris Location Magnetometer

• Survey Data supports many other activities

• EIA
• Foundation Engineering
• Cable Engineering (Landing sites / Topographic
  survey)
• Benthic Survey Workscope
• Targeted Geotechnical Survey Workscope

• Targeted data acquisition leads to cost savings
  later
