HUNG 3/03

1

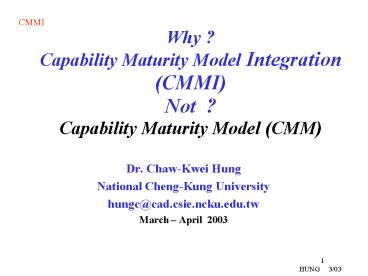

Why ?Capability Maturity Model Integration
(CMMI)Not ?Capability Maturity Model (CMM)

• Dr. Chaw-Kwei Hung
• National Cheng-Kung University
• hungc_at_cad.csie.ncku.edu.tw
• March April 2003

2
Agenda

• Business Process
• The Evolution of CMM and CMMI Based Process
  Improvement
• Basic Understanding of the CMM
• Basic Understanding of the CMMI
• Should Organizations Process Improvement be
  used CMMI Instead of SW-CMM??
• Taiwans System Life Cycle Phases Characteristics
• To Promote CMMI Technology Infusion (CTI) for
  Taiwans Information Industry
• Q A

3
What is a Business Process?
PEOPLE
Major determinants of product cost, schedule ,
and quality
Glue Unifies the other aspects
TCCHNOLOGY
PROCESS
4
The Evolution of CMM and CMMI-Based Process
Improvement

• Carnegic Mellon University USA DOD Supported
  Software Engineering Institute (SEI)
• 1987
• First CMM published as a technical report
• 1989
• Book on the software maturity framework published
• 1991
• CMM V. 1.0 for software published
• 1993/1994
• CMM V. 1.1 for software published, Personal
  Software Process (PSP developed by the SEI
• 1995
• New specialized CMM published by the SEI ,
  including CMMs for acquisition (SA-CMM), system
  engineering (SE-CMM), integrated product
  development (IPD-CMM) and human resource
  management (People-CMM)

5
The Evolution of CMM and CMMI-Based Process
Improvement (Continue)

• 1996
• Team Software Process (TSP developed by the SEI
• 1997
• AS new Quality Standards continue to emerge, such
  as EIA/IS 731, Capability Maturity Model
  Integration (CMMI) Project by the USA DOD
• 12/2000
• CMMI V. 1.02 Published (III Translation of
  Chinese Version)
• 12/2001
• CMMI V. 1.1Pulblished
• 2003
• The SEI has announced - SEI will discontinue any
  support of CMM after December 2003

6
Basic Understanding of the CMM (Capability
Maturity Model) Sponsored by the US Department of
Defense (DOD) and National Defense Industrial
Association (NDIA) Collaborative Endeavor
Software Engineering Institute (SEI)
Government Industry
7
CMM Structure

• What is the CMM?
• A model for process maturity
• A framework for reliable and consistent
  assessments
• A software industry, community owned guide
• A mechanism for identifying and adopting best
  practices
• Used to evaluate an organizations process
  maturity against global standard

8
CMM Structure

• Maturity Levels
• There are five maturity levels
• Well-defined evolutionary plateaus on a path to
  becoming a mature software Organization
• Each level is a layer in the foundation for
  continuous process improvement
• Achieving each level establishes a different
  component of the software process

9
CMM Maturity Levels
Continuously
Optimizing
(5)
improving
process
(measured)
Managed
(4)
Predictable
process
(standard)
Standard,
Defined
(3)
consistent
process
(planed and tracked)
Repeatable
(2)
Disciplined
process
(performed)
Initial
(1)
10
CMM Maturity Levels
Key Process Area (KPA) Total 18 KPAs
Level
Focus
Just do it
1 Initial
11
CMM Appraisal Process

• The evaluators conduct interviews and review
  documents and other intermediate work products to
  obtain verifiable evidence of Commitment,
  Ability, Activity, Measures, Verifying
  information
• This is done for each KPA
• Six Steps
• Team Selection
• Maturity Questionnaires (Sample the CMM)
• Response Analysis
• On-Site Visit Interview and Document Reviews
• Finding Based on the CMM
• KPA Profile

12
Basic Understanding of the CMMI (Capability
Maturity Model Integration) Sponsored by the US
Department of Defense (DOD) and National Defense
Industrial Association (NDIA) Collaborative
Endeavor (Over 100 People Involved) Software
Engineering Institute (SEI) Government
Industry
13
CMMI Source Models

• Capability Maturity Model (CMM) for Software V2,
  draft C (SW-CMM)
• EIA Interim Standard 731, System Engineering
  Capability Model (SECM)
• Integrated Product Development Capability
  Maturity Model, draft V0.98 (IPD-CMM)
• Supplier Sourcing (SS)

14
Courtesy Sarah Sheard, SPC
15
CMMI Future Release and Updates

• After CMMI V1.1 has been published by December
  2001, the SEI will not produce any updates to
  the SW-CMM model for training

16
For More Information About CMMI

• Go to CMMI Web site
• http//www.sei.cmu.edu/cmmi
• Contact SEI Customer Relations
• Customer RelationsSoftware Engineering
  InstituteCarnegie Mellon UniversityPittsburgh,
  PA 15213-3890FAX [phone]
• customer-relations_at_sei.cmu.edu

17
CMMI Terminology

• CMMI Models contain institutionalization
  (Generic) and implementation (Specific) parts
• Front matter
• Process Areas that contain
• Generic and Specific Goals
• Generic and Specific Practices(in Common
  Features in staged representation)
• Subpractices
• Notes
• Discipline-specific amplifications
• Glossary and tailoring guidelines

Required
Expected
Informative
18
CMMI Model Representations

• The CMMI provides Two approaches to process
  improvement.
• process capability approach - continuous
  representation
• organizational maturity approach - staged
  representation

19
Comparing Model Representations
Staged
Continuous
ML5
ML4
Capability
0 1 2 3 4 5
ML3
ML2
ML 1
PA
PA
PA
Organization
Process
20
Structure of the CMMI Staged Representation
Maturity Levels
21
Staged Improvement Levels
Continuously
Optimizing
(5)
improving
process
Quantitatively Managed
(measured)
(4)
Predictable
process
(standard)
Standard,
Defined
(3)
consistent
process
(planned and tracked)
Managed
(2)
Disciplined
process
(performed)
Initial
(1)
Not performed (0)
22
CMMI Maturity Levels
Staged Organization of PAs
Level
Focus
1 Initial
23
Category
Continuous Organization of PAs
24
CMMI Appraisal Method

• ARC, V1.0 Assessment Requirements for CMMI
  Version 1.0
• SCAMPI Method Standard CMMI Assessment Method
  for Process Improvement (SCAMPI) Method
  Definition Document (MDD)

25
CMMI Appraisal Method Classes
Summary Characteristic Class A Class B Class C
ARC requirements applicable All Most Some
Amount of objective evidence gathered High Medium Low
Ratings generated Yes NO No
Resource needed High Medium Low
ISO 15504 comfomance Yes Partial No
Team size Large Medium Small
26
CMMI Training Model

• Introduction to CMMI (Member of SCAMPI
  assessment team required)
• Intermediate Training
• Instructor Training
• Lead Appraiser

27
Taiwans System Life Cycle Processes
Characteristics
Implementation
System Integration System Deployment
Planning System Req System Design
TAIWAN
USA
28
Taiwans System Life-cycle Processes
Characteristics

• Productivity High Implementation Phase
• Big Gap between Education (University Software
  Engineering) and Industry
• Opportunity for Improvement Phases System
  Requirements and Design, Planning and System
  Integration
• Has approximately 1000 software companies and a
  high volume of small companies
• No Training
• No Continuous Process Improvement Cost??
• Hardware and Software Not Balance in the world
  market
• Lack of Software Profile (Understanding)
• All National Programs such SI-Soft, e-Learning,
  etc depend on Core Technology - Software

29
CMMI Promotion to Information Industry

• Organizations Driver
• Financial Performance (Profit)
• Customers Satisfaction
• Operational (Organizational ) Performance
• Learning and Innovation

30
CMMI Technology Infusion (CTI) Objectives

• To Promote CMMI Technology Infusion (CTI) for
  Taiwans Information Industry
• To Understanding the Software/System Process
  Improvement for Your Organization
• Support/Supervise Your Organization Phases
  Approach to Achieve Standard CMMI Assessment
  Method for Process Improvement (SCAMPI)- CMMI
  Class A Rating
• With Minimum Cost

31
CTI Promotion Phases Approach Road Map
Selection Criteria
Selection Criteria
_at_2 Organization Gap Analysis CMMI Execution (6-10
Months)
_at_1 CMMI Training for SEPG (3-4 Months)

Selection Criteria
_at_4 Formal SEI SCAMPI Class A Appraisals (1
Month)
Selection Criteria
_at_3 CMMI Class B/Class C Appraisals (3 Months)
CMMI Level 2
Total 13 18 Months ( Org. Process Improvement
and to Get CMMI Level 2 SCAMPI
32
Solutions?CMMI
33
Q A
