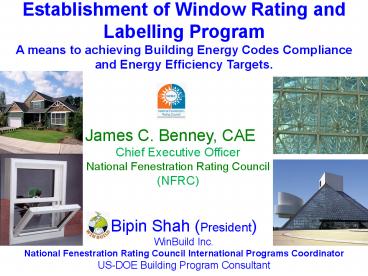

Bipin Shah (President)

1
Establishment of Window Rating and Labelling
ProgramA means to achieving Building Energy
Codes Compliance and Energy Efficiency Targets.
James C. Benney, CAE Chief Executive
Officer National Fenestration Rating Council
(NFRC)

• Bipin Shah (President)
• WinBuild Inc.
• National Fenestration Rating Council
  International Programs Coordinator
• US-DOE Building Program Consultant

2
Topics

• Policy and Commercialization Path
• Governance
• Establishing the Windows Component System
  Simulation and Testing Facilities
• Quality assurance and Database
• Labeling Process
• Compliance
• Codes
• Incentive Programs and Promotion

3
Policies Commercialization Path
Market Introduction
Mainstream Deployment
Regulation
RD
Mandatory
Voluntary
Audits / ESCOs
Mandatory Requirement - Building Codes
Financial Incentives
Technology Procurement
Traditional R D
Rating and Labeling Program
Demonstration of Case Studies
Labeling For Compliance
4
Codes and Govt. Incentives
Energy Star
Currently NFRC has 1.67 Million Products Options
Rated
5
Transforming the Market
Transforming Product Performance Efficient
Energy Efficiency Policies
Building Codes and Standards
Market Conditioning
of Units
- Information - Incentives - Outreach
- Leadership
RD
Energy Efficiency (Metrics)
6
Why Rating is important

• Policies Regulations Are difficult to implement
  and enforce unless one has the infrastructure to
  support compliance (ratings, certification,
  product testing, quality control, whole building
  integrated performance)

• Helps to verify code compliance
• Provides product performance comparison and
  assists consumer to make informed decision
• Promotes energy efficiency by providing a base
  line for product development and improvement.
  Also creates market competition for improved
  products
• Consumer benefit (assured payback, Insurance, tax
  incentives, and etc.

7
Requirements of a Successful Rating System

• Fair, accurate and unbiased
• Based on Science
• Provide Verifiable, Repeatable and Consistent
  Results
• Evaluation Based on Fixed Conditions
• Cost Effective for Adoption
• Industry buy-in

8
Structure Of A Rating Organization
Governance Body Board of Directors which is
balanced between Industry and Consumer interest
representation
Membership Participates in the program and pays
fees
Committee responsible for development of
procedures and standards
Executive office and Staff Carries out day to
day operation and management
Testing and Simulation Laboratories accredited by
the Governing Body Service Provides Energy
ratings per prescribed standards
Inspection Agency Licensed by the Governing
Body Service Audits products which the
participants rate.
9
Applicable ISO Standards

• ISO 15099 -Thermal Performance of Windows,
  Doors and Shading Devices  Detailed Calculations

• ISO 12567 Thermal performance of windows and
  doors -Determination of thermal transmittance by
  hot box method
• Part 1 Complete windows and doors and
• Part II Roof windows and other projecting
  windows
• ISO 9050 - Glass in building-Determination of
  light transmittance, solar direct transmittance,
  total solar energy transmittance, ultraviolet
  transmittance and related glazing factors

10
Available Tools Simulation Tools
Simulations Provides Repeatability Consistency
and Reliability Beside being Cost Effective

• WINDOW
• THERM
• OPTICS

http//windows.lbl.gov/software/default.htm
Computer Programs are ISO-15099 9050 compliant
11
Testing Used for Windows, Product Certification
Test Lab to be ISO 17025 compliant
Spectrophotometer

• Fenestration
• Simulation of U-factor, Solar Heat Gain Factor
  and Visible transmittance - ISO 15099
• U-factor testing - ASTM C 1363, C1199, NFRC 102
• Solar Heat Gain Testing NFRC 201
• Spectral Optical Property ISO 9050, ASTM E903,
  NFRC 300, 301
• Air Leakage ASTM E283, NFRC 400

Hot Box
Solar Calorimeter
Air Leakage
12
Window Energy Rating Process Pre Fabricated
Inspection Agency (IA) Issue Certificate
authorization, Plant inspection
Testing Laboratory (Test One Base Line Product)
Simulation Laboratory Simulate All Option
Market Place Responsible Party Label Product
NFRC Label or Label Certificate
Compliance Assurance and Penalties for
non-compliance
13
Rating of Products Pre Fabricated

• Temporary (Displayed for Verification removed
  after installation and inspection)
• Permanent (Part of the window, used for
  replacement of components to preserve performance)

14
Rating Process for Post Fabricated
Component Modeling Approach - CMA
Spacer component
Frame component
Glazing component
Glazing infill / Center of Glazing assembly
Frame system / Frame assembly
Spacer system / spacer assembly
PRODUCT CONFIGURATION Overall product rating
calculation
15
Sample Post Fabricated Product Label
16
(No Transcript)
17
NFRC Certified Product Database
18
Implementation of Successful Rating System

• Referenced by Codes and Regulations
• Promotional Programs like Energy Star
• Financial Incentives

19
Fenestration Code

• IECC IBC International (Energy Conservation
  Code International Building Code)
• IECC and IBCs Energy Code require rating for
  Residential and Non-Residential and specify NFRC
  certification for compliance.
• ASHRAE (American Society of Heating,
  Refrigeration Air Conditioning Engineers)
• ASHRAE 90.1 Energy Standard for Buildings Except
  Low-Rise Residential Buildings require U-factor
  and Solar Heat Gain and specify NFRC
  certification for compliance.
• ASHRAE (American Society of Heating,
  Refrigeration Air Conditioning Engineers)
• ASHRAE 90.2 Energy Standard for Low-Rise
  Residential Buildings require U-factor and Solar
  Heat Gain and specify NFRC certification for
  compliance.

20
Energy Policy Act 2005 Energy Star Program
21
Incentive Program
22
Tax Credit

• the IRS has provided a special rule (on page 7
  of the IRS notice 2006-26) for claiming the
  residential tax credits with Energy Star windows
• .03 Special Rule for Energy Star Windows and
  Skylights. A taxpayer may treat an exterior
  window or skylight that bears an Energy Star
  label and is installed in the region identified
  on the label as an Eligible Building Envelope
  Component and may rely on such Energy Star label,
  rather than on a manufacturers certification
   statement, in claiming the 25C credit.

23
Impact Rating Can Have in The Market Place
The impact of successful NFRC rating program, in
the year 2003 in the USA, 41 of all conventional
residential windows were energy rated and were
classified as Energy Star Windows which would
not have been possible without NFRC ratings. As
a result, NFRC was active in saving over 7
billion BTUs (and 2 million kWs peak load) in
just one year (2003).
24
