Classical Mechanics

1

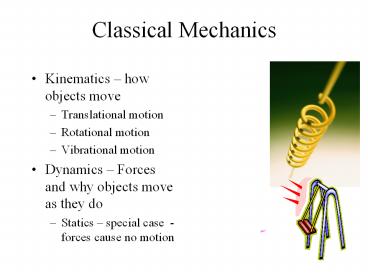

Classical Mechanics

• Kinematics how objects move
• Translational motion
• Rotational motion
• Vibrational motion
• Dynamics Forces and why objects move as they do
• Statics special case - forces cause no motion

2
Reference Frames

• Position, distance or speed must be specified wrt
  some reference frame.
• Coordinate axis
• Position coordinate
• Displacement change in position
• final minus initial
• Displacement is a vector! Direction is from the
  initial to final position.

3
Average Velocity
4
More Examples
5
Velocity

• Average velocity
• Instantaneous velocity

Velocity vs. Speed?
6
Instantaneous Velocity
7
Acceleration

• Average acceleration
• Instantaneous acceleration

8
Example Problem 1

• A jogger runs in a straight line with
• an average velocity of 5.00 m/s for 4.00 min.
• an average velocity of 4.00 m/s for 3.00 min.
• What is her total displacement?
• What is her average velocity during this time?

9
Example Problem 2

• A particle moves along the x-axis acording to the
  equation (x is in meters, and t is in seconds)
• What must be the units on the constants?
• What is the instantaneous velocity at t 3.0 s?
• What is the instantaneous acceleration at t 3.0
  s?
• What is the displacement between t 2.0 s and t
  3.0 s?
• What is the average velocity between t 2.0 s
  and t 3.0 s?

10
Motion Diagrams
See Wiley Plus Concept Simulation 1D constant
acceleration Difference between constant
acceleration and constant velocity
11
What if acceleration is known?
12
Memory Aid
13
Constant Acceleration
14
Example Problem 3

• A car will go 0 to 87 mph in 8 sec. Assume the
  acceleration is constant.
• Find the acceleration
• Find the position after 8 sec.
• Find the velocity after 10 sec.

15
Falling Objects

• Galileo at a given location on the earth and in
  the absence of air resistance, all objects fall
  with the same constant acceleration.

16
Example Problem 4

• A person throws a ball upward into the air with
  an initial velocity of 15.0 m/s.
• Find
• How high it goes
• How long the ball is in the air before it comes
  back to his hand
• How much time it takes to reach maximum height
• The velocity of the ball when it returns to the
  throwers hand
• At what time the ball passes a point 8.00 m above
  the persons hand.

17
The Graphs
18
Deceleration

• My golf ball goes flying in to the sandtrap at
  30.0 m/s. It looks like a fried egg buried 3.00
  cm into the sand. What was the acceleration of
  the golf ball caused by the sand as it landed?

19
Homework

• Wiley Plus Chap 2
