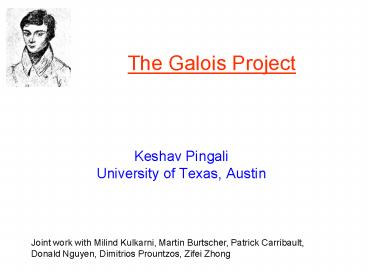

The Galois Project

1
The Galois Project

• Keshav Pingali
• University of Texas, Austin

Joint work with Milind Kulkarni, Martin
Burtscher, Patrick Carribault, Donald Nguyen,
Dimitrios Prountzos, Zifei Zhong
2
Overview of Galois Project

• Focus of Galois project
• parallel execution of irregular programs
• pointer-based data structures like graphs and
  trees
• raise abstraction level for Joe programmers
• explicit parallelism is too difficult for most
  programmers
• performance penalty for abstraction should be
  small
• Research approach
• study algorithms to find common patterns of
  parallelism and locality
• - Amorphous Data-Parallelism (ADP)
• design programming constructs for expressing
  these patterns
• implement these constructs efficiently
• - Abstraction-Based Speculation (ABS)
• For more information
• papers in PLDI 2007, ASPLOS 2008, SPAA 2008
• website http//iss.ices.utexas.edu

3
Organization

• Case study of amorphous data-parallelism
• Delaunay mesh refinement
• Galois system (PLDI 2007)
• Programming model
• Baseline implementation
• Galois system optimizations
• Scheduling (SPAA 2008)
• Data and computation partitioning (ASPLOS 2008)
• Experimental results
• Ongoing work

4
Delaunay Mesh Refinement

• Iterative refinement to remove badly shaped
  triangles
• while there are bad triangles do
• Pick a bad triangle
• Find its cavity
• Retriangulate cavity
• // may create new bad triangles
• Order in which bad triangles should be refined
• final mesh depends on order in which bad
  triangles are processed
• but all bad triangles will be eliminated
  ultimately regardless of order

Mesh m / read in mesh / WorkList
wl wl.add(mesh.badTriangles()) while (true)
if ( wl.empty() ) break Triangle e
wl.get() if (e no longer in mesh)
continue Cavity c new Cavity(e) c.expand()
//determine cavity c.retriangulate()//re-triangu
late cavity m.update(c)//update
mesh wl.add(c.badTriangles())
5
Delaunay Mesh Refinement

• Parallelism
• triangles with non-overlapping cavities can be
  processed in parallel
• if cavities of two triangles overlap, they must
  be done serially
• in practice, lots of parallelism
• Exploiting this parallelism
• compile-time parallelization techniques like
  points-to and shape analysis cannot expose this
  parallelism (property of algorithm, not program)
• runtime dependence checking is needed
• Galois approach optimistic parallelization

6
Take-away lessons

• Amorphous data-parallelism
• data structures graphs, trees, etc.
• iterative algorithm over unordered or ordered
  work-list
• elements can be added to work-list during
  computation
• complex patterns of dependences between
  computations on different work-list elements
  (possibly input-sensitive)
• but many of these computations can be done in
  parallel
• Contrast crystalline (regular) data-parallelism
• data structures dense matrices
• iterative algorithm over fixed integer interval
• simple dependence patterns affine subscripts in
  array accesses
• (mostly input-insensitive)
• for i 1, N
• for j 1, N
• for k 1, N
• Ci,j Ci,j Ai,kBk,j

7
Take-away lessons (contd.)

• Amorphous data-parallelism is ubiquitous
• Delaunay mesh generation points to be inserted
  into mesh
• Delaunay mesh refinement list of bad triangles
• Agglomerative clustering priority queue of
  points from data-set
• Boykov-Kolmogorov algorithm for image
  segmentation
• Reduction-based interpreters for l-calculus list
  of redexes
• Iterative dataflow analysis algorithms in
  compilers
• Approximate SAT solvers survey propagation,
  WalkSAT

8
Take-away lessons (contd.)

• Amorphous data-parallelism is obscured within
  while loops, exit conditions, etc. in
  conventional languages
• Need transparent syntax similar to FOR loops for
  crystalline data-parallelism
• Optimistic parallelization is necessary in
  general
• Compile-time approaches using points-to analysis
  or shape analysis may be adequate for some cases
• In general, runtime dependence checking is needed
• Property of algorithms, not programs
• Handling of dependence conflicts depends on the
  application
• Delaunay mesh generation roll back any
  conflicting computation
• Agglomerative clustering must respect priority
  queue order

9
Organization

• Case study of amorphous data-parallelism
• Delaunay mesh refinement
• Galois system (PLDI 2007)
• Programming model
• Baseline implementation
• Galois system optimizations
• Scheduling (SPAA 2008)
• Data and computation partitioning (ASPLOS 2008)
• Experimental results
• Ongoing work

10
Galois Design Philosophy

• Do not worry about dusty decks (for now)
• Restructuring existing code to expose amorphous
  data-parallelism not our focus
• (cf. Google map/reduce)
• Evolution, not revolution
• Modification of existing programming paradigms
  OK
• Radical solutions like functional programming
  not OK
• No reliance on parallelizing compiler technology
• will not work for many of our applications anyway
• parallelizing compilers are very complex software
  artifacts
• Support two classes of programmers
• domain experts (Joe)
• should be shielded from complexities of parallel
  programming
• most programmers will be Joes
• parallel programming experts (Steve)
• small number of highly trained people
• analogs
• industry model even for sequential programming
• norm in domains like numerical linear algebra
• Steves implement BLAS libraries

11
Galois system

• Application program
• Has well-defined sequential semantics
• current implementation sequential Java
• Uses optimistic iterators to highlight for the
  runtime system opportunities for exploiting
  parallelism
• Class libraries
• Like Java collections library but with additional
  information for concurrency control
• Runtime system
• Managing optimistic parallelism

12
Optimistic set iterators

• for each e in Set S do B(e)
• evaluate block B(e) for each element in set S
• sequential semantics
• set elements are unordered, so no a priori order
  on iterations
• there may be dependences between iterations
• set S may get new elements during execution
• for each e in OrderedSet S do B(e)
• evaluate block B(e) for each element in set S
• sequential semantics
• perform iterations in order specified by
  OrderedSet
• there may be dependences between iterations
• set S may get new elements during execution

13
Galois version of mesh refinement
Mesh m / read in mesh / Set
wl wl.add(mesh.badTriangles()) // initialize
the Set wl for each e in Set wl do
//unordered Set iterator if
(e no longer in mesh) continue Cavity c new
Cavity(e) c.expand() c.retriangulate()
m.update(c) wl.add(c.badTriangles())
//add new bad triangles to Set

• - Scheduling policy for iterator
• controlled by implementation of Set class
• good choice for temporal locality stack

14
Parallel execution model
Master

• Object-based shared-memory model
• Master thread and some number of worker threads
• master thread begins execution of program and
  executes code between iterators
• when it encounters iterator, worker threads help
  by executing iterations concurrently with master
• threads synchronize by barrier synchronization at
  end of iterator
• Threads invoke methods to access internal state
  of objects
• how do we ensure sequential semantics of program
  are respected?

main() . for each .. . . ..... ..... for
each . ..... ..
Objects
Shared Memory
Threads
Program
15
Baseline solution PLDI 2007

• Iteration must lock object to invoke method
• Two types of objects
• catch and keep policy
• lock is held even after method invocation
  completes
• all locks released at end of iteration
• poor performance for programs with collections
  and accumulators
• catch and release policy
• like Java locking policy
• permits method invocations from different
  concurrent iterations to be interleaved
• how do we make sure this is safe?

Objects
time
1
2
3
i
j
16
Catch and keep iteration rollback

• What does iteration j do if object is already
  locked by some other iteration i ?
• one possibility wait and try to acquire lock
  again
• but this might lead to deadlock
• our implementation runtime system rolls back one
  of the iterations by undoing its updates to
  shared objects
• Undoing updates any copy-on-write solution
  works
• Make a copy of entire object when you acquire the
  lock (wasteful for large objects)
• Runtime systems maintains an undo log that
  holds information for undoing side-effects to
  objects as they are made (cf. software
  transactional memory)

Shared Memory
Objects
time
1
2
3
j
i
17
Problem with catch and keep
Shared Memory

• Poor performance for programs that deal with
  mutable collections and accumulators
• work-sets are mutable collections
• accumulators are ubiquitous
• Example Delaunay refinement
• Work-set is a (mutable) collection of bad
  triangles
• Some thread grabs lock on work-set object, gets a
  bad triangle and removes it from the work-set
• That thread must retain the lock on the work-set
  till iteration completes, which shuts out all
  other threads (same problem arises with
  transactional memory)
• Lesson
• For some objects, we need to interleave method
  invocations from different iterations
• But must not lose serializability

Objects
2
1
3
4
j
i
18
Galois solution selective catch and release

• Example accumulator
• two methods
• add(int)
• read() //return value
• adds commute with other adds and reads commute
  with other reads
• Interleaving of commuting method invocations from
  different iterations
• ? OK
• Interleaving of non-commuting method invocations
  from different iterations
• ? trigger abort
• Rolling back side-effects programmer must
  provide inverse methods for forward methods
• Inverse method for add(n) is subtract(n)
• Semantic inverse, not representational inverse
• This solution works for sets as well.

Shared Memory
Accumulator
0?5?8
? 3
a.add(5)
a.add(3)
a.add(8)
a.read()
a.add(-4)
a.add(5)
a.add(3)
a.add(-4)
a.add(8)
a.read()
19
Abstraction-based Speculation

• Library writer
• specifies commutativity and inverse information
  for some classes
• Runtime system
• catch and release locking for these classes
• keeps track of forward method invocations
• checks commutativity of forward method
  invocations
• invokes appropriate inverse methods on abort
• More details PLDI 2007
• Related work
• logical locks in database systems
• Herlihy et al PPoPP 2008

20
Organization

• Case study of amorphous data-parallelism
• Delaunay mesh refinement
• Galois system (PLDI 2007)
• Programming model
• Baseline implementation
• Galois system optimizations
• Scheduling (SPAA 2008)
• Data and computation partitioning (ASPLOS 2008)
• Experimental results
• Ongoing work

21
Scheduling iterators

• Control scheduling by changing implementation of
  work-set class
• stack/queue/etc.
• Scheduling can have a profound effect on
  performance
• Example Delaunay mesh refinement
• 10,156 triangles of which 4,837 were bad
• sequential code, work-set is stack
• 21,918 completed iterations0 aborted
• 4-processor Itanium-2, work-set implementations
• stack 21,736 iterations completed28,290 aborted
• arrayrandom choice 21,908 iterations
  completed49 aborted

22
Scheduling iterators (SPAA 2008)

• Crystalline data-parallelism DO-ALL loops
• main scheduling concerns are locality and
  load-balancing
• Open-MP static, dynamic, guided, etc.
• Amorphous data-parallelism many more issues
• Conflicts
• Dynamically created work
• Algorithmic issues efficiency of data structures
• SPAA 2008 paper
• Scheduling framework for exploiting amorphous
  data-parallelism
• Generalizes Open-MP DO-ALL loop scheduling
  constructs

23
Data Partitioning (ASPLOS 2008)
Cores

• Partition the graph between cores
• Data-centric assignment of work
• core gets bad triangles from its own partitions
• improves locality
• can dramatically reduce conflicts
• Lock coarsening
• associate locks with partitions
• Over-decomposition
• improves core utilization

24
Organization

• Case study of amorphous data-parallelism
• Delaunay mesh refinement
• Galois system (PLDI 2007)
• Programming model
• Baseline implementation
• Galois system optimizations
• Scheduling (SPAA 2008)
• Data and computation partitioning (ASPLOS 2008)
• Experimental results
• Ongoing work

25
Small-scale multiprocessor results

• 4-processor Itanium 2
• 16 KB L1, 256 KB L2, 3MB L3 cache
• Versions
• GAL using stack as worklist
• PAR partitioned mesh data-centric work
  assignment
• LCO locks on partitions
• OVD over-decomposed version (factor of 4)

26
Large-scale multiprocessor results

• Maverick_at_TACC
• 128-core Sun Fire E25K 1 GHz
• 64 dual-core processors
• Sun Solaris
• First out-of-the-box results
• Speed-up of 20 on 32 cores for refinement
• Mesh partitioning is still sequential
• time for mesh partitioning starts to dominate
  after 8 processors (32 partitions)
• Need parallel mesh partitioning
• Par-Metis (Karypis et al)

27
Galois version of mesh refinement
Mesh m / read in mesh / Set
wl wl.add(mesh.badTriangles()) // initialize
the Set wl for each e in Set wl do
//unordered Set iterator if (e
no longer in mesh) continue Cavity c new
Cavity(e) c.expand() c.retriangulate()
m.update(c) wl.add(c.badTriangles()) //add
new bad triangles to Set
Partitioned Work-set Partitioned Graph
Galois runtime system
28
Results for BK Image Segmentation

• Versions
• GAL standard Galois version
• PAR partitioned graph
• LCO locks on partitions
• OVD over-decomposed version

29
Related work

• Transactions
• programming model is explicitly parallel
• assumes someone else is responsible for
  parallelism, locality, load-balancing, and
  scheduling, and focuses only on synchronization
• Galois main concerns are parallelism, locality,
  load-balancing, and scheduling
• catch and keep classes can use TM for roll-back
  but this is probably overkill
• Thread level speculation
• not clear where to speculate in C programs
• wastes power in useless speculation
• many schemes require extensive hardware support
• no notion of abstraction-based speculation
• no analogs of data partitioning or scheduling
• overall results are disappointing

30
Ongoing work

• Case studies of irregular programs
• understand parallelism and locality patterns in
  irregular programs
• Lonestar benchmark suite for irregular programs
• joint work with Calin Cascavals group at IBM
  Yorktown Heights
• Optimizing the Galois runtime system
• improve performance for iterators in which
  work/iteration is relatively low
• Compiler analysis to reduce overheads of
  optimistic parallel execution
• Scalability studies
• larger number of cores
• Distributed-memory implementation
• billion element meshes?
• Program analysis to verify assertions about class
  methods
• Need a semantic specification of class

31
Summary

• Irregular applications have amorphous
  data-parallelism
• Work-list based iterative algorithms over
  unordered and ordered sets
• Amorphous data-parallelism may be inherently
  data-dependent
• Pointer/shape analysis cannot work for these apps
• Optimistic parallelization is essential for such
  apps
• Analysis might be useful to optimize parallel
  program execution
• Exploiting abstractions and high-level semantics
  is critical
• Galois knows about sets, ordered sets,
  accumulators
• Galois approach provides unified view of
  data-parallelism in regular and irregular
  programs
• Baseline is optimistic parallelism
• Use compiler analysis to make decisions at
  compile-time whenever possible
