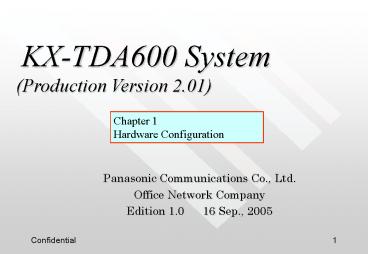

KX-TDA600 System(Production Version 2.01)
Chapter 1Hardware Configuration

• Panasonic Communications Co., Ltd.
• Office Network Company
• Edition 1.0 16 Sep., 2005

2
Chapter 1Hardware Configuration
1. System Connection Diagram 2. Inside Cabinet
Configuration
3. New Hardware Architecture 4.
System Card Configuration 5. Cards
Specification 6. Option Card Compatibility 7.
Backup Battery Connection
3
1. System Connection Diagram
4
2. Inside Cabinet Configuration (KX-TDA600)
Basic Shelf Main Unit
1
2
3
4
5
6
7
8
9
10
Power Supply M / L
Free slot
BUS-M card slot
EMPR(CPU)
Free slot
Free slot
Free slot
Free slot
Free slot
Free slot
Free slot
Free slot
Free slot
Serial I/F
USB

• Free Slot supports any types of cards
• Bus Card connects to TDA620 Expansion Shelf Bus
  card

5
2. Inside Cabinet Configuration (KX-TDA620)
Expansion Shelf Bus Slave Connection Circuit
added initially (BUS S)
1
2
3
4
5
6
7
8
9
10
11
Power Supply M / L
Free slot
BUS-S card slot
Free slot
Free slot
Free slot
Free slot
Free slot
Free slot
Free slot
Free slot
Free slot
Free slot

• Free Slot supports any types of cards
• Bus Card connects to TDA600 Basic Shelf Bus card

6
3. New Hardware Architecture
(1) Building Block shelf expansion - Bus
Master/Bus Master Expansion, Bus Slave -
Built in Cooling fan to Shelf(Connect 4
Shelf/Increase EXT card) (2) New Card -
EMPR Powerful 32bit CPU(Clock 200MHz,
360MIPS) Twice faster than
TDA100/200(Clock 133MHz, 170MIPS) - EMEC
Expanding the memory size SRAM(2MB -gt
4MB) - ESLC16/EMSLC16, ELCOT16
CPU is used to reduce the load of EMPR -
EECOH16 By using the Time Slot for
Shelf inter connection (3) Improve the Battery
Back up connection - Connecting multiple
shelves to one set of backup batteries
7
4. System Card Configuration
New card
8
5. Cards Specification (1/8)
Main Processor Card
EMPR Enhanced Main Processor card
KX-TDA6105(Memory Expansion Card)
Note MEC(KX-TDA0105) cannot be used. (The shape
of connector is different)
Current KX-TDA0196(Remote Modem Card) Connector
Hot Swap
Note The position where EMEM and RMT was
changed.
64 MB for built in SD Card 128 MB for Enhanced SD
(KX-TDA6920) (128 MB Anticipating the function
addition in the future)
9
5. Cards Specification (2/8)
BUS Card(1/3)
BUS-M BUS Muster Card(KX-TDA6110)
KX-TDA6111(BUS Muster Expansion Card)
Hot Swap
To connect 4th Self
To connect 3rd Self
Without CPU
To connect 2nd Self (Built in)
10
5. Cards Specification (3/8)
Expansion Shelf
BUS Card(2/3)
BUS-M BUS Slave Card(Built in)
Basic Shelf
CPU
Same type of EMPR-CPU is used.
CPU of BUS-S is processed as follows (To
decrease the load of EMPR)
(1) Sending and receiving of data from BUS-M (2)
Sending and receiving of data from LPR in
Shelf (3) Tone generation (4) Transmission of
broadcast data (5) LCD display (Idle/Talk)
To connect Basic Self
11
5. Cards Specification (4/8)
BUS Card(3/3)
BUS Configuration between Shelves
The connecting Cables are included in - BUS-M
(TDA6110) - BUS-ME (TDA6111)
BUS-S
FG should be connected
BUS-S
BUS-S
BUS-S
BUS-S
BUS-S
BUS-Slave (Built-in)
2m Cable
BUS-M
BUS-M
BUS-M
BUS-Master (TDA6110)
BUS-ME
BUS-Master Expansion
BUS-ME
BUS-ME
(TDA6111)
12
5. Cards Specification (5/8)
Expansion Shelf
Slot Card (Extension 1/2)
Extension card (Optional) Installed in Free slot
Basic Shelf
CPU
Note SLC16(KX-TDA0174) cannot be used
13
5. Cards Specification (6/8)
Expansion Shelf
Slot Card (Extension 2/2)
Extension card (Optional) Installed in Free slot
Basic Shelf
CPU
Note MSLC16(KX-TDA0175) cannot be used
14
5. Cards Specification (7/8)
Expansion Shelf
Slot Card (Trunk 1/1)
Trunk card (Optional) Installed in Free slot
Basic Shelf
CPU
Note LCOT4/8/16(KX-TDA0180/181/183) cannot
be used
15
5. Cards Specification (8/8)
Expansion Shelf
SLOT-Card (Option1/1)
Option card Installed in Free slot
Basic Shelf
CPU
Note ECHO(KX-TA0166) cannot be used
16
6. Option Card compatibility (1/3)
TDA100/200
TDA600
Optional Card
OK
N/A
MPR (for TDA100/200)
MPR
N/A
OK
EMPR (for TDA600)
TDA0196
?
Analog Remote Modem
TDA0105
TDA6105
MEC
TDA0170
?
DHLC8
Extension
TDA0171
?
DLC8
TDA0172
?
DLC16
TDA0173
?
SLC8
TDA0174
TDA6174
SLC16
TDA0175
TDA6175
MSLC16
TDA0143
?
CSIF4
TDA0144
?
CSIF8
TDA0470
?
IP-EXT16
TDA0168
?
EXT-CID (for SLC8)
N/A Not Available
17
6. Option Card compatibility (2/3)
TDA200
TDA600
Optional Card
TDA0183
N/A
LCOT4
CO
TDA0180
N/A
LCOT8
TDA0181
TDA6181
LCOT16
TDA0189
?
CID/PAY8(for LCOT)
TDA0193
?
CID8 (for LCOT)
TDA0184
?
EM8
TDA0187
?
T1
TDA0188
?
E1
TDA0182
?
DID8
TDA0284
?
BRI4
TDA0288
?
BRI8
TDA0290CE
?
PRI30
TDA0290
?
PRI23
TDA0484
?
IP-GW4
TDA0490
?
IP-GW16
N/A Not Available
18
6. Option Card compatibility (3/3)
TDA200
TDA600
Optional Card
OPB3
Others
TDA0190
?
OPB3
TDA0161
?
DPH4
TDA0162
?
DPH2(for Germany type)
TDA0164
?
EIO4
TDA0166
N/A
ECHO16
TDA0191
?
MSG4
TDA0410
?
CTI-LINK
N/A
TDA6166
EECHO16
N/A
TDA6110
BUS-Master
N/A
TDA6111
BUS-Master Expansion
N/A
TDA6201
Floor Mounting Kit
N/A
TDA620
Expansion Shelf
TDA0103 (L Type) TDA0104 (M Type)
?
Power Unit
N/A Not Available
Mounting Kit for expanding to a 3- or 4-
shelf System
19
7. Backup Power Supply Duration
Total Load Figure of the Connected Shelfs
Backup Power Supply Duration
Battery Capacity
28Ah
128 (M Type)
5.5h
512 (L Type)
3h
Note The Duration may depending on the
conditions
20
