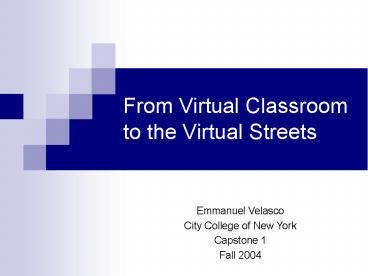

From Virtual Classroom to the Virtual Streets

• Emmanuel Velasco
• City College of New York
• Capstone 1
• Fall 2004

2
CCNY Virtual Classroom Objectives

• Automatic Data Collection
• Intelligent Post-Processing
• Natural Interaction between students, teachers
  and computers.

3
Automatic Data Collection
PowerPoint Slide Capture
Mimio Virtual Ink
Omnidirectional Camera
4
Automatic Data Collection

• PowerPoint Slide Capture
• The start date and time is added when recording,
  to synchronize the recorded PowerPoint slides
  with the whiteboard pages.
• Mimio Virtual Ink
• Everything the instructor writes on the
  whiteboard is captured by the Mimio hardware and
  software.

5
Automatic Data Collection

• Omnidirectional Lens
• Captures a 360 view of the classroom.
• Captures both video and audio.

6
Intelligent Post-Processing

• Video Processing
• Media Synchronization
• Connecting Powerpoint Slides and Whiteboard
  Images
• Connecting Powerpoint Slides and Instructor Images

7
Intelligent Post-Processing

• Video Processing
• 360 field of view is converted to a panoramic
  view. (currently cylindrical panoramic)

8
Intelligent Post-Processing

• Media Synchronization
• The PowerPoint slides, whiteboard pages, and
  video/audio are synchronized using the time
  information in the PowerPoint log files,
  whiteboard log files, and the video/audio streams.

9
Intelligent Post-Processing

• Connecting PowerPoint Slides and Whiteboard
  Images
• To connect the PowerPoint slides, the instructor
  marks the four corners of the PowerPoint
  projection on the whiteboard. Since they lie on
  the same plane, we use a projective
  transformation to connect the two.
• When a portable presentation device may be moved,
  a video camera is used for dynamic registration
  of the two sources.

10
Intelligent Post-Processing

• Connecting PowerPoint Slides and Instructor
  Images
• Actual video of the instructor is merged to the
  digital PowerPoint slides. The instructor is
  extracted from the video using computer vision
  techniques, and then merged to the slides.
• Gives the students the relation between the
  instructor and the visual aids used.

11
Natural Interaction

• Virtualized Classroom Presentation System
• VCPS Creator
• VCPS Player

12
Natural Interaction

• Virtualized Classroom Presentation Creator
• The Virtual Classroom Presentation Creator is
  fully customizable. The user can decide which
  presentation components should be included.

13
Natural Interaction

• Virtualized Classroom Presentation Player
• The Virtual Classroom Presentation Player allows
  the user to load the presentation file. The user
  can access the Table of Contents by
  right-clicking the mouse.

14
How Can We Take It To The Streets

• Automatic Data Collection
• Intelligent Post-Processing
• Natural Interaction between traffic management
  and the traffic

15
Traffic Automatic Data Collection

• Currently

16
Traffic Automatic Data Collection

• By using an omnidirectional camera, we can get
  live traffic view in all directions.
• Pros 360 point of view. More information is
  available from one source.
• Cons Requires physical installation of camera.
  Pictures may have some distortion.

17
Traffic Intelligent Post-Processing

• After data is collected, we should be able to
  determine a busy street or highway. Using
  background subtraction, we should be able to
  obtain similar results.

heavy traffic
light traffic
18
Traffic Natural Interaction

• Like the Virtualized Classroom Presentation
  Player, traffic management should be able to
  easily view traffic information that is received.

Table of Contents (possibly show map and camera
locations)
New York City Map
Camera View
19
From Virtual Classroom to the Virtual Streets

• Emmanuel Velasco
• City College of New York
• Capstone 1
• Fall 2004
