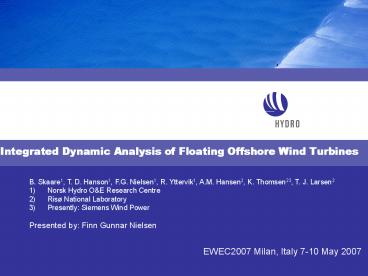

1Integrated Dynamic Analysis of Floating Offshore
Wind Turbines
- B. Skaare1, T. D. Hanson1, F.G. Nielsen1, R.
Yttervik1, A.M. Hansen2, K. Thomsen23, T. J.
Larsen2 - Norsk Hydro OE Research Centre
- Risø National Laboratory
- Presently Siemens Wind Power
- Presented by Finn Gunnar Nielsen
EWEC2007 Milan, Italy 7-10 May 2007
2Background Hywind Deep-water floating offshore
wind turbine
- Challenge existing solutions by combining
technologies - Offshore floater technology from OG industry.
- Best available offshore wind turbines.
Case studied Turbine power 5
MW Draft hull 120 m Nacelle
height 81 m Rotor diameter
123 m Water depth 200700
m Displacement 8100 t Mooring
3 lines
3Hywind technical development
- Theory and computer codes.
- Engineering studies.
- Production and installation studies.
- Model test for verification.
- Next step
- Full scale demo version.
4Power curve
Simplified wind turbine model.
5Thrust curve
Simplified wind turbine model.
Constant Power
Maximum Power
Negative slope gt Negative damping contribution
6SIMO/RIFLEX/HAWC2 Integration
- HAWC2 (RISØ)
- Wind turbine loads and dynamics Interface
- SIMO / RIFLEX (MARINTEK)
- SIMO Rigid body dynamics in waves and current.
- RIFLEX Slender flexible body dynamics in waves
and current
7SIMO/RIFLEX/HAWC2 Integration Testing
Comparison of motions in the coupling node in
simulations with SIMO/RIFLEX/HAWC2 (a) and
SIMO/RIFLEX (b). Waves Hs 5 m, Tp 12 s, 50
deg offset angle relative to the x-axis. No wind
8HYWIND Model Scale Experiments
- Motivation
- Validate results from numerical analysis.
- Demonstrate system behaviour
- Included
- Wind, waves
- Mooring
- Various control algorithms for rotor speed and
blade pitch control - Scale 1/47
9 Recalculations of Model Scale Experiments
- Used SIMO / RIFLEX / HAWC2
- Implemented model test data for
- Mean wind speed and turbulence intensity
- Wave spectrum
- Floater and mooring model
- Aerodynamic model (NACA44XX blade profile)
- Control strategies
10 Control Strategies
- Estimated relative wind velocity was obtained
from thrust force measurements. - Rotor speed and blade pitch angle of the turbine
was controlled - Below rated wind speed
- Control for maximum possible power (variable
rotor speed, constant blade pitch angle) - Above rated wind speed
- Conventional control
- Control for constant power (Constant rotor speed,
variable blade pitch angle) - Conventional control with active damping
- Control for constant power and tower pitch
damping. (Constant rotor speed, variable blade
pitch angle)
11 Estimation of Relative Wind Speedquasistatic
assumption
The relative wind velocity is given from
where
where is the rotor thrust force
is the density of air D is the rotor diameter
is the rotor speed in RPM J is the advance
number given by the surface in the figure
(1)
(2)
12 Estimation of Relative Wind Speed
Example of estimated wind speed for simulation a
test Hs 9m, Tp 13s, Umean19.49m/s,
Tint0.1265.
13 Recalculations of Model Scale Experimentsfree
decay tests
Conventional Control Active Damping Constant
wind 17 m/s . No waves.
Conventional Control Constant wind 17 m/s. No
waves.
14 Recalculations of Model Scale Experimentsirregul
ar wave tests.
Conventional Control Active Damping Mean wind
17 m/s. Hs 5m. Tp 12s
Conventional Control Mean wind 17 m/s. Hs 5m. Tp
12s
15Summary and conclusions
- A system for integrated analysis of floating
offshore wind turbines has been developed - The Floating offshore wind turbine HYWIND has
been model tested with control of rotor speed and
blade pitch angle. - The integrated computer program RIFLEX /SIMO
/HAWC2 has been validated towards the model test
results. - Very good correspondence between experimental and
numerical results are obtained. - The negative damping of the platform pitch motion
at above rated wind speeds is efficiently
compensated by use of an active damping
algorithm. - The integrated computer tool will be applied in
further optimization of HYWIND
