Dialight Corporation

1

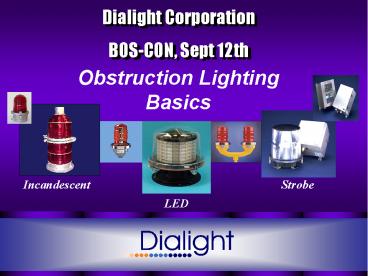

Dialight Corporation BOS-CON, Sept 12th
Obstruction Lighting Basics
Incandescent
Strobe
LED
2
Your speaker.

• Doug Woehler / Dialight Corporation
• Prior 1984 Living large
• 1984-1991 USMC-Camp Pendleton, CA
• 1991-1994 Hali-Brite (Electrical Tech)
• 1994-1994 Concordia University -Crosby, MN
• 1994-2000 HP/Honeywell (Sales Manager)
  Seattle, WA
• Aircraft (GPS) Landing systems
• Airport Lighting
• Obstruction lighting
• 2000-2006 Dialight (Product Development Mgr.)
• Obstruction Lighting
• Hazloc (explosion proof)
• Rail Lighting

3
Overview of presentation

• Purpose of Obstruction Lighting
• History, Regulations, Specifications
• Lighting Systems Configurations and Types
• Lighting Technologies
• LED Technology Overview
• LED Challenges and Concerns
• Manufacturer responsibility
• Controllers Alarms
• Recommended maintenance procedures
• Question and answers

4
Purpose of Obstruction Lighting
5
History

• The Evolution of Tower Lighting
• - Red Code Beacon (300mm) and sidelights
• - White Strobe, High Intensity
• - White Strobe, Medium Intensity
• - Red/White Dual Strobe, Medium Intensity
• - Red LED Sidelight
• - Red LED Beacon, Medium Intensity

6
Lighting Regulations / Certifications

• - FAA Advisory Circular 70/7460-1
• Obstruction Marking and Lighting
• FAA Advisory Circular 150/5345-43 Specification
  for Obstruction Lighting Equipment
• FAA Engineering Brief 67
• - FCC Part 17
• - ICAO Annex 14
• - VAP Draft Specification
• - Transport Canada CAR 621.19 (formerly TP-382E)
• - Secretary Communications-Mexico
• IEC Draft

7
FAA Tower Lighting Configurations

• Red lighting/paint is an option for any height
  tower for daytime marking.
• Medium Intensity white lighting may be used in
  lieu of paint on structures up to 500 tall.
• High Intensity white lighting may be used in lieu
  of paint on structures over 500 tall.

8
FAA System Configurations
TYPE A Red Lighting System

TYPE B High Intensity White
TYPE C High Intensity White with
AOLs (on appurtenance)
TYPE D Medium Intensity White
TYPE E Dual Lighting System Red / White
Medium Intensity
TYPE F Dual Lighting System Red / High
Intensity White Dual RED/White Medium Intensity
Beacon on Appurtenance Over 40 Tall
9
Red Lighting Systems

• Day Aviation orange and white paint
• Night/Twilight Flashing red beacons steady
  burning obstruction lights (2000 candela
• and 32 candela)
• Light Sources Incandescent, Strobe and LED
• Advantages Least complex lighting system
• Relatively low purchase price
• Disadvantages Painting increases life cycle cost


10
(No Transcript)
11
Flashing Red Beacons

• FAA Designations L-864 Beacon
• ICAO Designation Medium Intensity Red
  Light
• Industry Jargon Red Beacon, 300mm
  Beacon, 864

12
Steady Burning Obstruction Lights

• FAA Designation L-810
• ICAO Designation Low Intensity Light
• Industry Jargon Sidelight, Steady-Burner,
  OBs, Marker Light, L-810

13
Medium Intensity White only Lighting

• Day/Twilight 20,000 candela white
• Night 2,000 candela white -no sidelights
  required
• Advantages No painting required
• Less expensive than dual lighting
• Disadvantages White strobes at night can
• irritate neighbors, High voltage, High
  tech components can mean expensive
  maintenance
• Light Sources Xenon gas strobe tubes

14
(No Transcript)
15
Medium Intensity Strobes

• FAA Designation L-865
• ICAO Designation Medium Intensity White Light
• Industry Jargon Medium Intensity Strobe, White
  Strobe

16
Medium Intensity Dual Strobe Systems

• Day/Twilight 20,000 candela white
• Night Flashing red strobe steady burning
  obstruction lights (2000 candela and 32
  candela)
• Light Sources Xenon gas strobe tubes
• Advantages No painting required, strobes
  brighter
• Efficient light source
• Disadvantages High voltage, High tech
  components can mean expensive maintenance

17
(No Transcript)
18
Medium Intensity Dual Strobes

• FAA Designation L-864 / L-865
• ICAO Designation Medium Intensity Dual
  Light
• Industry Jargon Dual Strobe

19
High Intensity Strobe Systems

• Day 200,000 candela white
• Twilight 20,000 candela white
• Night 2,000 candela white
• Advantages No painting required
• Less expensive than dual lighting
• Disadvantages White strobe at night can
• irritate neighbors, very expensive to
  maintain

20
High Intensity Strobes

• FAA Designation L-856 for tall structures
• ICAO Designation High Intensity White Light
• Industry Jargon High Intensity
  Strobe

21
Light Sources

• What are the options whats the best?
• - Incandescent
• - Strobe
• - LED

22
Incandescent Light Sources

• Advantages
• Lowest up front cost
• Numerous distribution sources
• Fairly resilient to lightning
• Plug and play to most broadcast towers
• Disadvantage
• Short lamp life, high reoccurring costs
• Frequent maintenance
• Susceptible to vibration damage
• Extremely inefficient, Consumes lots of power
• Light Pollution, ground effects!

23
Strobe / Xenon gas Light Sources

• Advantages -Longer life technology than
  incandescent.
• -Efficient power consumption
• -Numerous distribution sources
• Disadvantage -Large upfront costs
• -Proprietary replacement technology
• -New electrical infrastructure
• -Limited lamp life, depending on design
• -EMI / RF issues and ozone release
• -Expensive High Voltage replacement
  components
• -Expensive maintenance costs
• - Light Pollution, ground effects!

24
Light Emitting Diodes!

• LED obstruction lighting
• Advantages
• Lowest cost of ownership
• Plug and play with existing infrastructure,
  120VAC
• Solid State, extremely robust ad reliable,
  impervious to shock/vibration.
• Extremely energy efficient power consumption. 48
  Watt beacon
• Precision optics. Warranted performance!
• No EMI created or susceptibility
• Not prone to damage from surge/lighting.
• Numerous distribution sources
• Disadvantages
• Reputable manufacturer with extreme knowledge of
  LED based products is a must!

25
LEDs (Light emitting diodes)

• Development timeline
• -60s 70s calculators and watches
• -80s Interior uses such as panels, PCs
• -90s Traffic Intersections Brake lights
• -2000 Obstruction, railroad, aircraft,
• -2005 - UL, Class 1 Div 2 area white lighting
• -Today and beyond General illumination!

26
Making the transition..

• Going from a light bulb to a light engine
• Generally, a single LED cannot replace a single
  light bulb
• A Light Engine is required

27
A revolution in lightingLEDs

Light Emitting Diodes
High Pressure Sodium
Metal Halide
Luminous Efficiency (lumens/watt)
Mercury Vapor
Shaped Reflectors
Tungsten Halogen
Conventional Incandescent
1920
1940
1960
1980
2000
2020
28
All LEDs are not the Same
29
Use the Right Technology for the right job!
SnapLED
Through-Hole
Surface Mount
High Flux Surface Mount Technology
30
5mm vs. High Flux performance Comparison
31
LED performance is influenced by temperature
500 Candelas _at_ 25 O C
10
34
63
32
LED degradation increases with current density
Current Densities
33
Concerns and Challenges Defining End of Life?

• What is the difference between the end of life of
  an LED and that of a halogen or incandescent
  lamp?
• Incandescent/Halogen is catastrophicwhereas a
  LED light output degrades
• The question one should ask is
• What is the USEFUL LIFE or EFFECTIVE LIFE of an
  LED fixture?
• Completely dependent on many variables

100,000 hrs.
34
Ultimate Solution Responsible Designs and
Manufacturer Warranties

• Manufacturers must take the lead to ensure that
  their products meet the minimum operational and
  intensity requirements at the end of the
  products warranty period!

35
A side note.controller and monitoring systems

• Dialight DOES NOT manufacture controllers or
  produce lighting systems as our focus is on LED
  technology.
• We focus on upgrading / retrofitting existing
  lighting systems to LED based fixtures
• Installing new LED fixtures with the partnerships
  with the industry OEMs.
• Please contact the vendor of your choice or visit
  our website for a list of our existing
  distributors and OEM partners.

36
Minimum Maintenance Procedures

• All technologies
• Clean exterior optical portions of fixture
• Inspect and verify controller failure modes by
  creating a fault
• Inspect conduit wiring for degraded connections
• Incandescent
• Ensure minimum of 120 VAC at lamp
• Inspect Gaskets Seals around Fresnel lenses
• Strobe Tube
• Inspect high voltage controller capacitors and
  trigger cards
• Inspect fixture wiring and terminals for
  corrosion (Ozone)
• Re-lamp tubes per manufactures warranty (2-3
  years)
• LED
• Re-lamp and install new gasket every 10-12 years
• Ensure 85 VAC at lamp

37
Questions??
Dialight Corp 1501 Route 34 South Farmingdale, NJ
07727 732 -991-2837 www.dialight.com
