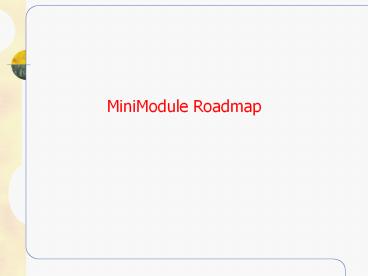

MiniModule Roadmap
2
MiniModule Strategy
  • Round out I/O support for SBCs and CPUs
  • LittleBoards
  • CoreModules
  • ReadyBoards
  • I/O which is not typically found on motherboards
  • Leverage partnerships to broaden family
  • Bring leading edge I/O to the embedded market
  • Keep our accounts away from CPU competitors
  • SBC/CPU business at risk
  • Raise the ASP at low- to mid-volume accounts
  • High-volume accounts typically consider
    semi-custom, custom, or COMs solutions
  • I/O card market has quietly grown to 40M
    worldwide

3
I/O Categories
  • Communications / Networking
  • Ethernet, Serial
  • High-Speed Data
  • USB 2.0, IEEE 1394 Firewire
  • Flexible I/O
  • General-Purpose I/O (GPIO, DIO), Analog
  • Removable
  • PC Card

4
The New MiniModule Family
5
MiniModule USB2
  • Provides USB 2.0 host root hub
  • 4 ports
  • Supports 480Mbps, 12Mbps, and 1.5Mbps
    transactions
  • Interfaces to PC/104-Plus interface (PCI 2.2)
  • Configurable for any of the four PC/104-Plus
    slots
  • PC/104 bus passed through to next card
  • Supports hot insertion and removal of devices
  • Standards-based (OHCI USB 1.0a, EHCI for USB 1.0)
  • Commonly used with storage or video capture
  • QuickStart Kit includes CD with drivers
    (Plug-and-Play)
  • ETT CC options
  • Availability Now

6
MiniModule 1394
  • 2 ports, each capable of 1 to 32 Firewire devices
  • Supports 400Mbps, 200Mbps, and 100Mbps
    transactions
  • Interfaces to PC/104-Plus interface (PCI 2.2)
  • Configurable for any of the four PC/104-Plus
    slots
  • PC/104 bus passed through to next card
  • Supports hot insertion and removal
  • Standards-based (OHCI 1394 1.0 1.1)
  • Commonly used with Firewire cameras
  • QuickStart Kit includes CD with drivers
    (Plug-and-Play)
  • ETT CC options
  • Availability Now

7
MiniModule PCC III
  • 2 PC Card slots
  • Supports 32-bit (PC Card/Cardbus) and 16-bit
    (PCMCIA) cards, Type I, II, and III, 3.3V 5V
  • Interfaces to PC/104-Plus interface (PCI 2.2)
  • Configurable for any of the four PC/104-Plus
    slots
  • PC/104 bus passed through to next card
  • Supports hot insertion and removal
  • Standards-based (CardBus Version 8.0)
  • Commonly used with ATA storage or WiFi cards
  • QuickStart Kit includes CD with drivers
    (Plug-and-Play)
  • ETT CC options
  • Availability Now

8
MiniModule A2D
  • Manufactured for Ampro by Sealevel Systems
  • Two configurations offered by Ampro
  • Q-01 8 A/D in, 2 D/A out, 12-bit resolution, 16
    GPIOs
  • Q-02 8 A/D in, 12-bit resolution
  • Flexible input ranges 0 to /-5V, /-10V
  • 5 MHz track and hold
  • 100Kbps throughput rate
  • Outputs are 0 to 2.048V or 4.095V (jumper)
  • Used for data acquisition, industrial control
  • QuickStart Kit includes CD with Windows drivers
  • 0 to 70C
  • Availability Now

9
MiniModule GPIO
  • Manufactured for Ampro by Sealevel Systems
  • Four configurations offered by Ampro
  • Q-01 48 TTL digital I/Os without isolation
  • Q-02 16 in, 16 out I/Os with isolation
  • Q-03 16 in with isolation
  • Q-04 16 out with isolation
  • Used for industrial control, motors, sensors,
    switches
  • IRQ jumpers for maximum flexibility
  • QuickStart Kit includes CD with Windows drivers
  • 0 to 70C
  • Availability Now

10
MiniModule UART
  • Manufactured for Ampro by Sealevel Systems
  • Two configurations offered by Ampro
  • Q-01 4 ports, 232/422/485, s/w-selectable
  • Q-02 4 ports, 232 or 422/485, jumper-selectable
  • Q-03 4 ports, 232 only
  • Q-04 4 ports, 422/485 only
  • 128 byte FIFO ensures error-free operation at
    high speeds (Q-01 only)
  • 16C550-compatible (Q-02 through -04), 16B FIFO
  • QuickStart Kit includes CD with Windows drivers
  • 0 to 70C
  • Availability Now

11
MiniModule Roadmap
  • Roadmap for late 2004 and 2005
  • Embedded 802.11g wireless (WiFi)
  • Alternative to MM PCC III plus PC Card
  • MiniModule ISA PCI-to-ISA bridge
  • Let Ampro know about other I/O requests
