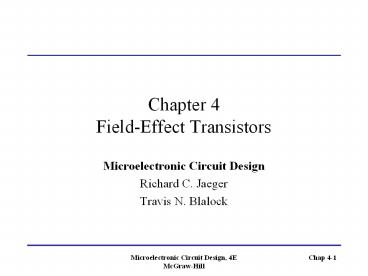

Chapter 4Field-Effect Transistors

• Microelectronic Circuit Design
• Richard C. Jaeger
• Travis N. Blalock

2
Chapter Goals

• Describe operation of MOSFETs.
• Define FET characteristics in operation regions
  of cutoff, triode and saturation.
• Develop mathematical models for i-v
  characteristics of MOSFETs.
• Introduce graphical representations for output
  and transfer characteristic descriptions of
  electron devices.
• Define and contrast characteristics of
  enhancement-mode and depletion-mode FETs.
• Define symbols to represent FETs in circuit
  schematics.
• Investigate circuits that bias transistors into
  different operating regions.
• Learn basic structure and mask layout for MOS
  transistors and circuits.
• Explore MOS device scaling
• Contrast 3 and 4 terminal device behavior.
• Describe sources of capacitance in MOSFETs.
• Explore FET modeling in SPICE.

3
4.1 MOS Capacitor Structure

• First electrode- Gate Consists of
  low-resistivity material such as metal or
  polycrystalline silicon
• Second electrode- Substrate or Body n- or p-type
  semiconductor
• Dielectric- Silicon dioxide stable high-quality
  electrical insulator between gate and substrate.

4
Substrate Conditions for Different Biases
Accumulation
Depletion

• Accumulation
• VG ltlt VTN
• Depletion
• VG lt VTN
• Inversion
• VG gt VTN

Inversion
5
Low-frequency C-V Characteristics for MOS
Capacitor on P-type Substrate

• MOS capacitance is non-linear function of
  voltage.
• Total capacitance in any region dictated by the
  separation between capacitor plates.
• Total capacitance modeled as series combination
  of fixed oxide capacitance and voltage-dependent
  depletion layer capacitance.

6
Capacitors in series

• Capacitor C1 in series with Capacitor C2
• Q1 C1 V1
• Q2 C2 V2
• Totally Q Ceq V Q1 Q2, V V1 V2
• Ceq Q/V Q/(V1 V2) Q/(Q1/C1 Q2/C2)
• 1/(1/C1 1/C2) C1C2/(C1 C2)

7
4.2 NMOS Transistor Structure

• 4 device terminals Gate(G), Drain(D), Source(S)
  and Body(B).
• Source and drain regions form pn junctions with
  substrate.
• vSB, vDS and vGS always positive during normal
  operation.
• vSB always lt vDS and vGS to reverse bias pn
  junctions

8
NMOS Transistor Qualitative I-V Behavior

• VGS ltltVTN Only small leakage current flows.
• VGS ltVTN Depletion region formed under gate
  merges with source and drain depletion regions.
  No current flows between source and drain.
• VGS gtVTN Channel formed between source and
  drain. If vDS gt 0,, finite iD flows from drain to
  source.
• iB0 and iG0.

9
NMOS Transistor Triode Region Characteristics
for
where, Kn Kn W/L KnmnCox (A/V2) Cox?ox
/ Tox ? ox oxide permittivity
(F/cm) Tox oxide thickness (cm)
10
NMOS Transistor Triode Region Characteristics
(contd.)

• Output characteristics appear to be linear.
• FET behaves like a gate-source voltage-controlled
  resistor between source and drain with

11
MOSFET as Voltage-Controlled Resistor

• Example 1 Voltage-Controlled Attenuator

If Kn 500mA/V2, VTN 1V, R 2k? and VGG 1.5V,
then,
To maintain triode region operation,
or
or
12
NMOS Transistor Saturation Region

• If vDS increases above triode region limit,
  channel region disappears, also said to be
  pinched-off.
• Current saturates at constant value, independent
  of vDS.
• Saturation region operation mostly used for
  analog amplification.

13
NMOS Transistor Saturation Region (contd.)
for
is also called saturation or pinch-off voltage
14
Transconductance of a MOS Device

• Transconductance relates the change in drain
  current to a change in gate-source voltage
• Taking the derivative of the expression for the
  drain current in saturation region,

15
Channel-Length Modulation

• As vDS increases above vDSAT, length of depleted
  channel beyond pinch-off point, DL, increases and
  actual L decreases.
• iD increases slightly with vDS instead of being
  constant.

l channel length modulation parameter
16
Depletion-Mode MOSFETS

• NMOS transistors with
• Ion implantation process used to form a built-in
  n-type channel in device to connect source and
  drain by a resistive channel
• Non-zero drain current for vGS 0, negative vGS
  required to turn device off.

17
Transfer Characteristics of MOSFETS

• Plots drain current versus gate-source voltage
  for a fixed drain-source voltage

18
Body Effect or Substrate Sensitivity

• Non-zero vSB changes threshold voltage, causing
  substrate sensitivity modeled by
• where
• VTO zero substrate bias for VTN (V)
• g body-effect parameter ( )
• 2FF surface potential parameter (V)

19
NMOS Model Summary
20
4.3 Enhancement-Mode PMOS Transistors Structure
(11/14)

• P-type source and drain regions in n-type
  substrate.
• vGS lt 0 required to create p-type inversion layer
  in channel region
• For current flow, vGS lt vTP
• To maintain reverse bias on source-substrate and
  drain-substrate junctions, vSB lt 0 and vDB lt 0
• Positive bulk-source potential causes VTP to
  become more negative

21
Enhancement-Mode PMOS Transistors Output
Characteristics

• For , transistor is off.
• For more negative vGS, drain current increases in
  magnitude.
• PMOS is in triode region for small values of VDS
  and in saturation for larger values.

22
PMOS Model Summary
23
4.4 MOSFET Circuit Symbols

• (g) and (i) are the most commonly used symbols in
  VLSI logic design.
• MOS devices are symmetric.
• In NMOS, n region at higher voltage is the
  drain.
• In PMOS p region at lower voltage is the drain

24
(No Transcript)
25
(No Transcript)
26
4.5 Internal Capacitances in Electronic Devices

• Limit high-frequency performance of the
  electronic device they are associated with.
• Limit switching speed of circuits in logic
  applications
• Limit frequency at which useful amplification can
  be obtained in amplifiers.
• MOSFET capacitances depend on operation region
  and are non-linear functions of voltages at
  device terminals.

27
NMOS Transistor Capacitances Triode Region

• Cox Gate-channel capacitance per unit area
  (F/m2).
• CGC Total gate channel capacitance.
• CGS Gate-source capacitance.
• CGD Gate-drain capacitance.
• CGSO and CGDO overlap capacitances (F/m).

28
NMOS Transistor Capacitances Triode Region
(contd.)

• CSB Source-bulk capacitance.
• CDB Drain-bulk capacitance.
• AS and AD Junction bottom area capacitance of
  the source and drain regions.
• PS and PD Perimeter of the source and drain
  junction regions.

29
NMOS Transistor Capacitances Saturation Region

• Drain no longer connected to channel

30
NMOS Transistor Capacitances Cutoff Region

• Conducting channel region completely gone.
• CGB Gate-bulk capacitance
• CGBO gate-bulk capacitance per unit width.

31
SPICE Model for NMOS Transistor
Typical default values used by SPICE Kn or Kp
20 mA/V2 g 0 l 0 VTO 1 V mn or mp 600
cm2/V.s 2FF 0.6 V CGDO CGSO CGBO CJSW
0 Tox 100 nm
32
MOS Transistor Scaling

• Drain current
• Gate Capacitance
• where t is the circuit delay in
  a logic circuit.

33
MOS Transistor Scaling (contd.)

• Circuit and Power Densities
• Power-Delay Product
• Cutoff Frequency
• fT improves with square of
  channel length reduction

34
MOS Transistor Scaling (contd.)

• High Field Limitations
• High electric fields arise if technology is
  scaled down with supply voltage constant.
• Cause reduction in mobility of MOS transistor,
  breakdown of linear relationship between mobility
  and electric field and carrier velocity
  saturation.
• Ultimately results in reduced long-term
  reliability and breakdown of gate oxide or pn
  junction.
• Drain current in saturation region is linearised
  to

where, vSAT is carrier saturation velocity
35
MOS Transistor Scaling (contd.)

• Sub-threshold Conduction
• ID decreases exponentially for VGSltVTN.
• Reciprocal of the slope in mV/decade gives the
  turn off rate for the MOSFET.
• VTN should be reduced if dimensions are scaled
  down, but curve in sub-threshold region shifts
  horizontally instead of scaling with VTN.

36
Process-defining Factors

• Minimum Feature Size, F Width of smallest line
  or space that can be reliably transferred to
  wafer surface using given generation of
  lithographic manufacturing tools
• Alignment Tolerance, T Maximum misalignment that
  can occur between two mask levels during
  fabrication

37
Mask Sequence for a Polysilicon-Gate Transistor

• Mask 1 Defines active area or thin oxide region
  of transistor
• Mask 2 Defines polysilicon gate of transistor,
  aligns to mask 1
• Mask 3 Delineates the contact window, aligns to
  mask 2.
• Mask 4 Delineates the metal pattern, aligns to
  mask 3.
• Channel region of transistor formed by
  intersection of first two mask layers. Source and
  Drain regions formed wherever mask 1 is not
  covered by mask 2

38
Basic Ground Rules for Layout

• F2 L
• TF/2L, L could be 1, 0.5, 0.25 mm, etc.

39
MOSFET Biasing

• Bias sets the DC operating point around which
  the device operates.
• The signal is actually comprised of relatively
  small changes in the DC current and/or voltage
  bias.

40
Bias Analysis Approach

• Assume an operation region (generally the
  saturation region)
• Use circuit analysis to find VGS
• Use VGS to calculate ID, and ID to find VDS
• Check validity of operation region assumptions
• Change assumptions and analyze again if required.
• NOTE An enhancement-mode device with VDS VGS
  is always in saturation

41
Four-Resistor and Two-Resistor Biasing

• Provide excellent bias for transistors in
  discrete circuits.
• Stabilize bias point with respect to device
  parameter and temperature variations using
  negative feedback.
• Use single voltage source to supply both
  gate-bias voltage and drain current.
• Generally used to bias transistors in saturation
  region.
• Two-resistor biasing uses lesser components that
  four-resistor biasing and also isolates drain and
  gate terminals

42
Bias Analysis Example 1 (Constant Gate-Source
Voltage Biasing)
Problem Find Q-pt (ID, VDS , VGS) Approach
Assume operation region, find Q-point, check to
see if result is consistent with operation region
Assumption Transistor is saturated,
IGIB0 Analysis Simplify circuit with Thevenin
transformation to find VEQ and REQ for gate-bias
voltage. Find VGS and then use this to find ID.
With ID, we can then calculate VDS.
43
Bias Analysis Example 1 (Constant Gate-Source
Voltage Biasing)(contd.)
CheckVDSgtVGS-VTN. Hence saturation region
assumption is correct. Q-pt (50.0 mA, 5.00 V)
with VGS 3.00 V Discussion The Q-point of this
circuit is quite sensitive to changes in
transistor characteristics, so it is not widely
used.
Since IG0,
44
Bias Analysis Example 2 (Load Line Analysis)
Problem Find Q-pt (ID, VDS , VGS) Approach Find
an equation for the load line. Use this to find
Q-pt at intersection of load line with device
characteristic.
Assumption Transistor is saturated,
IGIB0 Analysis For circuit values above, load
line becomes
Use this to find two points on the load line.
45
Bias Analysis Example 2 (Load Line
Analysis)(contd.)
_at_VDS0, ID100uA _at_ID0, VDS10V Plotting on
device characteristic yields Q-pt at intersection
with VGS 3V device curve.
Check The load line approach agrees with
previous calculation. Q-pt (50.0 mA, 5.00 V)
with VGS 3.00 V Discussion Q-pt is clearly in
the saturation region. Graphical load line is
good visual aid to see device operating region.
46
Bias Analysis Example 3 (Constant Gate-Source
Voltage Biasing with Channel-Length Modulation)
Assumption Transistor is saturated,
IGIB0 Analysis Simplify circuit with Thevenin
transformation to find VEQ and REQ for gate-bias
voltage. Find VGS and then use this to find ID.
With ID, we can then calculate VDS.
Problem Find Q-pt (ID, VDS , VGS) of previous
example, given ?0.02 V-1. Approach Assume
operation region, find Q-point, check to see if
result is consistent with operation region
47
Bias Analysis Example 3 (Constant Gate-Source
Voltage Biasing with Channel-Length Modulation)
Check VDS gtVGS -VTN. Hence saturation region
assumption is correct. Q-pt (54.5 mA, 4.55 V)
with VGS 3.00 V
Discussion The bias levels have changed by about
10. Typically, component values will vary more
than this, so there is little value in including
? effects in most circuits.
48
Bias Analysis Example 4 (Four-Resistor Biasing)
Assumption Transistor is saturated, IG IB
0 Analysis First, simplify circuit, split VDD
into two equal-valued sources and apply Thevenin
transformation to find VEQ and REQ for gate-bias
voltage
Problem Find Q-pt (ID, VDS) Approach Assume
operation region, find Q-point, check to see if
result is consistent with operation region
49
Bias Analysis Example 4 (Four-Resistor Biasing)
Since VGSltVTN for VGS -2.71 V and MOSFET will be
cut-off,
and ID 34.4 mA
Also,
Since IG 0,
VDS gt VGS - VTN. Hence saturation region
assumption is correct. Q-pt (34.4 mA, 6.08 V)
with VGS 2.66 V
50
Bias Analysis Example 5 (Four-Resistor Biasing
with Body Effect)
Analysis with body effect using same assumptions
as in example 1
Iterative solution can be found by following
steps

• Estimate value of ID and use it to find VGS and
  VSB
• Use VSB to calculate VTN
• Find ID using above 2 steps
• If ID is not same as original ID estimate, start
  again.

51
Bias Analysis Example 5 (Four-Resistor Biasing)
(contd.)
The iteration sequence leads to ID 88.0 mA, VTN
1.41 V,
VDS gtVGS - VTN. Hence saturation region
assumption is correct. Q-pt (88.0 mA, 6.48
V) Check VDS gt VGS - VTN, therefore still in
active region. Discussion Body effect has
decreased current by 12 and increased threshold
voltage by 40.
52
What if Veq 4 V - 1 Volt, Vds ?An
amplifier?
53
Bias Analysis Example 6 (Two-Resistor Feedback
Biasing)
Since VGS ltVTN for VGS -0.769 V and MOSFET will
be cut-off,
and ID 130 mA
Assumption IG IB 0, transistor is saturated
(since VDS VGS) Analysis
VDS gtVGS - VTN. Hence saturation region
assumption is correct. Q-pt (130 mA, 2.00 V)
54
Bias Analysis Example 7 ( Biasing in Triode
Region)
Also
But VDS ltVGS - VTN. Hence, saturation region
assumption is incorrect. Using triode region
equation,
Assumption IG IB 0, transistor is saturated
(since VDS VGS) Analysis VGS VDD4 V
and ID1.06 mA
VDS lt VGS - VTN, transistor is in triode region
Q-pt (1.06 mA, 2.3 V)
55
Bias Analysis Example 8 (Two-Resistor biasing
for PMOS Transistor)
Also
Since VGS -0.369 V is less than VTP -2 V, VGS
-3.45 V ID 52.5 mA and VGS -3.45 V
Assumption IG IB 0, transistor is saturated
(since VDS VGS) Analysis
Hence saturation assumption is correct. Q-pt
(52.5 mA, -3.45 V)
56
Junction Field-Effect Transistor (JFET) Structure

• Much lower input current and much higher input
  impedance than the BJT.
• In triode region, JFET is a voltage-controlled
  resistor,
• r resistivity of channel
• L channel length
• W channel width between pn junction depletion
  regions
• t channel depth
• Inherently a depletion-mode device

• n-type semiconductor block houses the channel
  region in n-channel JFET.
• Two pn junctions form the gate.
• Current enters channel at the drain and exits at
  source.

57
JFET with Gate-Source Bias

• vGS 0, gate isolated from channel.
• VP lt vGS lt 0, W lt W, and channel resistance
  increases gate-source junction is
  reverse-biased, iG almost 0.
• vGS VP lt 0, channel region pinched-off, channel
  resistance is infinite.

58
JFET Channel with Drain-Source Bias

• With constant vGS, depletion region near drain
  increases with vDS.
• At vDSP vGS - VP , channel is totally
  pinched-off iD is saturated.
• JFET also suffers from channel-length modulation
  like MOSFET at larger values of vDS.

59
N-Channel JFETi-v Characteristics
Transfer Characteristics
Output Characteristics
60
N-Channel JFETi-v Characteristics (cont.)

• For all regions
• In cutoff region
• In Triode region
• In pinch-off region

61
P-Channel JFET

• Polarities of n- and p-type regions of the
  n-channel JFET are reversed to get the p-channel
  JFET.
• Channel current direction and operating bias
  voltages are also reversed.

62
JFET Circuit Symbols

• JFET structures are symmetric like MOSFETs.
• Source and drain determined by circuit voltages.

63
JFET n-Channel Model Summary
64
JFET p-Channel Model Summary
65
N-channel JFET Capacitances and SPICE Modeling

• CGD and CGS are determined by depletion-layer
  capacitances of reverse-biased pn junctions
  forming gate and are bias dependent.
• Typical default values used by SPICE
• Vp -2 V
• l CGD CGD 0
• Transconductance parameter BETA
• BETA IDSS/VP2 100 mA/V2

66
Biasing JFET and Depletion-Mode MOSFET Example
N-channel JFET
Depletion-mode MOSFET

• Assumptions JFET is pinched-off, gate-channel
  junction is reverse-biased, reverse leakage
  current of gate, IG 0

67
Biasing JFET and Depletion-Mode MOSFET Example
(cont.)

• Analysis

Since VGS -13.1 V is less than VP -5 V, VGS
-1.91 V and ID IS 1.91 mA. Also,
VDS gt VGS -VP. Hence pinch-off region assumption
is correct and gate-source junction is
reverse-biased by 1.91V. Q-pt (1.91 mA, 6.27 V)
68
End of Chapter 4
Chap 3 -68
69
HW4

• 4.34
• 4.79
• 4.118

70
Coulombs law

• The torsion balance, also called torsion
  pendulum, is a scientific apparatus for measuring
  very weak forces, usually credited to
  Charles-Augustin de Coulomb, who invented it in
  1777, but independently invented by John Michell
  sometime before 1783.
• Its most well-known uses were by Coulomb to
  measure the electrostatic force between charges
  to establish Coulomb's Law, and by Henry
  Cavendish in 1798 in the Cavendish experiment to
  measure the gravitational force between two
  masses to calculate the density of the Earth,
  leading later to a value for the gravitational
  constant.

71

• The torsion balance consists of a bar suspended
  from its middle by a thin fiber.
• The fiber acts as a very weak torsion spring.
• If an unknown force is applied at right angles to
  the ends of the bar, the bar will rotate,
  twisting the fiber, until it reaches an
  equilibrium where the twisting force or torque of
  the fiber balances the applied force.
• Then the magnitude of the force is proportional
  to the angle of the bar.
• The sensitivity of the instrument comes from the
  weak spring constant of the fiber, so a very weak
  force causes a large rotation of the bar.

72

• In Coulomb's experiment, the torsion balance was
  an insulating rod with a metal-coated ball
  attached to one end, suspended by a silk thread.
• The ball was charged with a known charge of
  static electricity, and a second charged ball of
  the same polarity was brought near it.
• The two charged balls repelled one another,
  twisting the fiber through a certain angle, which
  could be read from a scale on the instrument.
• By knowing how much force it took to twist the
  fiber through a given angle, Coulomb was able to
  calculate the force between the balls.
• Determining the force for different charges and
  different separations between the balls, he
  showed that it followed an inverse-square
  proportionality law, now known as Coulomb's law.

73

• To measure the unknown force, the spring constant
  of the torsion fiber must first be known.
• This is difficult to measure directly because of
  the smallness of the force.
• Cavendish accomplished this by a method widely
  used since measuring the resonant vibration
  period of the balance.
• If the free balance is twisted and released, it
  will oscillate slowly clockwise and
  counterclockwise as a harmonic oscillator, at a
  frequency that depends on the moment of inertia
  of the beam and the elasticity of the fiber.
• Since the inertia of the beam can be found from
  its mass, the spring constant can be calculated.

74

• Coulomb first developed the theory of torsion
  fibers and the torsion balance in his 1785
  memoir, Recherches theoriques et experimentales
  sur la force de torsion et sur l'elasticite des
  fils de metal c.
• This led to its use in other scientific
  instruments, such as galvanometers, and the
  Nichols radiometer which measured the radiation
  pressure of light.
• In the early 1900s gravitational torsion balances
  were used in petroleum prospecting.
• Today torsion balances are still used in physics
  experiments.

75

• In 1987, gravity researcher A.H. Cook wrote
• The most important advance in experiments on
  gravitation and other delicate measurements was
  the introduction of the torsion balance by
  Michell and its use by Cavendish.
• It has been the basis of all the most significant
  experiments on gravitation ever since.
