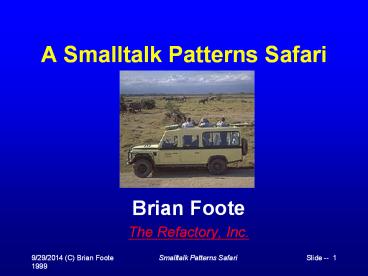

A Smalltalk Patterns Safari

1
A Smalltalk Patterns Safari

• Brian Foote
• The Refactory, Inc.

2
Why Patterns?

• Whats New Here is that Nothing is New Here
• Patterns are about what works
• Patterns give us a way to talk about what works
• Patterns distill experience
• Patterns give us a pithy design vocabulary

3
Alexander on Patterns

• Patterns in solutions come from patterns in
  problems.
• "A pattern is a solution to a problem in a
  context."
• "Each pattern describes a problem which occurs
  over and over again in our environment, and then
  describes the core of the solution to that
  problem, in such a way that you can use this
  solution a million times over, without ever doing
  it the same way twice."
• Christopher Alexander -- A Pattern Language

4
Why Patterns in the Wild?

• Learn where to look
• Learn how to spot em and recognize em
• See how they evolve
• Appreciate their history, and our history
• Understand their ecosystem and interdependence
• Helps us discern and discover new ones

5
The Gang of FourThe Essential Field Guide

• Design Patterns Elements of Reusable
  Object-Oriented Software
• Erich Gamma, Richard Helm, Ralph Johnson, and
  John Vlissides
• Addison Wesley, 1995
• A landmark book that changed the way programmers
  think about building object-oriented programs

6
Dr. Johnson, I presume?

• Great explorers, like Livingstone and Johnson
  neither necessarily create nor invent, nor, do
  they even always discover
• Often, their greatest skill is communication...

7
Your Guide

• Over Twenty Years in the Bush...
• Stalking Smalltalk since 81 or 85 Patterns?
• An long-time associate of Dr. Johnson...

8
Field Guides (cont.)

• The Design Patterns Smalltalk Companion
• Alpert, Brown, and Woolf
• Addison Wesley, 1998
• Pattern-Oriented Software Architecture
• Buschmann, Meunier, Rohnert, Sommerlad, and
  Stahl
• Wiley, 1996
• The Pattern Languages of Program Design Series
• Volumes 1-4
• Addison Wesley, 1995-2000

9
VisualWorksThe Image A Virtual Veldt

• The Cradle of Object-OrientedArchitecture
• An Olduvai Gorge Teeming with Patterns

10
GoF Design Patterns

• Creational patterns
• Abstract Factory
• Builder
• Factory Method
• Prototype
• Singleton
• Structural patterns
• Adapter
• Bridge
• Composite
• Decorator
• Facade
• Flyweight
• Proxy

• Behavioral Patterns
• Chain of Responsibility
• Command
• Interpreter
• Iterator
• Mediator
• Memento
• Observer
• State
• Strategy
• Template Method
• Visitor

11
The Big Five

• Composite
• Proxy
• Strategy
• Observer
• Visitor

• Lion
• Leopard
• Elephant
• Buffalo
• Rhino

12
Objects within Objects
13
Composite

• Context
• Developing OO software
• Problem
• Complex part-whole hierarchy has lots of similar
  classes.
• Example document, chapter, section, paragraph.
• Forces
• simplicity -- treat composition of parts like a
  part
• power -- create new kind of part by composing
  existing ones
• safety -- no special cases, treat everything
  the same

14
Composite
Idea make abstract "component"
class. Alternative 1 every component has a
(possibly empty) set of components.
Component
Children
Paragraph
Chapter
...
Problem many components have no components
15
Composite
Component
Container
Children
Composite
Leaf
Composite and Component have the exact same
interface. interface for enumerating children
Component implements Children() by returning
empty set interface for adding/removing
children?
16
Composite Pattern
Component
Container
Children
Composite
Leaf
Composite and Component have the exact same
interface. interface for enumerating children
Component implements Children() by returning
empty set interface for adding/removing
children?
17
Two Design Alternatives
Component does not know what it is a part
of. Component can be in many composite. Component
can be accessed only through composite.
Component knows what it is a part of. Component
can be in only one composite. Component can be
accessed directly.
18
Component Knows its Composite

• Rules when component knows its single composite.
• A is a part of B if and only if B is the
  composite of A.
• Duplicating information is dangerous!
• Problem how to ensure that pointers from
  components to composite and composite to
  components are consistent.

19
Ensuring Consistency

• The public operations on components and
  composites are
• Composite can enumerate components.
• Component knows its container.
• Add/remove a component to/from the composite.
• The operation to add a component to a composite
  updates the container of the component. There
  should be no other way to change the container of
  a component.
• Smalltalk does not enforce private methods.

20
Example Equipment
Equipment
weight
cost
CompositeEq.
FloppyDisk
...

• weight
• total
• total 0.
• self childrenDo each total total each
  weight.
• total

21
VisualComponentgtgtadd
22
Composite Pattern in VisualWorks
VisualComponent
Children
VisualPart
ComposedText
Container
CompositePart
ListView

• Most operations in CompositePart simply iterate
  over the children and repeat the operation on
  them.

23
CompositePart

• addComponent aVisualComponent
• self isOpen
• ifTrue ...
• ifFalse components addLast aVisualComponent.
• aVisualComponent container self
• displayOn aGraphicsContext
• "Display each of the receiver's components."
• clipBox
• clipBox aGraphicsContext clippingBounds.
• components do
• component
• (component intersects clipBox)
• ifTrue component displayOn aGraphicsContext
  copy

24
Summary of Composite

• Composite is a kind of Component
• Permits arbitrary hierarchies
• Add/remove Component from Composite
• Operations on Composite iterate over Components

25
Template Method

• As plentiful as sawgrass...
• Often associated with scavengers
• e.g. printOn aString

26
Factory Method

• Plentiful in the image...
• View defaultControllerClass
• UILookPolicy
• XxxClass methods

27
Abstract Factory
28
Builder

• ClassBuilder
• UI Builders

29
Prototype

• This isnt Self, after all...
• VisualWorks TextAttributes
• Look for copy
• Thinglab, Morphic...

30
Singleton

• All the Metaclasses...
• ProcessScheduler
• SourceFileManager
• true, false, nil

31
Strategy

• Sundry Policies...

32
Observer Pattern

• Intent Define a one-to-many dependency between
  objects so that when one object changes state,
  all its dependents are notified and updated
  automatically.

observer/dependent
Observer Update
Subject AddDependent RemoveDependent Changed
LineFigure Update
endPoint
RectangleFigure
33
Iterator

• Provide a way to access the elements of an
  aggregate object sequentially without exposing
  its underlying implementation.

Iterator
Aggregate
First() Next() IsDone() CurrentItem()
CreateIterator()
ConcreteAggregate
ConcreteIterator
CreateIterator()
34
Iterator in Smalltalk

• 1) Internal iterator - iterate inside the
  Iterator
• easy to use, not as powerful as external iterator
• works well because of blocks
• employees do each each name printOn
  aStream
• 2) Combine Next() and CurrentItem() (Smalltalk
  Stream)
• employeeStream GeneralMotors
  employeeStream.
• employeeStream atEnd
• whileFalse
• employeeStream next name
  printOn aStream

35
Proxy

• Provide a surrogate or placeholder for another
  object to control access to it
• represent an object in a remote address space
• create expensive objects on demand
• check access rights
• Proxy has same interface as real subject, and
  forwards operations to it

36
Proxy
Subject
Client
request
...
realSubject
Proxy
RealSubject
request
request
realSubject request
37
Proxy

• Remote proxy - first package arguments, then make
  remote procedure call.
• Virtual proxy - compute objects, then forward
  request.
• Protection proxy - check access rights, then
  forward request.

38
Creating an Orphan

• nil subclass Future
• instanceVariableNames semaphore '
• classVariableNames '
• poolDictionaries ' '
• category Reflection-Examples
• In VisualWorks, ClassBuilder does the rest.
  Default implementations of doesNotUnderstand and
  class are provided.

39
Locating Orphans

• allBehaviorsDo aBlock
• "Evaluate the argument, aBlock, for each kind of
  Behavior in the system (that is, Object and its
  subclasses,
• plus other classes that have no superclass)."
• Class rootsOfTheWorld do
• cls
• aBlock value cls.
• cls allSubclassesDo aBlock

40
Terminology and Taxonomy

• Is this a Wildebeest?
• A Gnu?
• Class MammaliaOrder ArtiodactylaFamily
  BovidaeGenus species Connochaetes (flowing
  beard) taurinus (like a bull) albojubatus (white
  mane)

41
Decorator

• Object ()
• VisualComponent ()
• VisualPart ()
• Wrapper ()
• GeometricWrapper ()
• FillingWrapper ()
• StrokingWrapper ()
• GraphicsAttributesWrapper ()
• PassivityWrapper ('controlActive')
• ReversingWrapper ()
• StrikeOutWrapper ()
• ScalingWrapper ()
• TranslatingWrapper ()
• LayoutWrapper ()
• BoundedWrapper ()
• BorderedWrapper ()
• MenuBarWrapper ()
• BoundingWrapper ()

42
Adaptor

• Aspect Adaptor
• Pluggable Adaptor

43
Flyweight

• Character

44
Chain of Responsibility

• VisualPart

45
Command

• MenuItem
• Blocks are often used instead in Smalltalk, so
  this pattern is not as common in its pure form in
  this environment...

46
Interpreter

• The WindowSpec Walker
• Though its not clear how to classify this
• The simulator?

47
Observer
48
Parse Tree
49
Visitor

• ProgramNodeEnumerator
• This class provides a framework for recursively
  processing a program node tree. Program nodes of
  type ltNodeTypegt should implement
• nodeDo anEnumerator
• anEnumerator doltNodeTypegt self
  ...arguments...
• by analogy with the ProgramNodeBuilder messages
• newltNodeTypegtarguments
• The old node is the first argument, so that
  enumerators can preserve the comment and source
  information if they wish.
• To rebuild each non-leaf node, the enumerator
  sends the message
• self doNode ltargumentgt
• which is implemented by default as
• doNode aNode
• aNode nodeDo self

50
Visitor

• ProgramNodeEnumerator
• Subclasses must implement the following messages
• enumerating-non-leaves
• doAssignmentvariablevalue
• doBlockargumentsbody
• doCascadereceivermessages
• doMessagereceiverselectorarguments
• doMethodselectorprimitiveblock
• doParametervariabletype
• doReturnvalue
• doSequencetemporariesstatements
• enumerating-leaves
• doLiteralvalue
• doVariablename

51
ProgramNodeEnumerator

• ProgramNodeEnumerator is a visitor for the
  Smalltalk-80 compiler.
• Smalltalk compiler parse tree hierachy rarely
  changes.
• There are lots of potential programs that need to
  traverse trees
• consistency checkers
• program transformation
• metrics
• It makes sense to keep these applications out of
  the parse tree.
• Easy to make minor variations on tree walking
  applications.

52
Facade

• Rarely seen in the image...
• Perhaps the Smalltalk Compiler itself qualifies

53
Bridge

• Elusive Quarry
• Yellands paper from OOPSLA 96 discusses how
  Bridges might improve the image...

54
State

• Have you seen one?

55
Memento

• Nocturnal?
• Seen in applications, like the Refactoring
  Browser
• Difficult to find in the image...

56
Mediator

• Case can be made for models...

57
GoF Design Patterns

• Creational patterns
• Abstract Factory
• Builder
• Factory Method
• Prototype
• Singleton
• Structural patterns
• Adapter
• Bridge
• Composite
• Decorator
• Facade
• Flyweight
• Proxy

• Behavioral Patterns
• Chain of Responsibility
• Command
• Interpreter
• Iterator
• Mediator
• Memento
• Observer
• State
• Strategy
• Template Method
• Visitor

58
Bird on Patterns

• Learn the patterns and then forget em
• -- Charlie Parker
• http//www.hillside.net

59
Conserving Infodiversity

• The Image A Cyberworld Heritage Site

60
A Victory over Entropy

• A stunning collective achievement
• A temple to design
• Incubator for architecture
• A pattern hunters paradise

61
Contact Information

• Brian Foote
• The Refactory, Inc.
• 209 W. Iowa
• Urbana, IL 61801
• [phone]
• http//www.laputan.org (H)
• http//www.refactory.com (O)
• foote_at_refactory.com
