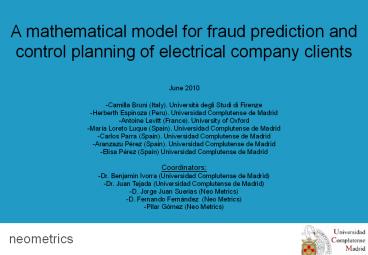

A mathematical model for fraud prediction and
control planning of electrical company clients
June 2010
-Camilla Bruni (Italy). Università degli Studi di
Firenze -Herberth Espinoza (Peru). Universidad
Complutense de Madrid -Antoine Levitt (France).
University of Oxford -María Loreto Luque (Spain).
Universidad Complutense de Madrid -Carlos Parra
(Spain). Universidad Complutense de
Madrid -Aranzazu Pérez (Spain). Universidad
Complutense de Madrid -Elisa Pérez (Spain)
Universidad Complutense de Madrid Coordinators -
Dr. Benjamin Ivorra (Universidad Complutense de
Madrid) -Dr. Juan Tejada (Universidad
Complutense de Madrid) -D. Jorge Juan Suerias
(Neo Metrics) -D. Fernando Fernández (Neo
Metrics) -Pilar Gómez (Neo Metrics)?
2
Outline

• Problem Description
• Data Analysis
• Mathematical Modeling
• Numerical Validation
• Conclusions and Perspectives

3

• I PROBLEM DESCRIPTION

4
Context

• An electrical company keeps a crew of inspectors
  in Chile to check whether customers are
  manipulating their electrical meters.
• Each check has a cost and the company wishes to
  identify the customers with higher risk of fraud
  in order to maximize benefits in a possible
  control campaign.

5
Objectives of the work

• Currently, the company policy to check randomly
  on customers detects 6.6 of fraud.
• Using the data set provided by the company, we
  created a model to design an improved control
  campaign. To do so, we have
• Data exploration and treatment using SAS.
• Fit a logistic regression model using SAS and
  calculate the lift-chart/ROC model performance
  indicators.
• According to the model find the optimal control
  campaign, using Matlab, and perform a validation
  of the results.

6

• II DATA ANALYSIS

7
DATA ANALYSIS

• What does Neometrics supply us?
• We received from Neometrics the database,
  train.csv
• Database characteristics
• 79,459 records
• 49 variables
• 30MB

8
DATA DESCRIPTION

• We have 49 explanatory variables which can be
  divided in several groups.

• We consider some variables referring to each
  customers characteristic (economical,
  geographical, technical)
• We select and simplify the more representing
  variables. To do so
• We categorize non-linear continuous variables
  according to fraud proportion in population.
• We analyze the groups that have both categorical
  and quantitative variables in discrimination
  techniques (Binary tree).
• Groups containing only quantitative variables
  apply principal components (PCA) to see these
  correlations.

9
Variable simplification

• In order to identify the non-linear
  continuous variables and representative values,
  we calculate
• Population proportion on each group
• Fraud proportion on each group

10
Variable simplification
11
Variable simplification
12
Variable simplification
13
Variable simplification
14
VARIABLES SELECTION

• The principal component analysis (PCA) is applied
  to the Debt and Payment group variable.

• The aim of PCA is to reduce the size of the
  observed variables for each individual, keeping
  the greatest variability.
• PCA is based on the spectral analysis of the
  correlation matrix.
• This process was performed using SAS.

15
SELECTION OF VARIABLES

• We start with the principal component analysis
  for groups of variables Calculated variables of
  Debt and Payment.

• The most relevant variables are
• deuda_ult_mean,
• max_deuda,
• dif_ult_mean_deuda
• mean_dif_deuda.
• After finishing the procedure, we select three
  variables, accounting for 90 of the information.

Repeating the process
16
Study Of Significance

• We realize a study on the most significant
  variables that we might include in our model.
  For example Geographic Variables, Conexion
  Identifiers, Customer Caracteristic Groups.
• proc logistic selection stepwise
• Pearson Correlation Coeficient

17
Study Of Multicolinearity

• VIF variance inflaction
• The VIF represents an increase in the variance
  due to presence of multicollinearity.
• VIF take values from a minimum of 1 when there is
  no degree of multicollinearity

• Other procedures Discriminal Analysis (DISCRIM)
• max_deuda

18
Classification trees

• To obtain a good predictive model
• Decision support models that can be applied in
  the identification of fraudsters

19

• III MATHEMATICAL MODELING

20
Regression

• Predict a random variable with a set of
  explanatory random variables
• In our case, predict fraud probability using
  client information
• Well-studied problem, numerous applications (spam
  filter, image classification, insurance
  policy...)?
• Simplest idea linear regression

21
Logistic regression

• is a probability .
  Linear regression does not
  respect the constraint.
• Map result of linear regression to a probability
• with logistic curve
• We calibrate model parameters on the training set
  (find optimal a and b), and test on the
  validation set.
• Use an optimisation procedure to fit model
• Other possibilities add terms in the model.
  Interactions ( etc.),
  nonlinearities ( ), etc.

22
Model evaluation

• In order to validate our model
• We compare estimated fraud probabilities to
  measured outcomes on the validation set.
• Use different metrics ROC curve, lift-chart,
  etc..
• Use the results to establish optimal control
  policy

23
ROC curve

• X-axis false positives, Y-axis true positives
• For a given allowed false positive rate
  (specificity), determine success rate
  (sensitivity)?
• Perfect model Y 1, random model, Y X, bad
  model, Y 0
• Goal get above Y X
• Area under curve good indication of quality of
  model c-value

24
LIFT CHART
We sort the client according to their decreasing
fraud probabilities. The X-axis represent the
percentage of the population according to the
previous arrangement. The Y-axis represent a rate
calculated as
Rate (a)
25

• IV NUMERICAL VALIDATION

26
Results

• Use only a subset of available parameters
• Zone, type of line, past fraud history, past
  payment history
• Categorise continuous variables
• Final model 8 categorical variables, with or
  without pairwise interactions
• Model trained on 40k clients, validated on 40k
  others.

27
LIFT-Chart graph and ROC values
28
Cost-benefit analysis Best model
Validation
Train
29
Cost-benefit analysis Extreme models
Random model
Best model
30

• V CONCLUSIONS AND PERSPECTIVES

31
Summary

• Data analysis to isolate interesting variables
• Logistic regression to predict fraud
  probabilities
• Evaluation of the model (ROC, lift)?
• Use in a cost-benefit analysis
• Concrete results of use to the client

32
Future Work

• Automatic data analysis (binary trees, principal
  components analysis, etc.)
• Carefully chose variables to include
• Other types of prediction (neural networks,
  decision trees, etc.)
• More complex optimization processes

33
THANK YOU
