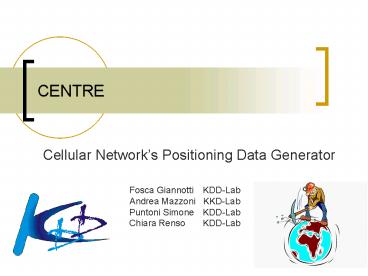

• Cellular Networks Positioning Data Generator

Fosca Giannotti KDD-Lab Andrea Mazzoni KKD-Lab Pun
toni Simone KDD-Lab Chiara Renso KDD-Lab
2
Why to generate data?

• Trouble in finding
• Due to ITC Companies reticence
• and for legal and privacy reasons
• Need to have ad-hoc datasets
• To improve algorithm development
• To have a tools for validation and testing phases

3
CENTRE

• CEllular Network Trajectory Reconstruction
  Environment
• A positioning data (LOG) generation Environment
  aimed to Mobile technology
• Developed as tool of GeoPKDD projects

4
GSM technology
5
GeoPKDD Geographic Privacy-Aware Knowledge
Discovery Delivery
6
The Idea

• To generate positional mobile data (LOG) by the
  simulation of the event deriving from
• Trajectories of hypothetical mobile networks
  users that travel on territory
• The resulting survey of this movements using
  synthetic ad-hoc GSM coverage (the set of BTSs)
• So we can analyze the set of LOGs and recontruct
  trajectories of mobile networks users

7
Motivation

• With this model we want to reach
• More rigorous and realistic semantic of
  generating data.
• Possibility to compare synthetic trajectories
  with reconstructed one.
• Chance of validate mining and knowledge discovery
  algorithms results with synthetic trajectories.

8
CENTRE architecture
9
What CENTRE do

• Then we overlap a set of antennas represented by
  circles of their coverage areas

• First of all we generate a sequence of
  spatio-temporal points represent a trajectory. We
  can customize
• Starting point
• Velocity
• Agility
• Direction
• Groups of behavior
• Infrastructures, ect.

10
LOG extraction

• So LOG is represented by a tuple
• ( Obj_ID, BTS_ID, TimeStamp, d)

• Result of extraction
• LOG at time tt2 (P2)
• Cell1, BTS1, tt2, d12
• LOG at time tt3 (P3)
• Cell1, BTS1, tt3, d13,
• Cell1, BTS2, tt3, d23,
• Cell1, BTS3, tt3, d33
• LOG at time tt4 (P4)
• Cell1, BTS2, tt4, d24

• Where
• Obj_ID is the identifier of observed object
• BTS_ID is the identifier of antenna that made
  this survey
• TimeStamp is the time of survey
• D is a evaluation of distance from object to the
  center of BTS

11
Dataset
12
Trajectories reconstruction

• Once LOG are produced and stored, we forget about
  synthetic trajectories and try to reconstruct
  these only from
• LOG collection
• Synthetic coverage

13
Information types

• Reconstruction was performed considering all LOGs
  produced on a single temporal instant for a
  single trajectoty
• The number of LOGs with same time and same device
  identificator (id_cell) represent the number of
  simultaneous relevations

3 LOGs
1 LOG
2 LOGs
14
Recontruction method

• When we have
• Only one relevation our point may be inside the
  entire antenna covered area, so we take antenna
  center as point positions
• With two or more relevations point may be only
  inside the intersection area of them, so we take
  centroid of this area as point position

15
Reconstructed trajectories dataset
16
And now examples! ?
17
?
18
?
19
Now we work on

• Make new extensions to main generation engine
• In order to test and validate spatial KD
  algorithms with more efficiency and accuracy.
• Change old code (that was derived from GSTD code)

• Introducing improvements on class structures
• Introducing new data characterization specially
  on spatial and temporal aspects

20
Multiple generation engines

• The Idea is to develop extensions to main engine
  every time we need new features to test and
  validate KD algorithms.
• And use each time the best implementation on
  sinthetic trajectories production engine
  depending of type of data we need to obtain

21
Density based clustering

• We have seen that for best results with this
  algorithm is useful to have a simple method for
• create clusters and
• identify relation between objects and clusters.

22
Attraction engine

• For this particular type of algorithm we are
  developing a new engine extension that use an
  attraction-like mechanism.
• Each objects chooses and tries to reach its next
  attraction area.
• When it reaches its destination area chooses
  another one, and so on

23
Cluster construction

• A cluster if formed by a set of objects that are
  forced to pass through a sequence of areas.

24
a simple example

• In this scenario we can see one object that every
  time chooses a region with a completely random
  order.
• Chosen a region, and a point on it, the object
  tries to reach this point.
• and so on

25
Others improvements

• Formalization of some concepts (at code level)
• Spatio-temporal data
• Spatio-temporal object
• Trajectory
• and a real measures in data values
• Positions are expressed in meters
• Velocities are expressed in meters/seconds
• Times are expressed in seconds

26
Conclusions

• Nowadays work is in progress, and we hope to test
  as soon as possible a Density Based Algorithm on
  this new generation engine
• Contextually we also work on a engine for testing
  Temporal and Sequential Frequent Pattern
  Algorithm
• And also to improve generator use, through
  simplification of number and form of parameters,
  graphical interface, ect.
