SNP Biochip with Electrical Detection and Gold Nanoparticles

1

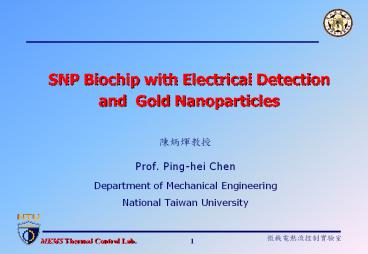

SNP Biochip with Electrical Detection and Gold
Nanoparticles

• ?????
• Prof. Ping-hei Chen
• Department of Mechanical Engineering
• National Taiwan University

2
Array-Based Electrical Detection of DNA with
Nanoparticle Probes
Single Nucleotide Polymorphism (SNP)
3
NanoDevice

NanoDevice NanoMaterial

Nanoparticles
SNP Chip
Self Assembly
measurement
Material Properties
Integration
Device
4
SNP Chip
100nm
PROCESS BY E-beam writer
5
Principle for electrical detection of DNA
6
SNP Chip
7
Self-Assembly of AuNP Monolayer
THMS
Silanization
8
Self-Assembly of AuNP Multilayer
alkanethiol-cDNA
9
Single layer
Multi-layer
Measurements are taken in atmosphere and at room
temperature, but no solution between the
electrodes
10
DNA with AuNP
No AuNP
Monolayer
Mutlilayer
In atmosphere, but no solution in the gap
11
FE-SEM images of the AuNPs before and after
denatured
Fig (A) Complementary tDNA hybridization before
denatured (B)
Complementary tDNA hybridization after
denatured
12
FE-SEM images of the AuNPs before and after
denatured
Fig (Left) IV curve for complementary tDNA
hybridization before denatured
(Right) IV curve for complementary
tDNA hybridization after denatured

13
FE-SEM images of the AuNPs multilayer by using
different concentration of tDNA hybridization
A
B
C
D

• Fig (a) 0.1 µM, (b) 1 nM, (c) 10 pM, and (d) 1fM
  with the complementary cDNA and pDNA strands were
  assembled on the SiO2 substrates following the
  same procudure used for DNA detection.

14
The electronic measurement results of nano-gap
measured by using different tDNA concentration

• Fig I-V curves of the nano-gap electrode
  measured by using different tDNA concentration
  which detected in the (A) 0.1 µM, (B) 1 nM, (C)
  10 pM, and (D) 1fM range. Here, tDNA were
  cohybridized to cDNA and pDNA in 0.3 M PBS for 2
  hours in all experiments

15
Results with 1 fM tDNA Concentration
350nm
Key How to improve the area coverage with
monolayer AuNP structure?
16
FE-SEM images of the AuNPs multilayer for
single-bp Mismatch
Fig. (a) FE-SEM image for multilayer of AuNPs for
single-bp mismatch tDNA hybridization before
denaturing. (b) FE-SEM image of AuNPs for
Single-bp mismatch tDNA hybridization after
denaturing. Here, the concentration of tDNA for
hybridization is 1nM. The chip was immersed into
a salt solution of 0.01 M NaCl and PBS buffer for
2 hours.
17
FE-SEM images of the AuNPs multilayer for
single-bp Mismatch
(left) Current-voltage curve for multilayer of
AuNPs with single-bp mismatch tDNA
hybridization with a scanning rate of 10 mV/s.
(right) Current-voltage curve for AuNPs layer
after the chip with the single-bp mismatch tDNA
after denaturing.
18
CMOS processed SNP
temperature sensor

• ?????????????????????????????????????????????????
  ?testkey

post-process testkey
biosensor microstructures
19
CMOS processed SNP
biosensor microstructures
20
CMOS processed SNP
biosensor microstructures
21
CMOS processed SNP
biosensor microstructures
22
CMOS processed SNP
biosensor microstructures
23
CMOS processed SNP
biosensor microstructures
24
biosensor microstructures
25
Conclusions

1. Electrical measurement for DNA detection is made
   possible through gold nanoparticles and nanogap
   electrodes.
2. A CMOS biochip using this electrical measurement
   for DNA detection is fabricated by TSMC. It
   proves that this biochip can be massively
   produced through a batch process. In future, this
   biochip can be used for a massive screening.
3. If the detection concentration of tDNA can be
   lowered to 1 fM, no PCR for tested sample is
   required for this biochip.
4. A single-bp mismatch between oligonucleotides can
   be detected by using the current technique.
