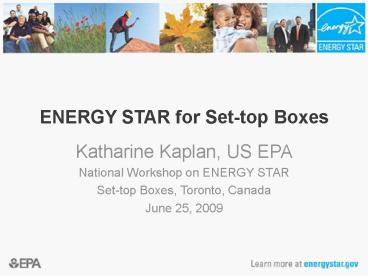

ENERGY STAR for Set-top Boxes

1
ENERGY STAR for Set-top Boxes

• Katharine Kaplan, US EPA
• National Workshop on ENERGY STAR
• Set-top Boxes, Toronto, Canada
• June 25, 2009

2
Presentation Overview

• Why are climate issues increasingly important?
• What is ENERGY STAR?
• How can it help address climate issues?
• ENERGY STARs approach for CE/IT products
• Why ENERGY STAR for STBs?
• Goals for the ENERGY STAR set-top box and service
  provider programs
• Requirements intended to deliver on these goals
• General partner commitments, such as labeling and
  reporting
• Service provider purchase/fleet requirements
• Technical specification for boxes
• Program success to date

3
Global Warming Climate Change is Real IPCC
Issues Two Reports in 2007

• Report based on 29,000 sets of data and was
  reached by consensus of 2,500 scientists
• Declare 90 certainty that global warming is
  caused by humans
• Poor countries will suffer from increased hunger
  and water shortages
• North America will see more hurricanes, floods,
  droughts, heat waves, and wildfires
• Africa will be hardest hit Europe will see its
  Alpine glaciers disappear
• 30 of all species face extinction if global
  temperatures rise a predicted 3.6 degrees in the
  next century

4
McKinsey, December 2007, U.S. GHG Abatement
Mapping Initiative
5
We are facing large transmission generation
investments in an uncertain economic environment
6
Future Directions with Climate Change

• New Administration just beginning
• Climate goals of 14 reduction from 2005 by 2020
  and 83 reduction by 2050
• Waxman/Markey Climate and Clean Energy Discussion
  draft
• Linkage of climate and energy issues, along with
  consideration of economic needs
• Interest in a mix of policy approaches
• Cap and Trade
• Other policies targeting renewables, energy
  efficiency, RD, etc.

6
7
What is ENERGY STAR?

• ENERGY STAR is a government-backed program
  dedicated to helping individuals protect the
  environment through superior energy efficiency
• Products that have earned the ENERGY STAR meet
  strict energy-efficiency guidelines set by the US
  Environmental Protection Agency and the US
  Department of Energy
• These products not only cut customers energy
  costs, but also help protect the environment
• Saving energy reduces the burning of fossil
  fuels, which leads to less air pollution and
  ultimately reduces global warming

8
Why ENERGY STAR?

• ENERGY STAR is the only environmental brand which
  cuts across all trends and segments, offering a
  consumer platform which fills both pragmatic
  needs for energy savings and environmental
  aspirations of global warming reduction
• ENERGY STAR makes it easy to offer environmental
  products that have an added money savings benefit
  and for customers to find them
• ENERGY STAR increases sales
• Over 500M qualified products were sold in 2007
  alone
• The cumulative number of ENERGY STAR products
  sold since 2000 is more than 2.5 billion
• ENERGY STAR offers expert educational content on
  energy and environmental savings
• ENERGY STAR means products that are feature-rich
  and high performance with lower environmental
  impacts
• ENERGY STAR is a trusted and recognized brand
• 66 of consumers indicate that they are more
  likely to purchase an item due to the presence
  of the ENERGY STAR logo (2007 LOHAS Report)
• 82 of people report having seen the ENERGY STAR
  logo. As a comparison, 86 report having seen the
  recycling chasing arrows (09/08 CEA poll)

8
9
Consumer Interest in Efficient Products

• 98 of consumers agree or strongly agree that it
  is important to save energy in their homes
• 93 of consumers agree or strongly agree that
  saving energy helps the environment
• 79 of consumers agree or strongly agree that
  people should try to use less energy to reduce
  the need to build new power plants

10
ENERGY STAR Brand Influence
10
11
ENERGY STAR Recognition Influence

• More than 75 of American households recognize
  the ENERGY STAR label
• More than 75 of households have a high or
  general understanding of the ENERGY STAR label
• More than 35 of US households knowingly
  purchased an ENERGY STAR-labeled product in the
  past year. Of these purchasers
• More than 75 report the label as influential in
  their purchasing decision
• More than 80 report they are likely to recommend
  ENERGY STAR qualified products to friends (35 of
  these households reported they were "extremely"
  likely to recommend ENERGY STAR-labeled products)

12
The ENERGY STAR ICT Roadmap

• EPA has a 15-year relationship with the ICT
  industry. ENERGY STAR has grown to meet demands
  of a rapidly-changing market for CE and IT
  products from desktops to notebooks and game
  consoles in the home, and now servers and storage
  in the data center.
• Challenges include revising existing specs to
  keep pace with product development addressing
  more highly-integrated, feature-rich products
  and expanding ENERGY STAR into new product
  categories.
• Current ICT specification updates
• New requirements have recently taken effect for
  Computer Servers and Set Top Boxes
• New requirements are pending for Computers,
  Displays, and Imaging Equipment
• Specifications are under development for
  Audio/Video, Televisions, Computer Servers, and
  Enterprise Storage
• Specifications for Home Networking Equipment and
  Enterprise UPS products are pending
• Expect EPA to
• Refine existing and create new ENERGY STAR
  product specifications
• Encourage globally-harmonized test procedures and
  product specifications
• Raise awareness of nexus between ITs energy
  footprint and whole-building energy performance
• Study the energy savings potential of IT
• More info at www.energystar.gov/productdevelopment

13
Average Household Electricity Consumption for Key
Products
Residential Miscellaneous Electric Loads Energy
Consumption Characterization and Savings
Potential, TIAX LLC, finalized July 2007.
14
Percentage of Households with at Least One Device

• Cable STB 45
• Satellite STB 25

Residential Miscellaneous Electric Loads Energy
Consumption Characterization and Savings
Potential, TIAX LLC, finalized July 2007.
15
Goals for ENERGY STAR Set-top Box Program

• Develop a STB program that drives for the
  greatest energy savings practical for this
  category
• Identify appropriate roles and responsibilities
  for all relevant stakeholders
• Develop energy efficiency specifications for STBs
  that are performance-based recognizing leaders
  in the market in terms of energy efficiency
• Make use of existing test procedures and
  harmonize, where technically appropriate, with
  domestic and international partners on both test
  procedures and requirements
• Develop Program Requirements that offer longevity
  as well as fair comparison of products, and
  consideration of feature richness

16
Why Service Providers?

• Service providers influence application vendors
• Service providers control much of the behavior of
  devices on their network, affecting energy
  consumption
• Service providers control the network and the
  network protocol definitions through CableLabs

17
Roles of Service Providers and OEMs

• ENERGY STAR has chosen to qualify
• Products from OEMs/box manufacturers
• Service providers
• ENERGY STAR
• Provides incentives for OEMs to
• Develop new energy saving technologies
• Decrease the overall energy consumption in
  periods of use and non-use
• Provides incentives for service providers to
• Buy and maintain efficient STBs
• Educate consumers on the benefits of ENERGY STAR
• Ensure those new technologies are utilized

18
General Partner Commitments for Service Providers

• Purchase and/or deploy qualified STBs
• Ensure STBs maintain qualification
• Deploy user interface to permit disabling of
  speculative recording
• Maintain labeling arranged by manufacturer
• Install qualified low energy consumption remote
  boxes in multi-room STB installations
• Educate subscribers about energy-saving features
  and partners commitment to efficiency
• Train sales staff/customer service
  representatives
• Share purchase/deployment data with EPA annually

19
Service Provider Purchase/Fleet Requirement
Meet or exceed either a purchase or fleet
requirement for each year of partnership

• Purchase requirement 50 of new boxes purchased
  in a calendar year must be qualified
• Refurbishment cannot be counted
• Purchase requirement in 2011 and beyond is TBD
• Fleet requirement 10 of fleet in 2009, 25 in
  2010, and TBD in 2011 and beyond must be
  qualified
• The following may be counted toward the fleet
  requirement newly-purchased qualified boxes put
  into homes, ENERGY STAR refurbished STBs put into
  homes, and STBs upgraded in the field to meet
  ENERGY STAR

20
General Partner Commitments for Manufacturers

• Meet energy efficiency and power management
  requirements and qualify products with ENERGY
  STAR
• Label qualified products sold at retail or
  provided to Service Providers participating as
  ENERGY STAR partners as well as collateral
  material (and explain conditions under which
  model meets ENERGY STAR)
• Share unit shipment data with EPA annually

21
Principles of Efficiency

• Use power more efficiently during periods of
  activity
• Use as little power as possible when not active
• Components/devices should drop into low power
  modes as often and as deeply as possible
• TEC allows most of these to be rewarded

22
Technical Specification Tiers 1 2
Version 2.0 specification employs tiered
requirements to recognize top performers.

• Current Best Practices (Tier 1 Jan 2009)
• Criteria based on most efficient units currently
  available
• Data available Pace and Motorola IEA
  presentations CEA/TIAX NRDC Reports
• Savings from powering down DVRs
• Aims to encourage manufacturer participation and
  service provider deployment of higher-efficiency
  boxes
• Next Generation Technology (Tier 2 Jan 2011)
• Savings from powering down cable and satellite
  tuners
• Savings from reduced on mode power use
• Aims to truly recognize top performers

23
Technical Specification Approach

• Total Energy Consumption (TEC) approach
• Criteria specified in kWh/year rather than Watts
• Provides manufacturers flexibility
• Allows for additional functionality allowances
  such as integrated DVRs, extra tuners
• Less likely to result in perverse outcomes
• Guards against products that meet the criteria,
  yet actually use more energy than those that do
  not meet the criteria

24
Typical Energy Consumption (TEC) Approach
Hypothetical Perverse Outcome
Sample Device

• Duty Cycle Agnostic Scenario
• On and Standby criteria are required
• Model A passes and Model B fails

Criteria (Watts) Model A Model B
On 14 12 18
Standby 10 10 4
Modal Criteria PASS FAIL

• Duty Cycle/Use Scenario
• On 5 hours/day
• Standby 19 hours/day
• TEC End Result
• Model A 91 kWh/yr
• Model B 61 kWh/yr
• Model A uses more energy than Model B!!!

TEC Criteria FAIL PASS
25
Technical Requirements
26
Technical Specification Requirements

• Criteria levels for both Base Functionality
  (tuner) and Additional Functionalities

• Examples
• A standard definition Cable STB with no
  Additional Functionalities under Tier 1 70
  kWh/yr DONE.
• A high definition Satellite STB with DVR under
  Tier 2 Base Allowance is 56 kWh/yr NEED TO
  CONSIDER ADDITIONAL ALLOWANCES.

27
Technical Spec. Requirements (cont.)

• For STBs with one or more of the Additional
  Functionalities, add the values for each
  applicable functionality below to the Base
  Functionality Allowance

28
Other Technical Specification Elements

• External power supplies used with qualified STBs
  must be capable of meeting ENERGY STAR levels
• A multi-room allowance for STBs that can provide
  independent content to more than one display
  device
• Credit given for auto power down if specific
  conditions are met
• Devices that provide for speculative recording
  must have a user-accessible menu option allowing
  the user to disable this feature at will.
  Manufacturers must also include instructions for
  disabling speculative recording in product
  materials.
• Three units tested at random must all fall within
  specification allowance

29
Test Procedure

• Based on CSA 380-06
• Modified to be used with TEC-based criteria
• IEC 62087 is in Committee Draft and incorporates
  these changes
• New revisions of ENERGY STAR STB will be able to
  use IEC 62087
• List of Tests
• 5.3 Active Tests
• 5.3.1 Live TV (PTV)
• 5.3.2 Recording Live TV (PRecord) e.g., DVR
• 5.3.3 Playing Back Recorded TV (PPlayback) e.g.,
  DVR
• 5.3.4 Multiple Tuner Test
• 5.3.5 Removable Media Playback Test (PPlayback)
  e.g., DVD
• 5.3.6 Removable Media Record Test (PRecord)
  e.g., DVD
• 5.4 Inactive Tests
• 5.4.1 Standby Test (PStandby)
• 5.4.2 Auto Power Down (P AutoPD)

30
Test Procedure (continued)

• To compare to the allowance, apply the average
  power values obtained from the test procedure to
  one of the following
• If the STB includes a DVR or DVD player/recorder,
  one additional step is needed

31
Test Procedure (continued)

• For On-Playback and On-Record, use the following
  equation to calculate energy usage employing the
  corresponding duty cycles from the table

32
Test Procedure (continued)

• Lastly, calculate the total device usage by
  adding the results for Playback and Record (if
  applicable) to the kWhBase
• If the calculated usage value is less than the
  calculated allowance value, a STB can qualify for
  ENERGY STAR

33
Avenues for Savings

• Energy savings opportunities in
• Hardware improvements (die shrink, ASICs, better
  design)
• Design improvements (shutting down sub systems
  when not in use)
• Network improvements (improving network protocols
  to use less energy when underutilized, scale
  power consumption, and use less generally)
• To achieve these savings, everyone needs to be
  involved
• OEMs
• CableLabs
• Service Providers
• Utilities

34
Energy Savings in the Network

• The network on both sides of the box continues to
  be the limiting factor
• DOCSIS
• Conditional Access/Cable Card
• MOCA
• Ethernet
• To achieve energy savings in the network,
  everyone needs to be involved going forward
• OEMs
• CableLabs
• Service providers
• Utilities

35
(No Transcript)
36
Program Success to DateCurrent ENERGY STAR
Partners
Service Providers
ATT
DIRECTV
ECOCYN Energy
EPB
37
Program Success to DateCurrent ENERGY STAR
Partners
Manufacturers Number of Qualified Products
Cisco Systems 3
DIRECTV 12
General Instrument Corporation (Motorola) 7
Huawei Technologies Co., Ltd. 1
Pace plc 1
38
Program Success

• Manufacturers are reporting they are changing
  their designs as a result of ENERGY STARs
  specification
• Manufacturers are reporting that ENERGY STAR
  compliancy is being specd by a broad spectrum of
  service providers
• If all STBs sold in the US met ENERGY STAR, the
  savings in energy costs will grow to about 2
  billion each year and greenhouse gas emissions
  will be reduced by the equivalent of greenhouse
  gas emissions from about 2.5 million vehicles

39
ENERGY STAR Set-top Box Contacts

• Katharine Kaplan, EPA
• kaplan.katharine_at_epa.gov
• 202.343.9120
• Tom Bolioli, Terranovum, LLC
• tbolioli_at_terranovum.com
• 781.334.4074
