Edward Jones IS Capacity Planning and Performance Management

1

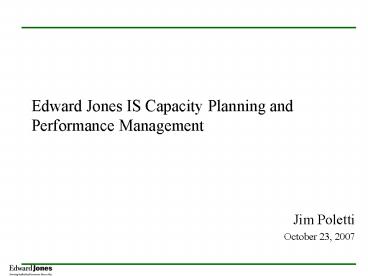

Edward Jones IS Capacity Planning and Performance
Management

• Jim Poletti
• October 23, 2007

2
About Edward Jones. . .

• Full service investment firm
• 10,000 branches US, Canada, UK
• 1 "broker" and 1 branch office administrator per
  branch
• Land-line WAN DSL or T1
• St Louis datacenter is hub for most traffic
• Tempe datacenter primarily DR for mainframe
• 21,000 users signed on to CICS at high-water

3
IS Capacity Planning Performance Management

• Rich Unnerstall (Director Data Center
  Operations)
• Art Morlock (Department Leader)

• Jim Poletti (MF Performance Analyst)
• Gerry Oliver (MF Performance Analyst)
• Greg Volk (Network Performance Analyst)
• Rick Pranger (Open Systems Performance Analyst)
• Dwayne Allen (Open Systems Performance Analyst)
• Tom Siech (Load Tester)
• Brandy Brown (Load Tester)

4
St. Louis Mainframe Hardware

• All LPARs run on 1 physical mainframe
• IBM Z9 2094-707 3516 MIPs Z/os 1.7
• 80 GB memory
• 40 TB DASD EMC Raid -1 and -7, 5 Ms
• Older symmetrix replacing with DMX-4
• Data replication to Tempe using SRDF

5
CPU by LPAR
6
Production Environment/LPAR

• 1 LPAR (no data-sharing SYSPLEX yet)
• 25 CICS regions 19 AORs, 5 TORs,1 FOR
• 32 Million CICS transactions/day 7 million user
  "enters"
• DB2 1 subsystem
• IDMS 5 regions, 15 million run units/day
• RRDF replication in DB2 and IDMS to Tempe

7
Responsibilities

• Assure system performance and scalability.
• Provide capacity planning support for purchasing
  decisions.
• Tune the mainframe hardware "till the wheels come
  off", then buy capacity.
• Hotline, war room participation.
• Performance Testing.

8
Early Morning "System Checks"

• Check system "barometers" from yesterday
• Check performance graphs and reports
• CICS transactions Volume, CPU, Response
• LPAR CPU
• Memory
• DASD
• DB2
• IDMS
• Development response time TSO, compiles

9
Houston, we have a problem !

• Go into detective mode
• Start at high level, look at service classes
  within LPAR for abnormalities

10
Daily Workload Statistics
For 930-1030 on Wed, Oct 17,
2007 Compared to Prior 4
Wednesdays
Service CPU CPU Change Real Real
Class Util Util in Change Memory Memory
  17-Oct Prior 4 CPU CPU Gb Prior 4
    Wednesdays Util     Wednesdays
BAT_HOT 0.3 0.3 0 -8 7.6 8.6
BAT_1 1.6 1.5 0.1 5 20.1 15.7
BAT_2 3.6 3.6 0 1 52 126.2
CICS_1 11.8 11.2 0.6 6 1490 1490
CICS_2 33.4 34.5 -1.2 -3 2037 2246
CICS_3 0.6 0.8 -0.2 -27 315.5 352.5
DB2_HI 1.6 1.8 -0.2 -11 6648 6636
DB2_LO 0.6 0.6 -0.1 -11 21.9 25.5
IDMS 11.3 11.9 -0.6 -5 1390 1398
MQSERIES 0.3 0.2 0.1 35 775 418.7
NEWWORK 0 0 0 -44 0
11
Dig deeper into details of the workload
Program SUM CPU CICS DB2 CPU DB2 DB2 Pct Resp Resp
Name Time CPU Time Change CPU Time Change Time Time
  930 to Time Prior 4 CPU Time Prior 4 DB2   Prior 4
  1030 Per Weds   Per Weds     Weds
    Tran     Tran
CMSOC300 884 0.0025 0.0025 1 0.0021 0.0021 1 0.076 0.078
DFHMIRS 424 0.0006 0.0006 -2 0 0 . 0.031 0.034
MYDOC016 391 0.0072 0.0075 -3 0.006 0.0062 -3 0.301 0.314
PRTOC515 284 0.0141 0.0145 -3 0.0102 0.0104 -3 0.189 0.21
BRHOC053 190 0.0008 0.0008 1 0.0006 0.0006 1 0.011 0.012
PRTOC630 188 0.0111 0.0116 -4 0.0053 0.0056 -5 0.07 0.077
CMSOC320 187 0.0052 0.0052 1 0.0048 0.0048 1 0.149 0.153
CHSOC120 133 0.0025 0.0025 -2 0.0006 0.0006 -2 0.052 0.057
CMSOC330 95 0.006 0.0059 2 0.0058 0.0057 2 0.182 0.184
BRIOC022 93 0.001 0.001 0 0 0 1 0.018 0.019
IAAOC222 91 0.0156 0.0156 0 0.0116 0.0116 0 0.482 0.485
PRTOC001 84 0.005 0.005 0 0.0019 0.0019 0 0.074 0.08
12
Once problem is found, find cause

• Run strobe on CICS or batch job.
• Ask if program was changed.
• Was a system parm changed?
• Lurking problem surfaced when user patterns
  changed
• Did a new system go in?

13
Recommend change to fix problem

• Code fix
• Parameter change
• SQL or IDMS call change
• Run workload different time smooth peaks
• Redesign database or add index
• Completely shutdown workload
• If you don't know how to fix it, ask others

14
It helps to make performance recommendations if

• You were a programmer in a previous life
• You were a DBA in a previous life
• Knowledgeable in MVS,CICS, DASD etc.

15
Integrity matters

• Be right, study before you speak
• Go for tuning that gives a payback
• If the workload isn't measurable, put in
  mechanisms to measure it before doing the tuning
  change
• Do some PR work - Send tuning results to
  programmer and their management

16
Mainframe tools

• SAS
• MXG
• Strobe
• Jones built performance repositories
• Our performance website
• RMF 3
• Omegamon

17
Capacity Managements Prime Objective When Do
We Run Out?

• When do we need more of a resource?
• How much lead time do you need?
• Approval cycle
• Floor space
• Vendor Delivery Time
• Installation Time
• Acceptable Risk

18
Forecasting Processes
Business Forecasts
Performance and Workload Data Repositories
Workload Models
Performance Prediction
Resource Utilization Models
Resource Utilization Trends
Validate, Assess and Revise
19
Performance Tuning

• We continually tune hardware and software, as
  well as their interrelationships, to improve the
  performance of systems.
• Shares ownership across multiple departments.
• Very highly iterative never done!
• Why
• Direct positive impact upon end user experience.
• Tuning ? cost avoidance.

20
Performance Tuning How do we improve programs?

• Divide and Conquer
• Which program in a batch job takes the longest?
• Which program uses the most CPU?
• Profile Code
• Tune infrastructure (including
• network).
• Prioritize process

21
Performance Tuning
Identify Opportunities for Improvement aka
"Hawgs" and "Dawgs".

• Which programs are slowest (Dawgs)?
• Which programs use the most resources (Hawgs)?
• Which programs are used the most?
• Business criticality How important are they to
  the business?

22
Performance Data Repositories

• We maintain many performance data repositories
  these tend to be collections of statistics not
  detail data.
• For example, we will not retain CICS transaction
  detail, but we will calculate counts of
  transactions by region by transaction name as
  well as average, maximum and percentile
  statistics for a variety of variables and
  intervals.
• SAS is our primary tool.

23
Performance Data Repositories Data Sources

• CICS by day, by tran
• DASD Type 74 by day, by LPAR, by VOLSER
• Jones application instrumentation
• MVS level by day, by LPAR
• IDMS- by day, by program
• DB2 by day, by tran
• Service and report classes by day, by service
  class
• Proc summary, proc append

24
Business Metrics and Workloads

• Business Metrics typically use different time
  frames than workload metrics.
• Business doesnt forecast in terms of megabytes
  of DASD, cpu seconds used, interactive sessions,
  concurrent users or paging rates.
• They refer to branches, IRs, customers, trades,
  purchases, , payments, visits, exorbitant cost
  of IT,

25
Loved Ones Sorry, all apps are not equal

• What is the business importance of the
  application / workload?
• If there are diverse workloads on a system it is
  necessary to prioritize the work to ensure that
  the work is processed in an order that reflects
  its business priority.
• To understand priorities you have to understand
  the business.
• Capacity planning activities should also ensure
  that when work is constrained, the highest
  priority work is favored.

26
Performance testing

• Jones has clone environment of production
• Use Loadrunner tool to generate transactions
• Think time adjustable
• A few hundred users is usually enough
• All major system enhancements are loaded tested

27
Load Testing Objectives

• Is End User Performance acceptable?
• Will the introduction of these new features
  threaten the health of other applications?
• How does response resource utilization compare
  to current production levels?
• Reproduce and troubleshoot production problems.
• Will we need to add capacity?
• In stress testing we measure response times at
  production peak load and 5x production peak.
• Often identify 'Break Points' to watch for in
  production.

28
Interaction with Availability

• A badly performing application is effectively the
  same as the application being unavailable.
• Capacity and Availability Management share common
  goals / tools and complement each other.
• Capacity Management needs to be aware of
  Availability techniques deployed, such as
  mirroring, load balancers or clustering, in order
  to plan accurately for Capacity.

29
Questions
