Databases and Data Access

1

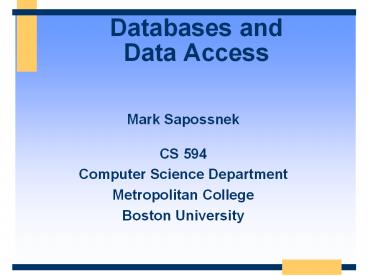

Databases and Data Access

• Mark SapossnekCS 594
• Computer Science Department
• Metropolitan College
• Boston University

2
Objectives

• Review database theory and history
• Review relational database concepts
• Learn about the evolution of data access
  technologies
• Learn about the ADO.NET namespaces and core
  classes
• Learn how to use ADO.NET classes in an application

3
Agenda

• Databases
• Relational Databases
• ADO.NET Overview
• ADO.NET Classes

4
Databases Databases

• Virtually all interesting applications require a
  structured, persistent data store
• E-Commerce placing an order, fulfilling an order
• HR Personnel data
• Sales
• CRM Customer data
• Games
• Database needs vary with the type of application
• Transaction Processing/OLTP
• Business Intelligence/Data Warehouse/OLAP

5
Databases Database Requirements

• Can store, view and modify data
• Can move, copy and transform data
• Can backup and restore data
• Enforces data integrity rules
• Is scaleable and available
• High number of users
• Lots of data
• High throughput with low response time
• Is secure
• Facilitates application development

6
DatabasesEvolution of Database Technology

• File-based
• Hierarchical
• Network
• Relational (RDBMS)
• Object-oriented
• XML

7
Agenda

• Databases Theory and History
• Relational Databases
• ADO.NET Overview
• ADO.NET Classes

8
Relational DatabasesTables

• Table (relation, entity)
• A collection of data about a specific type of
  thing
• Organized in rows and columns
• Column (attribute, field)
• Describes part of an entity (e.g. FirstName)
• Has a data type (e.g. integer, character, binary)
• Can be null
• Row (tuple, record)
• A single instance of data in a table
• Each row is unique

AuthID FirstName LastName
1 Joe Smith
2 Diane Jones
9
Relational Databases Relating Data

• Tables can be related through primary/foreign key
  relationships (e.g., a book has an author)
• Primary key
• Guarantees the uniqueness of a row
• Can be composed of one or more columns
• Ensures entity integrity
• Foreign key
• Establishes logical relationship between tables
• One or more columns of a table that match the
  primary or alternate key of another table
• Referential integrity

10
Relational Databases Relating Data

• Schema diagram depicts tables, columns, primary
  keys, foreign keys

Books
BookID
AuthID
Title
Type
Authors
AuthID
FirstName
LastName
1
8
Schema Diagram
11
Relational Databases Relating Data
Books Table
Primary Key
BookID AuthID Title Type
1 2 My Life as a DBA Autobiography
2 1 Database Handbook Reference
PK/FK Relationship
Foreign Key
AuthID FirstName LastName
1 Joe Smith
2 Diane Jones
Authors Table
12
Relational Databases Types of Relationships

• One-to-One (11)
• One row in table X matches one row in table Y
• A book has at most one Library of Congress entry
• One-to-Many (1M)
• One row in table X matches 0 rows in table Y
• A publisher publishes one or more books
• Many-to-Many (MN)
• 1 rows in table X matches 1 rows in table Y
• An author writes one or more books a book is
  written by one or more authors

1
1
Books
LoC Entries
1
M
Publishers
Books
M
N
Authors
Books
13
Relational Databases MN Relationships

• More complex
• Can result in very large tables (repeated data)
• Difficult to ensure data integrity
• The remedy Create a third table
• The third table contains the primary key of the
  two original tables in a composite key
• Data is repeated in the third table, but not in
  the two original tables

Authors
Books
M
M
1
1
BookAuth
14
Relational Databases MN Relationships
1
8
Data is duplicated here
1
1
8
8
15
Relational Databases Normalization/Denormalizatio
n

• Normalization
• The process of breaking large tables into
  multiple smaller tables
• Goal minimize redundant data, maximize
  correctness
• Improves performance for updates
• Desirable in transaction-based applications
• Denormalization
• The process of combining smaller tables into
  fewer larger tables
• Goal improve performance
• Introduces redundant data
• Improves performance for reads
• Desirable in data warehouse applications

16
Relational DatabasesJoins

• A join is a way of combining data in multiple
  tables, usually by resolving primary key/foreign
  key relationships

Vendor table
Product table
Vendor
Contact
State
Cost
Vendor
Product
Acme
Linda A.
MA
10
Acme
Widget
Blecco
Adam P.
WA
5
Acme
Thingy
8
Blecco
Widget
25
Blecco
Foobar
17
Relational DatabasesJoins

• Result of a natural join

Vendor
State
Contact
Cost
Product
Linda A.
MA
Acme
10
Widget
Linda A.
MA
Acme
5
Thingy
Blecco
WA
Adam P.
8
Widget
Blecco
WA
Adam P.
25
Foobar
18
Relational Databases Structured Query Language
(SQL)

• Standard language for accessing a relational
  database, standardized by American National
  Standards Institute (ANSI) SQL-92
• Open, but not really
• Common functions are mostly the same across
  products
• Most vendors have proprietary extensions
• Subsets of SQL
• Data Definition Language (DDL)
• Data Manipulation Language (DML)
• Data Control Language (DCL)

19
Relational Databases DDL Examples

• Used to create and modify database objects

CREATE DATABASE Bookstore
CREATE TABLE tBooks ( BookID INT
IDENTITY(1,1) PRIMARY KEY, Title
VARCHAR(30) NOT NULL, PubDate DATE NOT
NULL, Description VARCHAR(50), Category
INT NOT NULL )
20
Relational Databases DML Examples

• Select data to view

SELECT FROM tAuthors
SELECT AuthID, FirstName, LastName FROM
tAuthors
SELECT AuthID, FirstName, LastName, Phone
FROM tAuthors WHERE City Boston
SELECT FirstName, LastName, Phone FROM
tAuthors WHERE AuthID 249
21
Relational Databases DML Examples

• Using SELECT to join tables

SELECT AuthID, FirstName, LastName, Phone,
BookID, Title, PubDate, Description FROM
tAuthors, tBooks WHERE tAuthors.AuthID
tBooks.AuthID
SELECT AuthID, FirstName, LastName, Phone,
BookID, Title, PubDate, Description FROM
tAuthors INNER JOIN tBooks ON
tAuthors.AuthID tBooks.AuthID
22
Relational Databases DML Examples

• Insert, update and delete data

INSERT INTO tBooks (Title, PubDate,
Description, Category) VALUES (Database
Design, GETDATE(), How to design a
database, 3)
UPDATE tAuthors SET Phone [phone]
WHERE AuthID 5
DELETE FROM tAuthors WHERE AuthID 5
23
Relational Databases DCL Examples

• Set security options on database objects

GRANT INSERT, UPDATE, DELETE ON tAuthors TO
Mary, John
REVOKE CREATE TABLE FROM Joe
DENY ALL ON tAuthors, tBooks TO Sally
24
Relational Databases Views

• A view is a virtual table
• Abstracts the underlying table structures
• Abstracts a (possibly complex) query
• Provides security abstraction from table
• In SQL Server 2000, a view can be
• Indexed
• Updated and inserted into

25
Relational Databases View Definition Example
CREATE VIEW vwCustomerOrders AS SELECT
o.OrderId, c.CompanyName FROM Customers c
INNER JOIN Orders o ON c.CustomerID
O.CustomerID ORDER BY o.OrderId
26
Relational DatabasesView Usage Example
SELECT FROM vwCustomerOrders WHERE
CompanyName 'My Favorite Customer'
OrderId CompanyName
101 My Favorite Customer
137 My Favorite Customer

27
Relational Databases Stored Procedures

• A group of SQL statements that runs within the
  database
• Not part of SQL standard
• Provides greater performance
• Can control access to data
• Can accept parameters
• Can return data
• Output parameters
• Return values
• Result set

28
Relational Databases Stored Procedure Example
CREATE PROCEDURE CustOrderHist _at_CustomerID
nchar(5) AS SELECT ProductName,
TotalSUM(Quantity) FROM Products P, Order
Details OD, Orders O, Customers C
WHERE C.CustomerID _at_CustomerID AND
C.CustomerID O.CustomerID AND O.OrderID
OD.OrderID AND OD.ProductID P.ProductID
GROUP BY ProductName
29
Relational DatabasesStored Procedure Examples
exec CustOrderHist 'alfki'
ProductName Total
Aniseed Syrup 6
Chartreuse verte 21
... ...
30
Relational Databases Stored Procedure Examples

• Use RETURN statement to return status
• 0 is default in SQL Server
• Can only be numeric
• Use OUTPUT parameters to return results

RETURN 1
CREATE PROCEDURE MyProcedure _at_ReturnValue INT
OUTPUT ... SELECT _at_ReturnValue ColumnName
FROM Table
31
Relational Databases Triggers

• Like stored procedures, triggers are code that
  runs within a database
• Not directly called by a user
• Executed when a specified data modification takes
  place (INSERT, UPDATE or DELETE)
• Enforces business rules
• FOR AFTER trigger executes after triggering
  action completes
• FOR INSTEAD OF trigger executes in place of
  triggering action

32
Relational Databases Transactions

• Transaction a sequence of SQL statements that
  constitute a logical unit of work
• Must adhere to ACID properties
• Atomic All statements execute successfully or
  all fail
• Consistent Must leave the data in a consistent
  state when completed
• Isolated Cannot see the modifications made by
  concurrent transactions
• Durable Must be permanent when complete, even in
  the event of system failure

33
Relational Databases Concurrency

• Isolation levels
• Read Uncommitted
• Read Committed
• Repeatable Read
• Serializable
• Tradeoffs (concurrency vs. data integrity)
• Locking
• Ensures transactional integrity/database
  consistency
• Prevents users from seeing phantom data
• Can result in deadlocks

34
Agenda

• Databases
• Relational Databases
• ADO.NET Overview
• ADO.NET Classes

35
ADO.NET OverviewLooking Back

• ODBC (Open Database Connectivity)
• Interoperability to a wide range of database
  management systems (DBMS)
• Widely accepted API
• Uses SQL as data access language
• DAO (Data Access Objects)
• Programming interface for JET/ISAM databases
• Uses automation (ActiveX, OLE automation)
• RDO (Remote Data Objects)
• Tighter coupling to ODBC
• Geared more to client/server databases (vs. DAO)

36
ADO.NET OverviewLooking Back

• OLE DB
• Broad access to data, relational and other
• Built on COM
• Not restricted to SQL for retrieving data
• Can use ODBC drivers
• Low-level (C) interface
• ADO (ActiveX Data Objects)
• Simple component-based, object-oriented interface
• Provides a programming model to OLE DB accessible
  outside of C

37
ADO.NET OverviewLooking Back
Your Application
ADO
OLE DB
ODBC Provider
Simple Provider
Native Provider
OLE DB Provider
ODBC
OLE DB Provider
ODBC Driver
TextFile
Mainframe
Database
Database
38
ADO.NET OverviewLooking Back

• ADO was designed as a connected, tightly coupled
  model
• Appropriate for client/server architectures
• Primarily relational (not hierarchical like XML)
• Object design is not well factored
• Too many ways to do the same thing
• Objects try to do too much
• Not originally designed for a distributed,
  n-tier environment

39
ADO.NET OverviewWhat Is ADO.NET?

• ADO .NET is a collection of classes, interfaces,
  structures, and enumerated types that manage data
  access from relational data stores within the
  .NET Framework
• These collections are organized into namespaces
• System.Data, System.Data.OleDb,
  System.Data.SqlClient, etc.
• ADO .NET is an evolution from ADO.
• Does not share the same object model, but shares
  many of the same paradigms and functionality!

40
ADO.NET OverviewADO.NET Goals

• Well-factored design
• Highly scaleable through a robust disconnected
  model
• Rich XML support (hierarchical as well as
  relational)
• Data access over HTTP
• Maintain familiar ADO programming model
• Keep ADO available via .NET COM interoperability

41
ADO.NET OverviewManaged Providers

• Merges ADO and OLEDB into one layer
• Each provider contains a set of classes that
  implement common interfaces
• Initial managed provider implementations
• ADO Managed Provider provides access to any OLE
  DB data source
• SQL Server Managed Provider provides optimal
  performance when using SQL Server
• Exchange Managed Provider retrieve and update
  data in Microsoft Exchange

42
ADO.NET OverviewManaged Providers
Your Application
ADO.NET Managed Provider
SQL Managed Provider
ADO Managed Provider
OLE DB Provider
SQL ServerDatabase
Database
43
ADO.NET OverviewData Access Styles

• Connected Forward-only, read-only
• Application issues query then reads back results
  and processes them
• Firehose cursor
• DataReader object
• Disconnected
• Application issues query then retrieves and
  stores results for processing
• Minimizes time connected to database
• DataSet object

44
ADO.NET OverviewData Binding

• Key component of Web Forms framework
• Flexible and easy to use
• Bind a controls property to information in any
  type of data store
• Provides control over how data moves back and
  forth
• Simple controls for displaying a single value
• Complex controls for displaying a data structure

ltaspLabel runatserver Text'lt
CustList(0).FirstName gt'/gt
45
Agenda

• Database Theory and History
• Relational Database Concepts and Terminology
• ADO.NET Overview
• ADO.NET Classes

46
ADO.NET ClassesIDbConnection Interface

• Creates a unique session with a data source
• Implemented by SqlDbConnection and
  OleDbConnection
• Functionality
• Open, close connections
• Begin transactions
• IDbTransaction provide Commit and Rollback
  methods
• Used in conjunction with IDbCommand and
  IDataAdapter objects
• Additional properties, methods and collections
  depend on the provider

47
ADO.NET Classes IDbCommand Interface

• Represents a statement to be sent to a data
  source
• Usually, but not necessarily SQL
• Implemented by OleDbCommand and SqlCommand
• Functionality
• Define statement to execute
• Execute statement
• Pass and retrieve parameters
• Create a prepared (compiled) version of command
• ExecuteReader returns rows, ExecuteNonQuery
  doesnt, ExecuteScalar returns single value
• Additional properties, methods and collections
  depend on the provider

48
ADO.NET Classes IDataReader Interface

• Forward-only, read-only (fire hose) access to a
  stream of data
• Implemented by SqlDataReader and OleDbDataReader
• Created via ExecuteReader method of IDbCommand
• Operations on associated IDbConnection object
  disallowed until reader is closed

49
ADO.NET Classes System.Data.OleDb Namespace

• Managed provider for use with OLEDB providers
• SQLOLEDB (SQL Server) use System.Data.SQL
• MSDAORA (Oracle)
• JOLT (Jet)
• OLEDB for ODBC providers
• OleDbConnection, OleDbCommand and OleDbDataReader
  classes
• Classes for error handling
• Classes for connection pooling

50
ADO.NET Classes DataReader Example
string sConnString ProviderSQLOLEDB.1
User IDsaInitial CatalogNorthwind
Data SourceMYSERVER OleDbConnection conn
new OleDbConnection(sConnString) conn.Open() s
tring sQueryString SELECT CompanyName FROM
Customers OleDbCommand myCommand new
OleDbCommand(sQueryString, conn) OleDbDataReader
myReader myCommand.ExecuteReader() while
(myReader.Read()) Console.WriteLine(myReader.
GetString(0)) myReader.Close() conn.Close()
51
ADO.NET Classes DataReader, Insert Demos
52
ADO.NET ClassesSystem.Data Namespace

• Contains the core classes of the ADO.NET
  architecture
• Disconnected DataSet is central
• Supports all types of applications
• Internet based
• ASP.NET
• XML
• Windows forms based

53
ADO.NET ClassesSystem.Data Namespace

• Contains classes used by or derived from managed
  providers
• IDbConnection, IDbCommand, IDbDataReader

54
ADO.NET Classes DataSet

• A collection of tables
• Has no knowledge of the source of the data
• Keeps track of all relationships among tables
• Rich programming model (has objects for tables,
  columns, relationships, and so on)
• Remembers original and current state of data
• Can dynamically modify data and metadata
• Native serialization format is XML
• Located in System.Data

55
ADO.NET Classes DataSet
DataSet
DataTable
DataColumn
DataRow
DataRelation
56
ADO.NET Classes System.Data.SqlClient Namespace

• Managed provider native to SQL Server
• Built on TDS (Tabular Data Stream) for high
  performance in SQL Server
• SqlConnection, SqlCommand and SqlDataReader
  classes
• Classes for
• Error handling
• Connection pooling (implicitly enabled by default
  )
• System.Data.SqlTypes provides classes for native
  SQL Server data types

57
ADO.NET Classes IDataAdapter Interface

• Populates or sends updates to a DataSet
• Implemented by OleDbDataAdapter and
  SqlDataAdapter
• Not connection based
• Represents an asynchronous approach
• A superset of a command object
• Contains four default command objects for Select,
  Insert, Update, and Delete

58
ADO.NET Classes DataSet Example
string sConnString Persist Security
InfoFalse User IDsaInitial
CatalogNorthwind Data
SourceMYSERVER SqlConnection conn new
SqlConnection(sConnString) conn.Open() string
sQueryString SELECT CompanyName FROM
Customers SqlDataAdapter myDSAdapter new
SqlDataAdapter() DataSet myDataSet new
DataSet() myDSAdapter.SelectCommand new
SqlCommand(sQueryString, conn) myDSAdapter.Fill(m
yDataSet) conn.Close()
59
ADO.NET Classes DataSet Demo
60
ADO.NET Classes Stored Procedure Demo
61
ADO.NET Classes DataTable

• In-memory object representing one table
• Columns
• Rows
• Schema defined by Columns collection
• Data integrity provided through Constraint
  objects
• Public events
• Modifying/deleting rows
• Modifying columns

62
ADO.NET Classes DataColumn

• Fundamental building block of a DataTable schema
  (contained in Columns collection)
• Defines what type of data may be entered (via
  DataType property)
• Other important properties include AllowNull,
  Unique, and ReadOnly
• Can contain Constraints (a collection on
  DataTable)
• Can contain Relations (collection on DataSet)

63
ADO.NET Classes DataRow

• Represents data in a DataTable (contained in Rows
  collection)
• Conforms to schema defined by DataColumns
• Properties for determining row state (e.g., new,
  changed, deleted, etc.)
• All additions/modifications committed with
  AcceptChanges method of DataTable

64
ADO.NET Classes DataRelation

• Relates two DataTables via DataColumns
• DataType value of both DataColumns must be
  identical
• Updates can be cascaded to child DataTables
• Modifications that invalidate the relation are
  disallowed

65
ADO.NET Classes Creating a DataSet in Code

• Create DataSet
• Define tables

DataSet dataset new DataSet() dataset.DataSetNa
me BookAuthors DataTable authors new
DataTable(Author) DataTable books new
DataTable(Book)
66
ADO.NET Classes Creating a DataSet in Code

• Define columns
• Define keys

DataColumn id authors.Columns.Add("ID",
typeof(Int32)) id.AutoIncrement
true authors.PrimaryKey new DataColumn
id DataColumn name new
authors.Columns.Add("Name",typeof(String)) DataC
olumn isbn books.Columns.Add("ISBN",
typeof(String)) books.PrimaryKey new
DataColumn isbn DataColumn title
books.Columns.Add("Title", typeof(String)) DataCo
lumn authid books.Columns.Add(AuthID,typeof(In
t32)) DataColumn foreignkey new DataColumn
authid
67
ADO.NET Classes Creating a DataSet in Code

• Add the tables to the DataSet

dataset.Tables.Add (authors) dataset.Tables.Add
(books)
68
ADO.NET Classes Creating a DataSet in Code

• Add data and save the DataSet

DataRow shkspr authors.NewRow() shkspr"Name"
"William Shakespeare" authors.Rows.Add(shkspr)
DataRelation bookauth new DataRelation("BookAu
thors", authors.PrimaryKey,
foreignkey) dataset.Relations.Add
(bookauth) DataRow row books.NewRow() row"Au
thID" shkspr"ID" row"ISBN"
"1000-XYZ" row"Title" "MacBeth" books.Rows.A
dd(row) dataset.AcceptChanges()
69
ADO.NET Classes DataSet Creation Demo
70
ADO.NET ClassesTyped DataSets

• Typed DataSet
• Derived from base DataSet class
• Uses XML schema to generate new class
• Tables, columns, etc. compiled into new class

ds.Customers.FirstName

• Untyped DataSet
• No built-in schema
• Tables, columns, etc. exposed only as collections

ds.TablesCustomers.Rows0FirstName
71
ADO.NET Classes Errors and Exceptions

• Error class
• Contains information on an error or warning
  returned by data source
• Created and managed by Errors class
• Errors class
• Contains all errors generated by an adapter
• Created by Exception class
• Exception class
• Created whenever an unhandled error occurs
• Always contains at least one Error instance

72
ADO.NET Classes Errors and Exceptions Example
try DataTable myTable new DataTable()
myTable.Columns.Add(myCol)
myTable.Columns.Add(myCol) //whoops! catch
(DataException myException) Console.WriteLine
("Message " myException.Message "\n"
"Source " myException.Source "\n"
Stack Trace " myException.StackTrace
"\n")
73
ADO.NET Classes DataException Demo
74
Conclusion

• Database Theory and History
• Relational Database Concepts and Terminology
• ADO.NET Overview
• ADO.NET Classes

75
Resources

• Introducing ADO
• http//msdn.microsoft.com/msdnmag/issues/1100/adop
  lus/adoplus.asp
• ADO.NET
• http//msdn.microsoft.com/library/default.asp?URL
  /library/dotnet/cpguide/cpconaccessingdata.htm
• ADO Guides the Evolution of the Data Species
• http//msdn.microsoft.com/library/techart/adoplus.
  htm
• ADO.NET for the ADO Programmer
• http//msdn.microsoft.com/library/techart/adonetde
  v.htm
• ADO Rocks and Rolls in .NET Applications
• http//msdn.microsoft.com/library/welcome/dsmsdn/d
  ata02222001.htm
• Meditating on OLE DB and .NET
• http//msdn.microsoft.com/library/welcome/dsmsdn/d
  ata03222001.htm

76
Resources

• Reading Data Reader Secrets
• http//msdn.microsoft.com/library/welcome/dsmsdn/d
  ata04122001.htm
• Database-like Data Containers
• http//msdn.microsoft.com/library/default.asp?URL
  /library/welcome/dsmsdn/data04122001.htm
• ADO
• http//msdn.microsoft.com/library/default.asp?URL
  /library/psdk/dasdk/ados4piv.htm
• Universal Data Access
• http//www.microsoft.com/data/
• SQL Server
• http//www.microsoft.com/sql/default.asp

77
AppendixADO vs. ADO.NET

• ADO is a slower automation layer over OLE DB for
  use in Visual Basic, etc.
• ADO.NET provides direct, fast access to data from
  any language
• ADO.NET essentially has merged OLE DB and ADO
  into a single layer

78
AppendixADO vs. ADO.NET
Feature ADO ADO.NET
Memory-resident Data Representation Uses RecordSet, which can contain one table Uses DataSet, which can contain one or more tables represented by DataTables
Relationship Between Multiple Tables Require the JOIN query Supports the DataRelation object
Data Visitation Scans RecordSet rows sequentially Uses a navigation paradigm for non-sequential access
Disconnected Access Provided by RecordSet but typically supports connected access Communicates with standardized calls to the DataAdapter
79
AppendixADO vs. ADO.NET
Feature ADO ADO.NET
Programmability Uses Connection object to transmit commands Uses strongly typed programming characteristics of XML
Sharing Disconnected Data Between Tiers or Components Uses COM marshalling to transmit disconnected Recordset Transmits a DataSet with an XML file
Transmitting Data Through Firewalls Problematic because firewalls are typically configured to prevent system-level requests Supported, DataSet object use XML, which can pass through firewalls
Scalability Database locks and active database connections for long durations Disconnected access to database data without retaining database locks
