Title: Introduction to Sharp

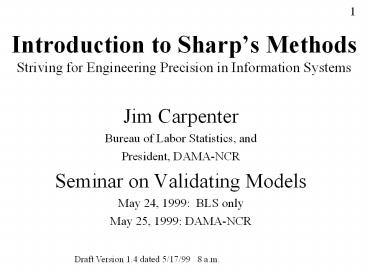

1
Introduction to Sharps MethodsStriving for
Engineering Precision in Information Systems
  • Jim Carpenter
  • Bureau of Labor Statistics, and
  • President, DAMA-NCR
  • Seminar on Validating Models
  • May 24, 1999 BLS only
  • May 25, 1999 DAMA-NCR

Draft Version 1.4 dated 5/17/99 8 a.m.
2
Agenda
  • Part I History Context (coming)
  • Part II Technology Framework (good start)
  • Part III Business Context (if time)

3
Part II Technology Framework
  • Describe a technology context for Sharps methods
    and all other methods
  • Provide contrast between Sharps methods and
    other methods
  • Introduce the essential concepts in Sharps
    methods

4
Summary
  • Context
  • Universal Systems Development Process a network
    of transformations between models
  • Contrast
  • Sharps methods analysis of instances
  • Usual methods conceptual debate
  • Concepts
  • Valid fact type
  • Object
  • Predicate

5
A Central ThemeHow to Describe a System
  • Answer use a network of descriptions
  • Starting from a bunch of English sentences.
  • Can use any natural language
  • Ending in the ultimate description, i.e., the
    system itself
  • Information Technology the executable binary
    code.
  • Architecture the building
  • Manufacturing the product

6
Some Basic Notions
  • Description Model (for our purposes)
  • Model a description in some language
  • The Modeling Language
  • Language a set of concepts with representations
  • also has rules but well gloss over this for now
  • Concept a unit of thought, a notion
  • Representations
  • sound
  • word a group of letters
  • graphic
  • mathematical symbol

7
The Notion of a Model
  • A model is a projection (translation) of our
    knowledge of the real world onto a fixed set of
    concepts.
  • Example
  • Knowledge This person I (Jim) am pointing at
    right now who I know as John owned a thing we
    call a car yesterday.
  • Concepts Object relationship
  • Projection a sentence in the modeling language

ownership
point
Car
John
Jim
Note Dimension of when is lost and other
subtle info. We could recover some info by
extending the sentence. But when to stop?
8
Some Modeling Languages
  • Data Process Modeling Languages
  • Entity Relationship - UML
  • Data Flow - Work Flow
  • Programming Languages
  • Software packages (Microsoft PowerPoint, etc.)
  • Linear Models (Math Statistics)
  • Vector, V (observation)
  • Space, ? (hypothesis)
  • Projection, P (statistic)
  • Difference, E (Error)
  • Other Technical languages - branches of science
  • Natural Languages - English, French, Japanese,
  • Natural Language Modeling Language

9
UML - a standard language(Unified Modeling
Language)
  • A standard set of 90 some elements (concepts)
    established by OMG
  • Each element has a fixed graphical representation
  • Nine (overlapping) bags of elements are defined
  • Each bag is called a diagram type dialect
  • Use Case Diagram - Collaboration Diagram
  • Class Diagram - Activity Diagram
  • Object Diagram - Component Diagram
  • State Diagram - Deployment Diagram
  • Sequence Diagram

10
Natural Language Modeling Language
  • Words, sentences, equivalence
  • John loves Mary. Mary is loved by John.
  • Object - thing we want to know facts about
  • (John, Mary)
  • Predicate - the glue that holds the object
    together, words that give an object meaning, what
    can be known about it attributes relationships
  • ( loves ) (... is loved by ...)
    Note is a placeholder
  • Complex sentence
  • Jack gave the ball to Jill
  • Object (Jack, ball, Jill)
    like a parameter set (variable)
  • Predicate ( gave to ) like a
    function (fixed)

11
Class defined by the predicate
  • Fact Jack gave the ball to Jill
  • Context 1 Jack is one of 5 boys in a room with
    Jill
  • Object Jack (Class of
    boys)
  • Predicate gave the ball to Jill
  • Context 2 Jack Jill are among 5 children in
    class
  • Object Jack, Jill
    (Class of children)
  • Predicate gave the ball to
  • Context 3 Jack Jill and toys in a classroom
  • Object Jack, ball, Jill (Class
    children, toys)
  • Predicate gave theto

12
Fact Types describing facts.
  • Fact 1 Jack gave the red ball to Jill.
  • Fact 2 John gave the red ball to Jill.
  • Fact type A boy gave the red toy to Jill.
  • Fact 3 Jack gave the red ball to Jane.
  • Fact type A boy gave the red ball to a girl.
  • Fact 4 Jane gave the red ball to Jack.
  • Fact type A child gave the red ball to a
    child.
  • Fact 5 Jane gave the white ball to Jack.
  • Fact type A child gave a ball of a certain
    color to a child
  • Fact 6 Jane gave the green truck to Jack.
  • Fact type A child gave a toy of a certain color
    to a child.

13
Fundamental Axiom of Information Technology
It is possible to map some elements from one
language into elements of another. In other
words languages may have similar structures and
rules.
  • Idea occurs repeatedly in IT
  • Basis for communication
  • Basis for concept of round trip engineering
  • Basis for OMGs MDCs tool interoperability
    architectures
  • Bob Schmidts book Data Modeling for Information
    Professionals in a discussion of whether modeling
    is possible.

14
Mappings from NLM
  • NLM maps well the principle concepts of existing
    data process modeling languages, including
    business rules.
  • The differences are in the methodologies
  • To compare methodologies, well consider a
    universal framework for the development process
    ...

15
The Universal Systems Development ProcessA
network of transformations between models.
  • Starting model is a set of statements
    representing the knowledge of the subject domain
    expert
  • Ending model is the system, a set of executable
    binary code (in a machine language)
  • Intermediate models
  • provide insightful views based on subset of
    statements
  • are kept as architectural documentation of the
    system.
  • Network The Zachman Framework is a metamodel of
    a network of models
  • http//www.dama-ncr.org/Library/Frameworks.ppt

16
Isomorphism, Validity, Equivalence
  • ISOMORPHIC MAPPING (a very nice mathematical
    concept)
  • A mapping from one set to another (ordered pairs)
  • Properties of the mapping
  • One-to-one (some rule which pairs the elements)
  • Onto (no elements left over)
  • VALID MODEL if there is a subset of statements
    that is isomorphic to the model
  • VALID SYSTEM if the entire statement set is
    isomorphic to the system
  • EQUIVALENT MODELS if there is an isomorphic
    mapping between them

17
Fundamental Problems of Systems Development
  • How to capture a complete and accurate set of
    well formed statements in some natural language?
  • How to transform a set of well formed statements
    into a model in a given modeling language?
  • How to transform a model from one language to
    another? (Some good news!)
  • What set of modeling languages is sufficient to
    capture all of the knowledge embodied in the
    statement set?

18
Problem 1 Capturing the Statements
  • Model-guided discussions with subject expert
  • E.g., Use Case Analysis (many variations, see
    articles at http//www.crim.ca/aseffah/investiga
    tion/use_case.htm )
  • Existing documentation
  • Statements of mission objectives, methods
    handbook, ...
  • Models (Sharps Lecture)
  • Database schemas
  • Forms used to collect data
  • Models of application packages used!!!
  • Code and code libraries
  • Guided queries based on existing documentation

reverse engineering validation
19
Problem 1Refining the Statements
  • Usual methods conceptual statement alternatives
    are compared and debated
  • example is a passenger an entity or state of
    a person?
  • Sharps method
  • Each conceptual statement is analyzed by a truth
    comparison of specific instances
  • Refined statement is called a valid fact type
  • well formed NLM sentence
  • verifiable by tracing to yes/no answers to
    specific questions addressed to subject experts

20
Fact Type
  • An assertion that a sentence formed from a set of
    domains and a predicate could be true for all
    (allowable) instances of the objects in the
    domains.
  • Person identified by social security number ltSSNgt
    has the name ltPersonNamegt.
  • Domains ltSSNgt, ltPersonNamegt
  • Predicate is identified by a
  • Instances
  • 123-45-6789 Jane Doe
  • 987-65-4321 Jane Smith

21
Problem 2 Transforming the statement set
  • Usual method mental process (usually treated as
    part of problem 1)
  • E.g. Use Case Analysis (scenarios)
  • Identify the objects then classes
  • Identify the relationships and attributes
  • Sharps method algorithm
  • Well defined map from set of valid fact types to
    a unique model in any given language
  • Use the translator hub (next slide)

22
Problem 3Translating between languages
  • Pair-wise translation
  • Each tool does N translations
  • N x N translations total
  • Translator hub (repository)
  • Each tool does 2 translations (to from the hub)
  • 2 x N translations total
  • Standard hubs
  • OMG MOF
  • MDC OIM (parallel
    structures???)

23
Problem 4A Sufficient Network of Models
  • (tentative ideas)
