Advanced epistasis

1

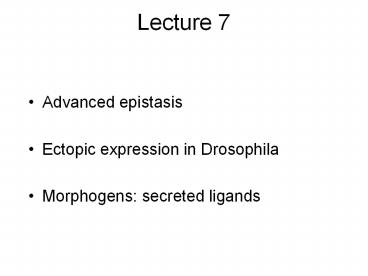

Lecture 7

• Advanced epistasis
• Ectopic expression in Drosophila
• Morphogens secreted ligands

2
Epistasis
headless
twinhead
3
Epistasis
headless hl
twinhead th
phenotype
hl lf
no head two tails
th lf
no tail two heads
4
Epistasis
headless hl
twinhead th
phenotype
Head
hl lf
no head two tails
Tail
th lf
no tail two heads
5
Advanced Epistasis
Why do I always assume that the most epistatic
step is at the end of the pathway?
6
Advanced Epistasis
Why do I always assume that the most epistatic
step is at the end of the pathway? Can we always
assume this?
7
Example biochemical pathway
W
X
Y
Z
A
B
C
D
E
E is an essential metabolite
8
Phenotype of mutants in W, X, Y, Z all can not
grow without E in the media.
9
Phenotype of mutants in W, X, Y, Z all can not
grow without E in the media.
10
Phenotype of double mutants in W, X, Y, Z.
11
Order of epistasis
Z epi to Y epi to X epi to W
12
Example biochemical pathway
W
X
Y
Z
A
B
C
D
E
What intermediates accumulates in the mutant?
13
Accumulated intermediates
14
Double mutants
15
Order of epistasis
W epi to X epi to Y epi to Z
16
Order of epistasis
W epi to X epi to Y epi to Z
Z epi to Y epi to X epi to W
17
Order of epistasis
When you assay along the pathway
W epi to X epi to Y epi to Z
When you assay at the end of the pathway
Z epi to Y epi to X epi to W
18
Ectopic expression in Drosophila

• Heat-shock promoter fusion genes
• Binary or two component system
• Flip-mediated ectopic expression
• Combination system I
• Combination system II

19
Heat-shock promoter fusion gene
hsp
YFG
Qualities A) high level of expression B)
expressed in all cells C) expression is transient
20
Binary or two component system
Fly stock A UAS line
Fly stock B Driver line
Promoter
GAL4
YFG
or Enhancer
GAL4 binding sites UASGAL4
GAL4
YFG
Progeny
21
Binary or two component system
Fly stock A UAS line
Fly stock B Driver line
Promoter
GAL4
YFG
or Enhancer
GAL4 binding sites UASGAL4
GAL4
GAL4
YFG
Progeny
22
How do you make different GAL4 drivers?
A. Construct them
Known promoter
GAL4
23
How do you make different GAL4 drivers?
B. Screen for them by enhancer trapping.
Enhancer detector
lacZ
p
P-element transposase promoter very very weak
expression-basically no expression by itself.
24
Enhancer structure of a portion of the genome
Gonad
Gut
Brain
25
Insertion of a enhancer detector
Gonad
Gut
lacZ
Brain
26
Insertion of a enhancer detector
Gonad
Gut
lacZ
Brain
27
How do you make different GAL4 drivers?
B. Screen for them by enhancer trapping.
Enhancer detector
GAL4
p
P-element transposase promoter very very weak
expression-basically no expression by itself.
28
Qualities of Binary system

• Control temporal and spatial pattern of YFG
• Expression is not transient
• Nonexpression of YFG from UASGAL4 allows
  transformants to be established

29
Flip mediated ectopic expression
Tubulin promoter
y
, CD2
YFG
FRT
FRT
hsp
FLP
Heat shock and induce FLP expression
30
Flip mediated ectopic expression
Heat shock and induce FLP expression
FRT
YFG
Tubulin promoter
FRT
31
Flip mediated ectopic expression
Heat shock and induce FLP expression
FRT
YFG
Tubulin promoter
FRT
32
Flip mediated ectopic expression
Heat shock and induce FLP expression
FRT
Tubulin promoter
YFG
FRT
Results in a mosaic pattern of expression of YFG
recombination does not occur in all cells
33
Combination system I
UASGAL4
y
, CD2
YFG
FRT
FRT
Promoter or enhancer
hsp
FLP
GAL4
34
Combination system I
UASGAL4
y
, CD2
YFG
FRT
FRT
Promoter or enhancer
hsp
FLP
GAL4
Induce FLP expression
35
Combination system I
UASGAL4
YFG
FRT
Promoter or enhancer
GAL4
36
What happens?
Cell expressing GAL4
Cells that have undergone a site specific
recombination event
37
What happens?
38
Combination system II
Tubulin promoter
y
, CD2
GAL4
FRT
FRT
UASGAL4
hsp
YFG
FLP
39
Combination system II
Induce FLP expression
hsp
FLP
Tubulin promoter
y
, CD2
GAL4
FRT
FRT
UASGAL4
YFG
40
Combination system II
Tubulin promoter
GAL4
FRT
UASGAL4
YFG
41
Combination system II
Tubulin promoter
GAL4
FRT
UASGAL4
YFG
Results in clones of cells that express YFG
42
Morphogen
Alan Turing-a father of computational sciences
In 1952 publishes a paper entitled A. M. Turing
on the chemical basis of morphogenesis.
Not recommended reading
43
Simplified Turing morphogen model
morphogen
44
Simplified Turing morphogen model
morphogen
Fate A
Fate B
Fate B
45
Morphogen

• Long range action
• Forms a concentration gradient of activity
• Affect polarity
• Concentration dependent response
• Different fates at different concentrations

46
Suspected secreted morphogens
bTumor growth factor TGF/decapentaplegic
dpp WNT/wingless wg Sonic hedgehog
etc./hedgehog hh
47
bTGF/DPP pathway
bTGF/DPP
Type1. thickvein
ligand
Type2, punt
Smads
One eyed pinhead oep Co-receptor in zebrafish
48
One eyed pinhead
Schier et al. 1997 Development
49
Get similar phenotypes in mice by altering BMP
signalling
Gilbert Developmental Biology 7th ed
50
bTGF/DPP pathway
bTGF/DPP
P
Type1. thickvein
ligand
Type2, punt
Smads
51
bTGF/DPP pathway
bTGF/DPP
P
Type1. thickvein
ligand
Type2, punt
P
Smads
52
bTGF/DPP pathway
bTGF/DPP
P
Type1. thickvein
ligand
Type2, punt
P
Smads
Mad Medea
Nucleus
53
DPP a morphogen?

• Long range action YES
• Forms a concentration gradient of activity YES
• Affect polarity YES
• Concentration dependent response YES
• Different fates at different concentrations YES

54
Wing imaginal discs
55
Wing imaginal discs
P
A
56
DPP is expressed in gradient
dpp mRNA
Wing imaginal disc
DPP protein
57
Spalt is a DPP responsive gene
Increase DPP and spalt response widens
58
Spalt and octomotor blind are DPP responsive
SPT
OMB
59
Spalt and octomotor blind are DPP responsive
SPT
OMB
SPT
OMB
60
Long range action
DPP expressed in this cell
61
Long range action
Directly
DPP expressed in this cell
Affects expression in this cell
62
Signal relay system
indirectly
DPP expressed in this cell
63
bTGF/DPP pathway
bTGF/DPP
Type1. thickvein
ligand
Type2, punt
Smads
One eyed pinhead oep Co-receptor
64
Combination system I
UASGAL4
y
, CD2
tkvQ253D
FRT
FRT
ubiquitous expression
hsp
FLP
GAL4
65
CD2 expression
OMB expression
UAS-tkvgf
66
CD2 expression
OMB expression
UAS-tkvgf
67
FLP mediated mitotic recombination with a tkvlf
allele
68
FLP mediated mitotic recombination with a tkvlf
allele
TKV is required right out to the edge of OMB
expression domain
69
Signal relay system
indirectly
DPP expressed in this cell
70
Zebrafish example
squint sqt
no tail expression
71
Zebrafish example
squint sqt
one eyed pinhead mutant
no tail expression
72
Zebrafish example
one eyed pinhead mutant
Wild-type cell
squint sqt
no tail expression
73
Zebrafish example
one eyed pinhead mutant
Wild-type cell
squint sqt
no tail expression
