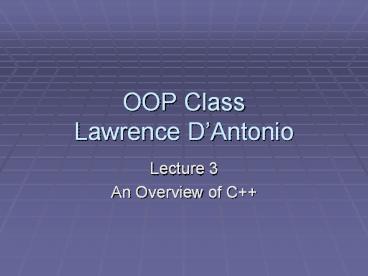

OOP Class Lawrence D

1
OOP ClassLawrence DAntonio

• Lecture 3
• An Overview of C

2
Classes/Objects

• Basic unit of OOPL
• Autonomous entities
• State, behavior, identity
• Data encapsulation
• Encapsulation of responsibilities
• Information hiding
• Message passing
• Exception handling

3
Object Organization

• Inheritance (Single and multiple)
• Dynamic binding
• Generalization/Specialization
• Abstraction
• Has-a versus is-a relationship
• Uses relationship
• Polymorphism/ Virtual functions

4
Polymorphism

• Virtual functions
• Overloading
• Type conversions
• Templates

5
Generic programming

• Templates
• STL
• Traits
• Metaprogramming
• Boost library
• Programming with concepts

6
Typing

• Statically typed. Variables must be declared
  before used. Exceptions casts, unions, temporary
  objects.
• Weakly typed (?). Variables are not bound to a
  specific data type.
• Type conversions
• Subtyping

7
Code Reuse

• Parametric polymorphism
• Subtyping polymorphism
• Composition
• Patterns

8
What is a class?

• A class is a set of objects sharing common
  features.
• A class defines an objects attributes and
  behavior. Methods are provided to act on an
  object and to pass messages between objects.
• A class is the basic unit of abstraction.
• A class is the basic unit of modularity.
• A class can be concrete or abstract.

9
What is an object?

• An object is an instance of a class.
• An object has state, behavior, identity.

10
What is an object?

• Coad-Yourdon
• An abstraction of something in a problem domain,
  reflecting the capabilities of the system to keep
  information about it, interact with it, or both
  an encapsulation of attribute values and their
  exclusive services.

11
What is an object?

• OMG
• An object is a thing. It is created as the
  instance of an object type. Each object has a
  unique identity that is distinct from and
  independent of any of its characteristics. Each
  object offers one or more operations.

12
What is an object?

• Firesmith
• An object is defined as a software abstraction
  that models all relevant aspects of a single
  tangible or conceptual entity or thing from the
  application domain or solution space. An object
  is one of the primary entities in an
  object-oriented application, typically
  corresponds to a software module, and consists of
  a set of related attribute types, messages,
  exceptions, operations, and optional component
  objects.

13
What is an object?

• Booch
• From the perspective of human cognition, an
  object is any of the following
• A tangible and/or visible thing.
• Something that may be apprehended intellectually.
• Something toward which thought or action is
  directed.

14
What is an object?

• Booch continued.
• An object has state, behavior, and identity the
  structure and behavior of similar objects are
  defined in their common class the terms instance
  and object are interchangeable.

15
What is an object?

• Shlaer-Mellor
• An object is an abstraction of a set of
  real-world things such that
• All the things in the set have the same
  characteristic.
• All instances are subject to and conform to the
  same set of rules and policies.

16
What is an object?

• Jacobson
• An object is characterized by a number of
  operations and a state which remembers the effect
  of these operations.

17
What is encapsulation?

• Internal details of objects are concealed from
  the objects users (information hiding).
• Both data and implementation may be hidden. The
  object is a black box.
• Access to members is controlled through the class
  definition.
• The accessible part of a class is called its
  interface.

18
Data encapsulation example

• class Clock
• private
• int hours // 1-12 private
• int minutes // 0-59
• public
• Clock(int h, int m)
• if (h lt 1 h gt 12)
• throw(Hours must be between 1 and
• 12?)
• if (m lt 0 m gt 59)
• throw(Minutes must be between 0 and
• 59?)
• h hours
• m minutes
• //...

19
Class Invariants

• The above is an example of Programming by
  Contract.
• The class guarantees that
• These are called class invariants

20
What is a method?

• A method is a member function that acts upon an
  object. A method is generally called for one
  object (exception static members).
• Commonly found methods are constructors,
  destructors, assignment, mutators, accessors.

21
What is message passing?

• Messages are transfers of data or requests for
  another object to take an action.

22
What is polymorphism?

• Different types of objects respond to the same
  message and use the appropriate method.
• Parametric polymorphism parametrizes the object
  type (e.g., a list class, where the type of
  object stored is parametrized).
• Subtype (or inclusion) polymorphism allows
  objects of a given type to be substituted for by
  objects of a subtype.

23
What is inheritance?

• One class (derived/child) relies on the
  definition of another class (base/parent).
• Single vs. multiple inheritance
• A method of sharing code or sharing interface
  among classes.
• Language may define a class tree (with single
  root) Java, Smalltalk
• Language may define a class forest C

24
What is typing?

• Static typing Data type determined at
  compile-time. Type must be declared.
• Dynamic typing Data type may be determined at
  run-time. Type need not be declared.
• Strong typing Variables are bound to a specific
  type.
• Weak typing A variables type may change.

25
Varieties of typing

• Static and strong typing Java, Pascal, OCaml,
  Haskell
• Static and weak typing C/C
• Dynamic and strong typing Python
• Dynamic and weak typing PHP

26
Dynamic typing example

• Python example
• class Cat def speak(self) print "meow!"
• class Dog def speak(self) print "woof!"
• class Bob def speak(self) print "hello world!"
• def command(pet) pet.speak()
• pets Cat(), Dog(), Bob()
• for pet in pets
• command(pet)

27
Weak typing example

• var x 5
• var y "37"
• Print(x y)
• In Visual Basic this prints 42
• In JavaScript this prints 537

28
What is exception handling?

• The mechanism used to report and recover from
  abnormal states.
• When an error is detected, execution is passed to
  a handler.
