Machine Learning in Natural Language

1

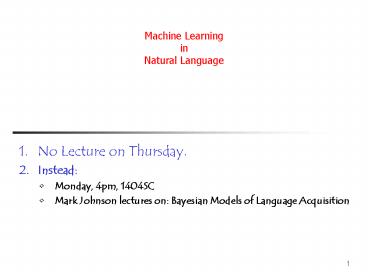

Machine Learning in Natural Language

• No Lecture on Thursday.
• Instead
• Monday, 4pm, 1404SC
• Mark Johnson lectures on Bayesian Models of
  Language Acquisition

2
Machine Learning in Natural LanguageFeatures
and Kernels

• The idea of kernels
• Kernel Perceptron
• Structured Kernels
• Tree and Graph Kernels
• Lessons
• Multi-class classification

3
Can be done explicitly (generate expressive
features) or implicitly (use kernels).
Embedding
New discriminator in functionally simpler
4
Kernel Based Methods

• A method to run Perceptron on a very large
  feature set, without incurring the cost of
  keeping a very large weight vector.
• Computing the weight vector is done in the
  original space.
• Notice this pertains only to efficiency.
• Generalization is still relative to the real
  dimensionality.
• This is the main trick in SVMs. (Algorithm -
  different) (although many applications actually
  use linear kernels).

5
Kernel Base Methods

• Let I be the set t1,t2,t3 of monomials
  (conjunctions) over The feature space x1, x2 xn.

• Then we can write a linear function over this new
  feature space.

6
Kernel Based Methods

• Great Increase in expressivity
• Can run Perceptron, Winnow, Logistics regression,
  but the convergence bound may suffer exponential
  growth.
• Exponential number of monomials are true in each
  example.
• Also, will have to keep many weights.

7
The Kernel Trick(1)

• Consider the value of w used in the prediction.
• Each previous mistake, on example z, makes an
  additive contribution of /-1 to w, iff t(z) 1.
• The value of w is determined by the number of
  mistakes on which t() was satisfied.

8
The Kernel Trick(2)

• P set of examples on which we Promoted
• D set of examples on which we Demoted
• M P? D

9
The Kernel Trick(3)

• P set of examples on which we Promoted
• D set of examples on which we Demoted
• M P? D

• Where S(z)1 if z ?P and S(z) -1 if z ?D.
  Reordering

10
The Kernel Trick(4)

• S(y)1 if y ?P and S(y) -1 if y ?D.

• A mistake on z contributes the value /-1 to all
  monomials satisfied by z. The total contribution
  of z to the sum is equal to the number of
  monomials that satisfy both x and z.
• Define a dot product in the t-space

• We get the standard notation

11
Kernel Based Methods

• What does this representation give us?
• We can view this Kernel as the distance between
  x,z
• measured in the t-space.
• But, K(x,z) can be computed in the original
  space, without explicitly writing the
  t-representation of x, z

12
Kernel Based Methods

• Consider the space of all 3n monomials (allowing
  both positive and negative literals).
• Then,
• if same(x,z) is the number of features that have
  the same value for both x and z.. We get
• Example Take n2 x(00), z(01), .
• Proof let ksame(x,z) choose to (1)include the
  literal with the right polarity in the monomial,
  or (2) not include at all.
• Other Kernels can be used.

13
Implementation

• Simply run Perceptron in an on-line mode, but
  keep track of the set M.
• Keeping the set M allows to keep track of S(z).

• Rather than remembering the weight vector w,
• remember the set M (P and D) all those
  examples on which we made mistakes.

Dual Representation
14
Summary Kernel Based Methods I

• A method to run Perceptron on a very large
  feature set, without incurring the cost of
  keeping a very large weight vector.
• Computing the weight vector can still be done in
  the original feature space.
• Notice this pertains only to efficiency The
  classifier is identical to the one you get by
  blowing up the feature space.
• Generalization is still relative to the real
  dimensionality.
• This is the main trick in SVMs. (Algorithm -
  different) (although most applications actually
  use linear kernels)

15
Summary Kernel Trick

• Separating hyperplanes (produced by Perceptron,
  SVM) can be computed in terms of dot products
  over a feature based representation of examples.
• We want to define a dot product in a high
  dimensional space.
• Given two examples x (x1, x2, xn) and y
  (y1,y2, yn) we want to map them to a high
  dimensional space example- quadratic
• ?(x1,x2,xn) (x1,xn, x12,xn2, x1 x2,
  ,xn-1 xn)
• ?(y1,y2,yn) (y1,yn ,y12,yn2, y1
  y2,,yn-1 yn)
• And compute the dot product A ?(x) ?(y)
  takes time
• Instead, in the original space, compute
• B f(x y) 1 (x1,x2, xn) (y1,y2, yn)2
• Theorem A B
• Coefficients do not really matter can be done
  for other functions.

16
Efficiency-Generalization Tradeoff

• There is a tradeoff between the computational
  efficiency with which these kernels can be
  computed and the generalization ability of the
  classifier.
• For example, using such kernels the Perceptron
  algorithm can make an exponential number of
  mistakes even when learning simple functions.
• In addition, computing with kernels depends
  strongly on the number of examples. It turns out
  that sometimes working in the blown up space is
  more efficient than using kernels.
• Next More Complicated Kernels

17
Structured Input
NP Which type PP of NP submarine VP was
bought ADVPrecently PP by NP South Korea
(. ?)

• S John will join the board as a director

Knowledge Representation
18
Learning From Structured Input

• We want to extract features from structured
  domain elements
• their internal (hierarchical) structure should be
  encoded.
• A feature is a mapping from the instances space
  to 0,1 or 0,1
• With appropriate representation language it is
  possible to represent expressive features that
  constitute infinite dimensional space FEX
• Learning can be done in the infinite attribute
  domain.
• What does it mean to extract features?
• Conceptually different data instantiations may
  be abstracted to yield the same representation
  (quantified elements)
• Computationally Some kind of graph matching
  process
• Challenge
• Provide the expressivity necessary to deal with
  large scale and highly structured domains
• Meet the strong tractability requirements for
  these tasks.

19
Example

• Only those descriptions that are ACTIVE in the
  input are listed
• Michael Collins developed kernels over parse
  trees.
• Cumby/Roth developed parameterized kernels over
  structures.
• When is it better to use kernel vs. using the
  primal representation.

D (AND word (before tag))
Explicit features
20
Overview Goals (CumbyRoth 2003)

• Applying kernel learning methods to structured
  domains.
• Develop a unified formalism for structured
  kernels. (Collins Duffy, Gaertner Lloyd,
  Haussler)
• Flexible language that measures distance between
  structure with respect to a given substructure.
• Examine complexity generalization between
  different feature sets, learners.
• When does each type of feature set perform better
  with what learners?
• Exemplify with experiments from bioinformatics
  NLP.
• Mutagenesis, Named-Entity prediction.

21
Feature Description Logic

• A flexible knowledge representation for feature
  extraction from structured data
• Domain Elements are represented as labeled graphs
• Concept graphs that correspond to FDL
  expressions.
• FDL is formed from an alphabet of
• attributes, value, and role symbols.
• Well defined syntax and equivalent semantics
• E.g., descriptions are defined inductively with
  sensors as primitives
• Sensor a basic description a term of the form
  a(v), or a
• a attribute symbol, v value symbol (ground
  sensor).
• existential sensor a describes object that has
  some value for attribute a.
• AND clauses, (role D) clauses for relations
  between objects,
• Expressive and Efficient Feature extraction.

Knowledge Representation
22
Example (Cont.)

• Features Feature Generation Functions
  extensions Subsumption
  (see paper)
• Basically
• Only those descriptions that are ACTIVE in the
  input are listed
• The language is expressive enough to generate
  linguistically interesting features such as
  agreements, etc.

D (AND word (before tag))
D? (AND word(the) (before tag(N)), (AND
word(dog) (before tag(V)), (AND word(ran) (before
tag(ADV)), (AND word(very) (before tag(ADJ))
Explicit features
23
Kernels

• Its possible to define FDL based Kernels for
  structured data
• When using linear classifiers it is important to
  enhance the set of features to gain expressivity.

• A common way - blow up the feature space by
  generating functions of primitive features.
• For some algorithms SVM, Perceptron - Kernel
  functions can be used to expand the feature space
  while working still in the original space.

• Is it worth doing in structured domains?
• Answers are not clear so far
• Computationally yes, when we simulate a huge
  space
• Generalization not always Khardon,Roth,Servedio
  ,NIPS01 Ben David et al.

Kernels
24
Kernels in Structured Domains

• We define a Kernel family K parameterized by FDL
  descriptions.
• The definition is recursive on the definition of
  D
• sensor, existential sensor role
  description AND
• Key Many previous structured kernels considered
  all substructures. (e.g., CollinsDuffy02, Tree
  Kernels)
• Analogous to an exponential feature
  space over fitting.

Kernels
25
FDL Kernel Definition

• Kernel family K parameterized by feature type
  descriptions. For description D
• If D is a sensor s(v) is a label of
  then
• If D is a sensor s and sensor descriptions
  s(v1), s(v2) s(vj) are labels of both
  then
• If D is a role description (r D), then
  with n1, n2 those nodes that have r labeled
  edge from n1,n2.
• If D is a description (AND D1 D2 ... Dn) with li
  repetitions of any Di then

Kernels
26
Kernel Example

• D (AND word (before word))
• G1 The dog ran very fast
• G2 The dog ran quickly
• Etc. the final output is 2 since there are 2
  matching collocations.
• Can simulate Boolean kernels as seen in
  Khardon,Roth et al.

Kernels
27
Complexity Generalization

• How to compare in complexity and generalization
  to other kernels for structured data?
• for m examples, with average example size g, and
  time to evaluate the kernel t1, kernel Perceptron
  takes O(m2g2t1)
• if extracting a feature explicitly takes t2 ,
  Perceptron takes O(mgt2).
• most kernels that simulate a well defined
  feature space have t1 ltlt t2 .

• By restricting size of expanded feature space we
  avoid overfitting even SVM suffers under many
  irrelevant features (Weston).
• Margin argument Margin goes down when you have
  more features.
• given a linearly separable set of points S
  x1,xm 2 Rn with separator w 2 Rn
• embed S into an ngtn dimensional space by adding
  zero-mean random noise e to the additional n-n
  dimensions s.t. w (w,0) 2 Rn still
  separates S.
• Now margin
• but

Analysis
28
Experiments

• Serve as comparison Our features w/ kernel
  Perc, normal Winnow, and all-subtrees expanded
  features.
• Bioinformatics experiment in mutagenesis
  prediction
• 188 compounds with atom-bond data, binary
  prediction.
• 10-fold cross validation with 12 runs training
• NLP experiment in classifying detected NEs
• 4700 training 1500 test phrases from MUC-7
• person, location, organization
• Trained and tested with kernel Perceptron, Winnow
  (Snow) classifiers with FDL kernel respective
  features. Also all-subtrees kernel based on
  Collins Duffy work.
• Mutagenesis concept graph
  Features simulated with all-subtrees kernel

29
Discussion

• microaveraged accuracy
• Have kernel that simulates features obtained with
  FDL
• But quadratic training time means cheaper to
  extract and learn explicitly vs kernel Perceptron
• SVM could take (slightly) even longer, but maybe
  perform better
• But restricted features might work better than
  larger spaces simulated by other kernels.
• Can we improve on benefits of useful features?
• Compile examples together ?
• More sophisticated kernels than matching kernel?

• Still provides metric for similarity based
  approaches.

30
Conclusion

• Kernels for learning from structured data is an
  interesting idea
• Different kernels may expand/restrict the
  hypothesis space in useful ways.
• Need to know the benefits and hazards
• To justify these methods we must embed in a space
  much larger than the training set size.
• Can decrease margin
• Expressive knowledge representations can be used
  to create features explicitly or in implicit
  kernel-spaces.
• Data representation could allow us to plug in
  different base kernels to replace matching
  kernel.
• Parameterized kernel allows us to direct the way
  the feature space is blown up to encode
  background knowledge.
