Title: Benefits of TEIN to beneficiary countries


1

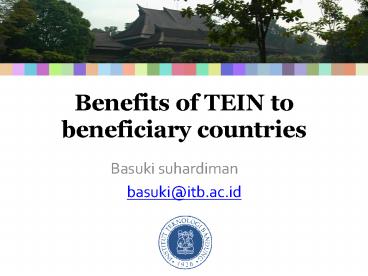

Benefits of TEIN to beneficiary countries
  • Basuki suhardiman
  • basuki_at_itb.ac.id

2
Outline
  • RD Network initiatives in Indonesia
  • TEIN initiatives
  • Inherent initiatives
  • Activities
  • E-learning
  • Weather forecast
  • Firewatch initiatives

3
Research Education Network
  • SOI-ASIA (School of Internet) Project
  • Connecting South East Asia Partner with AI3
    Internet satellite technology
  • TEIN2 (Trans-Eurasia Information Network)
  • Connecting Asia with GÉANT and ABILENE
  • INHERENT (Indonesia Higher Education Network)
  • Connecting Indonesia University

4
SOI-ASIA
  • Begin in 2001
  • C-band satellite
  • Unidirectional Satellite Link (UDL)
  • GRE Tunnel to make asymmetric link symmetric
  • IPv6 Multicast Video Conference
  • IPv6 Multicast Routing with PIM-SM with XORP
  • vic (video) and rat (audio) application
  • RPT (Remote Powerpoint) for synchronized Remote
    Presentation

5
SOI-ASIA Map
6
SOI-ASIA Activities and Equipment
  • Lectures from Japanese Professor
  • Technology Workshop and Tutorial
  • Real-time Video Conference

7
Live with Japanese Prime Minister
http//www.soi.wide.ad.jp/soi-asia/publications/20
030702/
8
Pioneering the satellite Infrastructure
  • Start on 1996 with WIDE/AI3
  • First satellite infrastructure
  • With JSAT Satellite
  • Ku-Band Frequency
  • Move to C-band on 2004

9
Peta Jaringan AI3
10
Current Ground station
C-band Dish for BDL 1.5 Mbps Uplink
C-band Dish for UDL 13 Mbps shared downlink
11
Pioneering the wireless LAN
  • IEEE 802.11 (a,b,g, dan n!)
  • freq 900 MHz (ISM)
  • Using Karl Bridge
  • Move to 2.4 GHz
  • Using PC Router
  • with ISA 802.11b/g card

12
Wireless LAN
  • On the top floor on the 9th floor

13
IP Routing
  • IPv4
  • OSPFv2 Area 0
  • 167.205/16
  • from APNIC
  • Catalyst 6500 and 3500 Platform
  • Quagga and Gated on few PC router
  • IPv6
  • OSPFv3 Area 0
  • 24038000/32
  • from APNIC
  • 2001d30/48
  • from WIDE Project
  • Quagga and XORP on PC router

14
Router _at_ITB
TEIN2 Router
ITB Edge Router
SOI-ASIA Router
Serial Modem
3600 as MPLS experiment
Serial Modem
VLAN switch
15
PC as Router
Gerbang.ITB.ac.id
16
Network Monitoring
  • Opensource application
  • Nagios, Cacti, Tacacs, Rancid, PHP Weathermap

17
TEIN2
  • Large-scale research and education network for
    Asia Pacific
  • Beneficiary Partner
  • Indonesia, Malaysia, Philippines, Thailand and
    Vietnam
  • Non-beneficiary Partner
  • Australia (AARNET), China (CERNET), Japan (NICT),
    Korea (KOREN) and Singapore (SINGAREN)
  • Access to GÉANT (EU) and ABILENE (US)

18
TEIN3 Official Map (2009)
  • 155 Mbps to HK
  • Two hope to GÉANT from SG
  • Two backup hops to GÉANT from HK CN
  • Two hope to GÉANT from SG
  • Connected to Inherent in Indonesia

19
TEIN3 nodes on ITB(Bandung)
  • STM-1 HK
  • Cisco 7609 router

20
INHERENT (Indonesia Higher Education Research
Network)
  • Initiated by Directorate General of Higher
    Education (DGHE), Ministry of Education
  • First inception in August 2006
  • 32 PoP (local node) across Indonesia
  • 7 Cisco 7609, 21 Cisco 7606, 4 cisco 3845
  • STM-1 in Java island, 8 mbps MPLS P2P , 2 Mbps
    satellite in East Indonesia, and backup satellite
    link
  • 120 universities across Indonesia (200 by feb
    2008)
  • Connected to PoP with MPLS (FO/Microwave)
    ,satellite and 802.11a/b/g
  • 300 Universities on 2009

21
Network Map (2007)
22
INHERENT Map
23
Inherent 2008
24
Inherent 2009
25
INHERENT
  • Indonesia Higher Education Network
  • 1st Phase Connecting 32 Campus in Indonesia
  • Advanced Network
  • 155 Mbps STM-1 Circuit for 7 node in Java
  • Medium Network
  • 8 Mbps Leased Circuit for 21 node in Sumatera,
    Kalimantan, Sulawesi, Bali and Nusa Tenggara
  • Basic Network
  • 2 Mbps VSAT link from Jakarta to East Indonesia

26
INHERENT Activities
  • Video Conference
  • Distance Learning
  • Web Cache Network

27
Inherent Network
  • IPv4,6 uni,multicast support
  • IGP for intra-POP
  • Public ASN for INHERENT
  • Support for MPLS (VPN, TE, QoS)
  • Standard deployment for PE-CE
  • NOC that informs and educate user

28
Routing Property
  • IPv4 address 167.205.128.0/18 from ITB
  • IPv6 address 24038000/32 (not ready yet)
  • IPv4 public ASN 18007 / 167.205.128/18
  • EBGP to each PoP/Local node

29
Monitoring System
  • Based on SNMP
  • Build on MRTG, Nagios and weathermap

30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
