Applications of the Immune System

1

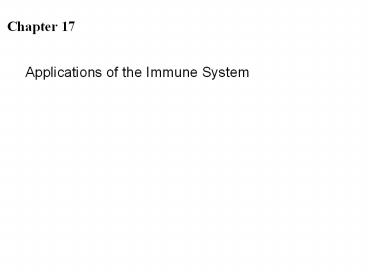

Chapter 17

• Applications of the Immune System

2
Jenners vaccine field of immunology

• Immunology the study of the bodys defense
  against foreign invasion
• Tested the hypothesis that cowpox Vaccinia virus
  provided protection against smallpox
• Collected pus from a milkmaids cowpox lesion
• Infected a boy with the cowpox pus
• Boy developed cowpox
• Then he infected the boy with smallpox
• The boy was immune

3
Principles of Immunization

• Natural acquired immunity
• Immunization mimics the same natural events
• Artificial Active immunity
• Natural Passive immunity
• IgG antibodies cross the placenta and protect the
  fetus
• Breast feeding transfers IgA antibodies

4
Principles of Immunization

• Artificial Passive immunity
• Antiserum
• Protective antibodies
• Antitoxin
• Protects against a toxin
• Examples tetanus immune globulin (TIG), rabies
  immune globulin (RIG)
• Given after exposure but before disease develops

5
Figure 17.5 The characteristics of immunity
produced by active immunization and passive
immunotherapy
Passiveimmunotherapy
Injection
Activeimmunization
Antibody (IgG, IgM) concentration (titer)
Boosters
Initialinoculation
Time
6
Vaccine and immunization

• A phenomenon that occurs when a large portion of
  a population is immune or vaccinated against a
  disease
• Responsible for the dramatic decline of childhood
  diseases

7
Figure 17.1 Effect of immunization-overview
8
Figure 17.3 The CDC's recommended immunization
schedule for the general population
9
Immunization

• Vaccine types
• Attenuated (live) vaccines
• Can result in mild infections
• Active microbes stimulate a _________________
  response
• Can provide contact immunity
• Infect others around them
• Caution Modified microbes may retain enough
  residual virulence to cause disease
• Pregnant women
• HIV patients

10
Immunization

• Vaccine types
• Whole-agent vaccines
• Deactivated whole microbes
• Subunit vaccines
• Fragments of microbes
• Both safer than live vaccines
• Due to lack of replication microbes and fragments
  ____ ____________________________________________
• _____________________________________________
• Booster shots often needed

11
Immunization

• Vaccine types
• Combination vaccines
• Administration of antigens from several pathogens
• MMR- measles mumps rubella

12
Immunization

• Vaccine types
• Toxoid vaccines
• Chemically or thermally modified toxins used to
  stimulate immunity
• Useful for some bacterial diseases
• Tetanus and diphtheria
• Stimulate antibody-mediated immunity
• Require multiple doses because they possess few
  antigenic determinants

13

• Vaccines against anthrax, cholera, plague,
  tuberculosis
• Are available but limited to special populations
• Military
• Laboratory personnel

14
Immunization

• Vaccine manufacture
• Mass-produce many vaccines by growing microbes in
  culture vessels
• Viruses are cultured inside chicken eggs
• Individuals with egg allergies must avoid some
  vaccines

15
Immunization

• Active Immunization
• Vaccine safety
• Problems associated with immunization
• Mild toxicity most common
• Fever and pain at injection site
• Risk of anaphylactic shock
• Allergic reaction- due to egg proteins or
  preservatives
• Residual virulence from attenuated viruses
• Occasionally cause disease
• Oral poliovirus vaccine in late 1990s caused
  clinical polio in 1 out of 2 million
• An inactivated polio vaccine is now used!
• Allegations that certain vaccines cause autism,
  diabetes, and asthma
• Research has not substantiated these allegations

16
To vaccinate or not?

• CDC and FDA conclude that the problems associated
  with immunization are far less serious than the
  suffering and death that would occur if we
  stopped immunizing people.

17
Immunology Applications

• Labeled Antibody Test
• Uses antibody molecules linked to some label
  that enables them to be easily detected
• Used to detect either antigens or antibodies

18
Immunology Applications

• Labeled Antibody Test
• Fluorescent antibody tests
• Use fluorescent dyes as labels
• Fluorescein is one dye used in these tests
• Fluorescein-labeled antibodies used in two types
  of tests
• Direct fluorescent antibody tests identify
  presence of antigen in tissue
• Indirect fluorescent antibody tests identify the
  presence of antibody from an individuals serum

19
Figure 17.11 The direct fluorescent antibody test
Straight forward test flood specimen with
labeled antibodywaitwash and examine.
20
Immunology Applications

• Labeled Antibody Test
• ELISA
• Enzyme-linked immunosorbent assay
• Uses an enzyme as the label
• Reaction of enzyme with its substrate produces
  colored product
• Commonly used to detect presence of antibodies in
  serum

21
Immunology Applications

• ELISA
• Direct
• Used to detect a given antigen
• Rapid Group A strep tests and home pregnancy kits
• Indirect
• Used to detect the presence of an antibody in a
  sample
• Used to test donated blood for antibodies against
  HIV

22
Figure 17.13 The enzyme-linked immunosorbent
assay (ELISA)
Antigen is attached to well in plate.
A protein such as gelatin is added to block the
uncoated surface.
Patient serum is added complementary antibody
binds to antigen.
Enzyme
Anti-antibody
Enzyme-linked anti-antibody is added and binds to
bound antibody.
Substrate
Colored product
Enzymes substrate is added, and reaction
produces a visible color change.
23
Figure 17.14 An antibody sandwich ELISA-overview
24
Immune Testing

• Labeled Antibody Test
• ELISA
• Advantages of the ELISA
• Can detect either antibody or antigen
• Can quantify amounts of antigen or antibody
• Easy to perform and can test many samples quickly
• Plates coated with antigen and gelatin can be
  stored for later testing

25
Exam 3 review

• Ch 13
• Why are viruses viroids and prions considered to
  be acellular particle's?
• What are the differences between the lytic and
  lysogenic cycles of viral replication?
• What is induction?
• What are the steps in animal virus replication?

26

• How are viruses classified?
• What types of cells can viruses infect?
• What accounts for the specificity of viral
  infection?

27

• The phenomenon of transduction (a type of
  horizontal gene transfer) is associated with
  which of the stages of a bacteriophage infection
  cycle?
• Know what each of the 3 acellular particle are
  composed of and be able to apply that knowledge
  to critical thinking questions.

28
Chapter 14

• Understand the different reservoirs for
  infectious diseases
• Know the different portals of entry and exit
• Understand the basic stages of infectious
  diseases
• Know the modes of disease transmission

29

• Be able to differentiate between the following
  endemic, sporadic, epidemic, pandemic, outbreak.
• Understand the factors that influence the
  development of nosocomial infections.

30
Chapter 15

• What is meant by nonspecific immune response?
• Understand the bodys first line defenses
• Understand the role of skin in innate immunity
• Understand the role of mucous membranes in innate
  immunity
• Understand the role of normal microbiota in
  innate immunity

31

• When do the second line defenses begin their
  protective roles?
• Understand the steps of phagocytosis
• Understand the signs and outcomes of inflammation
• Understand the basics of the complement system
  and the 3 outcomes
• How does fever form and why is fever thought to
  be beneficial? Why harmful?

32
Chapter 16

• Compare and contrast innate immunity and adaptive
  immunity
• Who are the players in humoral responses?
• Differentiate between the 2 types of humoral
  responses

33

• Describe the 5 outcomes of antibody antigen
  binding complexes.
• Understand the differences in the 3 types of
  antigens?
• Differentiate between the 5 classes of antibodies

34

• Who are the players in cell mediated responses?
• What is the outcome of a cell mediated response?
• Understand the process of CTL activation
