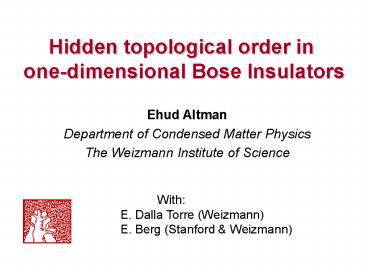

Hidden topological order in one-dimensional Bose Insulators

1
Hidden topological order in one-dimensional Bose
Insulators
Ehud Altman Department of Condensed Matter
Physics The Weizmann Institute of Science
With E. Dalla Torre (Weizmann) E. Berg
(Stanford Weizmann)
2
Ultracold atoms in optical lattices. Bose Hubbard
model
Experiment Kasevich et al., Science (2001)
Greiner et al., Nature (2001)
Cataliotti et al., Science
(2001) Phillips et al., J.
Physics B (2002)
Esslinger et al., PRL (2004),
3
Superfluid to insulator transition
Theory Fisher et al. PRB (89), Jaksch et al. PRL
(98) Experiment Greiner et al. Nature (01)
U/J
UgtgtJ
UltltJ
Both phases are conceptually very simple. Can we
have something more interesting?
4
Polar molecules or atoms in a 1d optical lattice
E
U
t
All three parameters are independently tunable.
5
Conventional phases (integer filling)
U/t
MI
CDW
?
?
?
SF
V/t
6
Outline

• Phase diagram in 1d (DMRG) - Insulator with
  hidden topological order - Spin analogy
  Haldane gapped state, AKLT
• How to detect hidden order ? - Distinct
  collective mode, quantum criticality - Use MFT
  to calculate absorption spectrum
• Open questions

7
First look with DMRG
Length L256
Energy gap
Hidden order ?
8
Phase diagram (DMRG)
Length L256
String order
CDW
9
Interpretation of the phase Spin 1 analogy
Keep only 3 occupation states
-1
0
1
0
0
Effective spin hamiltonian
10
Spin 1 phase diagram
U/J
String correlation
Mott
Neel
Haldane
Den Nijs Rommelse (89) Kennedy Tasaki (92)
V/J
Breaking of hidden Z2 X Z2 symmetry(only Z2 in
Bose system)
X4 (X2) edge degeneracy
11
How to detect hidden order ?
12
Parametric excitation
Periodic modulation of lattice intensity
Absorption spectrum in linear response
Used to probe excitations in SF and MI
Stoferle et. al., PRL 04 (ETH)
13
Absorption spectrum from mean field theory 1
Non local unitary transformation (Kennedy
Tasaki, Oshikawa)
Mean field wave function
14
Absorption spectrum from mean field theory 2
Fluctuations
Expand perturbation in terms of the fluctuations
Particle-hole continuum
Neutral mode
15
Compare with numerics
U
V
Neutral mode
16
Many open questions

• Nature of the quantum phase transitions(effect
  of p.h. symmetry breaking)
• Possibility of observing edge states?
• Extension to quasi 2D(dipole interactions
  between parallel chains)

17
Unconventional / conventional 2D phases ? 1D
2D phase transitions tuned by angle of external
field ?
18
Conclusions

• Phase diagram of bosons with 1/r3
  repulsionunconventional insulating phase
• Realization and detection with ultra cold dipolar
  bosons in optical lattice.
• Distinct neutral collective mode
• 2D generalizations ?
