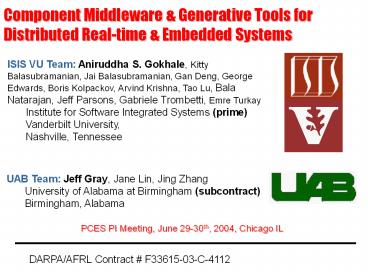

Component Middleware Generative Tools for
Distributed Real-time Embedded Systems
ISIS VU Team Aniruddha S. Gokhale, Kitty
Balasubramanian, Jai Balasubramanian, Gan Deng,
George Edwards, Boris Kolpackov, Arvind Krishna,
Tao Lu, Bala Natarajan, Jeff Parsons, Gabriele
Trombetti, Emre Turkay Institute for Software
Integrated Systems (prime) Vanderbilt University,
Nashville, Tennessee
UAB Team Jeff Gray, Jane Lin, Jing Zhang
University of Alabama at Birmingham
(subcontract) Birmingham, Alabama
PCES PI Meeting, June 29-30th, 2004, Chicago IL
DARPA/AFRL Contract F33615-03-C-4112
2
Model Driven Middleware for DRE Systems
CIAO
CoSMIC
DAnCE

• QoS-enabled middleware solutions

• CoSMIC - Modeling Deployment Configuration
  (DC) crosscutting concerns

• CIAO QoS-enabled component middleware

Collaborators LMCO, KSU, UAB, BBN, WashU, Boeing

• DAnCE Deployment And Configuration Engine

www.dre.vanderbilt.edu/cosmic
www.dre.vanderbilt.edu/CIAO
3

• JUNE 2004
• DELIVERABLES

4
Addressing DC Crosscutting Concerns with DAnCE

• Different Stages
• Development
• Developer
• Assembler
• Packager
• Target
• Domain Administrator
• Deployment
• Repository Administrator
• Planner
• Executor
• Actors are abstract
• Usually human software tool

Development
Deployment
Target
5
PICML Capturing Modeling DC Crosscutting
Concerns

• Context
• Configuring Deploying component-based
  applications using XML meta-data
• Problem
• Meta-data split across multiple XML descriptors
• Inter-dependencies between descriptors
• XML is error-prone to read/write manually
• No guarantees about semantic validity (only
  syntactic validation possible)
• If meta-data is wrong, what about my application?

• Solution
• PICML Platform Independent Component Modeling
  Language
• Modeling paradigm developed using Generic
  Modeling Environment (GME)
• Capture dependencies visually
• Define semantic constraints using Object
  Constraint Language (OCL)
• Generate domain specific meta-data from models
• Correct-by-construction

6
IDML Capturing Interface Definition Aspects in
PICML

• IDML Interface Definition Modeling Language
• Graphical modeling language.
• Component middleware building blocks.
• Integrated with PICML.
• Export model to equivalent XML format.
• Generate middleware-specific application code.
• IDL generator finished
• Planned generators for EJB ICE

• IDL Importer translates IDL into IDMLs XML
  format.
• Import XML into graphical modeling tool.
• Translate to other middleware platform.
• Develop model further
• Regenerate IDL.
• Generate application code for a different
  middleware platform.

7
EQAL Capturing Event QoS Aspects in PICML

• Context
• Publisher/subscriber services are
• highly configurable
• XML-based specification of QoS properties
• Problems
• Multiple dissimilar services
• Semantically invalid operating policies
• Error-prone handwritten XML
• Solution
• Use models to enforce policy constraints
  synthesize configuration files

• EQAL Event QoS Aspect Language
• EQAL is part of PICML within the CoSMIC suite
• Built in the Generic Modeling Environment (GME)
• Addresses publisher/subscriber service
  configuration and deployment challenges
• Models specify service configurations and
  deployments
• Aspects decouple DC concerns
• Constraints ensure semantic validity
• Interpreters generate descriptor files

8
Using C-SAW for Aspect Weaving within EQAL Models

• EQAL is used to model a federated event service
  with three sites
• The ECL strategy specifications are used to scale
  up any site as well as the corresponding
  connections in the EQAL model. Three steps are
  included
• Add extra CORBA_Gateways to the existing sites
• Repeatedly replicate the site as an instance
• Create connections between all of the sites
• C-SAW takes the original EQAL model and the ECL
  specifications, and then generates the new
  scaled-up EQAL model with additional sites
• Model weaving to explore design alternatives more
  rapidly
• Design decisions crosscut model hierarchy
• Removes manual error resulting from
  tedious/repetitious changes

1
2
3
9
OCML BGML Addressing Configuration
Customization Crosscutting Concerns

• Options Configuration Modeling Language (OCML)
• Addressed ORB-level configuration aspects
• OCML provides constraints on valid combinations
  of ORB parameters.
• Synthesizes descriptors encoding the rules
• Application developers model a set of ORB
  configuration parameters
• Application developers validate their ORB
  configurations against these rules

• BGML/CCMPerf is a model integrated test
  benchmarking suite
• Models application use-case scenarios to
  synthesize desired performance aspects of DRE
  applications

10
Model Checking Analysis in CoSMIC

• Context
• DRE system CoSMIC models must be analyzed for
  functional correctness QoS properties
• CoSMIC provides limited constraint-checking but
  no model checking analysis
• Problem
• Selecting the right analysis tool
• Choosing the right tool data interchange
  interoperability communication model
• Preserving semantics of data during transforms
• Lossless communication of data its semantics

• Solution
• KSUs Cadena model checker for analysis model
  refinement
• Leverage DARPA MoBIES technology, e.g., Unified
  Data Model (UDM), Open Tool Interchange Format
  (OTIF), Graph Transformation Tool (GReAT)
• Two way export import of models and properties
  between CoSMIC Cadena
• Lossless data communication via exporting only
  supported features and/or decorating models with
  extra information

11
JUNE 2004 EXPERIMENTS METRICS
12
Model-based Pub/Sub in CIAO for BBN UAV

• Satellite provides intelligence message
• Combined Air Operations Center (CAOC) alerts UAV
  Ground Station (UAVGS), which instructs a UAV to
  provide imagery.
• CAOC alerts Engagement System, which instructs
  Battle System to engage itself.
• Implemented in CIAO using RT Event Service
• 6 component types, 7 distributed hosts
• Latency benchmarks developed in distributed
  environment.

13
Model-based Configuration Benchmarking
14
JUNE 2004 DEMO
15
Demos Collaborations for 06/04 PI Meeting

• Capstone Demo Prototype
• Showcase earlier capabilities of CoSMIC CIAO on
  BBN UAV OEP
• Collaboration Demo
• Participants LMCO (Eagan, Dallas), Kansas State
  U, Vanderbilt ISIS PCES-2 team
• Showcase end-to-end tool-chain with CoSMIC,
  Cadena Kennedy Carter tools for a
  representative DRE application
• Tool Demos
• Showcase individual tools capabilities of
  CoSMIC, DAnCE CIAO
• Allow users to have hands-on experience

16
DECEMBER 2004 PLANNED DELIVERABLES
17
XML Schema Compiler (XSC)

• Context
• Increasing use of XML vocabularies as a data
  exchange format
• DnC
• ARMS
• Modelling tools
• Problem
• Standard APIs (SAX, DOM) are vocabulary-independen
  t and thus dynamic and typeless.
• Results in a hard to implement/use/maintain
  in-memory representations.
• Solution
• XML Schema Compiler, based on vocabulary
  specification, will automatically generate
• statically-typed in-memory representation,
  parser, and traversal mechanism for C or
• CORBA IDL.

XML Schema
XML Schema Compiler
IDL
C
18
Planned Enhancements to DAnCE

• Extend DAnCE to provide static linking
  capabilities for use with Prism
• Extend XML Schema for Real-time properties use
  XSC
• Deployment planning
• Further integration with Cadena, OTIF, GReAT
• Showcase in Dec 04 Capstone demo

19
Towards Platform Independence via MOF-Compliant
Modeling

• Use MOF to IDL mapping to generate IDL
  interfaces.
• Inheriting from the MOF abstract IDL interfaces.
• Used to implement a repository for models.
• Through repository, models are accessible to
  other MOF-compliant tools.
• For generation
• For further development
• For reuse in other projects
• For analysis simulation

20
Planned Enhancements to C-SAW Verification of
Model Transformations

• Problem
• Assumption is that model transformations are
  correctly written and the result captures the
  intent of the desired transformation
• Difficult, if not impossible, to manually verify
  the correctness of a transformation that modifies
  multiple locations along several dimensions
  compromises integrity of end-to-end modeling
  process

• Future Activity
• Research and development of an automated testing
  framework for model transformations permit unit
  and regression testing in presence of changes to
  models/xforms
• An Executor takes the source model and a series
  of transformation specifications to produce an
  intermediate output model
• A Comparator analyzes the differences between the
  Output model and the Expected model (i.e., what
  the transformation is expected to produce)
• A test report documents any differences between
  the Output and Expected models

21
Technology Transition/Transfer (1/4)
CIAO QoS-enabled component middleware CoSMIC
deployment configuration tools are being
transitioned to the following DoD programs

• US Navy, DD(X), DARPA IXO ARMS programs

• US Army in collaboration with LMCO (Eagan
  Dallas) KSU on HIMARS/MLRS

• Joint forces with JTRS SCA in collaboration with
  BAE Systems

Other recent interesting ACETAO transitions
include

• USS Ronald Reagan aircraft carrier advanced
  tactical displays system

• NASA free flight experiments

22
Technology Transition/Transfer (2/4)
ACETAOCIAO CoSMIC Software Releases

• ACE 5.4.2, TAO 1.4.2 (July 2004)

• Beta and Stable release can be accessed from
  http//www.dre.vanderbilt.edu/Download.html

• CIAO 0.4.2 release (July 2004) CoSMIC models
  (July 2004)

http//www.dre.vanderbilt.edu/CIAO http//www.dre.
vanderbilt.edu/cosmic
C-SAW Aspect Model Weaver
http//www.gray-area.org/Research/C-SAW/Contains
papers, downloads, video demos
23
Technology Transition/Transfer (3/4)

• Publications since Dec 03 PI meeting
• Elsevier Journal of Computer Science
  Programming, Special issue on Model Driven
  Architecture (To be published)
• ACM Queue Magazine July 2004
• Generative Programming Component Engineering
  (GPCE 2004), October 2004 (3 papers)
• Enterprise Distributed Object Computing (EDOC)
  October 2004
• IEEE Real-time Applications Symposium (RTAS), May
  2004
• ACM Southeast Conference, Apr 2004 (7 papers)
• Several OMG RTWS workshop papers, July 2004
• Remote Analysis Monitoring of Software Systems
  (RAMSS) workshop at ICSE (May 2004)
• IEEE Transactions on Control Systems, March 2004
• Aspect-Oriented Software Development (AOSD 2004),
  March 2004
• Book Chapter in Addison-Wesley AOSD book, Fall
  2004

24
Technology Transition/Transfer (4/4)

• Workshop/Conference chair/organizing and/or
  program committee
• Program Chair 4th TAO workshop, July 2004
• Program Committee RTAS 04, Middleware 04, EDOC
  04, RTSS 04, HICSS 04
• Guest Editor, Elsevier Journal of Visual
  Languages and Computing, June 2004
• Program Chair HICSS, Adaptive-Evolvable Software
  Systems, January 2004
• Tutorials Chair for GPCE 04
• Program Committees ACMSE 04, ACP4IS-AOSD 04, SAC
  04, ECBS 04, RTAS-MODES 04, UML 04
• Panelist at the workshop on Aspects, Components,
  and Patterns for Infrastructure Software (ACP4IS)
  at AOSD, March 2004

25
Backup
