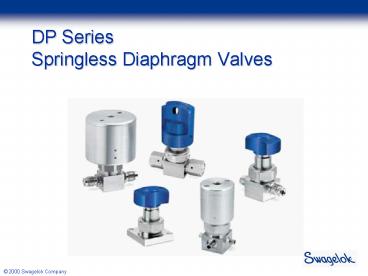

DP Series Springless Diaphragm Valves

1
DP Series Springless Diaphragm Valves
2
Why develop a new valve?

• Semiconductor industry driving for lower costs
• Availability of new technology
• Swageloks drive to help customers win

3
DP Series Objectives

• Provide a 1/4 inch UHP valve for low and
  high-pressure applications
• Provide a high-performance seat
• Improve flow capabilities
• Provide integral locking handle
• Drop in replacement
• Provide a competitively priced valve

4
Topics to be Discussed

• Technology
• Design tools
• Seat performance
• Valve overview
• DP specifications
• DP components
• Valve highlights

5
DP Series Computer Modeling Technology
6
Fully Swept Flow Path
Diaphragms
CFD Analysis
Valve inlet
Valve outlet
7
Finite Element Analysis
Featured area
8
Repeatable Shutoff Performance
FEA Analysis
9
Finite Element Analysis
Featured area
10
Diaphragm Cycle Life
FEA Analysis
Bonnet nut
Actuator button
Diaphragms
11
DP Series Valve Seat Technology
12
Helium Leak Test Performance
Inboard helium leak testing of the seat with 145
psig inlet pressure
1x10-7 _
1x10-8 _
(std cm3/s)
1x10-9 _
1x10-10 _
Time in seconds
15
Minimum required by SEMI F1-96
13
¼ in. DP Series Technical Issues

• Pressure Rating
• 145 psi / 10 barLow Pressure
• 3045 psi / 210 barHigh Pressure
• Cv
• 0.27 Low Pressure
• 0.20 High Pressure

• Dimensions
• Same O.A.L.
• HLT
• 1 x 10-9 std cm3/s
• Surface Finish
• 5 ?in Ra

14
Low Pressure Internal Components
15
Actuator Options
High-pressure air actuator
Low- and high- pressure locking handle
Low-pressure air actuator
Low- and high- pressure T handle
Common body, diaphragms and seat
16
Locking Handle
17
DP Series Valve Highlights

• Both high- and low-pressure options
• Improved seat performance
• Improved flow capabilities
• Standard locking handle option for safety
• Drop in replacement
• Competitively priced

18
DP Series Springless Diaphragm Valves
