Title: Open-end Air Columns


1

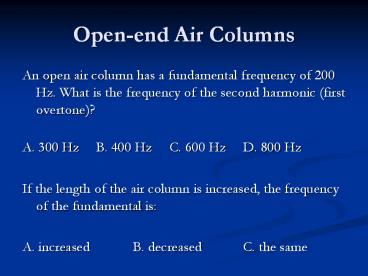

Open-end Air Columns
  • An open air column has a fundamental frequency of
    200 Hz. What is the frequency of the second
    harmonic (first overtone)?
  • A. 300 Hz B. 400 Hz C. 600 Hz D. 800 Hz
  • If the length of the air column is increased, the
    frequency of the fundamental is
  • A. increased B. decreased C. the same

2
Open-end Air Columns
  • An open air column has a fundamental frequency of
    200 Hz. What is the frequency of the second
    harmonic (first overtone)?
  • A. 300 Hz B. 400 Hz C. 600 Hz D. 800 Hz
  • If the length of the air column is increased, the
    frequency of the fundamental is
  • A. increased B. decreased C. the same

3
Resonance in Closed Air Columns
  • 3U Physics

4
Resonance in Closed-End Air Columns
  • If one end of an air column is closed off, it
    must have a node at that end.
  • The first harmonic of a closed-end air column is
    therefore

5
Resonance in Closed-End Air Columns
  • If one end of an air column is closed off, it
    must have a node at that end.
  • The first harmonic of a closed-end air column is
    therefore

6
Resonance in Closed-End Air Columns
  • If one end of an air column is closed off, it
    must have a node at that end.
  • The first harmonic of a closed-end air column is
    therefore
  • Note that l 4L (or L l/4).

7
Higher Harmonics
  • The next higher harmonic that can be produced is

8
Higher Harmonics
  • The next higher harmonic that can be produced is

9
Higher Harmonics
  • The next higher harmonic that can be produced is
  • l 4L/3 or L 3l/4

10
Higher Harmonics
  • The next higher harmonic that can be produced is
  • l 4L/3 or L 3l/4
  • This harmonic is called the 3rd (and not the 2nd)
    harmonic because its frequency is 3 times that of
    the fundamental frequency.

11
Higher Harmonics
  • Similarly, the next higher harmonic is the fifth
    harmonic
  • l 4L/5 or L 5l/4

12
Longitudinal Waves
  • What do these standing waves actually look like?

13
Longitudinal Waves
  • What do these standing waves actually look like?

14
Closed-End Air Columns Example
  • A closed-end air tube resonates to a tuning fork
    of 480 Hz at lengths of 53.0 cm and 88.5 cm.
    What is the speed of sound in air?

15
Closed-End Air Column Example
  • A closed-end air tube resonates to a tuning fork
    of 480 Hz at lengths of 53.0 cm and 88.5 cm.
    What is the speed of sound in air?

16
Closed-End Air Column Example
  • A closed-end air tube resonates to a tuning fork
    of 480 Hz at lengths of 53.0 cm and 88.5 cm.
    What is the speed of sound in air?
  • The difference between one harmonic and the next
    is a half-wavelength (for open or closed-ends).

17
Closed-End Air Columns Example
  • A closed-end air tube resonates to a tuning fork
    of 480 Hz at lengths of 53.0 cm and 88.5 cm.
    What is the speed of sound in air?

18
More Practice
  • Lab Closed Air Columns and the Speed of Sound
