Introducing

1

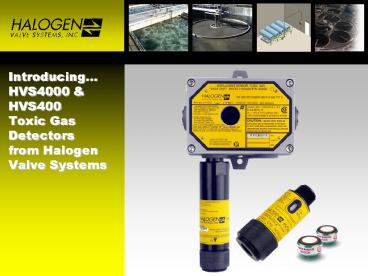

Introducing HVS4000 HVS400 Toxic Gas
Detectors from Halogen Valve Systems
2
Agenda

• Introduction to General Monitors
• HVS4000
• HVS400
• Features Benefits
• Specifications
• Calibration
• Accessories
• Applications
• Competition
• Closed Loop Marketing

PRODUCT LAUNCH
3
General Monitors

• Established in 1961 by Dr. Frank Linville
• Two Manufacturing facilities and RD Sites - Lake
  Forest, CA and Ireland
• The Best Service Customer Support
• World Class Automated Manufacturing
• Total Quality Management
• JIT Purchasing
• ISO-90012000 Status
• Worldwide Distribution Channels
• Advanced Proprietary Technologies for Catalytic
  Bead, Metal Oxide Semiconductor, Electro-chemical
  Point and Open Path Infrared

4
HVS4000 at a Glance

• The HVS4000 is a 24VDC powered toxic gas
  detector comprised of a base unit, interface
  module (IM) and electrochemical cell
• Galvanically isolated intrinsically safe design
  of the (IM) module supports sensor field
  replacement without the need for special tools or
  hot work permits
• Complements our HVS400 Series products and
  provides a Total Toxic Solution for application
  in Chlorine rooms.

Base Unit
Interface Module
EC Cell
5
Interface Module

• The HVS4000 Interface Module (IM) is encapsulated
  in an anodized aluminum housing enabling sensor
  information to be processed at the point of
  detection. The HVS4000 provides a 4-20mA output
  signal proportional to the gas concentration at
  the Base Unit
• IM Features
• Galvanically isolated Intrinsic Safety Barrier to
  the internal electronics of the IM
• Electrical conditioning circuitry for the
  electrochemical cell
• Mechanical and electrical interface for the
  electrochemical cell
• Explosion proof conduit seal from the Base Unit
  to the IM
• Explosion proof housing for the Intrinsic Safety
  Barrier
• One I/O pair for digital serial communication to
  and from the Base Unit and IM
• One 24VDC / COM GND pair for power into the
  Interface Module

6
Base Unit

• The HVS4000 Base Unit provides the display /
  control device for the entire HVS4000. The Base
  Unit is based on the proven Intelligent Sensor
  platform
• Base Unit Features
• Bright LED Digital Display (outdoor readable)
• MODBUS Communications
• High Rating Relays
• One Activation Point for Settings/Calibration
• Simplified Wiring and Field Connections
• Standard Platform Calibration Prompts
• Remote Sensor Placement Capability
• Remaining Sensor Life Indicator
• Low Total Cost of Ownership

7
Detection Method
TS4000 Electronics
Target gas diffuses through the diffusion barrier
limiting the amount of gas entering the sensor.
It then diffuses through the gas permeable
membrane until it reaches the sensing electrode
that produces ions. The REFERENCE electrode
provides voltage stability for the sensing
electrode, and the electrodes (sensing and
reference) are constructed of materials specific
to the target gas. This specificity creates the
ion flow current central to the sensors
detection method. The HVS4000 integral
electronics provides temperature compensation,
and the amount of ions produced by the target gas
molecules striking the sensing electrode, is
proportional to gas concentrations. The HVS4000s
microprocessor then produces a linear 4-20mA
output signal.
Reference Electrode
8
Available Gases

• Ammonia 0-50, 0-100 ppm
• Carbon Monoxide 0-100, 0-500 ppm
• Chlorine 0-10 ppm, 0-20 ppm
• Chlorine Dioxide 0-3 ppm
• Ozone 0-1 ppm
• Oxygen 0-25 by Volume
• Sulfur Dioxide 0-20 ppm

9
Key Features Benefits

• Microprocessor-Based Electronics Monitors fault
  conditions, processes input signals from the
  electrochemical cell, and provides outputs in the
  form of display codes and analog / digital
  signals
• One Person Adjustment-Free Calibration Using a
  magnet to initiate the calibration sequence,
  apply the gas, and wait for the display to
  indicate that the unit has completed the
  calibration. No user adjustments are required.
• Three Digit, Seven Segment LED Indicates gas
  presence, operational modes, fault codes and
  calibration cues
• Two Discrete LED Indicators Indicates alarm and
  warning conditions
• Three 8A rated Relays Warning, Alarm and Fault
• Remote Mounting of Interface Module Provides
  application flexibility
• 4-20 mA Analog Output Transmits fault,
  calibration, and gas concentration levels to a
  remote display, computer, or other device such as
  an alarm, dispensing device, or master controller
• Dual Redundant MODBUS RS-485 User Interface
  Provides the ability to operate the TS4000
  remotely, using 2 redundant channels. This
  interface allows the user to remotely change the
  alarm and warning relay settings, clear selected
  faults, issue calibration requests, enable gas
  check, issue end / abort commands, clear error
  counters, change baud rates, and change formats
  for serial communication lines

10
Local Remote Configurations
e
u
l
B

-
-
TS4000
Base Unit
t
i
u
d
n
o
C

n
o
i
t
c
e
n
n
o
c
r
e
t
Local Configuration
n
I

P
X
Junction Box
Remote Configuration Up to 2,000 ft.
TS4000
Interface
Module
11
Electrical Specifications
12
Environmental Specifications
13
Mounting Dimensions
W Width MC Mounting Centers D Depth H
Height Dia Diameter All dimensions are in inches
W - 6.18
MC- 5.05
D- 3.21
H - 11.83
Dia 1.75
14
Simple Calibration

• Apply and hold the magnet over the HVS logo on
  the cover of the Base Unit. Wait until AC
  appears in the display window. Remove the magnet
  to select AC. The unit is now in Calibration
  Mode.
• The display flashes the Remaining Sensor Life.
  The user can choose to reset or not to reset the
  sensor life at this point.
• The Remaining Sensor Life flashes while the unit
  is being set to zero. Once the unit has been set
  to zero gAS appears in the display window
• Apply the calibration gas concentration to the
  sensor (50 FS of the required range of detected
  gas). The display changes from gAS (apply gas)
  to CP (Calibration in Progress) indicating that
  the sensor is responding to the calibration gas.
  While the unit is reading the gas concentration,
  the menu is disabled
• After three to five minutes, the display changes
  from CP to CC indicating that the calibration is
  complete
• Remove the gas and wait for the unit to return to
  normal operation. The display may indicate a few
  percent FS and will eventually drop to 0. If a
  unit time out occurs the user receives a
  calibration fault

The HVS4000 is now calibrated and the new sensor
SPAN values (or calibration constants) are
stored in the non-volatile memory (EEPROM)
15
Changing a Sensor

• Each spare sensor is shipped in a plastic bottle.
  DO NOT remove the sensor until you are ready to
  apply power to the system. To ensure proper
  sensor response, each HVS4000 must be calibrated
  in the field upon initial installation
• If the new sensor is in a plastic storage
  container, then remove the lid ring and uncap the
  jar. Remove the sensor from the container
• Save the storage container for later use.

16
Changing a Sensor

• Note Certain types of sensors are shipped with
  a shorting wire across two (2) pins. This wire
  must be removed prior to installing in the
  HVS4000. Ammonia (NH3) sensors are shipped
  attached to a small circuit board with a battery.
  Remove the battery board prior to installing in
  the HVS4000.
• Save both the shorting wire and/or battery board
  for later use.

Shorting Wire
Battery Board
17
Accessories - Calibration Kit

• 500 sccm flow rate regulator for
• NH3
• SO2
• CO
• 1000 sccm flow rate regulator for
• Cl2
• ClO2
• O3

Purge Gas Cylinders
18
Accessories - Splash Guards
45167-1 Splash Guard for Cl2, ClO2 and O3 gases.
More holes are needed for gas to reach the sensor
70631-2 Splash Guard used for all other gases
19
Accessories - Flow Block
45170-1 Flow Block shown with optional ST/ST
fittings can be used on HVS4000 and HVS400 Series
shown
20
Accessories - Cal Plug Cup
45172-1 Calibration Plug (used when no splash
guard attached)
P/N 1400152-1 Calibration Cup (used with units
equipped with splash guard)
21
Configurations

• HVS4000 Local w/ No Relays Communications
• HVS4000 Local w/ Relays Communications
• HVS4000 Remote w/Customer Provided J-Box
• HVS4000 Remote w/ P/N 10252 J-Box
• HVS4000 Remote w/ P/N 31305-2 J-Box

22
HVS400 Introduction

• The HVS400 Gas Detectors are both general
  purpose intrinsically safe detectors that utilize
  electrochemical cell technology to detect a
  variety of toxic gases

23
Assembly
24
Dimensions
LCD Indicator
2 Wire 4-20mA Output
Universal 3/4 NPT (male threads)
Frame GND
1.75 inches
4.5 inches
25
Cross Section
Potted Electronics
Potting Compound
Magnetic Switch (beneath Halogen logo)
26
Junction Boxes
Polyester J-Box with HVS400 suitable for general
purpose applications
Universal Sensor Housing
27
HVS400 Key Features/Benefits

• Polypropylene Housing
• Corrosion resistant material and very
  lightweight
• One Person and Adjustment Free Calibration
• Lower calibration cost
• Status Display
• Only toxic sensor/transmitter with Built-in
  LCD indicator for monitoring status, fault and
  calibration cues
• Sealed Electronics.
• Provides resistance to corrosive gases and
  moisture ingress, thereby providing greater
  reliability and durability

28
TS-Series Key Features / Benefits

• Multiple Gases Available Carbon Monoxide,
  Chlorine,
• Chlorine Dioxide, Ozone, Sulfur Dioxide,
  Ammonia.
• Universal Product Approvals.
• UL, CUL, CENELEC, CE Marking and CSA approved
• 2-wire Loop Powered.
• Lower installation cost

29
Applications

• Water Treatment Facilities
• Wastewater Treatment Facilities
• Hazardous Gas Use Facilities
• Requiring Gas Detection For
• Toxic Storage Rooms
• Toxic Gas Use Rooms
• Laboratory Facilities
• Toxic Gas Perimeter Areas
• Confined Hazardous Gas Areas

30
Wastewater Plant Applications
Grit Chamber
Raw Sewage
1
Chlorine Dosing
Primary Clarifier
Aeration Tanks
Secondary Clarifier
To Outfall or Tertiary Treatment
8
Effluent Pump
3
2
To COGEN or ground flares
7
Bar Screens
4
Sludge Thickener

• 1. Raw Sewage
• 2. Primary Sludge
• 3. Return Activated Sludge
• 4. Waste Activated Sludge
• 5. Thickened Sludge
• 6. Digested Sludge
• 7. Chemical Additives
• 8. Effluent

• 1. Raw Sewage
• 2. Primary Sludge
• 3. Return Activated Sludge
• 4. Waste Activated Sludge
• 5. Thickened Sludge
• 6. Digested Sludge
• 7. Chemical Additives
• 8. Effluent

Methane Gas Storage
5
Primary Digester
Secondary Digester
6
Sludge Disposal
31
Gases/Products used by Process Area

• Process Area Gases Products
• Raw Sewage H2S, HC, O2 HVS4000,
  S4000C/T
• Primary Sludge H2S, HC, O2 HVS4000, S4000C/T

• Return Activated Sludge H2S, HC, O2 HVS4000,
  S4000C/T
• Waste Activated Sludge H2S, HC, O2 HVS4000,
  S4000C/T
• Thickened Sludge H2S, HC, O2 HVS4000,
  S4000C/T
• Digested Sludge HC, O2 HVS4000, S4000C/T

• Chemical Additives SO2, Cl2 HVS4000,
  HVS400
• Effluent Cl2 HVS4000, HVS400

32
Digester Gas Monitoring
Ground Flare
Methane (CH4) gas generated from anaerobic
digesters also contains hydrogen sulfide (H2S)
resulting from decomposing sludge. The H2S gas is
usually removed. Methane gas is used to fuel
compressors, boilers and engines. Any unused gas
is then flared off to the atmosphere.
Applications exist for Models S4000C/T and IR2100
Infrared Point Gas Detector because of high O2.
The Model IR5000 is also used for CH4 detection
in large waste treatment plants.
S4000C Gas Detector
Sludge
Digester Tank
Sludge
Gas Flowmeter
33
Sludge Dewatering
De-watering System
Incoming sludge from waste treatment facilities
contains hydrogen sulfide and methane gas. The
sludge is transported through a spiral conveyor
into the de-watering system where the water is
removed. The outgoing conveyor transports the
remaining solids to an incinerator. Model S4000T
Intelligent Sensors are positioned so that during
operation of the compressor any escaping H2S will
be detected.
Outgoing Sludge to Incinerator
Incoming Sludge
Model S4000T Intelligent Sensors are positioned
both sides of the compressor
34
Wet/Dry Wells Lift Stations
Wet wells and dry wells are confined spaces which
can develop a build-up of H2S and CH4. This gas
concentration can become explosive and/or toxic
to the level of personnel danger. Because
personnel are required to service these areas, O2
deficiency monitors are installed to ensure that
oxygen levels do not drop below the regulated
levels needed to sustain life. Models HVS4000 /
HVS400 and S4000C/Ts can all be used for these
applications.
S4000C/T and HVS4000
Manhole
Sewer or Vault
35
Cl2 Storage Room - Remote Mounting
CL2 Gas Pipe
HVS4000 Base Unit with LED Display, Remote
Mounted Outside CL2 Storage Room
Control Panel
CL2 Ton Containers
HVS4000 Interface Module with J-Box
36
Landfill Vapor Recovery
Landfills produce Methane and H2S gas generated
from decomposing materials. The recovered methane
is used to fuel compressors, engines and
co-generation plants. These facilities provide
an excellent opportunity for Model S4000C
Intelligent Sensors to detect the methane gas.
Scrubber
Control Valve
S4000C Gas Detector
Gas Compressor
Gas Pipeline
Landfill
Gas Well
37
Cogeneration

• Many sewage treatment facilities use Methane
  generated from digesters to power electrical
  generating plants. This power is used to run the
  facilities as a supplement to purchased power
  from utility companies. Model S4000C Intelligent
  Sensors are used to monitor leaks in the
  co-generation building

S4000C Gas Detector
38
Selling against the Competition

• Fixed Gas Detector Competitors typically found in
  the Water Wastewater Industry are
• ATI
• Capital Controls
• Foxcroft
• Regal
• MSA
• US Filter
• Advantages of HVS4000 and HVS400 are
• HVS400 is small and compact by design with a
  4-20mA signal that can be used as the front-end
  sensor for a SCADA system directly
• HVS400 2-wire self contained transmitter with
  sealed electronics is very suitable for
  corrosive chlorine service
• Calibration prompts can be viewed on the LED
  window, without the added expense of a
  transmitter housing with a display
•

39
Selling against the Competition

• End-users have reported that the HVS400/4000 is
  rugged and looks more like an industrial product
  than competitors such as Foxcroft, Capital or
  Regal who more closely resemble Swimming Pool
  Type chlorine detectors
• Most Cl2, SO2, H2S applications do not require a
  XP rated enclosure, however thats all many
  competitors have to offer. The general-purpose
  enclosure on HVS400 sensors, will keep system
  cost down
• End-users like the potted sealed HVS400
  electronics because corrosive gases cannot access
  the PC board components
• Galvanic isolation on the HVS4000 allows hot
  swapping of sensors and remaining sensor life,
  reduces downtime by providing a heads-up on
  sensor life
• Dual redundant MODBUS RS485 interface provides
  remote operation of all functions
•

40
Closed Loop Marketing

• Outbound marketing, PR, e-newsletters,
  micro-sites and tradeshow activities, bring new
  prospects in the door
• Lead Management System stores the lead
  distributes to appropriate rep
• ERP/CRM system provides enterprise-level back-end
  demographics, and additional reporting statistics
  using COGNOS software

41
Product Micro Sites

• Results
• Application Focused
• Product Spotlight
• Application Notes
• Technical Toolbox
• FAQs
• Literature
• Impact
• Provides more exposure and branding to all
  product groups while reducing overall marketing
  expenditures

42
Wastewater Site

• A wastewater micro-site has been developed to be
  used as a platform for e-marketing efforts into
  the water and wastewater industry

43
Vertical e-Newsletters

• Reaches over 3,600 unique contacts and grows
  monthly
• Maintained account activity and visibility
• Opted-in new contacts via online signup form,
  reps, customer care center and giveaways
• Vertical d-base segmentation allows more focused
  e-messaging referring prospects back to our
  Closed Loop Marketing system for tracking and
  order conversion

44
Search Engine Optimization

• Results
• Highest position possible under keywords Toxic
  Gas Detectors without using Pay-Per-Click (PPC)
• Micro-sites are now being spidered by the major
  search engines and listed in searches
• Impact
• Improves lead generation

45

Sales Lead Management

• Results
• 20 Leads won 203,580
• 74 Open Leads Quoted 692,641
• 14 Leads lost 8,948
• Total 905,169
• Over 1,000 new E-news subscribers
• Web site traffic increased 26 over FY02
• 91 Qualification Rate
• Averaged 150 leads/month
• Electronic literature fulfillment reduced
  printing costs by approx. 5K/yr.
• Impact
• Qualified lead generation/tracking with ROI
  metrics is now possible via Lead Tracking System
• Tracking ROI requires reps to keep database
  current when quotes are won

46
On-line Public Relations

• Results
• MC600 White Paper
• IAN Magazine
• Water World
• Oil Gas Journal
• Chemical Engineering
• US Tech Magazine
• Pollution Engineering
• Press Releases
• mini-G
• TS4000
• MC600
• S4000T
• Impact
• To date - 2 articles have been published in 7
  trade journals

47
How to do a Simple Demo of the HVS-Series
48
Feedback/Questions
THANK YOU
