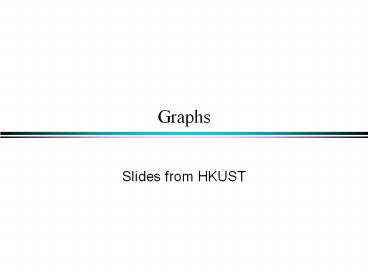

Title: Graphs


1
Graphs
COMP171 Fall 2006
  • Slides from HKUST

2
Graphs
  • Extremely useful tool in modeling problems
  • Consist of
  • Vertices
  • Edges

Vertices can beconsidered sitesor
locations. Edges represent connections.
D
E
C
A
F
B
Vertex
Edge
3
Application 1
Air flight system
  • Each vertex represents a city
  • Each edge represents a direct flight between two
    cities
  • A query on direct flights a query on whether
    an edge exists
  • A query on how to get to a location does a
    path exist from A to B
  • We can even associate costs to edges (weighted
    graphs), then ask what is the cheapest path from
    A to B

4
Application 2 The Minimum Spanning Tree
  • Weighted graphs the cost to connect A and B by a
    communication line is 7 units.
  • Can we build a communication network so that
    every two vertex are connected with the minimum
    costs?

5
Application 3
Wireless communication
  • Represented by a weighted complete graph (every
    two vertices are connected by an edge)
  • Each edge represents the Euclidean distance dij
    between two stations
  • Each station uses a certain power i to transmit
    messages. Given this power i, only a few nodes
    can be reached (bold edges). A station reachable
    by i then uses its own power to relay the message
    to other stations not reachable by i.
  • A typical wireless communication problem is how
    to broadcast between all stations such that they
    are all connected and the power consumption is
    minimized.

6
Definition
  • A graph G(V, E) consists a set of vertices, V,
    and a set of edges, E.
  • Each edge is a pair of (v, w), where v, w belongs
    to V
  • If the pair is unordered, the graph is
    undirected otherwise it is directed
  • Consider a simple graph where E is not a
    multiple set and it doesnt contain elements of
    the form x,x, i.e. no loop and no multiple
    edges.

An undirected graph
7
Terminology
  • If v1 and v2 are connected, they are said to be
    adjacent vertices
  • v1 and v2 are endpoints of the edge v1, v2
  • If an edge e is connected to v, then v is said to
    be incident on e. Also, the edge e is said to be
    incident on v.
  • The number of incident edges on v is the degree
    of v.
  • Basic theorem Let n be the number (size) of
    vertices and m be the number of edges, then

8
Path between Vertices
  • A path is a sequence of vertices (v0, v1, v2,
    vk) such that
  • For 0 i lt k, vi, vi1 is an edge
  • Note a path is allowed to go through the same
    vertex or the same edge any number of times!
  • The length of a path is the number of edges on
    the path
  • A closed path is a path with the same starting
    and ending vertex.

9
Types of paths
  • A path is simple if and only if it does not
    contain a vertex more than once.
  • A closed path is a cycle if and only if it has no
    repeated edges.
  • A graph is connected if there is a path between
    any two vertices.
  • A tree is graph that is connected and has no
    cycles.

10
Path Examples
Are these paths? Any cycles? What is the paths
length?
  1. a,c,f,e
  2. a,b,d,c,f,e
  3. a, c, d, b, d, c, f, e
  4. a,c,d,b,a
  5. a,c,f,e,b,d,c,a

11
Directed Graph
  • A graph is directed if direction is assigned to
    each edge.
  • Directed edges are denoted as arcs.
  • Arc is an ordered pair (u, v)
  • Recall for an undirected graph
  • An edge is denoted u,v, which actually
    corresponds to two arcs (u,v) and (v,u)

12
Indegree and Outdegree
  • Since the edges are directed, we need to consider
    the arcs coming in and going out
  • Thus, we define terms Indegree(v), and
    Outdegree(v)
  • Each arc(u,v) contributes count 1 to the
    outdegree of u and the indegree of v

13
Directed Acyclic Graph
  • A directed path is a sequence of vertices (v0,
    v1, . . . , vk)
  • Such that (vi, vi1) is an arc
  • A directed cycle is a directed path such that the
    first and last vertices are the same.
  • A directed graph is acyclic if it does not
    contain any directed cycles

14
Graph Examples
15
Example
Is it a DAG?
16
Directed Graphs Usage
  • Directed graphs are often used to represent
    order-dependent tasks
  • That is we cannot start a task before another
    task finishes
  • We can model this task dependent constraint using
    arcs
  • An arc (i,j) means task j cannot start until task
    i is finished
  • Clearly, for the system not to hang, the graph
    must be acyclic

j
Task j cannot start until task i is finished
i
17
University Example
  • CS departments course structure

104
180
171
151
221
342
252
211
251
271
M132
M111
201
231
272
361
381
303
343
341
327
334
336
362
332
Any directed cycles? How many indeg(171)? How
many outdeg(171)?
18
Topological Sort
  • Topological sort is an algorithm for a directed
    acyclic graph
  • Linearly order the vertices so that the linear
    order respects the ordering relations implied by
    the arcs

For example 0, 1, 2, 5, 9? 0, 4, 5, 9? 0, 6, 3,
7 ?
19
Topological Sort Algorithm
  • Observations
  • Starting point must have zero indegree
  • If it doesnt exist, the graph would not be
    acyclic
  • Algorithm
  • A vertex with zero indegree is a task that can
    start right away. So we can output it first in
    the linear order
  • If a vertex i is output, then its outgoing arcs
    (i, j) are no longer useful, since tasks j does
    not need to wait for i anymore- so remove all
    is outgoing arcs
  • With vertex i removed, the new graph is still a
    directed acyclic graph. So, repeat step 1-2
    until no vertex is left.

20
Graph Representation
  • Two popular computer representations of a graph.
    Both represent the vertex set and the edge set,
    but in different ways.
  • Adjacency Matrix
  • Use a 2D matrix to represent the graph
  • Adjacency List
  • Use a 1D array of linked lists

21
Adjacency Matrix
  • The graph G (V, E) can be represented by a
    table, or a matrix
  • M (aij)nn aij 1 iff (vi,
    vj) ?E,
  • assuming V v1, , vn.

22
Adjacency Matrix
  • 2D array A0..n-1, 0..n-1, where n is the number
    of vertices in the graph
  • Each row and column is indexed by the vertex id
  • e,g a0, b1, c2, d3, e4
  • Aij1 if there is an edge connecting vertices
    i and j otherwise, Aij0
  • The storage requirement is T(n2). It is not
    efficient if the graph has few edges. An
    adjacency matrix is an appropriate representation
    if the graph is dense ET(V2)
  • We can detect in O(1) time whether two vertices
    are connected.

23
Adjacency List
  • The graph G (V, E) can be represented by a list
    of vertices and a list of its adjacent vertices
    for each vertex.

Adjacent vertices for each vertex a c, d, e
b c a, e d a ,e e a, d, c
24
Adjacency List
  • If the graph is not dense, in other words,
    sparse, a better solution is an adjacency list
  • The adjacency list is an array A0..n-1 of
    lists, where n is the number of vertices in the
    graph.
  • Each array entry is indexed by the vertex id
  • Each list Ai stores the ids of the vertices
    adjacent to vertex i

25
Adjacency Matrix Example
0 1 2 3 4 5 6 7 8 9
0 0 0 0 0 0 0 0 0 1 0
1 0 0 1 1 0 0 0 1 0 1
2 0 1 0 0 1 0 0 0 1 0
3 0 1 0 0 1 1 0 0 0 0
4 0 0 1 1 0 0 0 0 0 0
5 0 0 0 1 0 0 1 0 0 0
6 0 0 0 0 0 1 0 1 0 0
7 0 1 0 0 0 0 1 0 0 0
8 1 0 1 0 0 0 0 0 0 1
9 0 1 0 0 0 0 0 0 1 0
26
Adjacency List Example
8
0
1
2
3
4
5
6
7
8
9
2 3 7 9
1 4 8
1 4 5
2 3
3 6
5 7
1 6
0 2 9
1 8
27
Storage of Adjacency List
  • The array takes up T(n) space
  • Define degree of v, deg(v), to be the number of
    edges incident to v. Then, the total space to
    store the graph is proportional to
  • An edge eu,v of the graph contributes a count
    of 1 to deg(u) and contributes a count 1 to
    deg(v)
  • Therefore, Svertex vdeg(v) 2m, where m is the
    total number of edges
  • In all, the adjacency list takes up T(nm) space
  • If m O(n2) (i.e. dense graphs), both adjacent
    matrix and adjacent lists use T(n2) space.
  • If m O(n), adjacent list outperform adjacent
    matrix
  • However, one cannot tell in O(1) time whether two
    vertices are connected

28
Adjacency List vs. Matrix
  • Adjacency List
  • More compact than adjacency matrices if graph has
    few edges
  • Requires more time to find if an edge exists
  • Adjacency Matrix
  • Always require n2 space
  • This can waste a lot of space if the number of
    edges are sparse
  • Can quickly find if an edge exists

29
Representations for Directed Graphs
  • The adjacency matrix and adjacency list can be
    used

30
Topological Sort, the algorithm
  • 1) Choose a vertex v of indegree 0 (what about
    there are several such vertices?) and output v
  • 2) Modify the indegree of all the successor of v
    by subtracting 1
  • 3) Repeat the above process until all vertices
    are output.

31
Topological Sort
Find all starting points
Reduce indegree(w)
Place new startvertices on the Q
32
Time Complexity of Topological Sorting (Using
Adjacency Lists)
  • We never visited a vertex more than one time
  • For each vertex, we had to examine all outgoing
    edges
  • S outdegree(v) m
  • This is summed over all vertices, not per vertex
  • So, our running time is exactly
  • O(n m)

How about the complexity using adjacency matrix?
33
Graph Traversal
  • Application example
  • Given a graph representation and a vertex s in
    the graph
  • Find all paths from s to other vertices
  • Two common graph traversal algorithms
  • Breadth-First Search (BFS)
  • Find the shortest paths in an unweighted graph
  • Depth-First Search (DFS)
  • Topological sort
  • Find strongly connected components

34
BFS and Shortest Path Problem
  • Given any source vertex s, BFS visits the other
    vertices at increasing distances away from s. In
    doing so, BFS discovers paths from s to other
    vertices for unweighted graphs.
  • What do we mean by distance? The number of
    edges on a path from s

Example
Consider svertex 1
Nodes at distance 1? 2, 3, 7, 9
Nodes at distance 2? 8, 6, 5, 4
Nodes at distance 3? 0
35
BFS Algorithm
// flag visited table
Why use queue? Need FIFO
36
Time Complexity of BFS(Using Adjacency List)
  • Assume adjacency list
  • n number of vertices m number of edges

O(n m)
Each vertex will enter Q at most once.
Each iteration takes time proportional to 1
deg(v).
37
Running Time
  • Recall Given a graph with m edges, what is the
    total degree?
  • The total running time of the while loop is
  • this is summing over all the iterations in
    the while loop!
  • See ds.soj.me for practice.

Svertex v deg(v) 2m
O( Svertex v (1 deg(v)) ) O(nm)
38
Time Complexity of BFS(Using Adjacency Matrix)
  • Assume adjacency matrix
  • n number of vertices m number of edges

O(n2)
Finding the adjacent vertices of v requires
checking all elements in the row. This takes
linear time O(n). Summing over all the n
iterations, the total running time is O(n2).
So, with adjacency matrix, BFS is O(n2)
independent of the number of edges m. With
adjacent lists, BFS is O(nm) if mO(n2) like in
a dense graph, O(nm)O(n2).
39
Dijkstras Shortest Path Algorithm(A Greedy
Algorithm)
  • Assume the weighted graph has no negative
    weights (Why?).
  • Single source shortest path problemfind all the
    shorted paths from source s to other vertices.
  • Basic idea list all the shortest paths from the
    source s
  • Dijkstras algorithm is a greedy algorithm, and
    the correctness of the algorithm can be proved by
    contradiction.
  • Time complexity O(V2).

40
Example
  • Ideas of the algorithm (Dijkstra) enumerate the
    shortest paths from the source to other vertices
    in increasing order.
  • Basic observations
  • If (s, u,..,v, w) is a shorted path from s to w,
    then (s,u,,v) must be a shortest path form s to
    v.
  • The shortest path from s to v should be the
    shortest one among those paths from s to v which
    only go through known shortest paths.
  • Method
  • On every vertex v maintain a pair (known,
    dist), known whether the shortest distance from
    the source s to v is known, dist the shortest
    distance from s through known vertices.
  • 1. To list the next shortest path, find
    the vertex v with smallest dist, and mark v as
    known.
  • 2. update labels for the successors of v.
  • 3. goto 1 until all the shortest paths
    are found.

41
Example
  • Method
  • Mark every vertex v with a pair (known,
    dist), known whether the shortest distance from
    the source s to v is known, dist the shortest
    distance from s through known vertices.
  • Starting with mark every vertex v with (F,
    w(s,v)), s with (T, 0).
  • The next shortest distance from s is the one with
    the smallest dist among vertices (F, dist), and
    mark that vertex v with T.
  • Update dist of those unknown vertices which are
    adjacent to v
  • Goto 2 until all vertices are known.

42
Dijkstras Algorithm
  • Dijkstra(G, s)
  • Input s is the source
  • Output mark every vertex with the shortest
    distance from s.
  • for every vertex v
  • set v (F, weight(s,v))
  • set s(T, 0)
  • while ( there is a vertex with (F, _))
  • find the vertex v with the smallest distv
    among (F, dist)
  • set v(T, distv)
  • for every w(F, dist) adjacent to v
  • if(distv weight(v,w) lt dist)
  • set w(F, distv weight(v,w))

Linear, but can be improved by using heaps.
Can you add more information to get the shortest
paths?
43
Running Time
  • If we use a vector to store dist information
    for all vertices, then finding the smallest value
    takes O(V) time, and the total updating takes
    O(E) time, and the running time is O(V2).
  • If we use a binary heap to store dist
    information, the finding the smallest takes
    O(logV) time and every updating also takes
    O(logV) time, so the total running time is
  • O(V) O(VlogV) O(ElogV)
  • O(ElogV).

44
Greedy algorithms
  • A greedy algorithm is used in optimization
    problems. It makes the local optimal choice at
    each stage with the hope of finding the global
    optimum.
  • Example 1. Make 87yuan using the fewest possible
    bills. Using greedy algorithm, one can choose
  • 50, 20, 10, 5, 2, and this is the optimal
    solution.
  • Example 2. Make 15 krons, where available bills
    are 1, 7 and 10.
  • Using greedy algorithm, the solution is 10,
    1,1,1,1,1.
  • The best solution is 7, 7, and 1.

45
Proving Its Correctness
  • The greedy approach leads to
  • simple and intuitive algorithms
  • efficient algorithms
  • But , it does not always lead to an optimal
    solution.
  • Since the greedy approach doesnt assure the
    optimality of the solution we have to analyze for
    each particular problem if the algorithm leads to
    an optimal solution.

46
Proving the correctness of the algorithm
  • We can prove that the distance recorded in
    distance is the length of the shortest path from
    source to v.
  • Prove when v is choosen and marked with (T,
    dist), dist is the shortest path from 0 to v .

distancexltdistancev And x must be in S
Notice that the assumption is the weight is
positive.
Red vertices are marked with T, x is the first
unknown vertex on the shortest path from 0 to v
47
Dijkstra
  • Shortest path algorithm paper
  • EWD hand writing notes
  • http//www.cs.utexas.edu/users/EWD/

48
Minimum Spanning Trees
  • Definition of minimum spanning trees for
    undirected, connected, weighted graphs.
  • Prims algorithm, a greedy algorithm.
  • Basic observation G(V,E), for any A ?V, if an
    edge e has the smallest weight connection A and
    V-A, then e is in a MST.
  • A local optimal choice is also a global optimal
    choice.

49
Prims Algorithm
  • Method
  • Build the MST by adding vertices and edges one
    by one staring with one vertex.
  • At some stage, let A be the set of the vertices
    that are already added, V-A be the set of the
    remaining vertices that are not added.
  • Find the smallest weighted edge e (u,v), that
    connects A and V-A, that is, e has the smallest
    weight among those edges with u?A and v? V-A.
  • Now add vertex v to A and edge (u,v) to the MST.
  • Repeat step 1 and 2 above until AV.

50
Prims Algorithm --An Example
  • 1. Starting from a node, 0
  • 2. Add a vertex v and an edge (0,v) which has a
    weight as small as possible

3. Add a vertex u such that an edge connecting u
and 0,v has a weight as small as possible
4. Repeat the process until all vertices are
added.
51
Finally
52
Prims Algorithm-the method
  • To be able to find the smallest weighted edge
    connecting A and V-A, on every vertex u? V-A,
    maintain the information what is the smallest
    weighted edge connecting u with A.
  • This information is easily initialized, then the
    smallest weighted edge connection A and V-A is
    easily found, finally, the information is easily
    maintained.

53
Prims Algorithm --Implementation
  • Method Mark every vertex v with (added, dist,
    neib) whether v is added in T and the current
    smallest edge weight connecting v with a vertex
    neib in T.
  • Starting with v(false, weight(s,v), s), s(true,
    0, s), i.e. T has one vertex s.
  • Find the vertex v with the smallest distv among
    those (false, dist, u).
  • Mark v with (true, distv, u).
  • Updating those (false, _, _)
  • for every w(false, distw, k)
    adjacent to v,
  • if (weight(v,w) lt distw)
  • set w(false,
    weight(v,w), v).
  • Repeat 2 until every vertex is marked with
    (true,_, _).

54
Prims Algorithm --Implementation
  • Use X to denote the set of nodes added in the
    tree, Dv (v?X) to denote the distance from v
    to X, Nv vs nearest neighbor in X.
  • 1. Starting with X 0 Dvweight0vNv0
  • 2. Repeat the action n-1 times
  • a) choose a vertex v?X such that Dv is the
    smallest weight
  • b) update X X Xv.
  • c) update Y Y Y(v,Nv)
  • d) update D for all w?X, if
    (weightvwltDw) then Dw weightvw and
    Nwv.

55
Prims Algorithm --Implementation
  • Intialization for all v
  • Xvflase X0true
  • Dvweight0v
  • Nv0
  • 2. Repeat the following action n-1 times
  • a) find the smallest Dv such that Xvfalse
  • b) Xvtrue
  • c) for all w such that (v,w)?E and Xwfalse,
  • if (weightvwltDw)
  • Dw weightvw
  • Nwv

56
Complexity
  • Running time O(V2E) O(V2 ).
  • One may improve the algorithm by using a heap to
    get the smallest connecting edge, and get
    O(ElogV VlogV) O(ElogV), which is
    good for sparse graphs.

57
DFS
  • Like preorder traversal for trees
  • DFS starting at some vertex v
  • visit v and continue to visit neighbors of v in
    a recursive pattern
  • To avoid cycles, a vertex is marked visited when
    it is visited.
  • Running time O(VE).

58
DFS Algorithm
RDFS is called once for every node.
Finding neighbours of v for matrix it is n, for
adjacency list it is degree(v).
Time complexity O(VE) if adjacency lists
are used.
59
Example
Adjacency List
Visited Table (T/F)
0
1
2
3
4
5
6
7
8
9
F
F
F
F
F
F
F
F
F
F
-
-
-
-
-
-
-
-
-
-
source
Pred
Initialize visited table (all False) Initialize
Pred to -1
60
DFS spanning Trees
  • Captures the structure of the recursive calls
  • when we visit a neighbor w of v, we add w as
    child of v
  • whenever DFS returns from a vertex v, we climb
    up in the tree from v to its parent

61
Summary
  • Graphs can be used to model real problems
  • Two typical graph representations matrix and
    adjacency lists
  • Graph algorithms, the methods, applications and
    complexities.
  • Topological sort
  • BFS and DFS
  • Dijkstras algorithm for single source shortest
    paths
  • Prims algorithm for minimum spanning trees
  • Greedy algorithms, a problem solving strategy.
  • Exercises see course web page for problem set 4.
  • The last programming assignment is posted.
Write a Comment
User Comments (0)
About PowerShow.com
