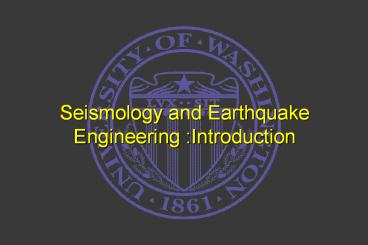

Seismology and Earthquake Engineering :Introduction

1
Seismology and Earthquake Engineering
Introduction
2
Engineering for Earthquakes
Earthquake
3
The Earth (outside)
4
The Earth (inside)
5
Convection
6
Convection
7
Plates
6 continental size 14 sub-continental size
8
Plates
White Political boundaries Yellow Plate
boundaries Red Epicenters
9
Plates
Based on continental shelves
10
Plates
11
Plates
12
Plates
13
Plate Boundaries
14
Spreading Ridge
15
Spreading Ridge
16
Spreading Ridge
17
Plates
18
Subduction Zone
19
Plates
20
Transform Boundaries
21
Faults
Main types
22
Faults
Main types
23
Faults
Main types
24
Basic Concepts of Seismology
Elastic rebound theory Plates are in continuous
motion Stresses and strains build up near
boundaries Strain energy stored in crust near
faults, then released Aseismic movement - slow
creep in ductile rock Seismic movement - rupture
of brittle rock
25
Basic Concepts of Seismology
Seismic Gaps
Loma Prieta Gap
San Francisco
San Juan Bautista
Portola Valley
Loma Prieta
Parkfield
1969-89 seismicity
26
Basic Concepts of Seismology
Seismic Gaps
Loma Prieta Gap
San Francisco
San Juan Bautista
Portola Valley
Loma Prieta
Parkfield
Loma Prieta earthquake and aftershocks
27
Basic Concepts of Seismology
Seismic Gaps
28
Basic Concepts of Seismology
Near-field effects
Fling
Rupture moving away from observer
Rupture moving toward observer
29
Basic Concepts of Seismology
Near-field effects
Fault parallel
Directivity
Fault normal
Fault normal accelerations exceed fault parallel
accelerations
30
Basic Concepts of Seismology
Earthquake size
Intensity - qualitative measure of observed
effects Modified Mercalli Intensity (MMI)
MMI IV During the day felt indoors by many,
outdoors by few at night some awakened dishes,
windows, doors disturbed walls make cracking
sound sensation like heavy truck striking
building standing motor cars rocked noticeably
31
Basic Concepts of Seismology
Earthquake size
Intensity - qualitative measure of observed
effects Modified Mercalli Intensity (MMI)
MMI IV During the day felt indoors by many,
outdoors by few at night some awakened dishes,
windows, doors disturbed walls make cracking
sound sensation like heavy truck striking
building standing motor cars rocked noticeably
MMI VII Everybody runs outdoors damage
negligible in buildings of good design and
construction, slight to moderate in well-built
structures, considerable in poorly built or badly
designed structures some chimneys broken
noticed by persons driving motor cars
32
Basic Concepts of Seismology
Earthquake size
Intensity - qualitative measure of observed
effects Modified Mercalli Intensity (MMI)
MMI IV During the day felt indoors by many,
outdoors by few at night some awakened dishes,
windows, doors disturbed walls make cracking
sound sensation like heavy truck striking
building standing motor cars rocked noticeably
MMI VII Everybody runs outdoors damage
negligible in buildings of good design and
construction, slight to moderate in well-built
structures, considerable in poorly built or badly
designed structures some chimneys broken
noticed by persons driving motor cars
MMI X Some well-built wooden structures
destroyed most masonry and frame structures
destroyed with foundations ground badly cracked
rails bent landslides considerable from river
banks and steep slopes shifted sand and mud
water splashed over banks
33
Basic Concepts of Seismology
Seismic waves
p-waves
Body waves
s-waves
Love waves
Surface waves
Rayleigh waves
34
Basic Concepts of Seismology
Earthquake size
Magnitude - quantitative measure of size of
event Several types Local magnitude Body wave
magnitude Surface wave magnitude
All based on instrumental measurements
35
Basic Concepts of Seismology
Earthquake size
Seismic moment - measure of work done by eq. Mo
m A D where m shear modulus of rock A
rupture area D average displacement over
rupture area Units F/L2 x L2 x L F x L
Work Energy
36
Basic Concepts of Seismology
Earthquake size
Magnitude saturation
37
Earthquake Size
38
Seismic Waves

• Arrives first
• Sometimes audible

• Shakes ground horizontally
• and vertically
• Wave damages structures

• Similar to S wave
• Moves ground horizontally

• Like rolling ocean wave
• Shakes ground vertically
• and horizontally

39
Seismic Waves
Strong motion seismograph
40
Seismic Waves
Triaxial accelerometers 3 components
Horizontal motions are very important
41
So What?

• Deaths and injuries

• Economic loss

42
Hall of Fame (famous earthquakes)
1906 San Francisco
43
Hall of Fame (famous earthquakes)
1964 Niigata
44
Hall of Fame (famous earthquakes)
1964 Alaska
45
Hall of Fame (famous earthquakes)
1960 Chile
46
Hall of Fame (famous earthquakes)
1971 San Fernando
47
Hall of Fame (famous earthquakes)
1985 Mexico City
48
Hall of Fame (famous earthquakes)
1989 Loma Prieta
49
Hall of Fame (famous earthquakes)
1994 Northridge
50
Hall of Fame (famous earthquakes)
1995 Kobe
51
Hall of Fame (famous earthquakes)
1999 Chi Chi (Taiwan)
