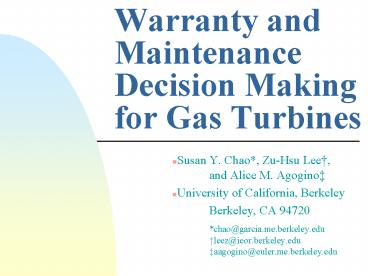

Warranty and Maintenance Decision Making for Gas Turbines

1
Warranty and Maintenance Decision Making for Gas
Turbines

• Susan Y. Chao, Zu-Hsu Lee, and Alice M.
  Agogino
• University of California, Berkeley
• Berkeley, CA 94720
• chao_at_garcia.me.berkeley.edu leez_at_ieor.berkeley.
  edu aagogino_at_euler.me.berkeley.edu

2
Acknowledgments

• Many thanks to General Electric Corporate
  Research and Development and the University of
  California MICRO Program.
• Special thanks to Louis Schick and Mahesh
  Morjaria of General Electric Corporate Research
  and Development for their guidance and
  intellectual input.

3
Gas Turbine Basics

• Complex system large number of parts subject to
  performance degradation, malfunction, or failure.
• Turbine, combustion system, hot-gas path
  equipment, control devices, fuel metering, etc.
• Condition information available from operators,
  sensors, inspections.

4
Gas Turbine Maintenance

• Enormous number of candidates for maintenance, so
  ideally focus on most cost-effective items.
• Maintenance planning (optimized, heuristic, ad
  hoc) determines
• Inspection activities
• Maintenance activities
• Intervals between inspection and maintenance
  activities.

5
Maintenance Planning
On-line Statistical Analysis Expert Subjective
Probabilities On-line Machine Learning Knowledge
Extraction Diagnosis
Sensor Fusion
Maintenance Planning
Sensor Validation
Sensor Readings Inspection Results
Repair or Replace Parts Order Inspections
6
Gas Turbine Warranty

• Warranty/service contract for gas turbine would
  transfer all necessary maintenance and repair
  responsibilities to the manufacturer for the life
  of the warranty.
• Fixed warranty period determined by manufacturer.
• Gas turbine customer pays fixed price for
  warranty.

7
4 Key Issues

• Types of maintenance and sensing activities
  (current focus)
• Price of a gas turbine and service contract
• Length of service contract period
• Number of gas turbines for consumer

8
Consumer Profit Maximization

• How many gas turbines should the customer
  purchase, if any?
• Maximize Rj (nj,w)(p1 p2) nj - n (w/m)
  shutdown loss

9
Producer Profit Maximization

• How much should the manufacturer charge for a gas
  turbine engine and warranty?
• How long should the warranty period be?
• Maximize (p1 p2 - m) Snj
• p1,p2,w
• Subject To mF0 (xt, s, ts) .

10
Optimal Maintenance

• What types of maintenance and sensing activities
  should the manufacturer pursue? How often?
• Derive an optimal maintenance policy via
  stochastic dynamic programming to minimize
  maintenance costs, given a fixed warranty period.
• Solve for F0 (xt, s, ts).

11
Gas Turbine Water Wash Maintenance

• Focus on a specific area of gas turbine
  maintenance compressor water washing.
• Compressor degradation results from contaminants
  (moisture, oil, dirt, etc.), erosion, and blade
  damage.
• Maintenance activities scheduled to minimize
  expected maintenance cost while incurring minimum
  profit loss caused by efficiency degradation.

12
Compressor Efficiency

• Motivation if fuel is 3/KWHr, then 1 loss of
  efficiency on a 100MW turbine 30/hr or
  263K/yr.
• On-line washing with or without detergents
  (previously nutshells) relatively inexpensive
  can improve efficiency 1.
• Off-line washing more expensive, time consuming
  can improve efficiency 2-3.

13
Decision Alternatives
14
Influence Diagram
Current Engine State, s
Total Maintenance Cost, v
Decision, d

Average Efficiency, xt
Last Measured Engine State, s
15
Stochastic Dynamic Programming

• Computes minimum expected costs backwards, period
  by period.
• Final solution gives expected minimum maintenance
  cost, which can be used to determine appropriate
  warranty price.
• Given engine status information for any period,
  model chooses optimal decision for that period.

16
Stochastic Dynamic Programming Assumptions

• Problem divided into periods, each ending with a
  decision.
• Finite number of possible states associated with
  each period.
• Decision and engine state for any period
  determine likelihood of transition to next state.
• Given current state, optimal decision for
  subsequent states does not depend on previous
  decisions or states.

17
Other Assumptions

• Compressor working performance is main
  determinant of engine efficiency level.
• Working efficiency and engine state can be
  represented as discrete variables.
• Current efficiency can be derived from
  temperature and pressure statistics.
• Intra-period efficiency transition probability
  depends on maintenance decision and engine state.

18
Dynamic Program Constraints
19
Dynamic Program Constraints
20
Dynamic Program Constraints

• Ft (xt, s, ts) min c1, c2, c3, c7

21
Dynamic Program Simulation

• User/Other Inputs
• Service Contract period
• Cost of each decision
• Losses incurred at each efficiency level
• Transition probabilities for state and efficiency
  changes

• Program Outputs
• Expected minimum maintenance cost
• Optimal action for any period

22
Turbine Performance Degradation Curves
Source GE
23
Turbine Performance Degradation Curves
Source GE
24
Online Water Wash Effects
Source GE
25
Online Water Wash Effects
Source GE
26
Efficiency Transition Probabilities
27
Conclusions

• Analyzed maintenance and warranty decision making
  for gas turbines used in power plants.
• Described and modeled economic issues related to
  warranty.
• Developed a dynamic programming approach to
  optimize maintenance activities and warranty
  period length suited in particular to compressor
  maintenance.

28
Future Research

• Sensitivity analysis of all user-input costs .
• Sensitivity analysis of the efficiency and state
  transition probabilities.
