DS3 T2: Data Handling, Control and Distributed Computing

1

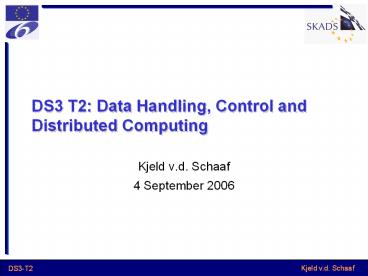

DS3 T2 Data Handling, Control and Distributed
Computing

• Kjeld v.d. Schaaf
• 4 September 2006

2
DS3T2 progress report

• Data Handling, Control and Distributed Computing
• study the optimal signal handling and data
  processing issues
• will address the optimal distribution of
  processing tasks and the most cost-effective
  technology for delivering it
• bring in the LOFAR system design knowledge and
  experience
• Objectives
• System level architectural design of data
  processing
• Technology explorationand technology road
  mapping on processing resources
• Software modelling and architectural design

3
Progress so far

• Chip technology
• Scope signal processing (station) and data
  processing (central/correlator)
• Analysed and modelled processing tasks in SKA
  telescope
• formulated key performance indicators and design
  drivers
• Considering custom full ASIC, based on existing
  IP blocks and system components
• Evaluate performance of current high-end chips
  and extensions
• Presented first results at future correlator
  workshop
• Research collaboration with IBM learn the real
  design issues

4
Progress so far (2)

• Chip technology and correlators design approach
• Special attention to the LOFAR correlator design
• Software centric architecture
• Very short development time (5 man-year)
• Short development period (2 years)
• Due to large knowledge and product buy-in
• Compilers, debuggers
• Communication library, control/timing protocols
• Flexibility and extendibility
• Presented at correlator workshop
• Reference LOFAR documentation and papers
• Approach to be included in software system design

5
Progress so far (3)

• Software architectural design
• In context of SKA computing TF
• Control system
• Extensions of LOFAR and KAT,xNTD designs
• Scaling to many-elements stations (esp. AA and
  FPA)
• Draft SKA memo
• Multi-observations
• Explicit observation controll components
• Mapping onto instrument resources
• Many contraints on automated scheduler
• Analysed and algorithms identified
• Proto types available in LOFAR project

6
Multiple observations control

• Principle of mapping multiple (simultaneous)
  observations onto the instrument resources

• Full mappping of all observation control nodes on
  the physical instrument control tree

7
Scheduling multiple observations

• Example scheduler wth 8 simultaneous observations

• Operational modes and sky constraints

8
Progress so far (4)

• Hybrid systems
• Goal learn about SW/HW trade-offs
• Sotfware centric FPGA approach
• Integrate in CEPFrame platform
• Study soft/hard realtime co-operation
• Two proto type systems delivered
• Third proto will be correlator block demonstrator
  integrated in LOFAR/CEPFrame

9
Next steps

• Experience input from LOFAR project ongoing
• Major activities next year
• Reference architectural models (system and
  software)
• Software cost models
• Next generation chip technology and industry link
• Deliverables evaluation reports, reference
  designs, whitepaper input

10
Next steps (2)

• Software framework for HPC stream processing
• CEPFrame and AstroStream
• Basis of LOFAR CEP system
• Extensions for extra functionality (automated
  mapping, loops, dynamic modellling)
• Much more parallellism
