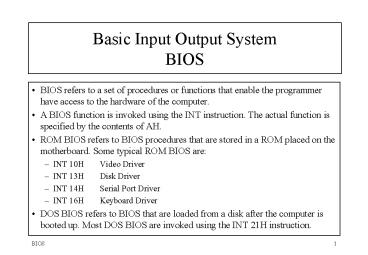

Basic Input Output System BIOS

1
Basic Input Output SystemBIOS

• BIOS refers to a set of procedures or functions
  that enable the programmer have access to the
  hardware of the computer.
• A BIOS function is invoked using the INT
  instruction. The actual function is specified by
  the contents of AH.
• ROM BIOS refers to BIOS procedures that are
  stored in a ROM placed on the motherboard. Some
  typical ROM BIOS are
• INT 10H Video Driver
• INT 13H Disk Driver
• INT 14H Serial Port Driver
• INT 16H Keyboard Driver
• DOS BIOS refers to BIOS that are loaded from a
  disk after the computer is booted up. Most DOS
  BIOS are invoked using the INT 21H instruction.

2
Character Input from keyboard with Echo

• INT 21H Function 01H
• Call With AH 01H
• Returns AL ASCII character pressed.
• Note If AL is zero, then a function key is
  pressed.
• Example The following macro reads a one digit
  number from the keyboard and returns the
  corresponding binary value in AL.
• GET1 MACRO
• MOV AH,01 Specify function 01
• INT 21H Call DOS BIOS
• AND AL,0FH Convert from ASCII to binary
• GET1 ENDM

3
Display Character on Standard Output Device

• INT 21H Function 02H
• Call With AH 02H
• DL ASCII code of character to be displayed
• Returns AL ASCII code of character
  displayed
• Note Standard output device is normally the
  monitor.
• Example The following macro displays a one digit
  number on the screen. The number is passed in
  DL as a binary number.
• DSP1 MACRO
• OR DL,30H Convert from binary to ASCII
• MOV AH,02 Specify function 02
• INT 21H Call DOS BIOS
• DSP1 ENDM

4
Display a Character String

• INT 21H Function 09H
• Call With AH 09H
• DSDX SegmentOffset address of the string.
• Returns All registers unchanged.
• Note Displays a character string up to the
  first occurrence of the dollar sign "".
• Example The following macro displays the
  character string MSG on the screen.
• DMSG MACRO MSG
• MOV DX, Offset MSG Point to MSG
• MOV AH,09 Specify function 09
• INT 21H Call DOS BIOS
• DMSG ENDM

5
Buffered Keyboard Input

• INT 21H Function 0AH
• Call With AH 0AH
• DSDX SegmentOffset address of the buffer
• The first byte in the buffer should be loaded
  with the size of the buffer, i.e. the maximum
  number of characters to be input.
• Returns All registers unchanged.
• The second byte in the buffer is equal to the
  number of characters entered.
• The characters entered are stored in the
  buffer starting from the third byte.
• Note The functions ends if the user has typed
  in a number of characters equal to the first
  value in the buffer, or if the user has pressed
  the Enter key.

6
Buffered Keyboard Input- Example

• The following procedure prompts the user to type
  in a text up to 30 characters long. The text
  entered is stored in the buffer BUF1. The
  procedure uses the DSPM macro of the previous
  example.
• ORG 100H
• MSG1 DB Type in a text up to 30 characters
  long, 0AH, 0DH,
• BUF1 DB 30, 00, 30 DUP(?)
• MAIN PROC NEAR
• DSPM MSG1 Display MSG1
• MOV DX, Offset BUF1 Point to BUF1
• MOV AH,0AH Specify function 0A
• INT 21H Call DOS BIOS
• RET
• MAIN ENDP

7
ASCII Codes

• ASCII code is a standard 8-bit binary code for
  alphanumeric characters.
• It defines
• a group of control characters (00H to 20H and 7FH
  for Delete)
• a group of printable characters (21H to 7EH)
• a group of special graphics or multilingual
  characters (80H to FFH)

ASCII Control Characters

• 00 NUL
• 01 SOH
• 02 STX
• 03 ETX
• 04 EOT
• 05 ENQ
• 06 ACK
• 07 BEL

08 BS 09 HT 0A LF 0B VT 0C FF 0D
CR 0E SO 0F SI
10 DLE 11 DC1 12 DC2 13 DC3 14 DC4
15 NAK 16 SYN 17 ETB
18 CAN 19 EM 1A SUB 1B ESC 1C FS 1D
GS 1E RS 1F US
8
ASCII Codes - Printable Characters

• 20 Space
• 21 !
• 22
• 23
• 24
• 25
• 26
• 27
• 28 (
• 29 )
• 2A
• 2B
• 2C ,
• 2D -
• 2E .
• 2F /

30 0 31 1 32 2 33 3 34 4 35 5 36
6 37 7 38 8 39 9 3A 3B 3C lt 3D
3E gt 3F ?
40 _at_ 41 A 42 B 43 C 44 D 45 E 46
F 47 G 48 H 49 I 4A J 4B K 4C L 4D
M 4E N 4F O
60 61 a 62 b 63 c 64 d 65 e 66
f 67 g 68 h 69 i 6A j 6B k 6C l 6D
m 6E n 6F o
70 p 71 q 72 r 73 s 74 t 75 u 76
v 77 w 78 x 79 y 7A z 7B 7C 7D
7E 7F Del
50 P 51 Q 52 R 53 S 54 T 55 U 56
V 57 W 58 X 59 Y 5A Z 5B 5C \ 5D
5E 5F _
