Title: LIQUID-LIQUID EXTRACTIONS


1

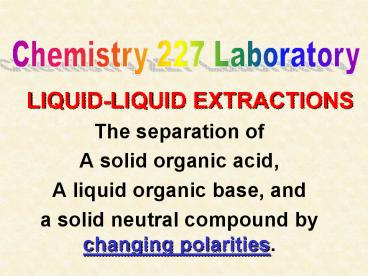

LIQUID-LIQUID EXTRACTIONS
Chemistry 227 Laboratory
  • The separation of
  • A solid organic acid,
  • A liquid organic base, and
  • a solid neutral compound by changing polarities.

2
Important Concepts
  • What dya mean POLAR??

3
Some important Acid-Base Concepts
4
Preparation of the mixture
  • In about 50 mLs of methylene chloride, dissolve
    2-3 g of benzoic acid, 10-15 mLs of aniline, and
    4-5 g of p-dichlorobenzene.

5
Preparation of the extraction solvents
  • Prepare about 50 grams each of
  • 10 HCl and 10 NaOH as shown above.

6
PART A- Separation of the Acid
  • Provide a separatory funnel, the mixture, and the
    10 NaOH

7
Be sure your stopcock is assembled properly.
  • Tighten the blue retaining nut.
  • Test for leaks with a bit of water.

8
Transfer the mixture into the separatory funnel
  • Add about 15mLs of 10 NaOH . . .
  • It will form a separate UPPER layer

9
Gently rock the funnel back and forth to agitate
the mixture.
  • Open the stopcock occasionally to release the
    pressure.

10
Draw off the lower organic layer.
  • It contains the aniline and the
  • p-dichlorobenzene in CH2Cl2.

11
Pour the remaining aqueous layer into a vessel
labeled NaOH Extracts
  • Repeat the extraction twice more, with 10 NaOH.
  • Finally, wash with 10 mLs of water, combining all
    four aqueous layers.

12
PART B Recovery of the free acid.
  • Add conc HCl until Congo Red paper turns DARK
    BLUE or Alkacid paper turns PURPLE. .
  • STIR THOROUGHLY BEFORE TESTING!
  • The acid separates as a white solid!

13
Collect the crude acid on Buchner w/ suction.
  • Do not purify the acid! Next years class will
    recrystallize it.

14
Part C- Separation of the base.
  • Transfer the organic layer back into the
    separatory funnel.

15
Add about 15 mLs of 10 HCl.
  • The aqueous acid forms the upper layer. Provide a
    vessel labeled HCl Extracts

16
Gently rock the funnel back and forth to agitate
the mixture.
  • Open the stopcock occasionally to release the
    pressure.

17
Draw off the lower, organic layer.
  • It contains the neutral p-dichlorobenzene
    dissolved in methylene chloride.

18
Pour the remaining aqueous layer into a vessel
labeled HCl Extracts.
  • Repeat the extraction twice more, with 10 HCl.
  • Finally, wash with 10 mLs of water, combining all
    four aqueous layers.

19
Part E- Separation of the neutral compound.
  • Pour the organic layer into a flask that can be
    stoppered. It is the
  • p-dichlorobenzene dissolved in wet methylene
    chloride.

20
Add 1-2 g of anhydous magnesium sulfate stopper
the flask and swirl the contents occasionally.
  • Meanwhile, proceed with Part D, the Recovery of
    the Free base and the back extraction.
  • Read Zubrick, p. 135!

21
Part D- Recovery of the base.
  • Add 50 NaOH until red (pink) litmus paper
  • or alkacid paper turns BLUE.
  • STIR and TEST with a stirring rod.
  • The aniline separates as an oily upper layer.

22
THE BACK EXTRACTION(Zubrick, p. 135)
  • Transfer the aniline mixture back into the
    separatory funnel.

23
NOTE that the aniline is the upper layer.
  • Obtain about 45-50 mLs of methylene chloride.

24
Transfer 15-20 mLs of methylene chloride into the
funnel
  • The methylene chloride with the aniline NOW FORMS
    THE LOWER LAYER.

25
Gently rock the funnel back and forth to agitate
the mixture
  • Open the stopcock occasionally to release the
    pressure.

26
Draw off the lower organic layer of aniline in
methylene chloride. Put the upper, aqueous layer
back into the sep funnel.
  • Extract the aqueous layer 2 3 more times with
    small portions of methylene chloride.

27
To the combined extracts of wet methylene
chloride, add 1-2 g of anhydrous magnesium
sulfate.
  • Stopper the flask tightly, and swirl the contents
    occasionally. Prepare to perform a flash
    evaporation . . .

28
At this point, you should be able to account for
the following items.
  • If you have all three of the above items
    everything else can be discarded.
  • Prepare for the FLASH EVAPORATION.
