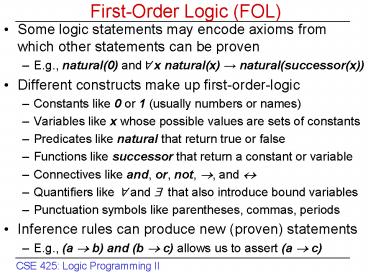

First-Order Logic (FOL)

1
First-Order Logic (FOL)

• Some logic statements may encode axioms from
  which other statements can be proven
• E.g., natural(0) and? x natural(x) ?
  natural(successor(x))
• Different constructs make up first-order-logic
• Constants like 0 or 1 (usually numbers or names)
• Variables like x whose possible values are sets
  of constants
• Predicates like natural that return true or false
• Functions like successor that return a constant
  or variable
• Connectives like and, or, not, ?, and ?
• Quantifiers like ? and ? that also introduce
  bound variables
• Punctuation symbols like parentheses, commas,
  periods
• Inference rules can produce new (proven)
  statements
• E.g., (a ? b) and (b ? c) allows us to assert (a
  ? c)

2
Horn Clauses

• A restricted form of first-order-logic
• Statements are of the form (a ? b ? c) ? d
• Equivalent to a? b ? c ? d
• d is the head of the clause
• (a ? b ? c) is the body of the clause
• a and b and c and d are predicates of arbitrary
  arity (they each may take 0 or more arguments and
  return a Boolean result), e.g., true,
  isEnrolled(alice), parent(X, Y), etc.
• Axioms or facts
• Written in the form ? d (or just d )
• Procedural interpretation of Horn Clauses
• If you have the body of a clause, produce its
  head
• Motivates use of the resolution inference rule

3
Unification

• Given two clauses that potentially could be
  matched but in which variable naming/binding
  isnt the same
• Predicates, e.g., in425(alice) and in425(X), can
  be unified (matched) under substitution, e.g.,
  alice/X (alice for X) where alice is a constant
  and X is a variable
• Each such substitution then must be remembered
  for all occurrences of that variable within the
  horn clauses being considered (e.g., inputs and
  outputs to a resolution step)
• Rules for transforming/matching statements
• Can rename variables (variable substitution) as
  in X/Y
• Can bind values (constant substitution) as in
  alice/X
• Cannot modify constants like alice

4
Resolution

• Straightforward inference rule for Horn clauses
• Match existing facts to the terms in the body of
  a clause
• If all are matched (unified), assert the head of
  that clause
• E.g., in425(alice) and in425(X) ? isEnrolled(X)
• allow assertion of isEnrolled(alice)
• Can also use resolution to evaluate queries
• Written as the body of a clause
• If all of the terms in it can be matched, it is
  proven true (a good example of the idea of a
  deductive database since it then can be added to
  the set of available statements)

5
Execution Order

• Resolution in Prolog uses a depth-first search
  strategy
• Replaces goals left-to-right
• Works through database top-to-bottom
• Sub-goals are considered as soon as possible
• Whenever failure occurs, Prolog backtracks to
  continue
• Can exploit this behavior to cause iteration
• E.g., to do repetitive searches, show all
  answers, etc.
• Built-in predicate fail forces backtracking
• Watch out for unbounded recursion
• E.g., need to be sure search will progress to
  termination

6
Some Problems with Logic Programming

• Occur-check problem
• A unification algorithm does not check whether a
  term that is being unified with a variable
  contains that variable itself
• Can lead to non-progressing iteration (which does
  not halt)
• Negation as failure (and vice versa)
• Absence of proof is not proof of absence (but
  negation can make it appear that way),
  backtracking may release bindings
• Expressive power of Horn clauses is limited
• E.g., cannot express existential quantification
  as in ? x p(x)
• Problems involving control information
• Order of clauses (and statements) affects
  evaluation order
• In terms of pure logic this does not matter
• For logic programming this impacts progress,
  termination

7
Todays Studio Exercises

• Well continue looking at logic programming
• Building up to simple Horn clause evaluation
• Lab 3 will use unification and resolution to
  produce new Horn clauses from existing ones
• Todays exercises are again in C
• Continuing to build on the examples from last
  time
• When done, please email your answers to the
  studio exercises to the cse425_at_seas.wustl.edu
  course account, with subject Logic Programming
  Studio II
