Unit 16 Inductance in AC Circuits

1
Unit 16 Inductance in AC Circuits

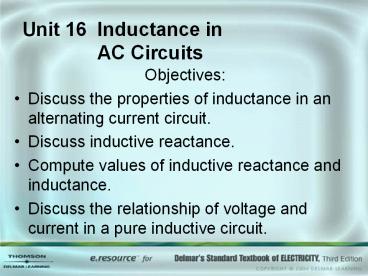

• Objectives
• Discuss the properties of inductance in an
  alternating current circuit.
• Discuss inductive reactance.
• Compute values of inductive reactance and
  inductance.
• Discuss the relationship of voltage and current
  in a pure inductive circuit.

2
Unit 16 Inductance in AC Circuits

• Objectives
• Be able to compute values for inductors connected
  in series or parallel.
• Discuss reactive power (VARs).

3
Unit 16 Inductance in AC Circuits

• A continually changing magnetic field induces a
  voltage into any conductor.

4
Unit 16 Inductance in AC Circuits

• As current flow increases through a coil, a
  magnetic field is created around the coil.

5
Unit 16 Inductance in AC Circuits

• As current flow decreases through a coil, the
  magnetic field collapses.

6
Unit 16 Inductance in AC Circuits

• The applied voltage and induced voltage are 180
  out of phase.

7
Unit 16 Inductance in AC Circuits

• Inductive reactance is the current-limiting
  property of an inductor.
• The inductive reactance symbol is XL .
• The unit of measurement is in ohms, just like
  resistance, and Ohms law formulas can be used.

8
Unit 16 Inductance in AC Circuits

• Inductive Reactance
• XL 2pfL
• XL inductive reactance
• 2 a constant
• p 3.1416
• F frequency in hertz (Hz)
• L inductance in henrys (H)

9
Unit 16 Inductance in AC Circuits

• Coils with turns close together produce more
  inductance than coils with turns far apart.

10
Unit 16 Inductance in AC Circuits

• Three factors that determine induced voltage
• 1. The number of turns of wire.
• 2. The strength of the magnetic field.
• 3. The speed of the cutting action.

11
Unit 16 Inductance in AC Circuits

• Circuit current is limited by inductive
  reactance.
• XL 2pfL 377 x .8 301.6 ?
• I E / XL 120 V / 301.594 ? 0.398 A

12
Unit 16 Inductance in AC Circuits

• Inductors connected in series.
• LT L1 L2 L3
• XLT XL1 XL2 XL3

13
Unit 16 Inductance in AC Circuits

• Inductors connected in parallel.
• 1/LT 1/L1 1/L2 1/L3
• 1/XLT 1/XL1 1/XL2 1/XL3

14
Unit 16 Inductance in AC Circuits

• In a pure inductive circuit, the current lags the
  applied voltage by 90.

15
Unit 16 Inductance in AC Circuits

• Reactive Power
• VARs EL x IL
• VARs EL2 / XL
• VARs IL2 x XL
• EL voltage applied to an inductor
• IL current flow through an inductor
• XL inductive reactance

16
Unit 16 Inductance in AC Circuits

• Review
• Induced voltage is proportional to the rate of
  change of current.
• Induced voltage is always opposite in polarity to
  the applied voltage.
• Inductive reactance is a countervoltage that
  limits the flow of current, as does resistance.

17
Unit 16 Inductance in AC Circuits

• Review
• Inductive reactance is measured in ohms.
• Inductive reactance is proportional to the
  inductance of the coil and the frequency of the
  line.
• Inductive reactance is symbolized by XL.
• Inductance is measured in henrys (H) and is
  symbolized by the letter L.

18
Unit 16 Inductance in AC Circuits

• Review
• When inductors are connected in series, the total
  inductance is equal to the sum of all the
  inductors.
• When inductors are connected in parallel, the
  reciprocal of the total inductance is equal to
  the sum of the reciprocals of all the inductors.

19
Unit 16 Inductance in AC Circuits

• Review
• The current lags the applied voltage by 90 in a
  pure inductive circuit.
• Reactive power is measured in VARs.
