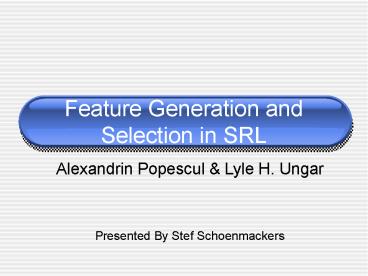

Feature Generation and Selection in SRL

1
Feature Generation and Selection in SRL

• Alexandrin Popescul Lyle H. Ungar
• Presented By Stef Schoenmackers

2
Overview

• Structural Generalized Linear Regression (SGLR)
  Overview
• Design Motivations
• Experiments
• Conclusions

3
SGLR Overview

• Adds statistical methods to ILP
• SQL as the logical language
• Generalized Linear Regression as statistical
  method
• Uses clustering to generate new relations
• Builds discriminative models
• Targeted at large problems where generative
  models impossible
• Integrates feature generation and problem modeling

4
SGLR Loop
5
SGLR Method

• Clusters data and adds clusters as new relations
• Searches the space of SQL query refinements
• Features are numerical SQL aggregates
• Test feature with statistical measure (e.g. AIC,
  BIC)
• Add only significantly predictive features
• Examine each feature only once
• Use current set of features to guide search

6
Overview

• Structural Generalized Linear Regression (SGLR)
  Overview
• Design Motivations
• Experiments
• Conclusions

7
SQL Motivation

• Most of the worlds data is in relational
  databases
• Can exploit schema and meta-information
• SQL uses a fairly expressive language
• Non-recursive first-order logic formulas
• Relational DBs have been studied and optimized
  for decades, so should be more scalable than
  other alternatives

8
Clustering Motivation

• Dimensionality reduction
• Clusters are added as relations (new first-class
  concepts)
• Increases expressivity of the language describing
  patterns in the data
• Can lead to a more rapid discovery of predictive
  features
• Done as a pre-processing step
• cost(clustering) ltlt cost(feature search)

9
Aggregation Motivation

• Summarizes the information in a table into scalar
  values usable by a statistical model
• average, max, min, count, average, empty/exists
  (0/1)
• Exploits database work into making them efficient
• Provides a richer space of features to choose
  from

10
Dynamic Feature Generation

• Most features do not provide useful information
• In large domains, feature generation is
  expensive, and precomputing all possible features
  is far too time consuming
• Solution Use a smarter search strategy and
  dynamically generate features. Let the features
  already selected influence which features are
  added
• Focuses only on the promising areas in the search
  space

11
Feature Streams

• Put features into different evaluation queues
• Choose next feature from the best stream
• If feature in multiple streams, only evaluate
  once
• Stream design can use prior knowledge/bias

12
Refinement Graphs (in ILP)

• Start with most general rule, and refines it to
  produce more specific clauses
• Single variable substitution
• Add predicate involving 1 existing variables
• Uses top-down breadth-first search to find the
  most general rule that covers only positive
  examples
• Performs poorly in noisy domains

13
Refinement Graphs (in SGLR)

• Adds one relation to a query and expands it into
  all possible configurations of equality
  conditions of new attributes with a new or old
  attribute
• Contains at least one equality condition between
  a new and old attribute
• Any attribute can be set to a constant
• High-level variable typing/classes are enforced
• Not all refinements are most general, but
  simplifies pruning of equivalent subspaces
  (accounts only for the type and number of
  relations joined in a query)

14
Example Refinement Graph
Query(d)
Cites(d,d1)
Author_of(d, a)
Word_count(d, w, int)
Author_of(d, aSmith)
Cites(d,d1),Cites(d1,d2)
DB Tables
Cites(d,d1), Author_of(d1, a)
Cites(d,d1), Author_of(d1, aDomingos)
15
Overview

• Structural Generalized Linear Regression (SGLR)
  Overview
• Design Motivations
• Experiments
• Conclusions

16
Experiments

• Used CiteSeer data
• Citation(doc1, doc2), Author(doc, person),
  PublishedIn(doc, venue), HasWord(doc,word)
• 60k Docs, 131k Authors, 173k Citations, 6.8M
  Words
• Two Tasks
• Predict the publication venue
• Predict existence of a citation

17
Experiments

• Cluster all many-to-many relations
• K-means
• Added 6 new relations
• Use logistic regression for prediction
• BFS of search space
• 5k/5k- examples for venue prediction
• 2.5k/2.5k- examples for citation prediction

18
Results
Venue (87.2)
Citation (93.1)
19
Dynamic Feature Generation

• Query expressions generated Breadth-First
• Baseline puts all queries into one queue
• Dynamic strategy enqueues queries into separate
  streams
• Stream 1 exists and count over table
• Stream 2 other aggregates (counts of unique
  elements in individual columns)
• Chooses next feature from stream where
  (featuresAdded1)/(featuresTried1) is max
• Stop when a stream is empty

20
Results
Venue
No Clusters
Clusters
Citation
21
Time Results
Venue
No Clusters
Clusters
Citation
22
Domain Independent Learning

• Most citation prediction features are
  research-area generic
• Can we train a model for one area and test on
  another?

23
Domain Independent Results

• Used KDD-Cup 2003 data (High Energy Physics
  papers in arXiv)

Train On Test On Accuracy
CiteSeer arXiv 92.9
CiteSeer CiteSeer 92.6
arXiv arXiv 96.0
24
Conclusions

• Cluster-based features add expressivity, and
  apply to any domain or SRL method
• Generating queries dynamically can reduce search
  time and increase accuracy

25
Questions?
